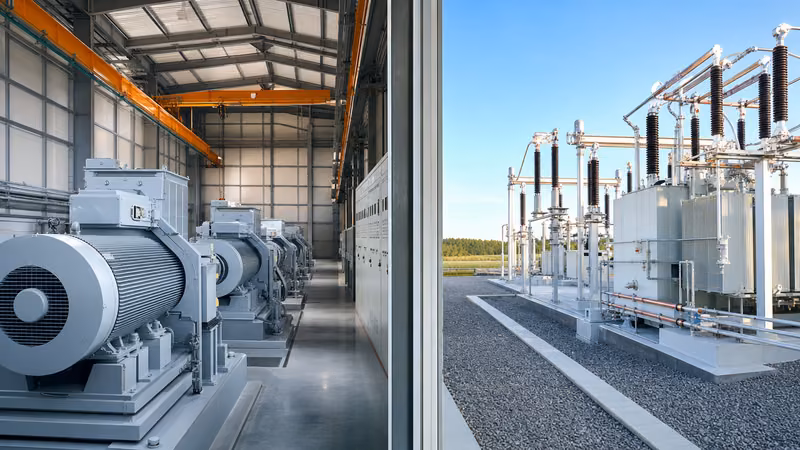

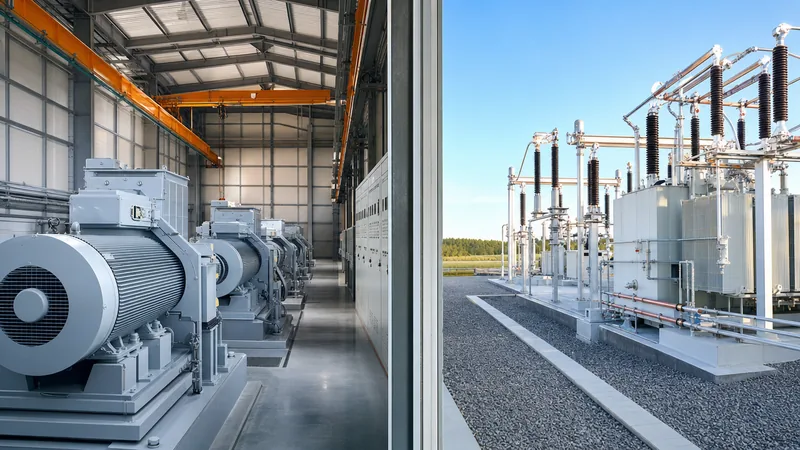

Key takeaways
- Mechanical storage of energy accounts for over 90 percent of global installed grid storage capacity, dominated by pumped storage hydropower.
- Flywheel mechanical storage provides rapid frequency response within sub-second timescales, achieving round-trip electrical efficiencies between 85 and 92 percent.
- Compressed air energy storage systems require thermal management to mitigate round-trip efficiency losses caused by adiabatic heating, targeting 60 to 75 percent efficiency in modern advanced adiabatic designs.
- Gravity-based mechanical storage provides long-duration energy discharge without chemical cell degradation, retaining 100 percent nominal capacity across multi-decade operational lifespans.
- Interfacing mechanical storage systems with utility networks demands heavy-duty medium-voltage switchgear, dedicated step-up transformers, and robust grid synchronisation compliant with IEEE 1547 and IEC 61850.
Quick answer: The mechanical storage of energy involves converting electrical power into potential or kinetic energy, storing it physically, and re-converting it to electricity via rotating machinery when required by the grid. Key technologies include pumped storage hydropower (PSH), compressed air energy storage (CAES), flywheels, and solid-mass gravity systems.
As power grids absorb escalating penetrations of intermittent renewable generation, large-scale energy reserves are essential to maintain system inertia and balance peak demand. While chemical batteries dominate distributed short-duration roles, mechanical storage technologies excel in multi-hour bulk capacity and immediate frequency containment. Understanding the physical principles, thermodynamic boundaries, and electrical interface requirements of these mechanical assets allows engineers to choose the optimal balance of capital cost, cycle life, and round-trip efficiency (RTE).
Core Technologies for Storing Mechanical Energy
Storing mechanical energy relies on either gravitational potential energy, kinetic momentum, or fluid pressure dynamics to retain energy across varying operational durations.
The four primary technology categories deployed across modern transmission and distribution networks include:
- Pumped Storage Hydropower (PSH): PSH shifts water between lower and upper reservoirs at differing elevations. During low-demand periods, motor-driven reversible pump-turbines lift water to the upper catchment. During peak demand, water releases back down through hydraulic turbines driving synchronous generators. Governed by the potential energy formula E = m · g · h, large water mass m combined with hydraulic head h yields gigawatt-hour scale bulk reserves.
- Compressed Air Energy Storage (CAES): CAES compresses ambient air into underground salt caverns, depleted gas fields, or steel pressure vessels up to 70 to 140 bar using electric motor-driven multistage compressors. Discharging routes the high-pressure air through expansion turbines linked to electrical alternators. Conventional diabatic systems combust natural gas to preheat expanding air, whereas advanced adiabatic CAES (A-CAES) captures and stores the heat of compression to achieve higher round-trip efficiency without carbon emissions.
- Flywheel Energy Storage Systems (FESS): Flywheels store energy kinetically in a high-speed rotor spinning inside a vacuum enclosure on magnetic bearings. Governed by E = 0.5 · J · ω2, where J represents the moment of inertia and ω represents angular velocity, modern carbon-fibre flywheels operate at rotational speeds exceeding 20,000 to 60,000 RPM. They serve millisecond-to-minute power quality and frequency regulation applications.
- Gravity-Based Energy Storage: These systems hoist massive composite blocks (often 20 to 35 tonnes each) using electric winches or cranes mounted on towers or down mine shafts. Controlled descent drives motor-generators in regenerative braking mode to feed steady active power back to the collector substation.
For facility planners balancing these assets alongside chemical storage, our Long Duration Energy Storage guide reviews how mechanical approaches compare with flow batteries over 8-to-24-hour cycles.
Performance and Efficiency of Mechanical Storage Systems
Round-trip efficiency in mechanical storage systems is dictated by mechanical friction, aerodynamic drag, hydraulic resistance, and thermodynamic conversion losses.
Engineers must evaluate parasitic auxiliary loads such as vacuum containment pumps, lubrication cooling systems, and cavern water pumping alongside primary electrical conversion losses. The following technical matrix compares the operational parameters across commercial mechanical and electrochemical technologies.
| Storage Technology | Specific Energy (Wh/kg) | Round-Trip Efficiency (%) | Discharge Duration | Cycle Life (Cycles) | Self-Discharge Rate |
|---|---|---|---|---|---|
| Pumped Hydro (PSH) | 0.5 - 1.5 | 70 - 82 | 4 - 24+ hours | >50,000 | Negligible (evaporation) |
| A-CAES (Cavern) | 30 - 60 | 60 - 75 | 4 - 16 hours | >30,000 | Low (<0.5% per day) |
| Flywheel (FESS) | 10 - 50 | 85 - 92 | 15 sec - 15 min | >100,000 | High (1-15% per hour) |
| Gravity Storage | 1.0 - 3.0 | 75 - 85 | 2 - 10 hours | >35,000 | Zero |
| LFP Battery Rack | 140 - 175 | 85 - 92 | 1 - 4 hours | 4,000 - 8,000 | Low (<2% per month) |
While electrochemical options like lithium iron phosphate provide high volumetric energy density, as detailed in our guide to LFP vs NMC battery systems, mechanical storage technologies offer virtually zero cycling degradation over operational horizons exceeding 30 to 50 years.
Thermodynamics and Aerodynamics in Mechanical Energy Storage
Thermal and aerodynamic management determines the commercial viability and mechanical endurance of compressed air and kinetic energy storage installations.
When gas undergoes rapid compression in CAES systems, its temperature rises according to Poisson's adiabatic relation:
T2 = T1 × (P2 / P1)(γ - 1) / γ
Where γ is the heat capacity ratio (approximately 1.4 for dry air). In an industrial system compressing ambient air (293 K) up to 70 bar, unmitigated compression yields exit temperatures exceeding 750 K (477°C). Without interstage cooling, this thermal surge damages compression seals and mechanical manifolds. In advanced adiabatic CAES, thermal energy storage (TES) media—such as thermal oils, molten salts, or pressurised water circuits—absorb this thermal energy. During discharge, the stored heat transfers back into the expanding air prior to reaching the turbine stages, eliminating external fuel combustion.
In flywheel applications, rotor skin friction against ambient gas causes severe aerodynamic drag losses and intense heat generation at peripheral speeds exceeding 800 m/s. Designers minimise these parasitic drag loads by maintaining the rotor chamber under rough to high vacuum (pressures between 0.01 Pa and 0.1 Pa) using rotary vane and turbomolecular vacuum pumps. Furthermore, active magnetic bearings (AMBs) decouple the rotor mechanically from the stator chassis, reducing friction to tiny eddy-current and hysteresis core losses.
Worked Engineering Calculation: Sizing a Gravity Storage Hoist
Sizing a solid-mass gravity storage system requires calculating the mass, vertical lift height, and electromechanical conversion efficiency needed to meet specific grid dispatch requirements.
Consider an engineering design requirement to discharge 5 MW of continuous active power for a duration of 4 hours into an industrial park collector substation. The system utilizes a deep vertical shaft installation.
- Determine required electrical output energy (Eout):
Eout = P × t = 5,000 kW × 4 h = 20,000 kWh = 7.20 × 1010 J - Account for subsystem efficiencies:
Mechanical winch and wire rope transmission efficiency: ηmech = 0.94
Permanent magnet synchronous generator (PMSG) efficiency: ηgen = 0.96
Active-front-end inverter and transformer efficiency: ηelec = 0.97
Total discharge efficiency: ηtotal = 0.94 × 0.96 × 0.97 = 0.8753 (87.53%) - Calculate required potential energy (Epot):
Epot = Eout / ηtotal = 7.20 × 1010 J / 0.8753 = 8.226 × 1010 J - Calculate required moving mass (m) for a vertical shaft depth (h) of 450 metres:
Using Epot = m · g · h (with gravitational acceleration g = 9.81 m/s2):
m = Epot / (g · h) = 8.226 × 1010 / (9.81 × 450) ≈ 18,634,000 kg (18,634 metric tonnes) - Calculate total hoisting speed during discharge:
Descent velocity v = h / t = 450 m / (4 × 3600 s) = 450 / 14,400 ≈ 0.03125 m/s (31.25 mm/s)
If configured as a multi-car system with 600 individual 31-tonne concrete-composite weights, the winch drives operate under steady tension, feeding back stable, clean power through grid-tied HV/LV switchgear into the distribution grid.
Grid Interconnection and Substation Design for Mechanical Assets
Integrating utility-scale mechanical storage into synchronous grids requires high-specification electrical infrastructure capable of handling high starting currents, bidirectional power flows, and rigorous harmonic compliance.
Unlike electrochemical plants that route through static power conversion systems, as outlined in our Power Conversion System guide, mechanical plants frequently deploy synchronous or doubly-fed induction machines (DFIM). Key electrical engineering priorities include:
- Synchronous Inertia vs. Inverter Synthesis: Large hydro and compressed-air turbomachinery provide true mechanical synchronous inertia (governed by the generator inertia constant H, typically 2.5 to 5.0 seconds). This dynamic inertia directly resists grid frequency rate-of-change (RoCoF) under sudden loss-of-generation contingencies, complying with IEEE 1547 and ENTSO-E grid code demands.
- Step-Up Transformers: Bidirectional mechanical installations require heavy-duty generator step-up (GSU) transformers. These transformers must withstand severe thermal cycling caused by alternating motoring and generating regimes. Specifying core and winding designs per IEC 60076-1 ensures appropriate impedance (%Z) to control prospective fault currents on the medium-voltage busbar. For outdoor and hazardous utility interfaces, engineers frequently specify robust oil-immersed transformers or fire-hardened dry-type transformers for indoor machine halls.
- Switchgear Breaking Capacity: Breakers handling large synchronous motors must withstand elevated DC time constants and severe asymmetrical fault currents. Medium-voltage switchgear boards must conform strictly to IEC 62271-100 and IEC 62271-200, incorporating fast-acting vacuum circuit breakers rated for frequent mechanical and electrical operations.
- Power Factor and Reactive Power Control: Synchronous motor-generators permit direct, continuous reactive power compensation (±0.90 power factor range) to regulate line voltage at the transmission point of common coupling (PCC) without dedicated capacitor banks.
Factory Specification and RFQ Checklist for Mechanical Storage
A comprehensive Request for Quotation (RFQ) for mechanical storage balance-of-plant equipment must detail mechanical limits, electrical interfaces, and operational cycling parameters.
Procurement teams should paste and adapt the following technical checklist into their project tenders to ensure bidding vendors provide fully compliant medium-voltage packages.
| Engineering Parameter | Specification Boundary | Reference Standard |
|---|---|---|
| Operational Mode | Pump/Compress, Regenerate/Generate, Synchronous Condenser | IEEE C37.102 |
| Interconnection Voltage | 11 kV, 22 kV, 33 kV, or 110 kV (±10% continuous variation) | IEC 60038 |
| GSU Transformer Rating | ONAN/ONAF or KNAN/KNAF; rated to match peak generator output | IEC 60076-2 |
| Winding Vector Group | Dyn11 or YNd11 (isolated neutral grounding options) | IEC 60076-1 cl. 6 |
| Switchgear BIL Rating | Up to 170 kV BIL for 33 kV distribution lines | IEC 62271-1 cl. 4.2 |
| Harmonic Distortion (THD) | Voltage THD < 3.0%, individual harmonics < 1.5% | IEEE 519 Table 1 |
| Protection Relaying | Differential (87G/T), Reverse Power (32), Loss of Field (40), RoCoF (81R) | IEC 60255-1 |
| Motor Starting Method | Variable Frequency Drive (VFD), Static Frequency Converter, or DOL | IEC 60034-1 |
Next Steps: Specifying and Sourcing
Every mechanical energy storage system requires rugged electrical balance-of-plant infrastructure to route heavy kinetic or potential power into regional transmission lines. Sizing step-up power transformers, resilient medium-voltage motor control gear, and turnkey prefabricated transformer substations demands precise load analysis and early vendor engagement.
Provide our application engineers with your single-line diagram (SLD), planned generator/motor ratings, target connection voltage, and environmental criteria. Our factory team designs, tests, and certifies custom electrical collection and step-up assemblies aligned with IEC, IEEE, and ANSI specifications. Contact our engineering desk to initiate your project review or request an itemised commercial estimate directly via our transformer and switchgear quote portal.
Frequently asked questions
What is the primary advantage of mechanical storage of energy over chemical batteries?
The primary advantage is structural longevity with zero degradation. Mechanical storage assets such as pumped hydro, CAES, and gravity systems operate for 30 to 50+ years and tens of thousands of full discharge cycles without electrochemical capacity fade or cell degradation.
What is the round-trip efficiency of mechanical energy storage?
Round-trip efficiency varies significantly across technology types. Flywheels achieve between 85% and 92%, pumped hydro achieves 70% to 82%, solid gravity systems deliver 75% to 85%, and advanced adiabatic compressed air systems typically achieve 60% to 75%.
How fast can mechanical storage systems respond to grid frequency variations?
Flywheel energy storage systems respond within 4 milliseconds to 100 milliseconds, making them exceptional assets for fast frequency containment. In contrast, pumped hydro and compressed air turbines generally require between 15 seconds and 3 minutes to ramp up from standby.
What causes self-discharge in storing mechanical energy?
Self-discharge mechanisms depend entirely on the physical system. Flywheels experience aerodynamic drag and magnetic bearing hysteresis loss, compressed air systems suffer micro-leakage through geological cavern fissures, while pumped hydro loses volume slowly to surface evaporation.
Can mechanical storage provide synchronous inertia to electrical grids?
Yes, systems utilizing direct-coupled synchronous motor-generators—such as pumped storage hydro and CAES—deliver genuine physical inertia via their heavy spinning rotors. This dynamic rotational momentum immediately opposes sudden grid frequency drops without reliance on synthetic software control.
