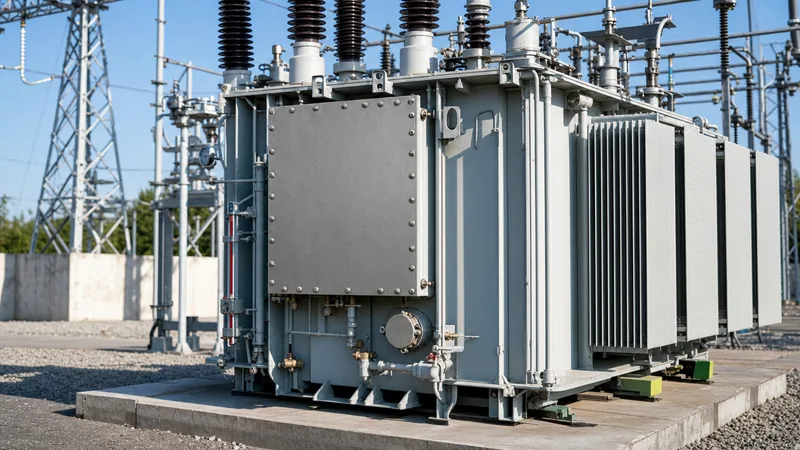

How to Find kVA of Transformer: Sizing & Calculation Guide

Quick answer: To find the kVA of a single-phase transformer, multiply secondary line voltage by load current in amperes and divide by 1,000. For a three-phase transformer, multiply line-to-line voltage by line current in amperes, multiply by the square root of 3 (1.732), and divide by 1,000.

Understanding how to find kVA of transformer installations is fundamental for electrical engineers, EPC contractors, and plant technicians. Apparent power, expressed in kilovolt-amperes (kVA), represents the total vector capacity—both active power (kW) and reactive power (kVAR)—that an electrical transformer can safely deliver without exceeding its thermal insulation class. Whether evaluating existing plant infrastructure, verifying nameplate data during factory testing, or executing a preliminary transformer cost and sizing assessment, calculating apparent power ensures electrical equipment runs within thermal tolerances without nuisance tripping or accelerated winding degradation.

How to Find kVA of Transformer: Nameplate Verification and Ratings

Locating the apparent power rating on an existing installation begins at the physical rating plate specified by IEC 60076-1 clause 13 or IEEE C57.12.00 Table 1.

The manufacturer's rating plate indicates the rated continuous capacity under defined cooling modes (such as ONAN, ONAF, or AN/AF). When assessing an installed unit in the field, read the primary and secondary line voltages, rated frequency (50 Hz or 60 Hz), connection vector group (such as Dyn11 or Ynd11), and continuous rated output in kVA or MVA. When nameplates are corroded, painted over, or missing entirely, an engineer must deduce the rating through secondary measurements of line voltage and full-load transformer amperage, or cross-reference factory test sheets recorded during commissioning routines detailed in our guide on how to test a transformer.

Fundamental Formulas for Transformer Load Calculation

Basic apparent power calculations rely on Ohm's law expanded for alternating current circuits, separating single-phase configurations from three-phase topologies.

Because alternating current circuits contain inductive and capacitive components that displace current relative to voltage, electrical transformers are rated in apparent power (kVA) rather than active power (kW). The mathematical relationship dictates that 1 kVA equals 1,000 volt-amperes (VA). Working with measured voltages and transformer amps requires applying the correct phase multiplier to avoid sizing errors of 42.3% (the mathematical difference between single-phase and three-phase formulas):

• Single-Phase Formula: kVA = (V × I) / 1000, where V is terminal voltage (V) and I is rated line current (A).
• Three-Phase Formula: kVA = (√3 × VLL × IL) / 1000 = (1.73205 × VLL × IL) / 1000, where V_LL is line-to-line voltage (V) and I_L is line current (A).

These core equations govern both oil-immersed distribution units and dry-type substations deployed across industrial and commercial power grids.

Three Phase Transformer Calculation: Step-by-Step Worked Example

A three phase transformer calculation establishes the relationship between line-to-line terminal voltage, secondary current, and required apparent power capacity.

Consider an industrial switchboard supplied by a 400 V low-voltage system with balanced load currents. Electrical measurements collected at peak operation indicate a line-to-line voltage of 400 V and a steady-state phase current of 722 A. To compute the operational kVA draw:

1. Identify input values: Line-to-line secondary voltage (V_LL) = 400 V; line current (I_L) = 722 A; square root of 3 (√3) ≈ 1.732.
2. Calculate total apparent power in volt-amperes: S = 1.732 × 400 V × 722 A = 499,997.6 VA.
3. Convert VA to kVA: kVA = 499,997.6 / 1000 = 500 kVA.

Conversely, to find the full-load secondary transformer amps of a known three-phase 1,000 kVA unit operating at 480 V (common in ANSI/IEEE territories):

1. Re-arrange the formula: IL = (kVA × 1000) / (√3 × VLL).
2. Substitute values: IL = (1000 × 1000) / (1.732 × 480 V) = 1,000,000 / 831.36 = 1,202.85 A.

This step-by-step verification allows field technicians to calibrate overcurrent protection relays, configure trip curves, and verify conductor ampacity.

Single Phase Transformer Load Calculation with Examples

A single-phase transformer load calculation determines total apparent power without the √3 factor, using line-to-neutral or line-to-line single circuit parameters.

Single-phase transformers are widely used in rural electrification, utility pole mounts, and light commercial distribution boards. As outlined in our single phase transformer guide, calculating capacity requires direct multiplication of supply voltage and load current. For example, a commercial branch fed by a 240 V line-to-neutral supply carrying a measured peak load of 150 A requires:

1. Extract measured values: Voltage (V) = 240 V; current (I) = 150 A.
2. Compute apparent power: kVA = (240 V × 150 A) / 1000 = 36 kVA.
3. Select standard rating: Since 36 kVA falls between standard catalog increments, the engineer selects the next standard commercial rating of 37.5 kVA or 50 kVA.

For split-phase 120/240 V systems, ensure the current measurement reflects unbalanced neutral loading by summing individual leg loads or calculating based on maximum continuous conductor current.

Determining Operating kVA from Measured Transformer Amps and Power Factor

Measuring actual operating kVA requires combining real-time transformer amps with true power factor data captured by power quality analysers.

Operating kVA frequently diverges from active work output (kW) due to inductive loads such as induction motors, variable frequency drives, and welding machinery. The relationship between apparent power, active power, and power factor is governed by: kVA = kW / cos(φ), where cos(φ) represents the displacement power factor. The following table provides standard full-load current references across common medium-voltage and low-voltage ratings to simplify sizing assessments:

Operating near unity power factor (0.95 to 1.00) maximises active kW delivery. Conversely, operating at a poor power factor (e.g., 0.70) consumes transformer thermal capacity with reactive current without delivering mechanical work, causing early thermal overload.

How to Calculate Transformer Size for Future Expansion and Thermal Limits

To calculate transformer size correctly, engineers must combine connected demand loads with duty cycles, harmonic derating factors, and expansion headroom.

Specifying a transformer exactly equal to the existing peak load risks premature insulation failure and eliminates spare capacity. Standard engineering practice incorporates specific correction factors into the design calculation:

• Continuous Load Factor: In accordance with NEC Article 450 and IEC 60076-7, continuous loads running for three hours or more must be factored at 125% of steady-state amps.
• Diversity Factor: Not all loads operate simultaneously; apply an operational diversity factor (typically 0.75 to 0.85) to connected branch circuits to establish true coincidence peak.
• Harmonic K-Factor Derating: Non-linear loads (rectifiers, data centres, UPS systems) generate eddy current losses in windings; select K-4, K-13, or K-20 rated units to handle harmonic heating.
• Future Growth Allowance: Incorporate a 20% to 30% margin for facility expansion over a 15-to-25-year operational lifecycle.

Formula for sizing: Required kVA = (Connected Load kW / System Power Factor) × Growth Margin × Harmonic Factor. For grid integration parameters and system-level sizing, explore our comprehensive technical review of transformers and power grid systems.
