Key takeaways
- A commercial company solar energy installation typically achieves maximum financial return by pairing photovoltaic generation with a 2-hour or 4-hour battery energy storage system (BESS).
- Step-up transformers for commercial solar sites must feature electrostatic shielding and harmonic mitigation rated to at least K-factor 4 to manage inverter-induced thermal stress.
- Grid interconnect compliance under IEEE 1547-2018 Clause 6 mandates rapid frequency-droop response and voltage ride-through capabilities across the point of common coupling.
- DC-to-AC ratios between 1.25 and 1.35 optimise inverter loading and reduce levelised cost of energy without causing excessive balance-of-plant thermal curtailment.
- Procurement specifications for commercial solar and storage require factory acceptance testing reports demonstrating liquid-cooled thermal uniformity within 3 degrees Celsius across all cells.

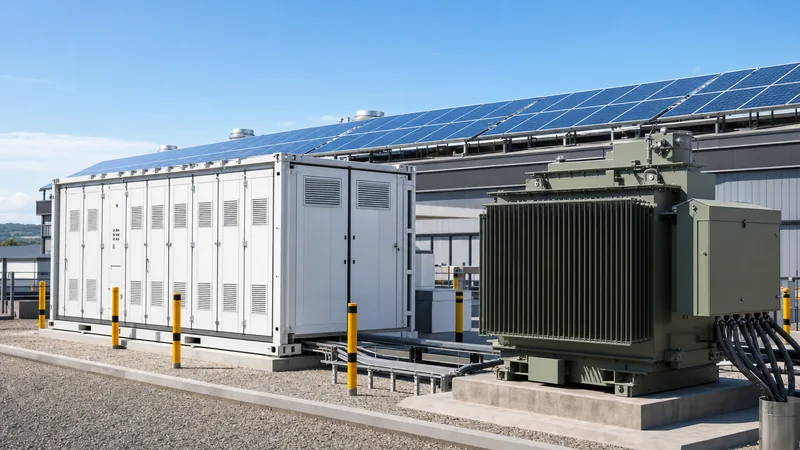

Quick answer: A commercial company solar energy deployment combines rooftop or ground-mounted photovoltaic panels, four-quadrant power conversion systems, battery storage, and medium-voltage step-up transformers. This architecture mitigates peak utility demand charges, provides uninterrupted backup power, and ensures grid-compliant synchronisation at the point of common coupling.
For any commercial facility, investing in on-site generation requires an engineering approach that extends far beyond panel wattage. Selecting a commercial industrial solar engineering design demands rigorous evaluation of diurnal load profiles, transformer thermal ratings, fault current contributions, and switchgear protection schemes. Commercial operations must treat their installation as a dedicated generation asset capable of dynamic dispatch, reactive power compensation, and seamless islanding when grid disturbances occur.
Whether evaluating proposals from a turnkey developer or vetting individual original equipment manufacturers, electrical engineers and facilities directors must verify that balance-of-plant hardware meets international standards such as IEC 62271 for switchgear, IEC 60076 for power transformers, and IEC 62933 for electrical energy storage systems. This technical guide outlines the calculations, architecture trade-offs, and procurement criteria required to execute a high-performance solar and storage facility.
System Architecture for a Company Solar Energy Installation
Commercial facility solar installations are primarily constructed using either AC-coupled or DC-coupled topologies, with AC coupling serving as the standard for medium-voltage industrial microgrids.
In an AC-coupled company solar energy system, the photovoltaic array connects to dedicated string or central solar inverters converting direct current to 400 V, 480 V, or 690 V three-phase alternating current. A parallel battery energy storage system (BESS) operates via bidirectional power conversion systems (PCS) connected to the same low-voltage bus. Both subsystems feed into a shared low-voltage switchboard before stepping up to the site distribution voltage (typically 11 kV, 22 kV, or 33 kV) through a dedicated step-up transformer. This separation ensures that a fault within the solar array does not compromise battery dispatch capability during critical demand-response windows.
Conversely, DC-coupled topologies combine solar strings and battery racks onto a shared high-voltage DC bus (1000 VDC to 1500 VDC) using DC-DC buck-boost converters before a common central inverter. While DC coupling provides higher round-trip efficiency by eliminating one DC-to-AC conversion stage, AC coupling offers superior flexibility when expanding capacity or retrofitting storage onto a pre-existing solar energy site.
Selecting a Qualified Solar PV Company and Equipment Partner
Partnering with a capable solar pv company requires scrutinising manufacturing credentials, supply chain traceability, and warranty support rather than nominal nameplate pricing alone.
Commercial buyers must differentiate between a pure project aggregator, an installer, and a heavy electrical equipment manufacturer. When establishing specifications with a prospective solar panel provider or integration contractor, plant engineers should evaluate four non-negotiable capabilities:
- Tier-1 Module Cell Technology: Verification of N-type Tunnel Oxide Passivated Contact (TOPCon) or Heterojunction (HJT) module architectures with temperature coefficients lower than -0.30%/°C to minimise heat-related yield loss.
- BESS Thermal Architecture: Use of liquid-cooled lithium iron phosphate (LFP) containers over forced-air cooling, ensuring internal cell temperature deviations remain under 3°C per commercial energy storage engineering standards.
- Substation Engineering Competence: Direct manufacturing of factory-assembled compact substations and switchgear conforming to IEC 62271-202, eliminating field-integration errors between inverters and medium-voltage protection relays.
- Bankability and Compliance: Factory certifications including ISO 9001, ISO 14001, CE, and independent type-test reports from accredited laboratories (such as KEMA, CESI, or TÜV Rheinland).
Worked Sizing Calculation for a Commercial Solar Energy Site
Accurate sizing for a commercial generation facility prevents expensive transformer curtailment and ensures battery storage captures targeted peak charges.
Consider a manufacturing plant with a peak demand of 2,500 kW, an average continuous load of 1,200 kW, and a utility tariff imposing heavy demand charges on consumption between 14:00 and 18:00. The target is a 1,500 kWp PV array coupled with a BESS sized to eliminate 800 kW of grid peak demand across that 4-hour window.
Step 1: Determine Required Battery Energy Capacity
To discharge 800 kW continuously for 4 hours:
Useful Energy (E_useful) = Power × Time = 800 kW × 4 h = 3,200 kWh
Accounting for depth of discharge (DoD = 90%), battery round-trip efficiency (RTE = 88%), and power conversion inverter efficiency (98%):
Installed BESS Capacity = 3,200 kWh / (0.90 × 0.88 × 0.98) = 4,124 kWh
A standardised 4.1 MWh or two 2.06 MWh liquid-cooled utility containers meet this specification directly.
Step 2: Determine Step-Up Substation Transformer Rating
The step-up transformer must support simultaneous maximum PV generation and full battery export (or charging) while operating within thermal limits. Assuming a PV inverter output of 1,350 kVA (inverter DC-to-AC ratio of 1.11) and a PCS rating of 900 kVA at 0.90 power factor:
S_total = PV_kVA + PCS_kVA = 1,350 kVA + 900 kVA = 2,250 kVA
Applying a 15% thermal headroom factor for ambient temperatures exceeding 40°C in accordance with IEC 60076-2:
Transformer Sizing = 2,250 kVA × 1.15 = 2,587.5 kVA
A standard 2,500 kVA or 3,150 kVA oil-immersed or cast resin dry-type transformer is selected. For outdoor installations, a 2,500 kVA hermetically sealed unit substation with ONAN cooling provides the required reliability footprint.
Balance of Plant Comparison: Storage and Substation Hardware
Balance-of-plant components determine whether a commercial solar installation functions reliably over its 25-year design life.
The following engineering comparison details the equipment classes specified across typical industrial solar and storage microgrids:
| Subsystem Component | Standard Specification | Alternative Option | Critical Engineering Consideration |
|---|---|---|---|
| Photovoltaic Array | Bifacial N-Type TOPCon (580W+) | Monofacial PERC (540W) | Bifacial albedo gain provides 8-15% additional energy on commercial roofs with white TPO membranes. |
| Energy Storage Chemistry | Lithium Iron Phosphate (LFP) | Nickel Manganese Cobalt (NMC) | LFP exhibits higher thermal runaway thresholds (>270°C) and exceeds 6,000 cycles at 0.5C discharge rates. |
| BESS Enclosure Cooling | Liquid-cooled chilled loop | Forced-air HVAC cooling | Liquid cooling reduces auxiliary parasitic load by up to 30% and keeps cell delta-T under 3°C. |
| Inverter / PCS Topology | String Inverters (1500 VDC) | Central Inverter (1500 VDC) | String architecture isolates shading losses; central inverters reduce total balance-of-system connection count. |
| Step-Up Transformer | Hermetically sealed oil-immersed | Cast resin dry-type | Oil-immersed units are optimal for exterior utility pads; dry-type units (IEC 60076-11) suit indoor plant basements. |
| MV Interconnect Switchgear | Gas-Insulated Switchgear (GIS) | Air-Insulated Switchgear (AIS) | GIS offers compact footprints and sealed protection against industrial chemical contaminants and dust. |
For high-density industrial sites, pairing modular containerised BESS enclosures with dedicated battery storage engineering systems minimises civil groundwork and shortens on-site commissioning.
Grid Interconnection and Power Quality Standards
Interconnecting a commercial generation site to the regional medium-voltage network demands strict compliance with national grid codes and harmonic distortion thresholds.
Under IEEE 1547-2018 Clause 6 and regional equivalents like the European EN 50549, commercial generation systems must provide active voltage regulation and frequency support. When voltage sags occur due to transmission line faults, the facility's power conversion equipment must demonstrate low-voltage ride-through (LVRT) capability, remaining connected for sags down to 0% nominal voltage for up to 150 milliseconds.
Harmonic distortion represents another major operational constraint. Inverters naturally introduce high-frequency switching harmonics onto the local bus. Per IEEE 519 Table 2, Total Demand Distortion (TDD) at the point of common coupling must remain below 5.0%, with individual odd harmonics below the 11th order restricted to under 4.0%. To mitigate these issues, transformer windings should be configured as Delta-Wye (Dyn11), providing a natural path for trapping 3rd, 9th, and 15th zero-sequence triplen harmonics within the delta winding, as discussed in our guide to renewable energy grid integration.
Factory Acceptance Testing and Commissioning Checklist
A rigorous factory acceptance test (FAT) and field commissioning procedure prevents catastrophic failures when energising medium-voltage solar infrastructure.
Procurement teams should enforce the following sequential verification process before equipment dispatch and site handover:
- Insulation Resistance and Dielectric Withstand: Verify that transformer windings undergo separate-source AC withstand tests and induced overvoltage testing per IEC 60076-3 Clause 11.
- Frequency Response and Anti-Islanding Verification: Execute loss-of-mains testing on the PCS protection relays to confirm trip times under 2.0 seconds during unassisted islanding conditions.
- BESS Thermal Runaway Mitigation: Inspect multi-stage fire suppression systems complying with NFPA 855, including off-gas detection (H2 and CO monitoring) linked directly to emergency shunt-trip breakers.
- Relay Coordination and Polarity Checks: Confirm CT/VT polarity and current differential relay curves (ANSI 87T) across the primary step-up unit substation to eliminate nuisance trips during inverter ramp-up.
- Full-Power Heat Run Test: Conduct continuous 1.0C charging and discharging cycles under calibrated factory ambient conditions to log junction temperatures and verify liquid-cooling circulation flow rates.
Next steps: specifying and sourcing
To receive an accurate commercial quotation for your company solar energy project, supply your engineering parameters to our technical team. Prepare your 15-minute interval demand data, site single-line diagram (SLD), point of common coupling voltage, and available footprint. Explore our complete range of utility-grade energy storage systems, liquid-cooled BESS containers, and prefabricated transformer substations engineered to international standards. Visit our quotation inquiry page or contact our application engineering department directly to begin sizing your commercial installation.
Frequently asked questions
What components make up a commercial company solar energy system?
A commercial solar energy system comprises photovoltaic modules, DC combiners or optimisers, string or central inverters, bidirectional battery power conversion systems, lithium iron phosphate storage racks, and a medium-voltage step-up substation. Protection switchgear and an overarching microgrid controller coordinate power flows with the utility grid.
How does battery storage lower electric bills for a commercial solar energy site?
Battery storage lowers operational costs by performing peak shaving and energy arbitrage. The system charges from solar arrays during low-cost or high-generation periods and discharges during peak utility pricing windows, reducing expensive distribution demand charges that often constitute 30% to 50% of a commercial electricity bill.
Why is liquid cooling preferred over air cooling in commercial BESS?
Liquid cooling provides uniform cell-to-cell thermal management, maintaining temperature differentials below 3°C across dense battery racks. This thermal precision eliminates localised degradation, extends overall cycle life past 6,000 cycles, and reduces parasitic HVAC energy consumption by up to 30% compared to air-cooled enclosures.
What transformer vector group is recommended for commercial solar installations?
The Dyn11 vector group (Delta primary, Wye secondary with neutral, 30-degree phase lead) is standard for commercial solar step-up transformers. The delta configuration traps triplen harmonics generated by inverters, while the grounded wye on the grid side allows stable earth-fault detection and protective relay coordination.
What information does an engineering team need to quote a commercial solar system?
To quote a commercial system, engineers require 12 months of 15-minute interval utility load data, local utility interconnection voltage, available roof or ground acreage, site environmental extremes (ambient temperature and seismic zone), and target peak shaving objectives.
