Common Transformer Sizes: Standard kVA and MVA Engineering Guide

Quick answer: The most common transformer sizes for three-phase commercial and industrial distribution range from 75 kVA to 2,500 kVA (such as 75, 112.5, 150, 225, 300, 500, 750, 1,000, 1,500, 2,000, and 2,500 kVA under IEEE standards, and 100, 160, 250, 400, 630, 1,000, 1,600, and 2,500 kVA under IEC standards). Substation power units step up in increments from 3.15 MVA to 100 MVA and higher.

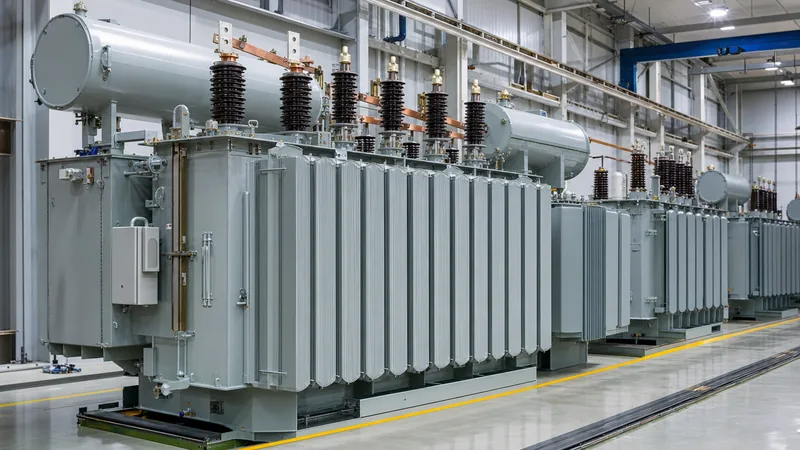

Standardisation of nominal apparent power capacities governs international electrical distribution and transmission topologies. When consulting utility frameworks or engineering electrical distribution systems, choosing from established common transformer sizes prevents custom fabrication surcharges and guarantees compatibility with factory tooling, protective switchgear ratings, and spare component inventory. Understanding the baseline capacities defined across major international standards organizations enables engineers to match calculated maximum demand with off-the-shelf equipment profiles.

Whether sizing a pad-mounted substation feeding an industrial processing plant or planning medium-voltage grid step-downs, electrical designers must reconcile empirical load profiles with industry-standard steps. Detailed load characterisation and rigorous alignment with standard transformer capacities ensure capital efficiency, minimise thermal degradation, and preserve system resilience across decades of continuous energisation.

Understanding the Transformer Rating: kVA, MVA, and Thermal Classes

A transformer rating represents the continuous apparent power capacity that a unit delivers at rated secondary voltage and frequency without exceeding established winding temperature rise limits. Governed by standards such as IEC 60076-1 clause 4 and IEEE C57.12.00 clause 5.4, apparent power is expressed in kilovolt-amperes (kVA) for distribution units or megavolt-amperes (MVA) for large power transformers.

Apparent power represents the vector sum of real power (kW) and reactive power (kVAR). Because winding heating depends directly on square-of-the-current (I squared R) losses and core heating is determined by operating magnetic flux density, thermal capacity determines the machine nameplate rating regardless of load power factor. Standard thermal performance mandates an average ambient temperature of 30 degrees Celsius over any 24-hour period, with a maximum peak ambient of 40 degrees Celsius.

Insulation systems directly dictate the maximum permissible temperature rise over this ambient baseline. For standard mineral-oil-immersed units using Kraft paper insulation (Class 105), the maximum allowable average winding temperature rise is 65 degrees Celsius under IEEE standards or 60 Kelvin under IEC 60076-2, yielding an absolute hot-spot limit of 110 degrees Celsius. For high-temperature dry-type units utilizing Class 220 (C-class) aramid insulation materials, the permissible winding rise reaches 150 Kelvin with a 220 degrees Celsius hot-spot threshold. Applying cooling stages changes the thermal throughput: an oil-filled machine designated ONAN/ONAF (Oil Natural Air Natural / Oil Natural Air Forced) features a dual transformer rating, commonly stepping up capacity by 25 to 33 percent when external fans activate.

Common Transformer Sizes for Industrial and Commercial Distribution

Standard industrial three phase transformer sizes differ between geographical jurisdictions due to distinct standardisation histories rooted in either the metric Renard preferred series (IEC 60076-1) or historical American National Standards (IEEE C57.12.00 Table 5). Specifying standard ratings preserves interchangeable spare units, standardises footprint dimensions, and simplifies replacement logistics across distribution networks.

In North American and ANSI/IEEE-aligned jurisdictions, low-voltage distribution transformers (480V or 208V secondary) and medium-voltage pad-mounted units step through predictable intervals: 15, 30, 45, 75, 112.5, 150, 225, 300, 500, 750, 1,000, 1,500, 2,000, and 2,500 kVA. Conversely, IEC networks adhere closely to the R10 and R20 geometric progression series (such as EN 50588-1 for medium-voltage networks), utilising nominal values of 50, 100, 160, 250, 400, 630, 800, 1,000, 1,250, 1,600, 2,000, 2,500, and 3,150 kVA. For engineers implementing radial or network step-down topologies, reviewing detailed comparative designs in our distribution transformer types, sizing, and specifications guide clarifies physical execution variations between dry and liquid variants.

Industrial facilities operating motor control centres (MCCs), pumps, compressors, and resistive furnace loads predominantly specify units rated between 500 kVA and 2,500 kVA. These sizes match standard low-voltage air circuit breaker interrupting and frame capacities (typically 800 A, 1,600 A, 2,500 A, 3,200 A, and 4,000 A at 400 V or 480 V). Specifying transformer sizes 3 phase above 2,500 kVA stepping down directly to low voltage (under 600 V) introduces severe engineering complications, specifically prospective fault currents exceeding 65 kA RMS symmetrical, which mandates cost-prohibitive switchgear bus bracing and ultra-high-interrupting breakers.

Three Phase Transformer Sizes: Standard Sizing Matrix

The following engineering matrix outlines standard three phase transformer sizes, detailing typical secondary full-load ampacities across common industrial utilization voltages alongside benchmark percent impedance (%Z) per IEC 60076-5 and IEEE C57.12.10.

Impedance percentage dictates short-circuit fault levels and voltage drop during dynamic motor starts. Understanding winding interconnections is vital when placing these units into existing architectures, as examined thoroughly in our review of three-phase transformer connections and vector groups.

Substation and Power Transformer Rating Tiers

A high-capacity power transformer rating applies to primary equipment operating within bulk transmission grids, regional substations, and major power generation sites. While distribution assets handle voltages up to 36 kV, power units interface with utility transmission lines operating from 66 kV to 765 kV. System engineers should reference our comprehensive transmission transformer engineering guide for complete primary substation parameters.

Standard utility substation transformer ratings step through preferred capacities defined under IEC 60076-1: 3.15, 5.0, 6.3, 8.0, 10.0, 12.5, 16.0, 20.0, 25.0, 31.5, 40.0, 50.0, 63.0, 80.0, and 100.0 MVA. North American transmission utilities frequently procure units sized at 3.75, 5.0, 7.5, 10.0, 12.0, 15/20/25, 24/32/40, and 36/48/60 MVA, with the triple ratings reflecting progressive base (ONAN), intermediate forced-air (first cooling stage), and maximum forced-air/forced-oil (second cooling stage or OFAF/ODAF) thermal cooling modes.

When entering higher voltage brackets, mechanical transport clearances, core weight limits, and railway loading gauges restrict unit volumes. For massive bulk-power injection hubs, units spanning 150 MVA to 500 MVA are common, with configurations shifting to single-phase banks when transport weights exceed bridge limits, as detailed in our analysis of large power transformers and sourcing parameters.

Power Transformer Rating Sizing: Worked Calculation

Calculating the required transformer rating for an industrial facility demands converting connected real loads into total apparent demand, accounting for load factors, diversity, harmonic heating, and future growth margins. Never size a transformer merely by summing connected nameplate horsepower or kilowatt tags.

Consider an expanding processing facility with the following engineering design parameters:

• Total connected continuous running load (P_cont): 850 kW
• Total connected intermittent/cyclic load (P_int): 400 kW
• Average operational power factor (PF): 0.85 lagging
• Continuous load duty factor (DF_cont): 0.90
• Intermittent diversity factor (Div_int): 0.60
• Harmonic distortion factor (non-linear VFD loading): 1.10 (accounts for eddy current winding losses per IEEE C57.110)
• Projected five-year facility growth allowance: 20 percent (1.20 multiplier)

The sizing methodology executes through the following sequence:

1. Calculate active peak diversified load (P_div): Compute the sum of diversified continuous and intermittent real power demands.
   P_div = (P_cont * DF_cont) + (P_int * Div_int)
   P_div = (850 kW * 0.90) + (400 kW * 0.60) = 765 kW + 240 kW = 1,005 kW.
2. Convert to fundamental apparent demand (S_fund): Apply operating power factor to establish base apparent power.
   S_fund = P_div / PF
   S_fund = 1,005 kW / 0.85 = 1,182.35 kVA.
3. Apply harmonic penalty factor (S_harm): Scale for non-linear load content to prevent thermal degradation of the winding insulation.
   S_harm = S_fund * 1.10 = 1,182.35 kVA * 1.10 = 1,300.59 kVA.
4. Incorporate future growth reserve (S_final): Account for plant expansion margins.
   S_final = S_harm * 1.20 = 1,300.59 kVA * 1.20 = 1,560.7 kVA.

Reviewing standard three phase transformer sizes, the next preferred standard rating above 1,560.7 kVA is 2,000 kVA (IEEE) or 1,600 kVA / 2,000 kVA (IEC). Selecting a 2,000 kVA unit positions the baseline operating load at 1,182.35 / 2,000 = 59.1 percent capacity. This operational point falls precisely within the peak efficiency window for modern core steel topologies (typically 50 to 65 percent loading under EcoDesign EN 50588-1 or US DOE 10 CFR Part 431), minimising lifecycle no-load and load losses.

Critical Derating Factors Impacting Effective Transformer Capacity

A unit's real-world capacity drops significantly below its nameplate transformer rating when actual installation site conditions deviate from standard service environments defined by IEEE C57.12.00 or IEC 60076-1 (altitude up to 1,000 metres above sea level and 30 degrees Celsius 24-hour average ambient).

High-altitude installations suffer from reduced atmospheric density, which degrades cooling airflow convection and diminishes dielectric insulation clearance effectiveness across external bushings. For every 100 metres installed above 1,000 metres elevation, oil-immersed transformers must be derated by approximately 0.4 percent of rated capacity for self-cooled (ONAN) operation, and 0.5 percent for forced-air (ONAF) units, unless custom oversized radiators are engineered. Dry-type units incur an even steeper penalty, typically derating 0.7 percent per 100 metres above 1,000 metres per IEEE C57.96 Table 2.

Ambient temperature excursions demand rigorous thermal compensation. If average ambient temperatures rise from 30 to 40 degrees Celsius, continuous transformer rating capacity must be curtailed by roughly 10 to 15 percent to prevent premature aging of Kraft paper cellulose insulation. Under the Arrhenius reaction rate model codified in IEC 60076-7, sustaining internal winding hot-spot temperatures a mere 6 Kelvin above the 110 degrees Celsius continuous threshold doubles insulation degradation rates, cutting expected asset service life from thirty years to fifteen.

Factory Specification Checklist for Standard Sizing Procurement

Procuring standard common transformer sizes rather than bespoke capacities reduces lead times by up to sixteen weeks. The following engineering specification checklist covers the critical data points required by factory design teams to execute manufacturing drawings without ambiguity.

1. Apparent Power Capacity: Baseline continuous rating in kVA or MVA, including dynamic cooling stage ratings (e.g., a typical 10/12.5/15 MVA unit with progressive cooling stages).
2. Rated Primary and Secondary Voltages: Precise phase-to-phase and phase-to-neutral voltages (e.g., 13,800V Delta primary to 480Y/277V secondary, or 33,000V Delta to 400V Wye).
3. Vector Group and Phase Displacement: Angular relationship specified per IEC notation (e.g., Dyn11, Dyn1, YNd11) or IEEE standard angular displacement (30-degree lag).
4. System Frequency: 50 Hz or 60 Hz (influences core laminations, magnetic induction, and loss metrics).
5. Impedance (%Z): Nominal value and contractual tolerance band (typically +/- 7.5 to 10 percent per IEC 60076-1 clause 10).
6. Tap Changer Requirements: De-Energised Tap Changer (DETC, typically +/- 2 x 2.5%) or On-Load Tap Changer (OLTC) with exact step ranges, control voltage, and automatic voltage regulator (AVR) interface.
7. Environmental Service Envelope: Maximum ambient temperature, minimum installation temperature, seismic zone acceleration (IBC/IEEE 693), and elevation above sea level.
8. Loss Evaluation Values: Specific capitalisation formulas for No-Load Losses (A-factor, $/kW) and Load Losses (B-factor, $/kW) to guide factory core and conductor optimisation.

Next steps: specifying and sourcing

When finalising engineering designs for commercial or utility distribution, selecting standard ratings streamlines procurement and long-term asset management. To review heavy-duty, factory-engineered units tailored to international standards, explore our dedicated range of power transformers, highly reliable oil-immersed transformers, and high-safety dry-type transformers. Once your preliminary load calculation matrix is complete, submit your single-line diagram and tender parameters directly via our transformer quotation portal or reach our engineering support team through our factory contact page for rapid technical validation and commercial proposals.
