Key takeaways
- Commercial backup power configurations require segregation of emergency, legally required, and optional standby loads per NFPA 70 Articles 700, 701, and 702.
- Battery energy storage systems provide sub-20-millisecond transfer times, eliminating process interruption that traditional diesel generators with 10-second start sequences cannot prevent.
- Battery autonomy calculations must derate nameplate capacity for round-trip efficiency, inverter conversion losses, maximum allowable depth of discharge, and end-of-life cell degradation.
- Hybrid backup architectures pairing rapid-discharge LFP batteries with on-site reciprocating generators balance immediate bridging capability with multi-day runtime resilience.
- Commissioning requires four-quadrant PCS factory testing, full-load step-transient analysis, and verification of automatic transfer switch synchronization under IEEE 1547.

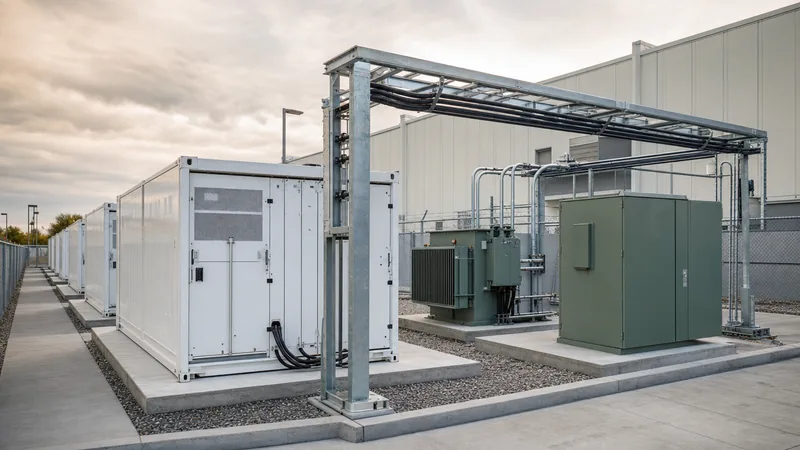

Quick answer: Commercial backup power delivers emergency electrical supply to commercial and industrial facilities during utility outages, utilising battery energy storage systems (BESS), reciprocating engine generators, or hybrid microgrids. Sized to match critical process demands, these systems ensure business continuity, prevent asset damage, and comply with safety codes such as NFPA 110 and IEEE 446.
For energy managers and plant engineers, an unplanned power interruption is rarely a minor inconvenience. In automated facilities, a voltage sag lasting only 100 milliseconds can trip variable frequency drives, lock programmable logic controllers (PLCs), and ruin delicate chemical batches or precision fabrication runs. Deploying engineered commercial backup power mitigates this vulnerability by isolating critical buses and supplying continuous, regulated voltage during utility failures.
Modern facilities increasingly move away from standalone diesel sets toward advanced commercial energy storage systems that deliver dual benefits: immediate resilience during grid collapses and continuous economic return through peak shaving and demand charge management during normal utility operation.
Commercial Battery Backup Power vs Diesel Generators
Selecting between electro-chemical energy storage and internal combustion generation depends on required transfer speeds, local emission thresholds, and recurring maintenance capabilities.
While diesel generation has served as the historical standard for prolonged outages, commercial battery backup power has surpassed mechanical generation for critical process continuity. A standard emergency generator requires 8 to 12 seconds to crank, achieve governed speed, and accept load under NFPA 110 Type 10 standards. This delay drops digital microprocessors and sensitive production equipment. Conversely, a four-quadrant static power conversion system paired with lithium iron phosphate (LFP) chemistry detects voltage deviations and transfers load within 4 to 20 milliseconds, providing an uninterrupted power supply without mechanical wear.
| Evaluation Metric | Lithium Iron Phosphate (BESS) | Diesel Generator Set | Hybrid System (BESS + Diesel) |
|---|---|---|---|
| Transfer Time | < 20 milliseconds (seamless) | 8–15 seconds | < 20 ms initial, infinite sustained |
| Full-Load Autonomy | 2 to 8 hours (sized per bank) | Continuous (fuel-dependent) | Indefinite with refuelling |
| Operating Expenditure | Near zero (routine visual/HVAC) | High (fuel, filters, oil tests) | Moderate (infrequent engine runs) |
| Local Emissions / Noise | Zero direct emissions, < 65 dBA | NOx, PM, CO2, 85–105 dBA | Low (diesel runs only during extended events) |
| Value Stacking Potential | High (peak shaving, tariffs) | None (backup emergency only) | High (BESS generates daily ROI) |
| Footprint Requirements | Moderate (energy dense, 40-ft ISO) | Small footprint, large fuel buffer | Largest physical requirement |
For operations requiring multi-day off-grid operation, hybrid configurations represent an optimal compromise. The battery provides instantaneous bridging power, after which a downsized generator synchronises smoothly to carry the base load without subjecting factory equipment to momentary blackouts.
Backup Power Systems for Manufacturing: Essential Architecture
A resilient plant architecture segregates non-essential infrastructure from critical manufacturing circuits using dedicated emergency distribution switchgear.
In heavy industrial environments, backup power systems for manufacturing require careful topology planning. Facilities should not attempt to back up an entire main service entrance if heavy thermal or non-critical mechanical loads do not threaten life safety or yield catastrophic production loss. Instead, engineers install an essential services bus fed via an automatic transfer switch (ATS) or static transfer switch (STS).
The power architecture typically routes medium-voltage (e.g., 11 kV or 13.8 kV) utility supply through a step-down distribution transformer into a main low-voltage switchboard compliant with IEC 61439. From this switchboard, critical manufacturing sub-panels—supplying industrial robotics, furnace cooling pumps, cleanroom blowers, and server rooms—connect directly to the backup bus. To review foundational sizing and architecture for these systems, consult our guide on industrial battery bank design.
When deploying back up power for manufacturing facilities, engineers must account for the high inrush currents of large induction motors. Motor-starting transients often draw 500% to 700% of nominal full-load current (FLA). If the backup inverter or power conversion system lacks adequate short-time overload capability, the resulting voltage dip will trigger undervoltage relays and collapse the islanded microgrid. Specifying an oversized power conversion system (PCS) with a 150% overload rating for 30 seconds prevents nuisance trips during unexpected motor across-the-line starts.
Industrial Backup Power Sizing: Step-by-Step Worked Calculation
Accurate battery capacity sizing requires derating nominal capacity for system losses, degradation, depth of discharge, and environmental derating factors.
Consider an injection moulding facility requiring industrial backup power for critical process loads: PLC controls, hydraulic pump cooling, and barrel heating elements that solidify if unheated for more than 45 minutes.
- Critical active power load ($P_{load}$): 450 kW
- Operating load power factor ($\cos\theta$): 0.88 lagging
- Required autonomy duration ($t$): 2.0 hours
- Battery Chemistry: Lithium Iron Phosphate (LFP)
- Max usable Depth of Discharge ($DoD$): 90% (0.90)
- Power Conversion System inverter efficiency ($\eta_{PCS}$): 96% (0.96)
- End-of-Life (EOL) degradation margin ($SOH_{margin}$): 80% (0.80) to guarantee capacity at year 10
- HVAC and internal auxiliary parasitic allowance ($P_{aux}$): 3% of demand (13.5 kW)
Step 1: Calculate the total real power demand including auxiliary loads:
$$P_{total} = P_{load} + P_{aux} = 450\text{ kW} + 13.5\text{ kW} = 463.5\text{ kW}$$
Step 2: Determine total energy required over the 2-hour duration:
$$E_{net} = P_{total} \times t = 463.5\text{ kW} \times 2.0\text{ h} = 927\text{ kWh}$$
Step 3: Calculate gross nameplate DC battery storage capacity ($E_{gross}$), accounting for inverter losses, DoD limits, and 10-year cell degradation:
$$E_{gross} = \frac{E_{net}}{\eta_{PCS} \times DoD \times SOH_{margin}} = \frac{927\text{ kWh}}{0.96 \times 0.90 \times 0.80} = \frac{927}{0.6912} \approx 1,341.1\text{ kWh}$$
Step 4: Size the PCS apparent power rating ($S_{PCS}$) to handle active and reactive demand without thermal overload:
$$S_{load} = \frac{P_{total}}{\cos\theta} = \frac{463.5\text{ kW}}{0.88} \approx 526.7\text{ kVA}$$
Applying a standard 20% engineering headroom for motor step-loads:
$$S_{PCS} = 526.7\text{ kVA} \times 1.20 = 632\text{ kVA}$$
Conclusion: For this facility, our engineering calculation mandates a containerised energy storage system rated for no less than 632 kVA inverter capacity and 1,350 kWh gross battery storage. Review capital expenditure considerations for systems of this scale in our breakdown of commercial battery storage costs.
Critical Standards and Code Compliance for Industrial Backup Power
Industrial backup power installations must comply with strict electrical safety, fire prevention, and utility interconnection standards to ensure personnel safety and pass municipal inspections.
When implementing back up power systems for manufacturing, system design must adhere to clear regulatory criteria:
- NFPA 70 (National Electrical Code): Governs load segregation across Article 700 (Emergency Systems - 10-second requirement for life safety), Article 701 (Legally Required Standby - 60-second requirement), and Article 702 (Optional Standby Systems). Commercial production continuity typically operates under Article 702.
- NFPA 855: Standard for the Installation of Stationary Energy Storage Systems. Enforces a maximum 50 kWh threshold per individual LFP module grouping, 3-foot (0.91 m) separation clearances between racks, and mandatory deflagration venting per NFPA 68.
- IEEE 446: Recommended Practice for Emergency and Standby Power Systems for Industrial and Commercial Applications (the IEEE Orange Book), providing guidelines on voltage disturbance limits and transfer switch selection.
- IEC 62933-5-2: Outlines electrical safety aspects and hazard analysis for grid-connected battery systems, specifically regarding short-circuit fault clearing and arc-flash boundaries during islanded inverter operation.
- UL 9540 and UL 9540A: System-level safety certification and thermal runaway fire propagation testing standards, universally required by major fire marshals and property insurers.
Commissioning and Acceptance Testing Checklist
A disciplined commissioning procedure guarantees that commercial backup power hardware performs as simulated when the utility grid drops out.
Engineering teams must execute the following sequential commissioning protocol before handing over operations:
- DC Bus Insulation and Continuity Verification: Prior to energisation, verify DC open-circuit rack voltages, torque terminal connections to factory specifications, and execute insulation resistance (megohmmeter) testing at 1,000 V DC between positive/negative rails and chassis ground.
- Auxiliary and Fire Suppression Integration: Validate aerosol or Novec 1230 fire extinguishing systems, verify thermal runaway gas detection (off-gas hydrogen and carbon monoxide sensors), and test automatic HVAC interlocks.
- Cold Start and Grid Synchronization: Energise the power conversion system under utility-tied conditions. Verify phase-angle tracking, active power ramp rates, and anti-islanding trip times according to IEEE 1547.1 verification standards.
- Black Start and Islanding Transition Test: Trip the primary utility medium-voltage breaker. Measure the transition window using high-speed power quality analysers to verify voltage sags do not exceed the ITIC (CBEMA) curve tolerance limit.
- Full Load Step and Autonomy Burn-In: Connect a load bank to simulate 25%, 50%, 75%, and 100% rated plant capacity. Record cell temperature variances across battery modules, verifying maximum intra-rack thermal deltas remain below 3°C under active liquid cooling.
- Short-Circuit Coordination Check: Verify downstream protective devices clear fault currents while operating exclusively on inverter-supplied fault capacity, which is typically limited to 1.5 to 2.0 times nominal FLA.
Next steps: specifying and sourcing
Specifying an industrial-grade backup system requires a complete electrical profile of your facility. Before requesting a formal engineering design and quotation, compile your single-line diagram (SLD), peak 15-minute load demand logs, critical load lists, and available switchroom footprint.
Whether your application requires factory-assembled commercial energy storage systems, outdoor utility-scale liquid-cooled ESS containers, or integrated step-up transformer substations, our engineering team assists with system sizing, motor-starting calculations, and switchgear coordination. Submit your project requirements via our system quotation page or speak with a technical engineer through our contact page to configure your facility backup solution.
Frequently asked questions
How long can commercial battery backup power run a facility?
Commercial battery backup power typically runs a facility for 2 to 8 hours depending on battery sizing, load profiles, and depth-of-discharge limits. For facilities requiring runtimes of 24 hours or longer, batteries are paired with on-site generators or solar PV in a hybrid configuration.
What is the difference between industrial backup power and a commercial UPS?
A commercial UPS provides ride-through power for minutes to allow orderly system shutdown or generator start-up, whereas industrial backup power combines large-scale energy storage and distribution switchgear designed to maintain full production processes continuously throughout prolonged outages.
How much does a commercial backup power system cost?
Fully installed commercial battery backup systems generally range from $350 to $650 per usable kilowatt-hour, including the LFP battery racks, bi-directional inverters, switchgear, thermal management, fire protection, and civil engineering costs.
Can backup power systems for manufacturing reduce electricity bills during normal operation?
Yes. Unlike diesel generators that sit idle, commercial battery storage delivers peak shaving, demand response, and tariff arbitrage during normal utility operation, substantially reducing monthly demand charges while remaining charged for power outages.
What transfer time is required for manufacturing facilities?
Continuous automated manufacturing facilities require transfer times under 20 milliseconds to prevent PLCs, robotics, and variable speed drives from dropping out. Mechanical automatic transfer switches taking 8 to 15 seconds are insufficient for process automation.
