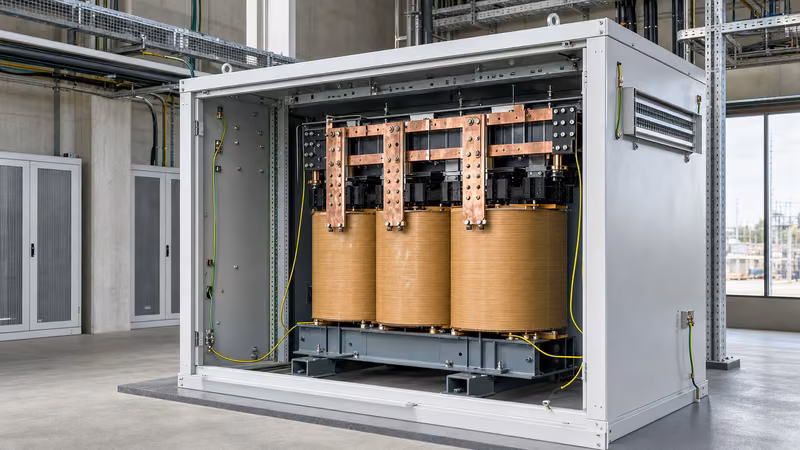

75 kVA Transformer Amps: Sizing & Amperage Calculation Guide

Quick answer: A 75 kVA transformer produces 90.21 amperes of full-load line current at 480 V three-phase, 108.25 A at 400 V, and 208.18 A at 208 V. For single-phase installations, a 75 kVA transformer supplies 312.50 A at 240 V.

Determining exact rated current is the foundation for specifying circuit breakers, sizing low-voltage cables, and coordinating protective relays in commercial and industrial power distribution. When specifying a 75 kva transformer amps profile, electrical engineers must evaluate line-to-line voltage, phase configurations, and thermal limits under continuous operation. Sizing mistakes often result in nuisance tripping from magnetising inrush currents, dangerous cable overheating, or under-rated switchgear ratings. Whether deploying low-voltage isolation units inside distribution centres or specifying secondary substations, understanding the mathematical derivation of full-load amperage ensures safety and regulatory compliance.

How to Calculate 75 kVA Transformer Amps: The Exact Formula

To convert apparent power in kilovolt-amperes into current in amperes, the relationship depends entirely on whether the system is single-phase or three-phase. In alternating current circuits, apparent power represents the product of root-mean-square (RMS) voltage and current, independent of power factor. Engineers frequently utilise a manual equation rather than relying solely on a software-based kva to amps calculator during preliminary design.

For a three-phase system, the line current (I) in amperes is expressed by the standard formula defined in IEEE C57.12.00:

I = (kVA × 1000) / (√3 × V_LL)

Where kVA is the transformer capacity rating, V_LL is the root-mean-square line-to-line system voltage, and √3 is approximately 1.73205. For a balanced system, this yields the rated current per phase conductor.

For a single-phase system, the square root of three is omitted because only one voltage vector drives the circuit:

I = (kVA × 1000) / V

Where V represents the single-phase operating voltage across the winding terminals. When evaluating high-voltage inputs versus low-voltage outputs, this calculation applies identically across primary and secondary windings: simply insert the corresponding line-to-line voltage rating stamped on the transformer nameplate.

3 Phase Transformer Amperage Chart (15 kVA to 150 kVA)

A standardised three phase transformer chart allows electrical design engineers to quickly establish nominal full-load currents across commercial supply voltages. The following transformer amperage chart compares typical standard transformer capacities, highlighting the full-load secondary current across 208 V, 240 V, 400 V, and 480 V three-phase systems.

This transformer kva to amps chart demonstrates that doubling the system line-to-line voltage halves the line amperage for an identical kVA capacity. For instance, comparing the 75 kva transformer amperage at 480 V (90.21 A) against 208 V (208.18 A) illustrates why higher distribution voltages substantially reduce the cross-sectional area required for copper or aluminium busbars. For applications feeding complete LV lineups, consult our engineering guide on IEC 61439 low-voltage switchgear design to ensure proper thermal dissipation inside busbar compartments.

Worked Example: Primary and Secondary 75 kVA Transformer Amperage Calculation

A worked engineering calculation reveals the vast current disparity between high-voltage distribution feeds and low-voltage secondary utilisation lines. Consider a standard commercial step-down unit specified with a 4160 V Delta primary and a 480Y/277 V Wye secondary, rated at 75 kVA, 60 Hz.

1. Step 1: Determine Primary Full-Load Amps (FLA)
   Using the three-phase formula: I_primary = (75 × 1000) / (1.73205 × 4160 V).
   I_primary = 75,000 / 7205.33 = 10.41 A.
2. Step 2: Determine Secondary Full-Load Amps (FLA)
   Using the secondary line-to-line voltage: I_secondary = (75 × 1000) / (1.73205 × 480 V).
   I_secondary = 75,000 / 831.38 = 90.21 A.
3. Step 3: Calculate Transformation Turns Ratio
   The voltage ratio is 4160 V / 480 V = 8.67:1. Inversely, the current ratio confirms the arithmetic: 10.41 A × 8.667 = 90.21 A.
4. Step 4: Determine Maximum Prospective Fault Current
   Assuming a factory impedance (%Z) of 5.0% in accordance with IEC 60076-1 clause 5.4, the maximum prospective symmetrical short-circuit current on the secondary bus equals: I_sc = I_secondary / (%Z / 100) = 90.21 / 0.05 = 1,804.2 A.

These step-by-step numbers prove essential when conducting arc flash assessments and setting relay trip thresholds. If integrating this unit within an indoor or outdoor compact housing, refer to our detailed unit substation engineering guide for physical clearance and ventilation criteria.

Sizing Breakers and Cables for a 75 kVA Transformer

Protective device sizing must prevent spurious tripping during core magnetisation while defending winding insulation against sustained thermal overloads. When energised, dry-type and liquid-immersed transformers draw an instantaneous magnetising inrush current reaching 8 to 12 times rated FLA for 0.1 seconds.

Under National Electrical Code (NEC / NFPA 70) Article 450.3(B) rules for low-voltage transformers (600 V and below):

• Primary Protection Only: Where secondary overcurrent protection is omitted, the primary overcurrent protective device (OCPD) may not exceed 125% of the primary rated current. For a 480 V primary drawing 90.21 A, 125% equates to 112.76 A. NEC allows rounding up to the next standard breaker rating, yielding a 125 A circuit breaker.
• Primary and Secondary Protection: If secondary protection is installed, the primary breaker can be sized up to 250% of primary FLA (allowing sufficient margin for severe inrush currents without tripping), provided secondary protection does not exceed 125% of secondary FLA. For a 208 V secondary with 208.18 A FLA, 125% is 260.23 A, permitting a standard 250 A or 300 A moulded case circuit breaker (MCCB).

Conductor sizing follows terminal ampacity ratings based on 75°C insulation columns (such as copper THHN/THWN-2). For a secondary drawing 208.2 A continuously, apply the standard continuous duty safety margin of 125%: 208.18 A × 1.25 = 260.23 A. This requires minimum 300 kcmil copper conductors or parallel runs of smaller cables to eliminate excessive thermal voltage drops over long lateral distances, as detailed in our guide on industrial power system installation standards.

Single-Phase vs Three-Phase: How to Convert kVA to Amps per Phase

A frequent error among field contractors is misapplying single-phase arithmetic to three-phase winding configurations. When an engineer needs to convert kva to amps per phase, the winding connection configuration directly dictates line-to-neutral versus line-to-line current distribution.

In a three-phase balanced Wye system, the line current equals the phase winding current (I_line = I_phase). Each individual phase carries the calculated line current; it is not divided by three. For example, a 75 kVA 480Y/277 V system draws 90.21 A through Phase A, 90.21 A through Phase B, and 90.21 A through Phase C at maximum continuous balanced load. Each phase supplies one-third of the total apparent power (25 kVA per phase):

I_phase = (kVA_total / 3 × 1000) / V_LN = (25 × 1000) / 277.13 V = 90.21 A

Conversely, for dedicated single-phase units—such as pole-mounted split-phase distributions—the full 75 kVA delivers current over two ungrounded lines. Learn more about single-phase winding vector groups and tapping arrangements in our dedicated single phase transformer engineering guide.

Common Pitfalls in kVA to Amperes Field Calculations

Mistakes in electrical plant sizing rarely stem from complex calculus; they originate from missing basic technical variables during installation. Below are four common pitfalls encountered during factory testing and commissioning:

1. Confusing kVA with kW: Kilovolt-amperes represent apparent power, while kilowatts (kW) define active power. If an electrical load operates at a poor power factor (such as 0.80 lagging from induction motors), a 75 kVA transformer can only deliver 60 kW of active work (75 × 0.80 = 60 kW). Attempting to load 75 kW onto a 75 kVA unit drives the actual current to 112.76 A at 480 V, exceeding rated thermal limits by 25%.
2. Neglecting Ambient Temperature De-rating: Transformers engineered under IEC 60076-2 are designed around a maximum ambient temperature of 40°C and a 30°C daily average. Operating in switchgear rooms exceeding 50°C requires de-rating the nominal kVA by 1% to 1.5% per degree above standard limits to prevent premature winding insulation breakdown.
3. Ignoring Harmonic Neutral Currents: In commercial facilities feeding variable frequency drives (VFDs) and computer server supplies, third-order triplen harmonics do not cancel out in the neutral. Instead, they add up arithmetically in the neutral conductor, frequently causing neutral current to reach 140% to 170% of phase current.
4. Improper Vector Group Assumptions: Assuming current balance across secondary legs when single-phase 120 V loads are heavily biased onto one phase leg of a 208Y/120 V transformer can overload individual coil windings while the overall three-phase average appears compliant.

Next steps: specifying and sourcing

When specifying a 75 kVA unit for your project, supply complete electrical parameters in your request for quotation: primary and secondary voltages, frequency (50 Hz or 60 Hz), vector group (e.g., Dyn11 or Dyn1), BIL rating, winding material (copper or aluminium), and sound level limits. Explore our factory-tested dry-type transformers for indoor commercial installations, or specify our liquid-filled pad-mounted transformers for utility distribution. For customised technical proposals or factory type-test reports, reach out directly to our engineering team at [email protected] or submit your requirements via our transformer quote request page.
