Transformer Calculator: Sizing, kVA & Ampere Calculations

Quick answer: A transformer calculator computes the apparent power in kVA and the operating current in amperes using the formulas S = V × I / 1,000 for single-phase systems and S = √3 × V × I / 1,000 for three-phase systems. Sizing requires adding continuous and non-continuous load allowances, typical motor-starting inrush, and standard safety margins.

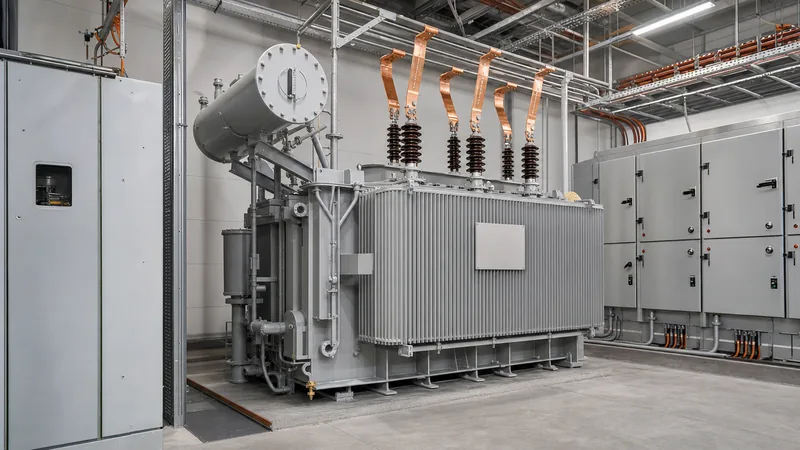

Sizing distribution and power transformers accurately prevents premature thermal degradation, excessive copper and core losses, and unexpected nuisance tripping under peak load. Whether engineers are configuring a pad-mounted transformer for a commercial facility or engineering a medium-voltage feed for industrial switchgear, exact mathematical evaluation is essential. For comprehensive substation-level configurations, reference our kVA calculator substation sizing guide to ensure system-wide coordination.

What Does kVA Mean on a Transformer and How Does it Relate to Amperes?

The term kVA represents kilovolt-amperes, the unit of apparent power that quantifies the total electrical capacity a transformer winding can handle without exceeding design thermal limits. Unlike real power measured in kilowatts (kW), apparent power incorporates both work-producing real current and magnetising reactive current (kVAR). Because an equipment manufacturer cannot predict the operating power factor (PF) of the downstream equipment connected by end users, transformers are universally rated in apparent power.

The mathematical relationship between real power and apparent power is defined by the formula kW = kVA × PF. When an inductive load such as an electric induction motor operates at a lagging power factor of 0.80, a 100 kW mechanical demand actually draws 125 kVA from the transformer winding. Determining the correct transformer ampere capacity therefore prevents internal insulation failure governed by thermal standards such as IEC 60076-2 and IEEE C57.12.00 Table 5.

3 Phase Transformer Calculation Formulas and Step-by-Step Methodology

The core mathematical framework for any 3 phase transformer calculator relies on line-to-line operating voltage and line current. Neglecting winding losses and internal impedance during baseline sizing, the primary and secondary apparent power remain identical.

To execute a precise three phase transformer calculation formula, apply the following governing relationships:

• Apparent power equation: S (kVA) = (√3 × V_LL × I) / 1,000
• Current equation from kVA: I (Amperes) = (kVA × 1,000) / (√3 × V_LL)
• Single-phase equivalent: I (Amperes) = (kVA × 1,000) / V_LN
• Amperage to kVA conversion: kVA = (I × V_LL × 1.73205) / 1,000

In these equations, V_LL is line-to-line root-mean-square (RMS) voltage in volts, V_LN is line-to-neutral voltage in volts, and I is the line current in amperes. When engineers evaluate line-to-line current at 400 V or 480 V, the factor √3 (approximately 1.73205) accounts for the 120-degree phase displacement between line vectors in symmetrical three-phase AC systems.

Step-by-Step Transformer Load Calculation Procedure

A comprehensive transformer load calculation follows a structured engineering workflow to translate operational plant schedules into an exact nameplate rating.

1. Compile connected load data: Inventory all linear, non-linear, motor, and resistive equipment in kilowatts or running amperes, recording the individual operating power factor and duty cycle of each asset.
2. Segregate continuous and non-continuous loads: In accordance with NFPA 70 (NEC) Article 450 and IEC 60364-5-52, designate any load operating continuously for three hours or more as continuous. Multiply continuous loads by a minimum factor of 1.25.
3. Apply diversity and demand factors: Industrial facilities rarely operate all connected equipment simultaneously. Apply engineering demand factors (typically 0.65 to 0.85 depending on process sequencing) to non-continuous components.
4. Calculate baseline apparent power: Convert net kilowatts to apparent power by dividing total real power by the plant operating displacement power factor: kVA = kW_total / PF_aggregate.
5. Evaluate transient motor starting and harmonics: Account for largest-motor direct-on-line (DOL) locked-rotor starting current (typically 600% of full-load current) and de-rate standard dry-type or oil-filled units if non-linear loads induce a K-factor exceeding K-4.
6. Select nearest standard rating: Round up the calculated requirement to standard ratings outlined in IEC 60076-1 Clause 5.4 or IEEE C57.12.00 Table 3 (e.g., 315 kVA, 500 kVA, 630 kVA, 800 kVA, 1,000 kVA, 1,250 kVA, 1,600 kVA, 2,000 kVA, 2,500 kVA).

For packaged solutions linking transformers to incoming and outgoing distribution switchboards, consult our guide on unit substation engineering design to coordinate low-voltage breaker ratings.

Worked Engineering Example: Sizing a Step Up Transformer 208 to 480 Calculator

A practical worked calculation illustrates the application of these formulas when configuring a step up transformer 208 to 480 calculator for industrial machinery. Consider a commercial manufacturing site where the utility supply provides 208 V three-phase power, but imported industrial CNC equipment requires a 480 V three-phase supply.

The downstream continuous load consists of: 95 kW of servo-driven axis drives and spindle motors operating at an aggregate power factor of 0.86, plus 15 kW of auxiliary heating and hydraulic pumps at unity power factor (1.0 PF). A future expansion allowance of 20% must be incorporated.

• Spindle apparent power: 95 kW / 0.86 = 110.47 kVA
• Auxiliary apparent power: 15 kW / 1.0 = 15.00 kVA
• Subtotal operational demand: 110.47 kVA + 15.00 kVA = 125.47 kVA
• Applying continuous safety margin (125% per standard practice): 125.47 kVA × 1.25 = 156.84 kVA
• Applying future growth reserve (20%): 156.84 kVA × 1.20 = 188.21 kVA

Referring to standard preferred ratings per IEEE C57.12.00, the calculated 188.21 kVA requires rounding up to a standard 225 kVA three-phase rating.

Now evaluate the transformer primary and secondary calculator ratings to determine full-load currents for conductor and protection sizing:

• Secondary full-load current at 480 V: I_sec = (225 × 1,000) / (√3 × 480) = 225,000 / 831.38 = 270.63 A
• Primary full-load current at 208 V: I_pri = (225 × 1,000) / (√3 × 208) = 225,000 / 360.27 = 624.53 A
• Current ratio verification: 624.53 A / 270.63 A = 2.308, which precisely matches the voltage turns ratio 480 V / 208 V = 2.308.

This verification confirms that primary switchgear and busbars must be sized for at least 625 amperes continuously, as explored further in our guide to IEC 61439 low-voltage switchgear engineering.

Three-Phase Transformer Full-Load Current Reference Table

The following reference table summarises full-load operating line currents across standard kVA ratings for common three-phase system voltages: 208 V, 400 V, 415 V, and 480 V. Calculations apply the formula I = (kVA × 1,000) / (√3 × V).

For more detailed transformer sizing principles and thermal derating considerations, read our specialised transformer sizing calculator engineering guide.

Common Mistakes in Distribution Transformer Sizing and Current Calculations

Accurate transformer calculation requires avoiding several frequent oversights encountered during front-end engineering design and equipment procurement.

• Confusing single-phase and three-phase formulas: Omitting the √3 divisor in three-phase equations produces an operating current figure that is 73% too high, leading to oversized conductors, switchgear, and protective relays.
• Ignoring power factor degradation: Assuming loads operate at unity power factor results in selecting a transformer with insufficient kVA capacity. While 500 kW at 1.0 PF equals 500 kVA, the same 500 kW at 0.75 PF requires a 667 kVA unit.
• Neglecting inrush current on motor loads: Sizing purely for steady-state continuous amperes can cause severe voltage dip during direct-on-line motor starts, exceeding the permissible 10% to 15% transient bus drop specified in IEEE 399.
• Disregarding ambient temperature and altitude derating: Under IEC 60076-2, standard transformer ratings assume ambient temperatures do not exceed 40 °C peak (or 30 °C yearly average) and altitudes do not exceed 1,000 metres above sea level. Installation at higher elevations or in tropical climates requires thermal de-rating of roughly 0.4% per 100 metres above 1,000 metres.
• Omitting harmonic load heating: High concentrations of variable frequency drives (VFDs) and switched-mode power supplies inject harmonic currents that induce eddy-current losses in windings and structural steel, requiring appropriate K-factor dry-type units or oversized oil-immersed cores.

Next Steps: Specifying and Sourcing

When preparing an RFQ or procurement specification, supply the calculated kVA, primary and secondary line voltages, winding connection vector group (e.g., Dyn11 or Dyn1), required percentage impedance (%Z), BIL impulse insulation levels, and ambient environmental conditions. Explore our heavy-duty oil-immersed transformer range for outdoor primary substations, our fire-resistant dry-type transformer units for commercial plant rooms, or our integrated prefabricated transformer substations. For project-specific quotations, thermal load analyses, and custom impedance designs, contact our engineering sales department via our transformer quotation page or reach out through our technical contact portal.
