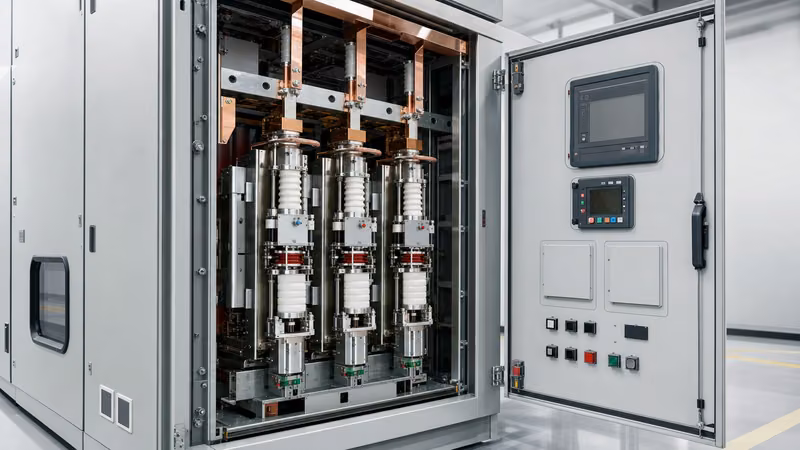

Circuit Breaker Ratings: Engineering Guide for Substations

Quick answer: Circuit breaker ratings define the precise operational, thermal, and dielectric boundaries within which a switching device safely carries continuous load, withstands transient overvoltages, and interrupts maximum prospective short-circuit currents. Standardised under IEC 62271-100 and IEEE C37.04, these parameters ensure the breaker clears faults without explosive failure or sustained arcing.

Specifying circuit breaker ratings correctly represents one of the most critical stages in electrical substation design. An undersized breaker risks catastrophic failure during a bolted three-phase fault, destroying switchgear lineups and endangering personnel. Conversely, over-specifying ratings escalates capital costs and increases physical footprint unnecessarily. Power systems engineers must coordinate breaker capabilities directly with upstream source impedance, transformer capacities, and protection trip curves established in the overall substation and transformer sizing calculations.

Voltage and Dielectric Circuit Breaker Ratings

Rated voltage parameters determine the electrical insulation boundaries of the breaker under continuous service and transient overvoltage conditions.

International standards, notably IEC 62271-1 clause 4.1 and IEEE C37.04 clause 5.1, define three interlinked dielectric limits:

• Rated Maximum Voltage (Ur): The upper limit of highest system phase-to-phase RMS voltage for which the breaker is designed. Common medium-voltage ratings include 7.2 kV, 12 kV, 24 kV, 36 kV, and 40.5 kV. A 12 kV breaker operates comfortably on nominal 11 kV networks, providing the required design margin.
• Rated Power-Frequency Withstand Voltage (Ud): The RMS voltage the insulation withstands for 60 seconds during dry dielectric factory acceptance testing (typically 28 kV RMS for 12 kV switchgear, and 70 kV RMS for 36 kV switchgear).
• Rated Lightning Impulse Withstand Voltage (Up or BIL): The peak value of a standard 1.2/50 µs impulse wave the unit withstands, representing atmospheric lightning strikes or severe switching surges. A standard 12 kV circuit breaker carries a Basic Impulse Insulation Level (BIL) of 75 kV or 95 kV peak, while 36 kV equipment requires 170 kV peak per IEC 62271-1 Table 1.

Engineers must ensure that system surge arresters coordinate with these impulse levels, leaving a minimum 15% protective margin between the arrester residual discharge voltage and the breaker BIL rating.

Continuous and Short-Time Thermal Breaker Ratings

Thermal breaker ratings govern the continuous current capability and the thermal withstand during through-fault conditions before downstream protective relays clear the disturbance.

The primary continuous metric is the rated normal current (Ir), which is the maximum RMS current the breaker carries continuously at a reference ambient temperature of 40°C without exceeding contact and terminal temperature rise limits defined in IEC 62271-1 clause 6.5. Standard values follow R10 preferred numbers: 630 A, 1250 A, 1600 A, 2000 A, 2500 A, 3150 A, and 4000 A. Silver-plated copper joints usually permit an ultimate temperature of 105°C (a 65 K rise above 40°C ambient).

When external short circuits occur, the breaker must carry the thermal energy without contact welding or structural distortion. This capability is quantified by two parameters:

• Rated Short-Time Withstand Current (Ik): The RMS value of the short-circuit current that the breaker can carry in the closed position for a specified duration.
• Rated Duration of Short Circuit (tk): Standardised durations are normally 1 second or 3 seconds (rarely 4 seconds in specific utility specifications). The total thermal energy withstand is governed by the Joule integral, expressed as I²t.

For application in primary substations, selecting a 3-second rating (such as 25 kA / 3 s or 31.5 kA / 3 s) provides necessary grading margin when coordinating with delayed backup protection relays in complex medium-voltage switchgear installations.

Short-Circuit Breaking and Making Capacity Ratings

The interrupting capability of a circuit breaker requires separate verification for breaking active faults and closing onto existing faults.

The rated short-circuit breaking current (Isc) represents the highest RMS value of the symmetrical AC component that the interrupter clears at its rated voltage. However, real-world short circuits contain an initial decaying DC offset determined by the system impedance ratio (X/R). IEC 62271-100 clause 6.101 specifies a standard time constant of 45 ms for distribution systems (corresponding to an X/R ratio of approximately 14 at 50 Hz). If a substation feeder is situated close to large generation units or high-MVA transformers where X/R exceeds 30 (tau > 90 ms), the DC component at contact parting time will be substantially higher, requiring a breaker with verified enhanced asymmetrical breaking capabilities.

Conversely, rated short-circuit making current (Ip) defines the peak mechanical force the mechanism must overcome to close and latch against electromagnetic repulsion forces. Because peak current occurs during the first half-cycle of a fault:

• Under IEC standards (50 Hz), Ip = 2.5 × Isc (or 2.6 × Isc at 60 Hz with standard 45 ms time constant).
• Under IEEE C37.06 standards, peak making is specified as the closing and latching capability, often expressed as 2.6 or 2.7 times RMS symmetrical current depending on the breaker operating speed.

In modern distribution grids, vacuum circuit breakers excel at handling these stresses because their low contact travel (typically 8 mm to 12 mm for 12 kV) permits rapid actuation and reliable arc interruption at the first natural current zero.

Worked Engineering Calculation: Breaker Sizing for a Substation Feeder

Calculating adequate circuit breaker ratings requires evaluating both continuous loading and worst-case three-phase bolted fault levels at the switchgear busbar.

Consider an industrial distribution substation supplied by a 33/11 kV transformer with the following parameters:

• Transformer rated power (Sr): 20 MVA (ONAN)
• Transformer percentage impedance (%Z): 10.0% (0.10 pu on 20 MVA base, X/R = 12)
• Upstream 33 kV utility grid short-circuit capacity: 750 MVA (X/R = 15)
• Nominal busbar voltage (Un): 11 kV (Rated maximum Ur = 12 kV)
• System frequency: 50 Hz

Step 1: Calculate full-load continuous current (Ir_load)

Ir_load = Sr / (√3 × Un) = 20,000 kVA / (1.732 × 11 kV) = 1,049.7 A.
Select the next standard continuous current rating: Ir = 1,250 A (or 1,600 A to allow for 120% continuous emergency overloading).

Step 2: Determine total short-circuit impedance at 11 kV

Upstream grid impedance referred to 20 MVA base:
Z_grid = Sr / S_fault = 20 MVA / 750 MVA = 0.0267 pu.
Transformer impedance:
Z_tx = 0.1000 pu.
Total Thevenin impedance at the 11 kV busbar (assuming parallel resistance-reactance alignment):
Z_total = Z_grid + Z_tx = 0.0267 + 0.1000 = 0.1267 pu.

Step 3: Calculate symmetrical prospective fault current (Isc_calc)

Base current at 11 kV: I_base = 20 MVA / (√3 × 11 kV) = 1.050 kA.
Isc_calc = I_base / Z_total = 1.050 kA / 0.1267 = 8.287 kA RMS.

Step 4: Determine peak making current (Ip_calc)

Using the standard IEC peak factor of 2.5 for a 50 Hz system:
Ip_calc = 2.5 × 8.287 kA = 20.72 kA peak.

Step 5: Select standard breaker ratings

Comparing calculated requirements against standard R10 switchgear ratings:

• Minimum required Isc = 8.29 kA; standard commercial rating = 25 kA (providing ample capacity for future upstream network fault level increases).
• Standard peak making capacity at 25 kA: Ip = 2.5 × 25 kA = 62.5 kA peak.
• Rated short-time withstand: 25 kA for 3 seconds.

Integrating this calculated duty with a properly tuned substation protection scheme ensures that the incoming circuit breaker remains well within its thermal and mechanical envelope during clearance.

Standard Breaker Ratings: Low Voltage vs Medium Voltage

Circuit breaker terminology and testing regimes differ fundamentally between low-voltage switchgear governed by IEC 60947-2 and medium-voltage equipment governed by IEC 62271-100.

The table below contrasts standard performance designations between low-voltage and medium-voltage breaker ratings:

For low-voltage switchboards designed according to IEC 61439 standards, engineers must select Category B breakers (which possess a defined Icw rating) for main incomers to provide full time-graded selectivity with downstream Category A current-limiting branch breakers.

Operating Sequence and Environmental Derating Factors

A circuit breaker rating is not static; it depends upon the operational switching duty cycle and the physical installation environment.

IEC 62271-100 specifies two standard auto-reclosing duty cycles for medium-voltage breakers:

1. Non-auto-reclosing line: O - 3 min - CO - 3 min - CO (Open followed after 3 minutes by Close-Open).
2. Auto-reclosing line: O - 0.3 s - CO - 3 min - CO (Open, immediate rapid reclosure after a 0.3-second dead-time to clear transient faults, followed by a final reclose after 3 minutes).

If a utility specifies a more onerous duty cycle—such as O - 0.3 s - CO - 15 s - CO—the manufacturer must derate the effective breaking current or verify the interrupting chamber's thermal recovery capability by extended laboratory type tests.

Furthermore, physical installation conditions mandate mathematical derating:

• Ambient Temperature Derating: Ratings apply at 40°C daily peak (35°C 24-hour average). When installed inside unconditioned switchrooms or compact outdoor enclosures reaching 50°C, continuous current capacity drops. A rule-of-thumb derating of 1% per degree Celsius above 40°C applies, unless natural heat dissipation tests confirm otherwise.
• Altitude Derating: At altitudes above 1,000 metres (3,300 feet), atmospheric air density decreases, degrading both external insulation withstand (dielectric breakdown) and convection cooling. Per IEC 62271-1 clause 2.2.1, lightning impulse and power-frequency withstand ratings must be multiplied by an altitude correction factor Ka: Ka = e^(m × (H - 1000) / 8150), where H is altitude in metres and m = 1 for impulse voltage. For continuous current, a 0.5% derating per 100 metres above 1,000 metres is standard.

Inspection and RFQ Specification Checklist for Breaker Ratings

Specifying engineers should utilise a structured technical data schedule when issuing requests for quotation (RFQs) to prevent ambiguity between factory test sheets and site demands.

Verify that your procurement schedule defines each of the following parameters:

1. System Configuration: Rated voltage (Ur), nominal operating voltage (Un), frequency (50/60 Hz), and neutral grounding topology (solidly grounded, resistance grounded, or isolated).
2. Dielectric Parameters: Lightning impulse withstand voltage (Up / BIL) to earth and across open contacts, plus 1-minute power-frequency withstand (Ud).
3. Load Requirements: Rated normal current (Ir) under actual site ambient temperature, including enclosure derating factors.
4. Fault Clearances: Rated symmetrical short-circuit breaking current (Isc), DC time constant (tau in ms), and peak making current (Ip).
5. Withstand Durations: Short-time withstand current (Ik) specifying both 1-second and 3-second requirements.
6. Control and Auxiliaries: Trip coil and close coil operating voltages (DC 48 V, 110 V, 220 V or AC 230 V), spring charging motor supply limits, and number of spare auxiliary contacts (normally 4NO + 4NC minimum).
7. Operating Cycle: Explicit designation of reclosing sequence (O - 0.3s - CO - 3min - CO or custom utility sequence).

Next steps: specifying and sourcing

Selecting compliant circuit breaker ratings requires precise alignment between network fault levels, ambient site derating, and protection clearing times. When preparing switchgear requisitions or upgrading substation infrastructure, complete a full single-line diagram and fault level study before freezing specifications. For projects requiring factory-tested switchboards and turnkey power delivery, explore our factory-assembled medium-voltage and low-voltage switchgear lineups or complete modular transformer substations. To review technical compliance or request an engineering quotation tailored to your single-line diagram, submit your tender schedules directly via our substation quote portal.
