3 Phase Phase to Phase Voltage: Calculations & System Guide

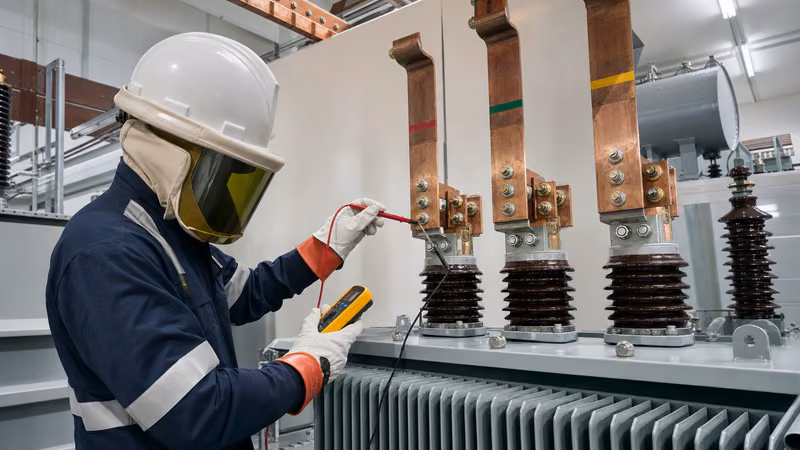

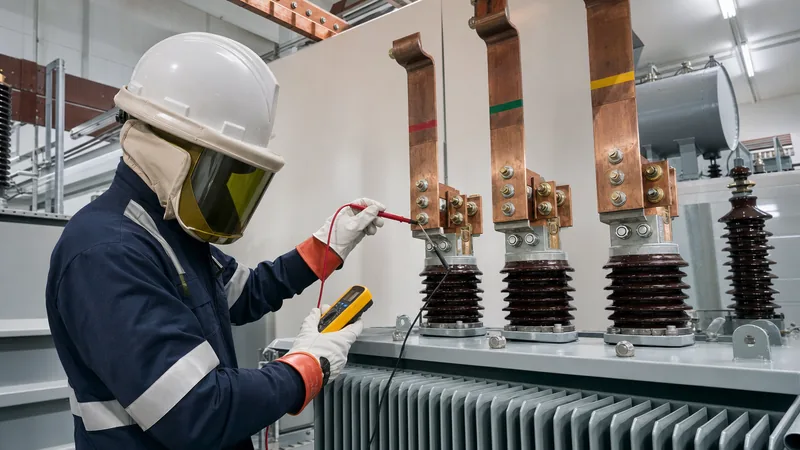

Quick answer: In alternating current distribution, 3 phase phase to phase voltage (commonly denoted as line-to-line voltage, V_L-L) is the potential difference measured between any two live line conductors. In a balanced star or wye network, this value equals the line-to-neutral voltage (V_L-N) multiplied by the square root of three (√3 ≈ 1.73205), whereas in a delta network, phase-to-phase voltage is identical to the individual phase winding voltage.

Understanding line-to-line voltage is foundational for industrial power distribution, switchboard sizing, and motor branch circuit protection. Whether engineering an industrial facility or specifying distribution assets from our comprehensive 3 phase transformer guide, electrical engineers must calculate line-to-line potentials accurately to prevent insulation breakdown, avoid thermal overload, and balance loads across all three conductors.

What is Three Phase AC Supply and How Does It Work?

A three phase ac supply is an electrical generation and distribution method that uses three alternating currents of identical frequency and voltage amplitude, each displaced in time by one-third of an electrical cycle (120° or 2π/3 radians). This geometric arrangement ensures that the instantaneous sum of voltages in a balanced system is constantly zero, allowing efficient transmission without requiring separate return paths for each phase.

Compared to single-phase systems, three phase ac power delivers a continuous, constant power transfer rather than pulsating power. This non-pulsating characteristic eliminates torque ripple in rotating machinery such as squirrel-cage induction motors. Furthermore, 3 phase power systems transmit three times the power of a single-phase circuit while requiring only 1.5 times the conductor material by mass, significantly reducing copper and aluminium consumption across high-voltage transmission and medium-voltage distribution networks. On a typical 3 phase sign or single-line drawing, these systems are identified by the standard Greek symbol Φ (e.g., 3Φ 400 V 50 Hz or 3Φ 480 V 60 Hz).

Calculating 3 Phase Phase to Phase Voltage: Formula and Vectors

The calculation of 3 phase phase to phase voltage depends on the vector subtraction of two individual line-to-neutral phasor voltages displaced by 120°. When measuring voltage between Phase A (V_A) and Phase B (V_B) in a balanced wye network, the line-to-line phasor is defined by Kirchhoff's Voltage Law: V_AB = V_A − V_B.

Using trigonometric phasor decomposition where V_A = V_LN ∠ 0° and V_B = V_LN ∠ −120°:

V_AB = V_LN(cos 0° + j sin 0°) − V_LN(cos(−120°) + j sin(−120°))

V_AB = V_LN(1 − (−0.5 − j0.8660)) = V_LN(1.5 + j0.8660)

Calculating the absolute magnitude yields:

|V_AB| = V_LN × √(1.5² + 0.866²) = V_LN × √(2.25 + 0.75) = V_LN × √3 ≈ 1.73205 × V_LN

Consequently, in a standard 230 V phase-to-neutral low-voltage network complying with IEC 60038, the nominal phase-to-phase line voltage is exactly: 230 V × 1.73205 = 398.37 V, standardised across European and Commonwealth grids as 400 V. Conversely, dividing a measured 480 V North American system voltage by √3 yields a line-to-neutral potential of 277.1 V.

Delta vs Y Transformer Configurations and Voltage Characteristics

The core distinction in a delta vs y transformer installation lies in the physical relationship between line conductors and phase windings. In a three phase wye connection (star connection), one terminal of each of the three phase coils joins at a common star point, which can be connected to an insulated neutral conductor or bonded directly to an electrical earth. In contrast, a 3 phase delta connection connects the three phase coils in a continuous closed loop, linking the finish of one winding to the start of the next.

Evaluating y vs delta wiring reveals fundamental voltage and current distinctions across industrial machinery:

• Wye (Star) Configuration: V_Line-to-Line = √3 × V_Phase, while I_Line = I_Phase. This configuration provides two distinct utilisation voltages (e.g., 400 V line-to-line for motor loads and 230 V line-to-neutral for general lighting and instrumentation).
• Delta Configuration: V_Line-to-Line = V_Phase, while I_Line = √3 × I_Phase. A delta configuration 3 phase network has no inherent neutral point, meaning line conductors operate entirely at full phase-to-phase potential without an organic line-to-neutral single-phase circuit.

For high-capacity industrial plant distribution, specifying a delta wye transformer diagram is industry standard. The delta high-voltage winding suppresses zero-sequence third-harmonic flux, while the secondary wye winding establishes a stable neutral reference point for secondary fault clearing and unbalanced single-phase load management.

Global Standard Line-to-Line Voltages in 3 Phase Power Systems

Global utility networks deploy distinct nominal phase-to-phase voltages determined by regional regulatory frameworks such as IEC 60038, ANSI C84.1, and national electrical codes (NFPA 70 / NEC). Choosing the correct line-to-line voltage profile dictates conductor cross-sections, switchgear short-circuit breaking capacity, and transformer insulation BIL (Basic Impulse Insulation Level) ratings.

Operating equipment at an incorrect line-to-line voltage causes severe operational anomalies. Running an induction motor rated for 400 V on a 480 V supply produces flux saturation within the stator core laminations, causing excessive magnetising currents, nuisance thermal tripping, and premature dielectric breakdown of winding enamel insulation.

Reading a 3 Phase Power Diagram: Vector Notation and Phase Shifts

A detailed 3 phase electricity diagram relies on standardised vector group notation (defined in IEC 60076-1) to illustrate winding configuration and phase displacement. When reading a schematic, the sequence of letters indicates the winding styles: an uppercase letter denotes the primary winding (e.g., ‘D’ for delta, ‘Y’ for star/wye), a lowercase letter denotes the secondary winding (‘d’ or ‘y’), ‘n’ indicates a brought-out neutral terminal, and an integer represents the clock-hour phase displacement.

For instance, in a three phase delta wye Dyn11 transformer:

1. The primary winding is connected in a delta three phase arrangement (‘D’).
2. The secondary winding is wired in a three phase wye connection (‘y’) with a fully rated neutral terminal (‘n’).
3. The secondary line-to-neutral voltage vector lags or leads the primary line-to-line voltage vector according to clock-face notation: 11 o'clock corresponds to 11 × 30° = 330° lag, which is equivalent to a 30° phase lead of the secondary relative to the primary.

To explore how non-synchronous vector groups cause circulating currents during parallel transformer operations, refer to our technical breakdown of transformer vector groups explained. Selecting between Dyn11 and a wye wye configuration (such as Yyn0) depends strictly on grid fault current constraints, earthing schemes, and whether neutral loads are unbalanced.

Next steps: specifying and sourcing

When specifying distribution equipment, exact voltage ratings must be established before issuing purchase tenders. Ensure your engineering procurement package details nominal primary and secondary 3 phase phase to phase voltage, system frequency (50 Hz or 60 Hz), required vector group (e.g., Dyn11 or YNd11), impedance voltage percentage (%Z), and insulation class.

Our manufacturing plant engineers both heavy-duty oil-immersed transformers for outdoor grid substations and high-efficiency dry-type transformers for indoor commercial installations, alongside comprehensive power transformer units up to 110 kV. For bespoke system engineering support or project pricing, submit your single-line diagram directly via our transformer quote portal.
