Delta Wye Transformer Diagram: 3-Phase Wiring & Guide

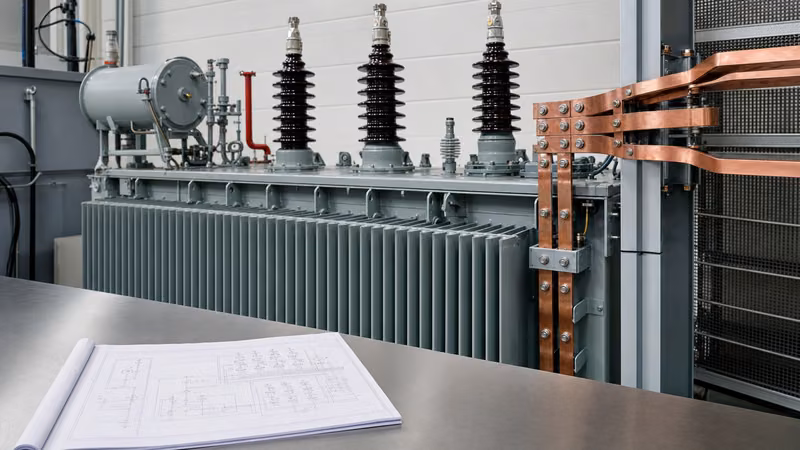

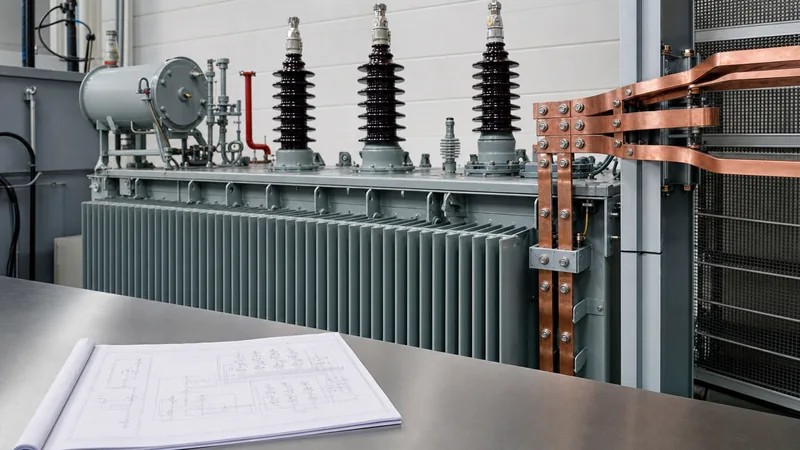

Quick answer: A delta wye transformer diagram illustrates a three-phase electrical transformer whose primary windings are connected in a closed delta (triangle) loop and whose secondary windings meet at a central neutral point to form a wye (star) configuration. This arrangement steps down transmission or distribution voltages while providing a stable, grounded neutral for single-phase and three-phase loads.

In commercial, industrial, and utility distribution networks, the delta wye transformer diagram serves as the fundamental schematic for electrical designers, protection engineers, and field installation crews. The delta-wye (often written as Delta-Y or Δ-Y) configuration represents the most ubiquitous topology in step-down distribution substations globally. It reliably isolates the primary distribution network from ground faults occurring on the low-voltage side, mitigates third-harmonic distortion, and delivers both line-to-line and line-to-neutral voltages to end-use equipment. Understanding how to interpret a transformer wire diagram and execute proper terminal terminations is vital for system reliability, equipment safety, and compliance with IEC 60076 and IEEE C57.12.00 engineering standards. For broader selection fundamentals across varied configurations, see our comprehensive 3-phase transformer buyers guide.

Understanding the Delta Wye Transformer Diagram and Vector Shifts

A delta wye transformer diagram visually illustrates how three separate phase windings interact electrically across primary and secondary magnetic circuits. On the primary side, the three winding phases are connected end-to-end across high-voltage terminals H1, H2, and H3, forming a closed delta loop where line voltage equals phase winding voltage (V_line = V_phase). On the secondary side, one terminal of each low-voltage winding connects to a common star point (the neutral terminal, X0), while the opposite ends connect to phase terminals X1, X2, and X3. This wye relationship means secondary line-to-line voltage exceeds line-to-neutral voltage by a factor of the square root of three: V_LL = √3 × V_LN (for instance, 400 V line-to-line yields 230 V line-to-neutral, or 480 V yields 277 V).

A critical engineering consideration in any delta y transformer connection is the 30-degree electrical angular displacement between primary and secondary voltage waveforms. Depending on whether the secondary leads or lags the primary, the connection corresponds to specific vector group classifications. In IEC-aligned networks, the standard configuration is Dyn11, denoting a delta high-voltage winding (D), a wye low-voltage winding (y) with brought-out neutral (n), and a low-voltage vector lagging by 330 degrees (or leading by 30 degrees, represented as 11 o'clock on a clock face). In North American ANSI/IEEE installations, Dyn1 (a 30-degree lagging displacement, where low voltage lags high voltage by 30 degrees) is standard. For a detailed breakdown of vector designations and clock codes, consult our guide on transformer vector groups explained.

Three Line Diagram Transformer Schematics and Terminal Marking

A three line diagram transformer schematic displays every individual conductor, winding segment, terminal bushing, and ground reference rather than condensing them into single-line representations. In contrast to single-line diagrams (SLDs) used for general system topology, the three line diagram transformer format is essential for wiring technicians because it identifies explicit terminal identities and winding polarities.

Terminal marking standards vary between jurisdictions:

• IEC 60076 & BS 7671: High-voltage terminals are designated 1U, 1V, 1W (or U1, V1, W1), while low-voltage terminals are designated 2U, 2V, 2W with the neutral labeled 2N or N.
• IEEE C57.12.70 / ANSI Standards: High-voltage bushings are designated H1, H2, H3, while secondary low-voltage bushings are marked X1, X2, X3, with the secondary neutral identified as X0.

On a formal 3 phase transformer wiring schematic, polarity dots indicate instantaneous voltage polarity. Current entering a marked primary dot produces an in-phase current exiting the corresponding marked secondary dot on that same magnetic core limb. When reading a wye transformer diagram, the X0 bushing is universally shown connected to the electrical earth via an equipment grounding conductor or system grounding resistor, establishing the system reference voltage and providing a return path for earth-fault detection schemes. Understanding these symbols across diverse international schematics is outlined in our transformer symbol schematic guide.

3 Phase Transformer Wiring Connections: Technical Comparison

A 3 phase transformer wiring connection must be selected according to supply network requirements, load balance, grounding strategy, and harmonic mitigation objectives. While the delta-wye is the industry standard for step-down distribution, alternative configurations such as wye-wye, delta-delta, and wye-delta serve specific utility and industrial functions. The following three phase transformer chart highlights the operational parameters of primary 3 phase transformer connections.

As evident from the operational data, a wye wye transformer connection without a delta tertiary winding suffers from harmonic instability and neutral inversion during unbalanced phase-to-ground loading. Conversely, the wye delta transformer connection is commonly used in generating stations to step up generation voltages to transmission levels while isolating generator harmonics from grid anomalies.

Building a Three Phase Transformer Bank from Single-Phase Units

A three phase transformer bank consists of three separate single-phase transformers interconnected externally to perform identical functions to a single three-phase unit. This architecture is common in rural utility distribution, heavy industrial facilities, and mining applications where transporting a single large three-phase transformer core is logistically impractical, or where a single spare unit must provide redundancy for multiple installations.

When assembling a three phase transformer bank using single-phase units to match a delta wye transformer wiring schematic, engineers must adhere to strict compatibility criteria:

• Identical Voltage Ratios: The primary and secondary rated voltages of all three single-phase transformers must match exactly to prevent unequal phase voltages.
• Matched Per-Unit Impedance (%Z): The nameplate impedance values must be within ±7.5% (or ±10% under IEEE standards) of each other. Imbalanced impedances force the transformer with the lowest impedance to carry a disproportionate share of the load, causing premature thermal breakdown.
• Polarity Verification: Each single-phase unit features either additive or subtractive polarity, stamped across primary and secondary terminal pairs. Subtractive polarity is standard on large distribution units under IEEE C57.12.00, meaning H1 and X1 are adjacent. Inverting connections on one unit inverts that phase vector by 180 degrees, causing severe phase imbalance and instantaneous overcurrent trips.

How to Wire a Transformer 3 Phase: Step-by-Step Field Procedure

To wire a transformer 3 phase correctly, field technicians must follow a rigorous, verified sequence complying with local electrical codes such as NFPA 70 (NEC Article 450) or IEC 60364. Incorrect terminal torque, misidentified phase leads, or missing system bonds can lead to catastrophic insulation flashover or personnel hazard.

1. Isolate and Verify Zero Energy: Disconnect all incoming MV/LV feeders, lock out and tag out (LOTO) upstream switchgear, apply safety grounding clusters, and test for voltage absence with an approved, calibrated contact tester.
2. Inspect and Verify Nameplate Diagram: Compare the physical terminal layout against the factory 3 phase transformer wiring diagram on the unit's rating plate. Confirm voltage ratings, tap changer position, and the vector symbol (such as Dyn11).
3. Establish the Secondary Grounding Bond: For a secondary wye transformer wiring system, terminate an appropriately sized Grounding Electrode Conductor (GEC) from the secondary neutral bushing (X0) to the substation ground grid or grounding electrode system. If configured as a separately derived system under NEC 250.30, install the main bonding jumper between X0 and the equipment ground bar.
4. Terminate Primary Delta Windings: Land the incoming primary phase conductors (L1, L2, L3) onto the high-voltage bushings (H1, H2, H3). Torque all copper or aluminium busbars using a calibrated torque wrench to the manufacturer's specified Newton-metre (N·m) or foot-pound ratings. Apply torque-seal witness marks.
5. Terminate Secondary Wye Windings: Connect outgoing low-voltage load cables (Phases A, B, C) to terminals X1, X2, and X3. Terminate the system neutral conductor on X0. Ensure adequate bending radius and phase separation clearance per IEC 61936-1 or NEC Table 490.24.
6. Conduct Pre-Commissioning Electrical Tests: Prior to energisation, verify winding resistance across all phases, execute an insulation resistance (Megger) test at 1 kV to 5 kV DC, and perform a Turns Ratio (TTR) measurement across all tap positions to confirm that actual terminal transformation matches the 3 phase transformer diagram.

Protection and Grounding in Delta Wye Configurations

Protection systems on a delta wye transformer wiring network must account for how zero-sequence fault currents propagate through unequal winding configurations. Because the primary delta winding has no physical ground connection, ground faults on the primary distribution feeder do not transfer zero-sequence currents directly into the secondary wye system. Similarly, an earth fault on the secondary wye circuit causes zero-sequence current to circulate inside the primary delta winding without flowing back into the upstream primary network.

Key protective measures required on these configurations include:

• Overcurrent and Earth Fault Relays: Dedicated numerical relays (ANSI 50/51 and 51N/51G) must be coordinated across primary and secondary switchgear. Upstream primary overcurrent protection must clear secondary phase-to-ground faults even though primary phase current magnitude is lower by the transformation ratio.
• Restricted Earth Fault (REF) Protection: High-impedance or low-impedance REF schemes (ANSI 87N) compare the neutral current at X0 with the residual sum of phase currents from X1, X2, and X3. REF detects phase-to-earth faults close to the secondary star point that conventional differential relays might miss, as outlined in our technical guide on transformer protection engineering.
• Surge Arrester Coordination: Station-class or intermediate metal-oxide varistor (MOV) surge arresters must be mounted directly adjacent to primary H-bushings and secondary X-bushings to attenuate incoming lightning strikes and switching transients.

Next steps: specifying and sourcing

When specifying a transformer for utility, industrial, or renewable generation projects, issuing a precise engineering data sheet ensures accurate factory configuration. Your procurement specification should detail rated kVA capacity, primary and secondary rated voltages, basic impulse insulation level (BIL), required vector group (such as Dyn11 or Dyn1), impedance percentage (%Z), and cooling designation (ONAN, ONAF, or dry-type AN/AF). Explore our factory-manufactured oil-immersed distribution transformers, high-efficiency cast resin dry-type transformers, or robust pad-mounted transformers. To review design schematics or discuss custom winding connection requirements with our senior engineering team, visit our transformer quotation portal to submit your specifications.
