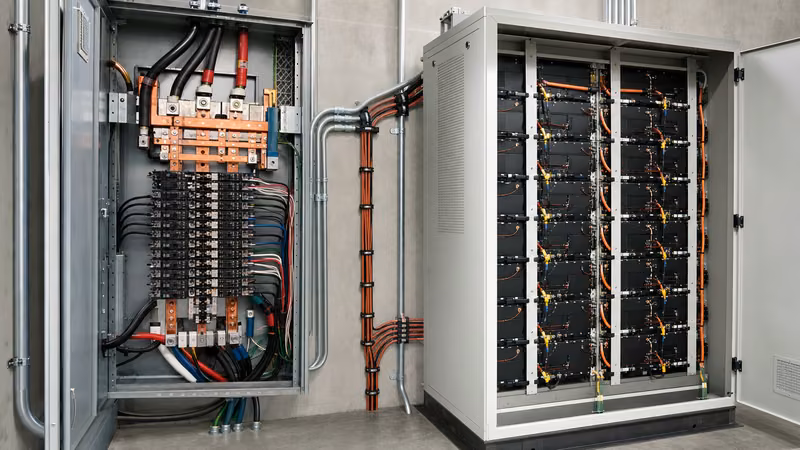

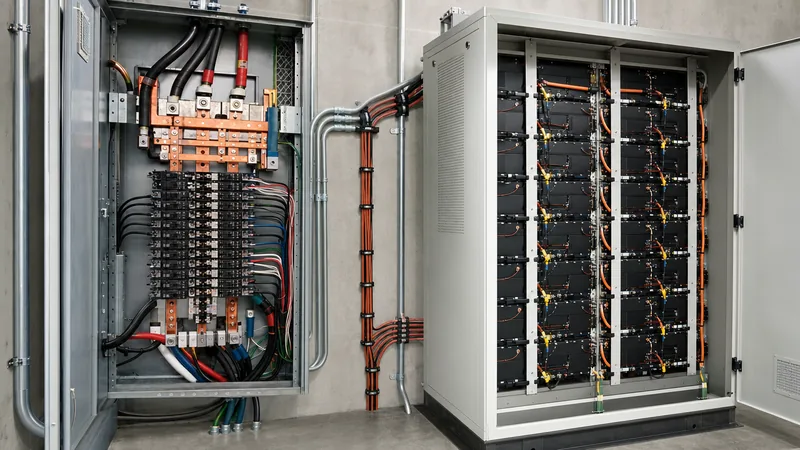

200 Amp Solar System Sizing, Busbars & Battery Guide

Quick answer: A 200 amp solar system refers either to a photovoltaic installation tied to a 200 A electrical service panel or an off-grid system with a 200 A direct current busbar. On a standard 200 A residential or commercial panel, National Electrical Code (NEC) rules limit standard backfed solar to 7.68 kW (32 A continuous) unless main breaker derating or line-side taps are applied.

In commercial and industrial facilities, specifying solar arrays and battery energy storage around a 200 A service entrance requires careful engineering of continuous current ratings, thermal dissipation, fault current withstand levels, and protection coordination. Whether designing a grid-tied system to offset utility demand or configuring isolated microgrids with dedicated battery banks, understanding the mathematical and regulatory limits of a 200 A infrastructure prevents costly distribution upgrades and field failures.

What is a 200 Amp Solar Power System in Electrical Engineering?

A 200 amp solar power system describes an electrical infrastructure where either the alternating current (AC) grid interconnection or the direct current (DC) battery and combiner architecture is sized around a 200 A continuous or nominal current threshold. In low-voltage power distribution, a 200 A service entrance is standard across small commercial facilities, agricultural workshops, and large residential estates.

Engineers differentiate between two distinct electrical domains when evaluating these systems:

• AC Service Domain: The system connects to a 240 V single-phase (providing up to 48 kVA nominal load capacity) or 208 V / 480 V three-phase distribution board rated for 200 A. The solar inverter backfeed is governed strictly by switchgear busbar ratings and overcurrent protection devices (OCPD).
• DC Domain: In off-grid or low-voltage DC-coupled topologies, a 200 A busbar operates at 48 V nominal. At this voltage, 200 A represents approximately 9.6 kW to 10.2 kW of continuous charging or discharging power, requiring robust busbars, heavy gauge copper conductors, and high-interrupt-capacity DC breakers.

For large-scale battery integration, consulting a comprehensive Battery Storage Engineering Guide provides baseline methodologies for separating AC-coupled from DC-coupled architectures within these switchgear envelopes.

Addressing the 200 Amp Solar Panel Misconception

A common misconception among procurement personnel is searching for an individual 200 amp solar panel, confusing electrical current with power wattage. In physical photovoltaic manufacturing, individual crystalline silicon PV modules operate at maximum power point currents (Imp) typically between 9 A and 18 A, with open-circuit voltages (Voc) between 38 V and 52 V, yielding ratings from 400 W to 700 W.

To generate a 200 A current output on the DC side, engineers must configure multiple PV strings in parallel:

1. Determine Individual String Current: A modern commercial module provides an Imp of approximately 13.5 A.
2. Calculate Parallel String Requirements: Dividing the target 200 A continuous DC current by 13.5 A yields approximately 15 strings in parallel.
3. Sub-Array Combiner Design: Each string contains 14 to 20 modules in series to achieve inverter window voltages (600 V to 1000 V DC). These 15 parallel strings terminate in an external combiner box fitted with 15 A or 20 A gPV DC fuses compliant with IEC 60269-6.

Consequently, generating 200 A at 48 V DC nominal for direct battery charging requires roughly 10 kW of total array power, whereas delivering 200 A AC backfeed at 480 V three-phase requires over 160 kW of photovoltaic generation capacity.

Busbar Ratings and the NEC 120% Interconnection Rule

The maximum power of a 200 amp solar system interconnected on the load side of a service panel is restricted by standard electrical safety codes. Under NFPA 70 (NEC) Article 705.12(B)(2), the sum of the primary service OCPD and all backfed solar inverter breakers connected to a busbar must not exceed 120% of the busbar ampacity rating.

Consider a standard distribution panel featuring a 200 A rated copper busbar and a 200 A main utility circuit breaker:

• Total Permissible Busbar Ampacity: 200 A × 1.20 = 240 A
• Available Inverter Breaker Allowance: 240 A - 200 A (Main Breaker) = 40 A OCPD
• Continuous Inverter Output (80% Rule): 40 A × 0.80 = 32 A continuous current
• Maximum Solar Capacity at 240 V Single-Phase: 32 A × 240 V = 7.68 kW

When engineering a larger solar array, the engineer must either derate the main breaker or implement a supply-side tap under NEC 705.11. The table below outlines allowable PV capacities across standard 200 A distribution configurations.

To safely manage these capacities, facilities often integrate specialised low-voltage switchgear designed to handle bidirectional current flows without local busbar overheating.

Battery Energy Storage Integration for 200 Amp Systems

Integrating battery storage into a 200 A electrical service requires sizing both the battery energy capacity (kWh) and continuous discharge power (kW) to match the operational objective, whether providing full 200 A microgrid backup or peak shaving. When configuring low-voltage DC lithium iron phosphate (LiFePO4) storage, selecting dedicated 48V solar battery systems requires substantial copper cross-sections to mitigate voltage drop.

To support a full 200 A continuous load at 240 V AC during a grid outage, an inverter system must supply:

Continuous Active Power: P = V × I = 240 V × 200 A = 48 kW

If utilising high-voltage battery racks (typically 300 V to 600 V DC), current demands on the DC bus decrease substantially. For example, delivering 48 kW across a 400 V DC nominal bus draws only 120 A DC, vastly improving conversion efficiency and reducing thermal losses in switchgear enclosures. Conversely, attempting whole-panel 200 A backup using low-voltage 48 V batteries requires parallel power conversion modules feeding into high-current distribution blocks.

For industrial facilities seeking complete autonomy, high-capacity commercial installations utilise containerised architectures like a commercial battery energy storage system coupled to dedicated automatic transfer switches (ATS) rated for 200 A continuous duty with mechanical interlocks.

Cable Sizing, Protection and Switchgear Specifications

Conductor sizing for a 200 amp solar system must comply with IEC 60364-5-52 or NEC Article 310, incorporating thermal derating for ambient temperature and raceway fill. Continuous solar output is classed as a continuous load, requiring conductors and protective devices to be rated at 125% of maximum continuous current.

The following engineering standards govern 200 A solar circuit components:

• Conductor Gauge: For 200 A non-continuous or 160 A continuous current at 75°C terminal ratings, copper conductors must be sized at a minimum of 2/0 AWG (67.4 mm²) or 3/0 AWG (85.0 mm²) depending on insulation rating (THHN/XHHW-2). Aluminium conductors require 4/0 AWG (107.2 mm²) or 250 kcmil (127 mm²).
• Voltage Drop Constraints: Long feeder runs between the array, power conversion systems, and main switchgear should maintain voltage drops below 1.5% on DC feeders and 1.5% on AC lines to prevent inverter nuisance tripping caused by grid-voltage rise (IEEE 1547 Table 4).
• Short-Circuit Withstand Rating: The switchboard and OCPD must feature an Interrupting Rating (AIC) exceeding the available prospective fault current at the service entrance, typically 10 kA to 22 kA for commercial low-voltage installations.
• Earth Fault and Arc Flash Protection: Residual current monitoring compliant with IEC 62109-2 and DC arc-fault detection (AFCI) compliant with UL 1699B are mandatory across all modern combiner and inverter inputs.

Installation and Commissioning Procedure for 200 Amp Systems

Commissioning a commercial or residential 200 A solar and storage installation demands a structured verification process to guarantee safety and compliance with utility interconnect agreements. Field engineers should adhere to this sequential procedure:

1. De-energisation and Mechanical Inspection: Disconnect the incoming service supply; verify panel torque settings using a calibrated torque wrench to manufacturer-specified Newton-metres; inspect 200 A busbars for micro-fractures, corrosion, or inadequate creepage distances per IEC 61439-1.
2. Insulation Resistance Verification: Conduct Megohmmeter testing on all DC strings and AC feeders at 1000 V DC for 60 seconds; verify minimum insulation resistance values exceed 1.0 MΩ before energisation.
3. Torque and Polarity Confirmation: Check polarity on all string terminations; ensure anti-islanding communication cables maintain adequate physical separation from AC power lines to avoid inductive noise coupling.
4. Grid-Intertie Parameter Configuration: Program inverters with regional grid codes (e.g., IEEE 1547.1 voltage and frequency trip boundaries); configure power factor parameters if utility agreements mandate reactive power support as outlined in our grid intertie solar guide.
5. Live Backfeed and Thermal Imaging: Energise the system under clear sky conditions; verify balanced phase currents up to full operating capacity; complete an infrared thermographic scan of the 200 A main breaker, solar OCPD, and battery bus connections to identify high-resistance terminations.

Next steps: specifying and sourcing

When preparing a bill of materials or request for quotation (RFQ) for a 200 amp solar system or integrated energy storage plant, engineers must define clear parameters. Ensure your submittal documents include complete single-line diagrams, incoming prospective short-circuit levels, busbar continuous ampacities, daily load duty profiles, and preferred enclosure ingress ratings (e.g., IP54 or NEMA 3R). Explore our factory-engineered energy storage systems and specialised low-voltage distribution boards to ensure complete compliance with international standards. To discuss system design specifics, thermal management requirements, or bespoke distribution switchboards with our senior engineering team, submit your project schedule through our technical quotation portal or reach out directly via our contact page.
