Key takeaways
- Water based fire suppression systems are the primary code-mandated method to control and arrest thermal runaway propagation in lithium-ion battery enclosures under NFPA 855.
- Unlike clean agent gaseous systems, water provides the high latent heat of vapourisation (2,260 kJ/kg) required to cool battery cells below their critical exothermic decomposition thresholds.
- Double-interlock pre-action sprinkler systems prevent accidental discharge while ensuring rapid water delivery upon simultaneous smoke detection and thermal confirmation.
- NFPA 855 clause 4.4.4.3 mandates a baseline sprinkler discharge density of 12.2 L/min/m² (0.30 gpm/ft²) across the designated design area for a minimum duration of 120 minutes.
- BESS water suppression engineering must incorporate secondary liquid containment and shunt-trip interlocks to isolate DC and AC power before water discharge occurs.
Quick answer: Water based fire suppression systems are engineered piping and nozzle networks that deliver pressurised water to absorb thermal energy, arrest lithium-ion thermal runaway propagation, and prevent structural flashover. Under standards such as NFPA 855 and NFPA 13, water is the primary agent capable of cooling battery modules below self-sustaining decomposition temperatures.

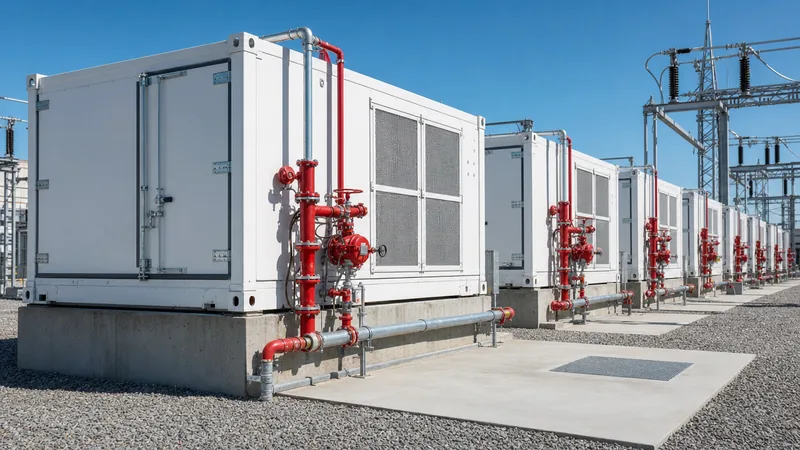

Deploying utility-scale battery energy storage systems (BESS) demands rigorous fire protection engineering. While clean agents and inert gases extinguish flaming combustion of off-gassed volatile organic compounds, they lack the thermodynamic cooling capacity needed to halt exothermic chemical reactions inside a burning lithium-ion cell. Consequently, water suppression system designs remain standard practice for large commercial and industrial battery installations. Understanding how to size hydraulic demands, configure pre-action piping, isolate high-voltage power, and capture toxic runoff is fundamental to compliant BESS design.
Why Water Based Fire Suppression is Critical for Battery Storage
Water based fire suppression operates primarily as an intensive thermal heat sink rather than an oxygen-deprivation agent. When a lithium iron phosphate (LFP) or nickel manganese cobalt (NMC) cell enters thermal runaway, internal temperatures rapidly exceed 600°C, producing flammable gases including hydrogen, carbon monoxide, and methane. Chemical clean agents extinguish visible flames, but the uncooled neighbouring cells continue to conduct heat, resulting in secondary ignition cycles hours after initial gas deployment.
Water possesses a specific heat capacity of 4.184 kJ/(kg·K) and a latent heat of vapourisation of 2,260 kJ/kg. When atomised or distributed across a battery module, the phase change from liquid to steam absorbs massive quantities of thermal energy directly from cell casings and enclosure structural steel. As detailed in our analysis of lithium battery fire suppression, water cooling reduces cell temperatures below critical exothermic thresholds (typically 120°C to 160°C for LFP), permanently arresting module-to-module cascade.
Furthermore, the water vapour generated displaces ambient oxygen around the active fire plume, whilst unevapourated water washes soluble acid gases—such as hydrogen fluoride (HF) and phosphoryl fluoride (POF3)—out of the enclosure atmosphere. This dual-action cooling and scrubbing mechanism makes a water based suppression system irreplaceable for containerised battery installations.
Types of Water Based Fire Protection Systems for BESS Enclosures
Engineers evaluate three primary configurations when specifying water based fire protection systems for battery containers and indoor vault rooms. The chosen configuration depends on environmental ambient temperatures, false-discharge risk tolerance, and water supply availability.
| System Type | Operating Standard | Operating Pressure (bar) | Primary Mechanism | Risk of Inadvertent Discharge |
|---|---|---|---|---|
| Wet Pipe Sprinkler | NFPA 13 / EN 12845 | 3.5 to 8.0 | Direct immersion / continuous head discharge | High (water continuously in piping over electrical gear) |
| Double-Interlock Pre-Action | NFPA 13 clause 8.3.2 | 4.0 to 10.0 | Pre-charged dry pipe; trips on dual electrical/thermal confirmation | Negligible (pipes dry until cross-zone alarm trips) |
| High-Pressure Water Mist | NFPA 750 / EN 14972 | 70.0 to 140.0 | Micro-droplets (<100 µm) for flash cooling and inerting | Low to Moderate (requires closed head or deluge zone) |
| Deluge Spray System | NFPA 15 | 2.5 to 6.0 | Total zone flooding via open directional nozzles | Low (dry pipe, but wets entire container upon release) |
Double-interlock pre-action systems are the preferred industry choice for walk-in and non-walk-in energy storage enclosures. The distribution network remains dry and supervisory-pressurised with dry nitrogen (0.7 to 1.4 bar) under standard operating states. Water enters the pipe manifold only when two separate inputs occur simultaneously: a cross-zone detection signal from the local battery management and gas monitoring system, followed by the thermal fusion of a sprinkler bulb rated at 68°C to 79°C.
Water Based Fire Suppression Systems: Sizing Calculation and Hydraulic Demand
A compliant water based fire suppression design requires precise calculation of flow rate, nozzle operating pressure, duration, and municipal or tank supply reserves. NFPA 855 (clause 4.4.4.3) and NFPA 13 establish design densities based on UL 9540A unit-level fire test data.
Consider an outdoor containerised BESS housing lithium iron phosphate battery racks inside a 40-foot ISO shipping container measuring 12.2 m long by 2.44 m wide. The container interior represents a floor footprint of 29.77 m².
- Determine Design Density: According to NFPA 855 Section 4.4.4.3.1, unless lower densities are substantiated by full-scale fire testing in accordance with UL 9540A, the minimum design density is D = 12.2 L/min/m² (0.30 gpm/ft²).
- Determine Sprinkler Design Area: In a compartmentalised non-walk-in container, the entire internal ceiling footprint is protected simultaneously. Design area A = 29.77 m².
- Calculate Base Sprinkler Flow Rate (Qsprinkler):
Qsprinkler = A × D = 29.77 m² × 12.2 L/min/m² = 363.2 L/min (96.0 gpm). Adding a hydraulic design safety margin of 15% for friction and unbalance yields 417.7 L/min. - Factor Exterior Hose Stream Allowance: NFPA 13 and local Authority Having Jurisdiction (AHJ) rules mandate an exterior hose stream supply to protect adjacent utility assets. Standard allowance is Qhose = 946.4 L/min (250 gpm).
- Calculate Total System Flow Rate (Qtotal):
Qtotal = Qsprinkler + Qhose = 417.7 L/min + 946.4 L/min = 1,364.1 L/min (360.4 gpm). - Calculate Total Required Water Storage: NFPA 855 mandates a continuous discharge duration of 120 minutes (2 hours):
Vwater = Qtotal × 120 min = 1,364.1 L/min × 120 min = 163,692 Litres (~43,243 US gallons).
If the project site lacks an active municipal water main providing 1,365 L/min at a minimum residual pressure of 4.5 bar, an on-site dedicated water storage tank and diesel-driven fire pump conforming to NFPA 20 must be installed on the substation civil pad.
Drainage, Runoff Neutralisation, and Secondary Containment
Managing water discharge volume is an environmental and electrical imperative when deploying high-volume suppression water. Lithium-ion combustion releases hazardous compounds that mix with extinguishing water to form toxic and corrosive runoff containing fluorides, nickel, cobalt, and lithium salts.
Standard container design, as detailed in our guide to battery enclosure engineering, integrates internal collection troughs beneath the floor grating. In accordance with NFPA 855 Section 4.3.8 and regional environmental protection standards, the containment infrastructure must accommodate the design sprinkler flow volume for a defined retention period—typically between 20 and 30 minutes of interior discharge—prior to routing into an external containment basin or oil-water-chemical separator.
Civil works must isolate this runoff from local stormwater conduits. Automated dump valves controlled by the primary safety PLC can redirect discharge into an underground retention holding tank lined with chemical-resistant geomembranes. On-site neutralization kits using calcium hydroxide or sodium carbonate should be kept accessible to buffer hydrofluoric acid concentrations before final vacuum extraction and disposal by licensed waste contractors.
Electrical Interlocks and Auxiliary Subsystem Integration
Discharging liquid onto live medium-voltage switchgear or high-voltage DC busbars presents severe arc flash and electrocution hazards for emergency response personnel. A properly coordinated water based fire suppression sequence ensures physical and electrical disconnection prior to hydraulic line unseating.
When deploying systems in utility scale energy storage assets, the fire alarm control panel (FACP) must link to the battery enclosure shunt-trip circuits, the power conversion system (PCS), and upstream medium-voltage reclosers. The operational sequence executes through strict interlocks:
- Pre-Alarm Warning: Very Early Smoke Detection Apparatus (VESDA) or hydrogen gas sensors detect off-gassing at levels above 25% of the Lower Explosive Limit (LEL). Sounders activate; HVAC systems enter emergency extraction or isolation mode.
- Electrical Shunt Trip: Upon receipt of a confirmed second cross-zone signal (e.g. combination of photoelectric smoke and carbon monoxide rise), the FACP fires shunt-trip coils on all battery rack DC breakers, drops the main AC breaker, and disables internal battery module contactors, completely de-energising the DC string.
- Pre-Action Solenoid Actuation: The pre-action valve solenoid opens, filling the dry piping grid inside the container with water while sprinkler heads remain closed.
- Discharge on Thermal Fuse: As cell surface temperatures escalate and melt the mechanical sprinkler bulb, water discharges immediately and localized over the thermal source without dry-pipe transit delay.
Engineering Specification and Site Commissioning Checklist
Consultants and EPC engineers should use a systematic verification matrix when writing RFQs and executing factory and site acceptance testing for water fire protection systems.
| Verification Item | Target Parameter / Code Reference | Acceptance Criteria | Sign-off Stage |
|---|---|---|---|
| Piping Pressure Test | NFPA 13 clause 25.2.1 | Hydrostatic test at 13.8 bar (200 psi) or 3.4 bar over working pressure for 2 hours | Factory / Mechanical Completion |
| Nitrogen Supervisory Pressure | NFPA 13 clause 8.3.2.4 | Maintains 0.7 to 1.4 bar; low-pressure switch triggers supervisory fault within 60s | Cold Commissioning |
| Shunt Trip Latency | NFPA 855 clause 4.4.4.4 | Full AC/DC disconnection achieved within <500 ms of secondary fire trip | Hot Commissioning |
| Sprinkler Head Rating | UL 199 / NFPA 13 | Intermediate temperature rating (79°C) with corrosion-resistant brass/Teflon finish | Incoming Procurement |
| Fire Department Connection (FDC) | NFPA 14 / NFPA 855 | Storz or Siamese two-way 65 mm connection located >15 m outside blast perimeter | Site Civil Handover |
| Drain Valve Capacity | NFPA 855 Section 4.3.8 | Minimum gravity drainage rate equal to or exceeding 115% of sprinkler design flow | Cold Commissioning |
Next steps: specifying and sourcing
Executing an effective fire protection scheme requires early collaboration between equipment fabricators, civil engineers, and fire engineering specialists. When preparing tender documents or requesting quotations, specify container floor dimensions, battery chemistry, rack spacing, and local fire department connection requirements.
Explore our pre-engineered energy storage system platforms and modular liquid cooled ESS containers designed with factory-integrated double-interlock pre-action piping, drainage troughs, and certified isolation switchgear. For integration details or technical tender reviews, submit your single-line diagrams and layout drawings directly via our quotation inquiry page or get in touch with our engineering office through the contact page.
Frequently asked questions
Can you use water on lithium battery fires?
Yes, water is the most effective extinguishing agent for lithium-ion battery fires because it cools burning cells below their critical thermal runaway decomposition temperature. Clean chemical agents cannot remove sufficient heat to prevent re-ignition.
What is the minimum water flow rate for BESS fire protection?
NFPA 855 sets the baseline design density at 12.2 L/min/m² (0.30 gpm/ft²) across the sprinkler design area for a minimum duration of 120 minutes. Higher or lower densities may be specified if substantiated by UL 9540A unit-level fire tests.
Why is a double-interlock pre-action system used in battery enclosures?
Double-interlock pre-action systems prevent accidental water release over energized electrical equipment by keeping the piping dry until two events occur: an automated fire alarm cross-zone trip and the physical thermal melting of a sprinkler head.
Does water fire suppression create an electrical shock hazard in BESS containers?
Water can conduct electricity on energized circuits, which is why engineering standards mandate that automated fire detection systems trigger electrical shunt trips to de-energise all DC battery racks and AC lines before water discharges.
How is toxic runoff from battery fire suppression managed?
BESS containers incorporate floor channels and drain manifolds leading to secondary containment holding tanks. This containment captures water contaminated with heavy metals and hydrofluoric acid for chemical neutralization before licensed disposal.
