Transformers Generations Power of the Primes: Engineering Guide

Quick answer: In electrical power engineering, evaluating transformers generations power of the primes refers to selecting modern, high-efficiency transformer generational designs engineered specifically for prime (continuous baseload) duty cycles rather than intermittent standby service. These units utilise advanced core materials, optimised winding cooling ducts, and stringent thermal margins compliant with IEC 60076 and IEEE C57 standards to sustain uninterrupted, lifetime industrial loading without premature insulation breakdown.

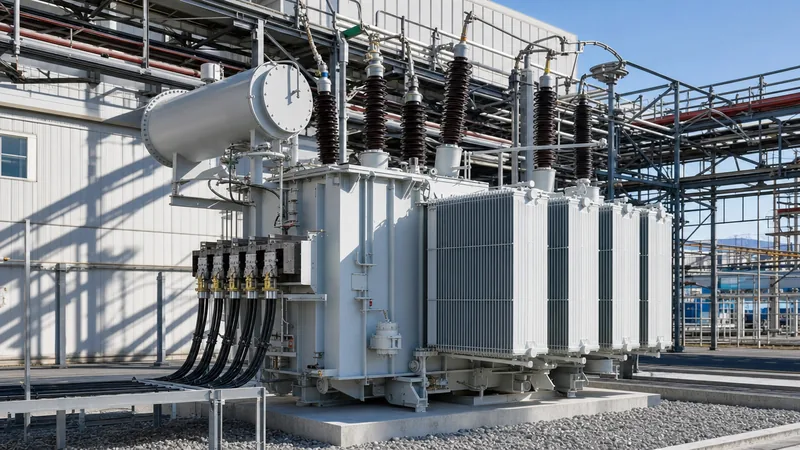

Specifying transformers for prime power networks requires a distinctly different design philosophy from sizing standby or emergency power units. Continuous industrial processes, remote mining grids, data facilities, and utility substations demand equipment engineered for round-the-clock thermal stability, low excitation losses, and predictable short-circuit withstand capabilities. Understanding how technological generations of core metallurgy, dielectric fluids, and insulation structures impact continuous performance enables electrical consultants and EPC contractors to eliminate downtime risks and align designs with international energy mandates.

Generational Evolution of Power Transformer Technology

The generational advancement of distribution and transmission transformers reflects a continuous drive toward reduced operational losses, higher power density, and elevated thermal endurance. Early industrial transformers, representing the first generation, relied on non-oriented or basic cold-rolled grain-oriented (CRGO) electrical steel cores with operating flux densities constrained to 1.3 to 1.5 Tesla, resulting in significant magnetising currents and high no-load (iron) losses.

Second-generation designs introduced domain-refined, laser-scribed high-permeability grain-oriented (HGO) silicon steels alongside computer-optimised core stepping. These improvements elevated core saturation thresholds up to 1.7 Tesla while decreasing hysteretic losses by roughly 20% to 30%. Current third- and fourth-generation equipment incorporates amorphous metal ribbon cores and biodegradable synthetic or natural ester dielectric fluids compliant with EN 50588-1 Tier 2 and US DOE 2016 efficiency benchmarks. In prime baseload installations, where the core remains continuously energised 8,760 hours per year, these advanced materials provide exponential lifecycle energy savings. For fundamental rating methodologies across standard and high-efficiency designs, refer to our guide on how transformers are rated.

Transformers Generations Power of the Primes

In heavy distribution engineering, transformers generations power of the primes describes the specification criteria governing transformers deployed in primary, continuous-generation nodes where grid-edge reliability is absolute. Unlike backup substations that endure variable seasonal duty, prime power systems operate under high capacity factors, typically exceeding 70% to 85% of rated base apparent power continuously.

Sizing transformers for prime continuous duty requires strict adherence to continuous thermal limits rather than short-time overload profiles. Under IEC 60076-2 clause 4.1, the steady-state temperature rise for an oil-immersed transformer must not exceed 60 K for top liquid and 65 K for average winding over a standard 40°C ambient baseline. When sizing equipment for primary continuous power generation, engineers must calculate cooling configurations—such as converting an ONAN baseline to an ONAF stage—to guarantee that the winding hot-spot temperature never crosses the critical 118°C threshold (for Class 120 insulation), which accelerates thermal ageing per IEEE C57.91 Arrhenius degradation models.

Prime Power vs Standby Duty Specification Criteria

Distinguishing between continuous prime power and standby ratings determines whether a transformer survives its projected 30-year design life or suffers early dielectric failure. The following comparison highlights structural and electrical distinctions required when preparing procurement documentation for continuous prime applications:

To evaluate detailed operational temperature thresholds and internal hot spots across varied load profiles, review our winding temperature transformer guide.

Worked Calculation: Continuous Prime Load Derating and Sizing

Specifying a prime power transformer requires applying derating factors for non-linear load harmonics and elevated ambient installation temperatures. Consider an industrial site with an uncorrected prime continuous mechanical load of 1,200 kW operating at 0.85 power factor lagging, with an ambient peak temperature of 45°C (5°C above standard 40°C ambient) and non-linear harmonic pollution requiring a harmonic loss factor (FHL) equivalent to a K-factor of 4.

1. Calculate Base Apparent Power ($S_{base}$):
   $$S_{base} = \frac{P}{\cos\varphi} = \frac{1200\text{ kW}}{0.85} = 1411.76\text{ kVA}$$
2. Apply Ambient Temperature Derating Factor ($k_{amb}$):
   Per IEC 60076-2, for liquid-immersed units, derate rated output by 1.0% for every 1°C ambient above 40°C:
   $$k_{amb} = 1.0 - [(45°C - 40°C) \times 0.01] = 0.95$$
3. Apply Harmonic Loss Derating Factor ($k_{harm}$):
   For continuous prime service supplying variable-frequency drives (VFDs) with K-4 loading, eddy-current winding losses increase proportionally. Using the IEEE C57.110 calculation for standard distribution windings, the effective load derating factor is approximately 0.91:
   $$k_{harm} = 0.91$$
4. Determine Minimum Required Transformer Rating ($S_{req}$):
   $$S_{req} = \frac{S_{base}}{k_{amb} \times k_{harm}} = \frac{1411.76\text{ kVA}}{0.95 \times 0.91} = \frac{1411.76}{0.8645} = 1633.04\text{ kVA}$$

Selecting the next standard nominal capacity yields a 2,000 kVA rating. Sizing at 2,000 kVA ensures the transformer runs at roughly 70.5% continuous loading under baseline conditions, positioning it precisely within the maximum efficiency band where core and winding copper losses achieve their optimal thermodynamic balance. For system calculations involving complex line characteristics, cross-reference our transformer sizing calculator guide and inspect the short-circuit profiles using our transformer impedance calculations guide.

Transformers the Power of the Primes: Engineering Specifications

Procuring transformers the power of the primes demands an unambiguous technical schedule within the Request for Quotation (RFQ) to guarantee manufacturing compliance. Continuous prime units deployed at high utilization factors must incorporate verified dielectric and magnetic characteristics.

The engineering specification must explicitly define the following mechanical and electrical criteria:

• Short-Circuit Impedance (%Z): Prescribe 5.75% to 6.25% (tolerance ±10% per IEC 60076-1 Table 1) to constrain primary switchgear fault ratings while preventing excessive voltage dip during heavy industrial motor starts.
• Winding Material and Transposition: Demand electrolytic copper (minimum 99.9% IACS conductivity) with Continuously Transposed Conductors (CTC) on prime units rated ≥2,500 kVA to minimise eddy-current circulation within the winding cross-section.
• Dielectric Liquid Selection: Specify high-fire-point synthetic or natural ester fluid (K-class, fire point >300°C per IEC 61039) for units positioned near inhabited infrastructure, or inhibited mineral oil (Class I/II per IEC 60296) with routine dissolved gas analysis (DGA) monitoring ports.
• Core Clamping Integrity: Insist on frame tie plates and step-lap mitred core joints stacked under uniform mechanical compression (≥0.8 MPa) to suppress vibration and ensure continuous low-noise emissions (<58 dBA).

Next Steps: Specifying and Sourcing

When preparing equipment tenders for continuous primary distribution systems, providing comprehensive engineering data prevents manufacturing revisions and delivery delays. Submit your nominal primary and secondary voltages, basic impulse level (BIL), winding configuration (such as Dyn11 or YNd11), load profiles, and site ambient extremes directly to our application engineering team.

Review our factory-built power transformers, explore high-efficiency oil-immersed transformers, or inspect non-flammable dry-type transformers tailored for commercial and industrial facilities. For customized thermal calculations or project tendering support, request an itemised proposal via our transformer quotation page or consult directly with our technical sales division.
