Key takeaways
- A step down voltage converter lowers an alternating current (AC) supply from a higher potential (e.g., 220V–240V) to a lower operating potential (e.g., 110V–120V) via magnetic induction.
- Autotransformer topologies share a common winding to reduce physical size and cost, whereas galvanic isolation transformers physically separate primary and secondary circuits for maximum safety.
- Selecting the proper converter rating requires factoring in continuous loads, continuous duty cycles per IEC 60076, and inrush currents of 3x to 5x for inductive equipment like electric motors.
- Standard voltage conversion from 220V/240V to 110V/120V must account for grid frequency differences (50 Hz vs 60 Hz) which can cause overheating in iron cores if not rated properly.
- Industrial converters require integrated overcurrent, short-circuit, and thermal protection meeting standards such as UL 1561, IEC 61558-2-4, or IEEE C57.12.
Quick answer: A step down voltage converter is an electromagnetic or solid-state device engineered to reduce a higher primary electrical input voltage down to a lower secondary output voltage. It allows equipment manufactured for lower utility standards (such as 110V–120V systems) to operate safely and reliably on higher-voltage networks (such as 220V–240V mains).
In global industrial, commercial, and engineering operations, utility supply parameters vary widely across geographic boundaries. Industrial plants frequently import specialized machinery designed for 110V–120V 60 Hz regions into 220V–240V 50 Hz environments, or deploy auxiliary control circuits that demand precise stepping down of distribution voltages. Choosing the correct stepdown voltage converter involves evaluating winding topologies, continuous capacity ratings, thermal thresholds, and system harmonics to prevent insulation degradation and equipment failure.
How a Step Down Voltage Converter Works: Core Principles
A step down voltage transformer relies on Faraday's law of electromagnetic induction to transform electrical potential across magnetically coupled windings. The primary winding, supplied by the high-voltage source (Vp), generates a time-varying magnetic flux inside a laminated silicon steel or ferrite magnetic core. This alternating magnetic flux links with the secondary winding, inducing a secondary voltage (Vs) proportional to the turns ratio.
The fundamental operating formula is expressed as:
Vp / Vs = Np / Ns = Is / Ip
Where Np and Ns denote the number of turns in the primary and secondary windings respectively, and Ip and Is represent the corresponding line currents. For a standard 220v transformer to 110 conversion, the primary coil requires twice the turns of the secondary coil (a 2:1 ratio). In accordance with the conservation of energy, reducing the secondary voltage doubles the theoretical secondary current capacity, demanding larger conductor cross-sectional areas on the secondary side to prevent excessive resistive (I²R) losses. To explore internal transformer architecture in detail, read our guide on transformers internal components.
Autotransformer vs Galvanic Isolation Step Down Converter
Engineers must choose between an autotransformer configuration and a double-wound galvanic isolation transformer when specifying a step down voltage converter transformer. An autotransformer utilizes a single continuous tapped copper winding on a shared magnetic core, serving as both the primary and secondary circuit. This design delivers higher efficiency, compact dimensions, and reduced raw material consumption, making it ideal for a compact or portable step down transformer applied to clean industrial loads.
Conversely, an isolation transformer features physically separate primary and secondary windings insulated from one another. This provides complete galvanic isolation, eliminating common-mode electrical noise, preventing DC offset migration, and stopping ground loop fault propagation between distribution grids and sensitive electronics. While an isolation transformer is physically heavier and presents higher core losses, standards such as IEC 61558-2-4 mandate galvanic isolation in safety-critical medical environments, wet process locations, and hazardous industrial control panels. For complementary low-voltage trimming applications, see our buck boost transformer guide.
Technical Comparison: Step Down Converter Topologies
Evaluating electrical and physical metrics ensures the selected 220 volt step down transformer satisfies specific installation constraints, operational duty cycles, and efficiency mandates.
| Parameter / Metric | Autotransformer (Single-Winding) | Galvanic Isolation Transformer | Solid-State Electronic Converter |
|---|---|---|---|
| Voltage Ratio Range | 1.1:1 up to 3:1 typical | 1:1 up to 20:1+ (MV to LV) | Wide dynamic input (90V–260V) |
| Electrical Isolation | None (Shared Neutral/Ground) | Full Galvanic Isolation (>2.5 kV) | Optional (Topological dependent) |
| Full Load Efficiency (%) | 97% – 99% | 94% – 97.5% | 88% – 93% |
| Short-Circuit Impedance (%Z) | 1.0% – 2.5% | 3.5% – 6.0% | Active Current Limiting |
| Typical Harmonic Distortion (THD) | Negligible (< 1%) | Negligible (< 1%) | 2% – 5% without filters |
| Inrush Current Handling | High (10x to 12x rated) | Moderate to High (8x to 10x) | Low to Moderate (Active limit) |
| Maintenance & Longevity | >25 years, dry-type rugged | >25 years, dry/oil-immersed | 5–10 years (Capacitor wear) |
For large-scale commercial facilities requiring complete primary distribution management, a multi-phase system may be necessary. Review our detailed guide on 3 phase transformers for large capacity configurations.
Sizing a Step Down Transformer: 220V to 110V Calculations
Sizing a power transformer from 220 to 110 volts requires calculating both the continuous real power demand (kW) and apparent power demand (kVA) while factoring in duty margins. Undersized units cause overheating, trip magnetic circuit breakers, and degrade winding varnish insulation over time.
- Calculate the Total Apparent Load (VA): Multiply the operating voltage by the steady-state current drawn by all connected loads: VA = V × I. For complex inductive loads, divide the real active power in watts by the equipment power factor (PF, typically 0.80 to 0.85): VA = W / PF.
- Factor Inrush Multipliers for Inductive Equipment: Motors, compressors, pumps, and power tool transformers exhibit high starting inrush currents lasting 100 milliseconds to several seconds. Apply a minimum safety factor of 3.0× to 4.0× over steady-state running current for single-phase direct-on-line (DOL) induction motors.
- Apply Continuous Duty Derating: Per National Electrical Code (NEC) Article 215 and IEC 60076 standards, continuous loads (operating for 3 hours or longer) must not exceed 80% of the transformer's maximum continuous kVA rating. Therefore, multiply calculated base VA by 1.25.
- Verify Grid Frequency Variations: A unit manufactured strictly for 60 Hz will experience magnetic saturation and excessive eddy current heating if operated on a 50 Hz grid without a corresponding primary voltage derating of approximately 17% to 20%.
For complex network sizing and industrial plant layouts, consult our transformer sizing calculator guide.
Field Engineering Considerations: 50 Hz vs 60 Hz Conversion
A common engineering pitfall when deploying a step down transformer 220v involves confusing voltage transformation with frequency conversion. Electromagnetic transformers modify voltage and current ratios purely through magnetic flux links; they cannot alter AC mains frequency. Supplying a 60 Hz single-phase industrial tool from a 50 Hz European utility via a 220V to 110V magnetic transformer steps down the voltage to 110V, but the output remains strictly 50 Hz.
Operating a 60 Hz induction motor on 50 Hz power causes it to rotate approximately 17% slower (synchronous speed Ns = 120f / P). Because internal cooling fans run slower, motor heat dissipation drops significantly while operating current rises. Furthermore, operating transformers engineered for 60 Hz on a 50 Hz supply requires caution: the peak magnetic flux density (Bmax = V / (4.44 × f × N × A)) increases inversely with frequency. Unless the transformer core contains surplus magnetic steel headroom, the core enters saturation, resulting in high magnetizing currents, excessive core losses, and audible hum.
Industrial vs Portable Step Down Transformer Requirements
Physical enclosures and protection features dictate whether a step down converter is classified for temporary utility or fixed industrial duty. A consumer travel step down transformer or compact portable step down transformer typically incorporates a vented sheet-metal casing, standard NEMA receptacles, an illuminated rocker switch, and an onboard replaceable glass cartridge fuse or bimetallic thermal switch. These units are intended for light, intermittent duty such as charging electronic test gear or running benchtop instruments.

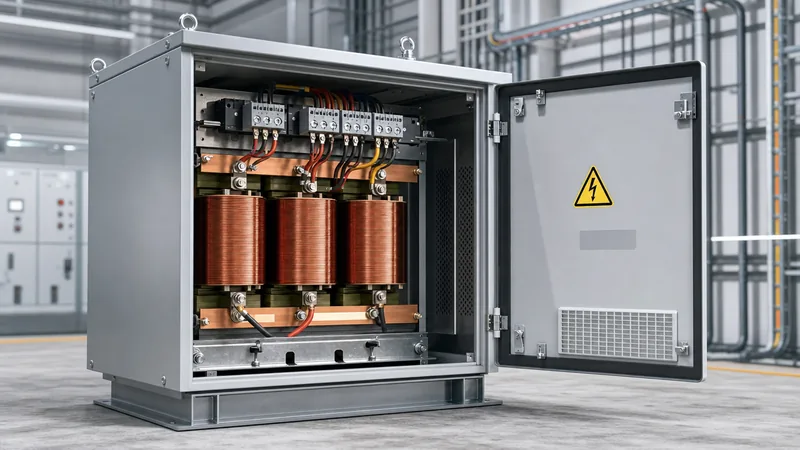

In contrast, heavy-duty industrial units and central facility step-down systems are permanently hardwired into distribution panels. These systems feature heavy-gauge powder-coated NEMA 3R or IP54 enclosures, copper ground busbars, electrostatic shielding between coils to arrest switching transients, and class H (180°C) or class R (220°C) insulation systems. When converting distribution voltages from industrial substations or medium-voltage infrastructure, facilities implement dry-type or oil-immersed step-down stations equipped with integrated tap changers and thermal monitoring relays.
Next steps: specifying and sourcing
When specifying a step down voltage converter for factory upgrades, overseas plant integration, or auxiliary systems, provide our engineering team with your primary supply voltage, target secondary voltage, phase balance requirements, total connected kVA load, and line frequency (50 Hz or 60 Hz). Specify whether your project mandates galvanic isolation, electrostatic shielding, or integrated primary circuit protection. Explore our heavy-duty dry-type transformer selection and comprehensive power transformer solutions to find the right configuration. For immediate technical consultations and detailed equipment manufacturing quotations, submit your project schedule through our quote request page or contact our technical sales team directly.
Frequently asked questions
Can a step down voltage converter also change 50Hz to 60Hz?
No, a standard electromagnetic step down converter cannot change AC power frequency. It transforms voltage through electromagnetic induction while maintaining the line frequency of the primary power grid. To alter frequency from 50 Hz to 60 Hz, an active solid-state variable frequency drive or motor-generator set is required.
What is the difference between an autotransformer and an isolation step down converter?
An autotransformer shares a single continuous copper winding between primary and secondary circuits, offering high electrical efficiency and compact physical dimensions. An isolation converter uses physically separated, insulated primary and secondary windings, providing galvanic isolation that prevents ground faults, high-voltage transients, and common-mode electrical noise.
How much headroom should I calculate when sizing a step down transformer?
Size your transformer with a minimum 25% safety headroom above steady-state resistive loads per continuous-duty standards. For inductive loads with high starting currents, such as electric motors, air compressors, or industrial refrigeration units, specify a capacity rating 3 to 4 times the motor running wattage.
Can I back-feed a step down transformer to step up voltage?
Many standard isolation transformers can be back-fed by connecting the nominal lower voltage to the secondary terminals, but caution is necessary. Reverse-feeding can generate high inrush currents, and factory winding turns compensation will cause the output voltage to fall slightly below nominal design under full load.
Why does my 220V to 110V converter run hot under partial load?
Operating a converter rated strictly for 60 Hz on a 50 Hz power supply increases magnetic flux density by 20%, driving the core into magnetic saturation and generating excess heat. Alternatively, high harmonic currents produced by non-linear electronic loads can elevate eddy-current core losses well beyond normal operating levels.
