Key takeaways
- A step down power transformer reduces higher transmission or distribution voltages to safer, lower operating voltages using electromagnetic induction in accordance with Faraday's law.
- The primary voltage ratio is governed by the turns ratio formula Np / Ns = Vp / Vs, which causes a proportional rise in output current as voltage drops.
- Instrument-level current step down transformers scale thousands of primary amperes down to standardised 1 A or 5 A secondary outputs to supply protective relays safely.
- Procurement costs are determined primarily by active core material grade, conductor metallurgy (copper vs aluminium), kVA rating, BIL level, and whether oil-immersed or dry-type cooling is chosen.
- Short-circuit withstand capabilities specified by IEC 60076-5 require transformers to endure symmetric and asymmetric faults for at least two seconds without mechanical or thermal failure.
Quick answer: A step down power transformer is an electrical apparatus that decreases high alternating-current (AC) voltages from transmission or primary distribution networks to lower secondary voltages required for industrial processing, commercial facilities, or local distribution. By reducing voltage via magnetic flux linkage between high-voltage (HV) and low-voltage (LV) windings, it maintains constant power while delivering higher secondary currents to downstream electrical loads.

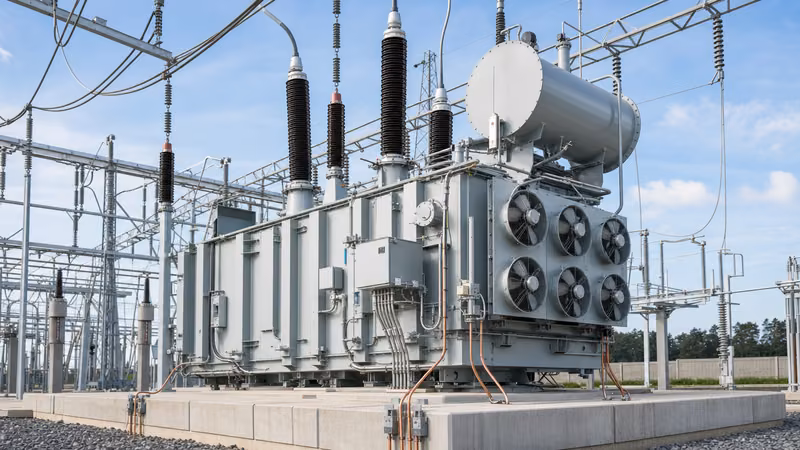

In heavy industrial plants, utility substations, and utility-scale renewable sites, stepdown transformers represent critical physical infrastructure. Modern systems must balance efficiency mandates governed by standards such as IEC 60076 and IEEE C57.12.00 against real-world installation variables, including short-circuit withstand capabilities, basic impulse levels (BIL), and total cost of ownership. Whether configuring an internal factory distribution network or preparing utility interconnect tenders, understanding electrical parameters, internal designs, and cost drivers is essential for sound capital procurement.
Operating Principles of an AC Step Down Transformer
An ac step down transformer functions under Faraday's law of mutual electromagnetic induction, transferring electrical energy between isolated circuits via magnetic flux inside a closed ferromagnetic core. When an alternating primary voltage (Vp) is applied across the primary winding having Np turns, it produces an alternating magnetising current that induces a time-varying magnetic flux (Φ) within the silicon-steel core laminations. This alternating flux links with the secondary winding having Ns turns, inducing a lower secondary voltage (Vs).
The fundamental operational relationship is governed by the transformer turns ratio formula:
Vp / Vs = Np / Ns = Is / Ip
Because the number of primary turns exceeds secondary turns (Np > Ns), the voltage is stepped down. In an ideal, lossless system where primary apparent power equals secondary apparent power (Sp = Ss), an inverse relationship applies to current. As voltage decreases, the current increases proportionally. For example, stepping down a 33 kV, 5,000 kVA system to 400 V increases available nominal phase current from approximately 87.5 A to 7,217 A. Designers must ensure LV windings, busbars, and outgoing cable terminations are engineered with larger cross-sectional copper areas to manage the extreme thermal dissipation and mechanical forces generated by these high currents.
Core Engineering Specifications and Performance Parameters
Specifying a step down power transformer requires setting definitive electrical and mechanical thresholds to guarantee grid compliance, operational safety, and system longevity. Electrical engineers define critical variables such as rated kVA, impedance percentage (%Z), vector grouping, and insulation temperature classes in their technical schedules. Sizing these parameters accurately ensures the equipment operates safely within the limits detailed in our transformer sizing calculator guide.
Key engineering specifications include:
- Percentage Impedance (%Z): Typically ranges from 4% to 8% for medium-voltage units (up to 35 kV) and exceeds 10% for high-voltage transmission units. A higher %Z limits downstream prospective short-circuit fault current (Isc = Irated / (%Z / 100)), reducing switchgear rating requirements, but induces higher internal voltage drop under full inductive loads.
- Basic Impulse Level (BIL): Defines the peak withstand voltage against atmospheric lightning strikes and operational switching surges according to IEC 60076-3. For instance, a 33 kV system typically requires a BIL rating of 170 kV or 200 kV peak.
- Vector Group Configuration: Common three-phase step-down configurations include Dyn11 and Dyn5. The delta-connected high-voltage winding traps triplen harmonics (3rd, 9th, 15th), while the grounded wye (star) secondary winding provides a reliable neutral path for single-phase commercial and unbalanced motor loads. For deeper analysis, consult our comprehensive 3 phase transformer guide.
- Temperature Rise and Insulation Class: Standard liquid-immersed units are rated for 65°C winding rise over a 40°C ambient (Class A insulation system), whereas cast resin dry-type transformers feature Class F (155°C) or Class H (180°C) insulation systems rated for 90°C to 115°C continuous thermal rises.
Current Step Down Transformer vs Voltage Step Down Transformer
A current step down transformer differs fundamentally from a conventional power transformer because its primary duty is accurate current scaling and measurement isolation rather than power transfer. Commonly referred to as an instrument current transformer (CT), this device steps down hazardous transmission-level currents (e.g., 2,000 A or 800 A) to standardised secondary values of 5 A or 1 A to feed metering panels, transducers, and digital protection relays safely.
Unlike voltage-driven stepdown transformers, a CT is connected in series with the primary phase conductor. The primary winding consists of either a single straight bar passing through the core aperture (window-type) or a few turns of high-capacity copper conductor. The secondary circuit must never operate open-circuited while primary current flows; opening the secondary causes core flux to peak unchecked, inducing lethal kilovolt-range potentials across secondary terminals and driving the core into extreme magnetic saturation. For specialised installation parameters regarding instrumentation loops, refer to our instrument transformers guide.
Technical Comparison: Industrial Step Down Transformer Classes
Selecting between different stepdown architectures depends on site environmental conditions, fire codes, substation layout, and nominal power requirements. The matrix below outlines operational parameters across the most widely deployed commercial and industrial step-down configurations.
| Transformer Class | Nominal HV Range (kV) | Nominal LV Range (V) | Typical Power Rating (kVA / MVA) | Dielectric Medium | Cooling Class | Standard Application |
|---|---|---|---|---|---|---|
| Pad-Mounted Distribution | 11 – 34.5 | 208 – 480 | 500 – 3,150 kVA | Mineral Oil / Ester Fluid | ONAN / KNAN | Commercial sites, retail facilities, data centres |
| Cast Resin Dry-Type | 3.3 – 35 | 400 – 690 | 500 – 5,000 kVA | Epoxy Resin / Solid | AN / AF | Underground transit, hospitals, high-rise buildings |
| Oil-Immersed Substation | 33 – 110 | 3.3 – 33 | 5 – 63 MVA | Inhibited Mineral Oil | ONAN / ONAF | Industrial utility interconnects, mine sites |
| Pole-Mounted Overhead | 11 – 33 | 120 – 415 | 25 – 315 kVA | Mineral Oil | ONAN | Rural distribution, light industrial branch feeds |
| Transmission Auto-Transformer | 110 – 500 | 33 – 230 | 50 – 300 MVA | Mineral Oil | ONAF / OFAF | Bulk transmission grid voltage-tier step down |
What Determines the Price of Step Down Transformer Equipment?
The capital purchase price of step down transformer equipment is primarily determined by raw material volatility, structural design complexity, and statutory efficiency regulations. In a typical liquid-immersed step-down power unit, active materials—specifically the cold-rolled grain-oriented (CRGO) silicon steel core and winding conductors—account for 50% to 65% of the total manufacturing cost.
Key economic factors include:
- Conductor Material Selection: Electrolytic copper windings provide superior mechanical strength during dead-short conditions, lower thermal expansion, and a smaller overall footprint, but increase unit acquisition costs by 15% to 25% compared to aluminium windings.
- Core Steel Metallurgy: Advanced laser-treated or amorphous core alloys drastically reduce no-load excitation losses (core iron losses), helping developers meet tier-2 efficiency limits such as EU Commission Regulation 2019/1783 or US DOE 2016 standards. Although amortised across the plant lifecycle, these materials elevate upfront equipment costs.
- Tap Changer Complexity: Off-circuit tap changers (OCTC), designed for seasonal manual switching during de-energised conditions, add nominal cost. In contrast, automated on-load tap changers (OLTC) with vacuum interrupters, motor-drive units, and automated remote controllers can add 20% to 35% to the final purchase order.
- Special Environmental Protections: Severe maritime atmospheres or chemical processing plants require marine-grade anti-corrosive polyurethane painting systems, stainless-steel hardware, forced nitrogen blankets, and hermetically sealed corrugated or radiator tanks, shifting base fabrication overheads upward.
Step-by-Step Procedure for Sizing and Specifying Stepdown Units
Specifying an industrial step-down unit requires a systematic calculation methodology to prevent under-sizing, nuisance tripping, or excessive idle load losses. EPC contractors should follow this chronological sequence during project design:
- Calculate Continuous Maximum Apparent Load (kVA): Sum the steady-state operating real loads (kW) across downstream distribution boards, divide by the anticipated operational power factor (e.g., 0.85 inductive), and include a 20% growth allowance: SkVA = (Σ PkW / cos φ) × 1.20.
- Evaluate Inrush and Motor Dynamics: For circuits serving large direct-on-line (DOL) squirrel-cage induction motors, verify that the initial starting current (typically 6× nominal) does not induce a secondary terminal voltage dip exceeding 10% to 15%, ensuring downstream magnetic contactors do not chatter or drop out.
- Select the Dielectric and Enclosure Type: Match the operational environment to cooling requirements; specify dry-type cast resin for indoor utility rooms where fire sprinkler clearances are restricted, or liquid-immersed ester-filled tanks for outdoor installations requiring high fault reserves.
- Determine Fault Level Withstand Capacity: Calculate available prospective upstream symmetrical short-circuit MVA from utility grid tie-in data, selecting internal winding bracing in accordance with IEC 60076-5 to resist electromagnetic forces proportional to the peak short-circuit current squared (Ipeak2).
- Establish Factory Acceptance Test (FAT) Metrics: Include mandatory witness testing clauses covering turns ratio, winding resistance, core excitation losses, load impedance losses, and applied high-voltage AC withstand/induced overvoltage testing before site dispatch.
Next steps: specifying and sourcing
When preparing technical bid invitations for a step down power transformer, send a complete specification schedule containing your site nominal voltages, primary frequency (50 Hz or 60 Hz), vector group, required percentage impedance, maximum ambient temperature, and intended cooling design. Providing single-line diagrams (SLD) and anticipated duty cycles ensures the engineering team accurately designs optimal core geometries and winding configurations. Explore our heavy-duty medium-voltage power transformer solutions and factory-integrated oil-immersed transformer units, or submit your bespoke project parameters directly via our transformer quotation inquiry portal to receive factory-direct engineering estimates and compliance submittals.
Frequently asked questions
What is the primary function of a step down power transformer?
A step down power transformer decreases high utility or transmission AC voltages to lower, usable voltage levels for distribution and equipment operation. It achieves this reduction through electromagnetic induction via a turns ratio where the secondary coil contains fewer windings than the primary coil.
What is the difference between a step down transformer and a current transformer?
A step down power transformer reduces voltage while simultaneously increasing current to transfer bulk electrical power safely. Conversely, a current step down transformer is an instrument device that steps down high line currents to 1 A or 5 A circuits for metering, protection, and instrumentation safety.
How does tap changing work on stepdown transformers?
Tap changers alter the effective turns ratio by mechanically adding or subtracting active winding turns on the high-voltage winding. This adjustment compensates for ongoing system voltage fluctuations, allowing technicians to maintain a steady secondary output voltage under variable system load conditions.
Why are delta-wye connections commonly used in step down transformers?
The Dyn configuration traps destructive third-order harmonic currents inside the delta primary loop, preventing harmonic distortion from spreading upstream to the utility. It also provides a neutral point on the wye secondary, supplying stable single-phase line-to-neutral and three-phase line-to-line operational voltages.
What routine tests are performed on a step down power transformer?
Standard factory acceptance tests include winding resistance measurement, voltage turns ratio and phase displacement verification, short-circuit impedance and load loss checks, no-load loss and excitation current tests, separate source AC withstand voltage testing, and dielectric fluid breakdown testing.
