Transformer Turns Ratio Formula: Engineering Guide & Calculations

Quick answer: The transformer turns ratio formula is defined as Np / Ns = Vp / Vs = Is / Ip, where Np and Ns represent the number of turns on the primary and secondary windings, Vp and Vs represent primary and secondary induced voltages, and Is and Ip represent secondary and primary currents. This mathematical relationship dictates the electromagnetic voltage scaling and current handling of power transformers.

In high-voltage substations, commercial distribution networks, and industrial plants, correct turns ratio design is essential for voltage regulation, insulation coordination, and protection relay operation. When sizing electrical infrastructure alongside an automated transformer sizing calculator guide, engineers must account for both no-load excitation ratios and on-load impedance drops. Calculating and verifying the winding ratio ensures grid compatibility, whether specifying primary distribution assets or evaluating secondary switchboard interfaces.

The Fundamental Transformer Turns Ratio Formula and Derivation

The fundamental formula for turns ratio is derived directly from Faraday's law of electromagnetic induction, which states that an alternating magnetic flux induces an electromotive force (EMF) proportional to winding turns. Assuming an ideal magnetic core with zero leakage flux and negligible winding resistance, the instantaneous induced EMF per turn remains identical across both primary and secondary windings linked by the mutual core flux (Φ):

e = -dΦ / dt

Because the rate of flux change with respect to time is identical through both windings sharing the central magnetic circuit, the primary induced voltage is expressed as Ep = Np · (dΦ / dt) and the secondary induced voltage is Es = Ns · (dΦ / dt). Dividing the primary voltage by the secondary voltage yields the basic transformer ratio (symbolised as n or k):

n = Np / Ns = Vp / Vs

By applying the principle of conservation of apparent power (where primary complex power Sp equals secondary complex power Ss under ideal, lossless operating conditions), the current transformation follows an inverse proportionality:

Vp · Ip = Vs · Is ⇒ Np / Ns = Vp / Vs = Is / Ip = √(Zp / Zs)

Here, Zp and Zs represent the primary and secondary reflected impedances. In physical power transformers, winding resistance, core excitation currents, and leakage reactances cause real-world terminal voltages to deviate slightly under load from the pure theoretical ratio.

How to Find Transformer Turns Ratio: Methods and Step-by-Step Procedure

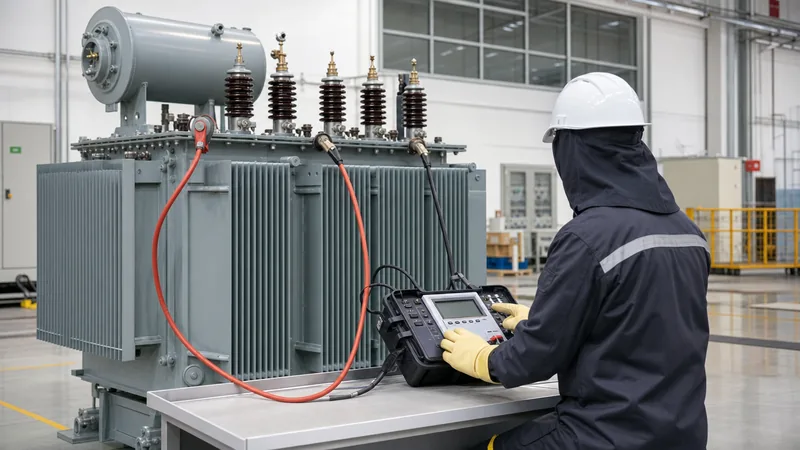

To answer how to find transformer turns ratio in practice, electrical engineers employ direct electrical measurement using specialized instrumentation or calculate the ratio from design data. Because winding turn counts are permanently enclosed within oil-filled or cast-resin tank enclosures, direct physical inspection is impossible post-assembly. Standard factory and site acceptance procedures follow standard transformer testing procedures using a handheld or automated Transformer Turns Ratio (TTR) test set.

Execute the following procedure to perform an accurate transformer turns ratio calculation on a de-energized transformer:

1. Isolate and Ground: Disconnect the transformer completely from medium-voltage and low-voltage busbars. Apply safety grounds to discharge residual electrostatic capacitance, then remove grounds from the specific phases under test.
2. Set Tap Positions: Position the off-circuit tap changer (OCTC) or on-load tap changer (OLTC) to nominal tap (typically Tap 3 on a standard 5-step tap switch) and record the setting.
3. Connect Test Leads: Connect the high-voltage (H) test leads of the TTR test set to the primary bushings (e.g., H1, H2, H3) and the low-voltage (X) leads to the secondary terminals (e.g., X1, X2, X3, X0).
4. Inject Test Voltage: Apply a safe, single-phase excitation voltage (commonly 8 V to 100 V AC, 50/60 Hz) to the high-voltage winding to avoid inducing dangerous overvoltages on the secondary.
5. Measure Induced Potential: Measure the resulting open-circuit secondary voltage simultaneously via the high-accuracy internal bridge circuit, which calculates the ratio Vapplied / Vmeasured.
6. Record and Verify: Compare measured values against design specifications. Per IEC 60076-1 (Clause 9.3) and IEEE C57.12.00, the measured ratio must not diverge by more than ±0.5% from the declared nameplate ratio on nominal and tap ratings.

Three-Phase Transformer Voltage Ratio Calculation and Vector Groups

A three-phase transformer voltage ratio calculation must distinguish between phase turns ratio (winding turn count) and line-to-line terminal voltage ratio. Unlike single-phase equipment, three-phase transformers combine windings in Delta (Δ) or Wye/Star (Y) topologies, shifting phase angles and scaling terminal voltages by a factor of the square root of three (√3 ≈ 1.73205).

For instance, in a common Dyn11 distribution substation transformer (Delta-connected primary, Star-connected secondary with neutral, 30-degree phase lead), the primary phase voltage equals the primary line-to-line voltage (Vphase,p = Vline,p). On the secondary Star winding, line-to-line voltage is √3 times the phase voltage (Vline,s = √3 · Vphase,s). Understanding these topological interactions is detailed further in our guide to Delta-Wye transformer calculations and wiring.

The table below summarizes line-to-line turns and voltage relationships across standard industrial transformer vector configurations:

What is the Step Up Turns Ratio of a Transformer?

To define what is the step up turns ratio of a transformer, it is the ratio where secondary turns exceed primary turns (Ns > Np), resulting in an output voltage higher than the input voltage. When expressing the transformation factor as k = Ns / Np, a step-up transformer yields a numerical value greater than 1 (k > 1). If expressed under the high-to-low convention (Np / Ns), the calculated turns ratio is a fraction below 1.0.

Step-up units are fundamental components in utility generation stations, solar PV central inverters, and wind farm collector substations. Stepping up generated potentials (such as 0.69 kV or 33 kV) to transmission levels (110 kV, 220 kV, or 400 kV) dramatically reduces load currents. Because transmission line resistive losses follow the I²R equation, doubling voltage cuts current in half and decreases thermal conductor losses by 75%. Engineers evaluating different plant architectures can explore standard equipment configurations in our review of different types of industrial transformers.

Worked Engineering Examples: Sizing Windings and Current Calculations

Practical application of the transformer turns ratio calculation demonstrates how core dimensions, operational voltages, and full-load currents interrelate. Consider two realistic engineering scenarios encountered in utility and industrial engineering projects.

Example 1: Single-Phase Step-Down Core Calculation
An engineer is designing a 100 kVA, 50 Hz single-phase industrial transformer stepping down 11,000 V to 400 V. The magnetic core area has an effective cross-section Ac of 0.024 m² operating at a peak flux density Bmax of 1.6 Tesla. Using the transformer EMF equation V = 4.44 · f · Bmax · Ac · N:

1. Calculate secondary turns (Ns):
Ns = 400 / (4.44 · 50 · 1.6 · 0.024) = 400 / 8.5248 ≈ 47 turns

2. Calculate primary turns (Np) using the turns ratio formula:
Np = Ns · (Vp / Vs) = 47 · (11,000 / 400) = 47 · 27.5 = 1,292.5 turns (rounded to 1,293 turns).

3. Calculate rated full-load currents:
Ip = 100,000 VA / 11,000 V = 9.09 A
Is = 100,000 VA / 400 V = 250.0 A
Checking inverse current ratio: Is / Ip = 250.0 / 9.09 = 27.5, matching the turns ratio Np / Ns exactly.

Example 2: Three-Phase 2,500 kVA Dyn11 Distribution Transformer
A commercial substation incorporates a 2,500 kVA, 33 kV to 415 V Dyn11 transformer. Determine the line and phase ratios:

Primary is Delta: Vphase,p = Vline,p = 33,000 V.
Secondary is Star: Vphase,s = 415 V / √3 = 239.6 V.
Phase turns ratio: Np / Ns = 33,000 / 239.6 ≈ 137.73.
Line-to-line transformation ratio: 33,000 / 415 ≈ 79.52.

Impact of Tap Changers and Impedance on Ratio Verification

A factory-built transformer turns ratio is not static when equipped with tap-changing mechanisms designed to compensate for grid voltage variation. Distribution and power transformers frequently feature de-energised tap changers (DETC) or on-load tap changers (OLTC) providing ±2 × 2.5% or ±8 × 1.25% regulation ranges. Each physical tap position alters the active number of primary turns (Np), establishing an updated theoretical ratio that must be confirmed across every tap step during factory testing.

Furthermore, engineers must not confuse turns ratio with loaded voltage regulation. Under loaded conditions, terminal voltage drops due to internal impedance (%Z), comprising winding resistance (R) and leakage reactance (X). At rated output with an inductive power factor (e.g., 0.8 lagging), secondary terminal voltage drops according to:

ΔV ≈ I · (R · cosφ + X · sinφ)

Consequently, turns ratio verifies physical electromagnetic construction under no-load excitation, whereas short-circuit impedance tests verify real-world dynamic voltage regulation under load currents.

Next steps: specifying and sourcing

When specifying custom or standard power infrastructure, providing accurate primary and secondary operating voltages, connection vector groups, and tap regulation percentages enables engineering teams to optimize winding turns, core geometries, and copper losses. Whether your project requires high-performance power transformers, highly resilient oil-immersed transformers, or integrated prefabricated substations, our factory engineers deliver tailored calculations and fully certified manufacturing to IEC and IEEE standards. Submit single-line diagrams, voltage ratios, and environmental parameters through our transformer quotation portal to receive technical documentation and factory pricing within 24 hours.
