Solar Panels for Mobile Homes: Engineering & Sizing Guide

Quick answer: Installing solar panels for mobile homes requires evaluating roof truss load limits under HUD standard 24 CFR 3280, matching DC array capacity to restricted structural profiles, and integrating battery storage to offset utility feed constraints. Ground mounts or dedicated detached shade structures frequently offer higher energy yield and structural safety than direct roof fixtures.

Engineering photovoltaic systems for manufactured housing presents distinct technical constraints absent in standard residential construction. Prefabricated homes utilise lightweight roof framing, specific structural zones, and single-point subpanels designed strictly to minimum federal or regional specifications. When specifying solar panels for mobile homes, electrical contractors and consulting engineers must balance DC string design, inverter thermal performance, racking point-loads, and storage capacity against the strict mechanical boundary conditions of manufactured chassis structures.

Structural Feasibility of Solar Panels for Mobile Homes

Direct roof mounting of solar panels for mobile homes is technically limited by the manufactured structural envelope dictated by HUD Title 24 CFR Part 3280. Factory-built manufactured homes are engineered to stringent dead-load tolerances, typically rated for live roof loads between 20 and 40 pounds per square foot (0.96 to 1.92 kN/m²) depending on geographic wind and snow zones (Zones I through III), but often have residual dead-load allowances under 3 to 5 pounds per square foot (0.14 to 0.24 kN/m²).

Standard commercial glass-backsheet PV modules impose a surface dead load of 2.6 to 3.2 psf (125 to 153 N/m²), excluding aluminum rails and ballasts. Adding racking clamps, conduit runs, and wind uplift resistance hardware rapidly approaches or exceeds the permissible margin of 2x2 or 2x3 timber bowstring trusses joined with light-gauge metal gang-nail plates. If an engineer certifies direct attachment, the following mechanical criteria must be verified:

• Truss layout verification: Racking attachments must penetrate directly into main truss chords, avoiding unsupported plywood or metal sheet decking.
• Wind uplift and shear ratings: Edge and corner zones must respect ASCE 7-16 wind loading calculations; manufactured home aerodynamic profiles can experience high edge vortex turbulence.
• Membrane integrity: Thin ethylene propylene diene monomer (EPDM) or galvanised steel arched roofs require zero-penetration standing seam clamps or chemical anchors tested against long-term cyclic shear.

Designing a Solar Powered Mobile Home: Worked Sizing Calculation

Sizing an array for a solar powered mobile home requires matching real seasonal usage metrics to available array footprints and inverter topologies. The calculation below demonstrates a grid-tied residential load design with critical backup integration, applying engineering formulas to determine the total PV wattage, array surface area, and storage buffer.

Consider a manufactured dwelling situated in a 4.5 peak sun hour (PSH) zone with standard all-electric appliances (ducted heat pump, electric water heater, cooking appliances, and auxiliary base loads):

• Average daily energy consumption (E_daily): 26 kWh/day
• System performance ratio (PR): 0.78 (accounting for cable losses, soiling, inverter clipping, and thermal derating via IEC 61724-1)
• Selected module: 400 W monocrystalline PERC module (Dimensions: 1.722 m × 1.134 m = 1.95 m²; Weight: 21.5 kg)

The required DC array nominal power (P_DC) is calculated as:

P_DC = E_daily / (PSH × PR) = 26 kWh / (4.5 h × 0.78) = 7.41 kWp

To establish the total module quantity (N_mod):

N_mod = 7,410 W / 400 W = 18.52 modules → 19 modules selected (7.60 kWp total)

Total footprint required for the array equals 19 × 1.95 m² = 37.05 m². For a typical single-wide home (4.3 m wide × 20 m long = 86 m² gross roof surface), an array of 37 m² occupies roughly 43% of the entire roof. Due to clearance corridors enforced by electrical and fire codes, this footprint necessitates splitting across both pitches or transitioning to a ground or carport mounting frame.

To size for partial off-grid resilience during grid outages, engineers calculate the nominal energy storage requirement using methodologies established in our solar sizing engineering guide. Sizing for 60% essential load backup (15.6 kWh/day) at an 80% depth of discharge (DoD) yields a minimum battery requirement of 19.5 kWh nominal capacity.

Mounting Options: Roof vs Ground Mount vs Carport

Selecting the optimal physical mounting arrangement for a solar for mobile home project depends on available land acreage, budget constraints, and structural chassis integrity. Where factory roofs cannot bear dynamic mechanical stress, external structures deliver higher generation yield through ideal tilt and orientation.

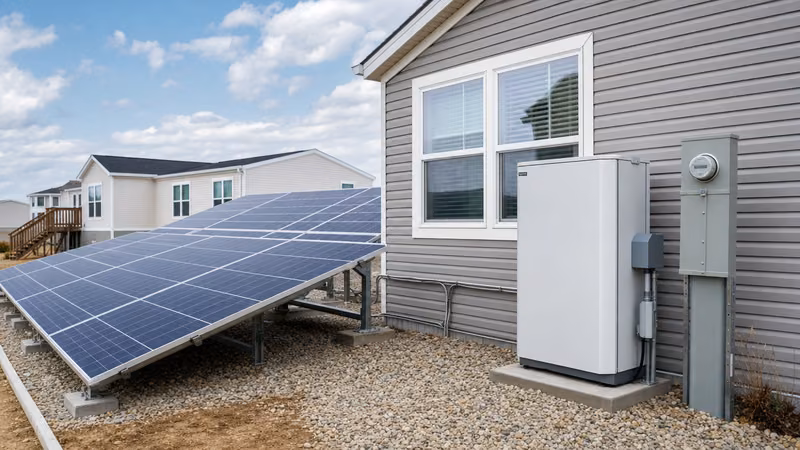

When land permits, ground-mounted configurations yield between 8% and 14% more energy annually than low-slope manufactured home roofs because panels operate at lower junction temperatures and optimal solar elevation angles.

Battery Storage Integration for a Solar Power Mobile Home

Integrating battery storage into a solar power mobile home layout overcomes weak grid connections common to rural sites or mobile home parks with long, high-impedance low-voltage distribution runs. Mobile home utility feeds are frequently limited to 50 A or 100 A service entrances with significant voltage drop during peak neighborhood demand.

Specifying a battery energy storage system (BESS) provides peak shaving, stabilizes line voltage, and delivers emergency islanding. Modern configurations favour stationary lithium iron phosphate (LFP) chemistry over nickel manganese cobalt (NMC) due to superior thermal stability and extended cycle life under deep discharge conditions, as detailed in our guide to lithium solar batteries.

Engineers should select an AC-coupled or hybrid inverter system compliant with UL 1741-SB and IEEE 1547-2018 for advanced anti-islanding and grid support functionality. Coupling battery storage to manufactured homes requires careful location analysis:

1. Siting external to living spaces: NFPA 855 and residential building codes prohibit placing residential energy storage systems in habitable rooms, closets, or under-chassis crawl spaces. Siting must occur on external non-combustible pads or inside dedicated utility sheds.
2. Temperature derating: External enclosures must operate within permissible operating temperature envelopes (typically -10°C to +50°C), incorporating insulation and active thermal pads where ambient temperatures drop below freezing to prevent lithium plating during charge cycles.
3. System sizing and isolation: A 10 kWh to 20 kWh stationary battery matches manufactured home profiles. Sizing principles align with our battery storage engineering guide, ensuring the power conversion system handles inrush currents from split-phase air conditioning compressors without tripping.

NEC Article 550 and Electrical Compliance Standards

Compliance with National Electrical Code (NEC / NFPA 70) Article 550 is mandatory when interconnecting any distributed energy resource to a manufactured home. Mobile home electrical infrastructure fundamentally differs from site-built homes regarding earthing, bonding, and service disconnect locations.

Key regulatory imperatives include:

• Service Disconnect Separation (NEC 550.32): The main service equipment and overcurrent protection must not be mounted on or within the manufactured home itself unless the structure meets factory-approved specifications with a factory-installed service disconnect. The primary solar interconnection (load-side breaker or supply-side tap) must be executed at the external service pedestal or external pole disconnect.
• Isolated Ground and Neutral (NEC 550.16): Neutral conductors must remain strictly insulated from equipment grounding conductors throughout the entire internal distribution panel of the mobile home. The neutral-to-earth bond must exist exclusively at the upstream exterior service equipment. Incorrect bonding inside solar subpanels can cause lethal chassis energisation.
• Rapid Shutdown Compliance (NEC 690.12): PV arrays mounted on manufactured roofs must implement module-level rapid shutdown to attenuate string voltage to below 30 V within 30 seconds inside the array boundary, protecting emergency responders.
• Conduit Mechanical Protection: Cable paths running under the chassis skirt or across external framing must be enclosed in rigid metal conduit (RMC) or intermediate metal conduit (IMC) to protect against mechanical chafing and pest intrusion.

Adhering to these baseline rules ensures compliant commissioning while avoiding common utility inspection failures; review our solar battery installation guide for detailed field verification routines.

Next steps: specifying and sourcing

When specifying solar panels for mobile homes, electrical contractors and project developers should prepare a comprehensive load profile, accurate site plot plans detailing wind exposure zones, and clear structural truss ratings. If deploying utility-scale park microgrids or integrated community energy storage, our factory engineers can assist in tailoring balanced power systems. Review our industrial-grade energy storage system solutions and modular liquid-cooled ESS containers for medium- and large-scale renewable microgrid designs. To submit system specifications, electrical single-line diagrams, or request customized technical proposals, visit our quotation page or contact our technical team directly.
