Key takeaways
- A PVEF lithium battery system provides dedicated energy storage to firm, smooth, and time-shift solar photovoltaic generation at utility and industrial scales.
- Lithium iron phosphate (LFP) delivers thermal runaway onset thresholds above 270 °C compared to 210 °C for nickel manganese cobalt (NMC), making it the primary choice for ground-mounted solar facilities.
- Under a 1 C-rate daily cycle profile at 80% Depth of Discharge, an industrial LFP battery retains over 75% state of health after 6,000 equivalent full cycles.
- Liquid thermal management restricts internal cell gradient variations to under 2.5 °C across the containerised rack, directly complying with UL 9540A and NFPA 855 mitigation standards.
- Comprehensive Factory Acceptance Testing (FAT) for utility battery racks requires 0.5C charge-discharge validation, insulation resistance verification above 100 MΩ, and CAN/Modbus BMS communication checks under IEC 62619.
Quick answer: A pvef lithium battery pvef deployment refers to an industrial-grade lithium-based battery energy storage system engineered specifically for photovoltaic energy facilities (PVEF) to provide solar firming, ramp-rate control, and energy arbitrage. These installations rely predominantly on lithium iron phosphate (LFP) chemistry to guarantee high cycle endurance exceeding 6,000 cycles alongside intrinsic thermal stability.

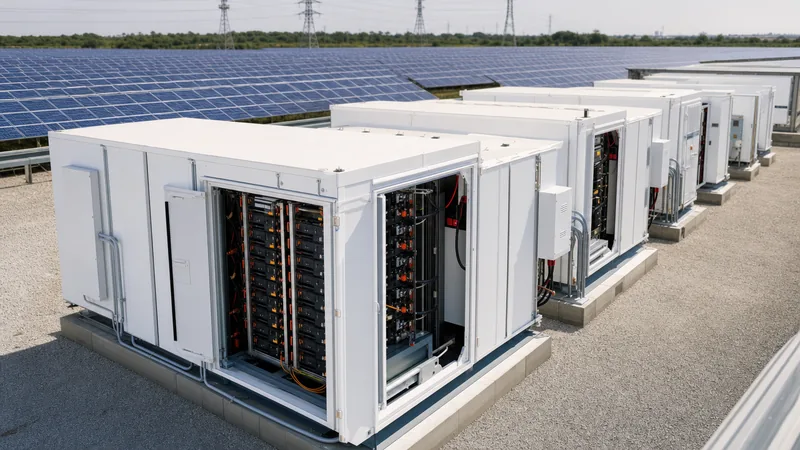

Integrating battery storage into utility and commercial solar installations has transitioned from an intermittent pilot exercise to a standard grid interconnection mandate. Grid codes across Europe, the Middle East, and the Americas enforce stringent ramp-rate limits, curtailment mitigation, and synthetic inertia requirements. Siting an industrial battery bank within a photovoltaic plant demands careful evaluation of cell chemistry, thermal dissipation under harsh ambient insolation, cycle degradation kinetics, and safety compliance under international fire protection codes.
What Defines a PVEF Lithium Battery PVEF Specification?
A pvef lithium battery pvef installation is defined by its duty cycle profile, high ambient operating envelope, and tight integration with utility-scale central or string photovoltaic inverters. Unlike standard commercial peak-shaving systems that discharge for one to two hours during tariff peaks, a solar-coupled storage unit operates on an extended duty cycle requiring two to eight hours of continuous discharge duration.
In a standard photovoltaic energy facility, generation follows a bell curve, peaking when solar irradiance is highest between 11:00 and 14:00. This concentrated generation often exceeds local transmission capacity or substation limits. Storage facilities capture this clipped energy and discharge it during evening net-load peaks. For these operational profiles, system engineers must design for continuous DC bus voltages between 1,000 V DC and 1,500 V DC, matching modern inverter topologies to minimise conversion losses. For an overview of how chemical formulations balance these operational constraints, refer to our LFP vs NMC battery engineering guide.
LFP vs NMC Chemistry in PVEF Lithium Ion Battery Applications
When selecting a pvef lithium ion battery system, engineers evaluate two primary lithium chemistries: lithium iron phosphate (LiFePO4 or LFP) and nickel manganese cobalt oxide (LiNiMnCoO2 or NMC). While NMC offers a higher volumetric energy density, LFP dominates stationary photovoltaic deployments due to its chemical resilience, extended operational life, and superior safety profile.
In photovoltaic plants, physical footprint constraints are rarely as restrictive as in electric vehicles or urban indoor installations. Therefore, the lower gravimetric energy density of LFP is fully outweighed by its thermal and economic advantages. LFP features strong covalent P-O bonds within the olivine lattice, which prevents oxygen release during structural breakdown up to 270 °C. Conversely, NMC structures begin releasing oxygen at approximately 210 °C, accelerating an exothermic thermal runaway loop that is significantly harder to arrest through passive thermal barriers.
| Engineering Metric | LFP Chemistry (LiFePO4) | NMC Chemistry (LiNiMnCoO2) | Operational Significance for PVEF |
|---|---|---|---|
| Nominal Cell Voltage (V) | 3.20 V | 3.65 V to 3.70 V | Determines rack series configuration and DC bus sizing |
| Cell Energy Density (Wh/kg) | 160 – 185 Wh/kg | 220 – 260 Wh/kg | Influences container payload and foundation load limits |
| Thermal Runaway Onset (°C) | 270 °C | 210 °C | Compliance with UL 9540A and NFPA 855 separation rules |
| Cycle Life (80% DoD, 25 °C) | 6,000 – 8,000 cycles | 2,500 – 4,000 cycles | Long-term capital expenditure and levelised cost of storage (LCOS) |
| Round-Trip Efficiency (RTE) | 88% – 92% (system) | 90% – 94% (system) | Total parasitic and conversion losses across daily cycles |
| Cathode Raw Materials | Iron, Phosphate, Lithium | Nickel, Manganese, Cobalt | Supply chain vulnerability and environmental compliance |
Engineers can examine granular cell-level characteristics and electrochemistry mechanics in our LFP battery cells specification review or contrast these with cathode variations in our NMC battery technical guide.
Sizing and Degradation Calculation for PVEF Li Ion Battery PVEF Systems
A successful pvef li ion battery pvef installation requires precise sizing calculations that incorporate capacity fade, temperature degradation factors, and depth-of-discharge (DoD) limits over an intended 15-year design lifespan. Inadequate overbuild results in early contract breach for guaranteed capacity under solar power purchase agreements (PPAs).
Consider an engineering scenario for a 2 MW grid-interconnection solar plant requiring a 4-hour firm discharge duration (8 MWh usable delivery at end-of-life) after 10 years of single daily cycling. We determine the initial nameplate capacity using the formula below:
Initial Installed Capacity (MWh) = Required EOL Usable Energy / (DoD × RTE_dc × SOH_eol)
- Required EOL Usable Energy: 8.00 MWh
- Operational Depth of Discharge (DoD): 0.85 (85% to preserve cathode longevity)
- DC Round-Trip Efficiency (RTE_dc): 0.94 (accounting for DC wiring and internal cell impedance)
- State of Health at Year 10 (SOH_eol): 0.75 (75% retained capacity under 3,650 cumulative cycles at an average cell temperature of 25 °C)
Applying these values:
Initial Installed Capacity = 8.00 / (0.85 × 0.94 × 0.75) = 8.00 / 0.5991 = 13.35 MWh
In this installation, the design engineer must specify a minimum nominal nameplate capacity of 13.35 MWh. If deployed using standard 3.72 MWh industrial battery containers, the facility requires four modular liquid-cooled containers. Specifying modular containers allows predictable augmentation at year 6 or 7, reducing upfront capital expenditure while securing long-term solar yield commitments. To explore container layout and structural integration options, consult our commercial energy storage engineering manual.
Thermal Management and Fire Safety for PVEF Li Battery PVEF Deployments
Thermal control determines whether a pvef li battery pvef array maintains balanced cell degradation or experiences localized cell aging and dangerous hotspots. High ambient solar irradiation combined with continuous charge cycles generates elevated heat fluxes across cell terminals that forced-air HVAC systems struggle to evacuate uniformly.
Modern utility installations employ closed-loop liquid cooling featuring an ethylene glycol-water mixture routed directly through aluminium cold plates in contact with the base or sides of prismatic LFP cells. Liquid cooling maintains inter-cell temperature variances below 2.5 °C across an entire 20-foot container. This uniformity prevents early cell divergence, reduces the balancing workload on the Battery Management System (BMS), and eliminates accelerated local calendar aging.
From a fire safety standpoint, installations must satisfy NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and pass unit-level testing according to UL 9540A. NFPA 855 clause 4.2 enforces a maximum allowable system energy of 600 kWh per individual unit unless full-scale fire test data justifies larger grouping without explosion or thermal propagation risk. Key containment provisions include:
- Aerosol or clean-agent fire suppression systems deployed at the individual rack or enclosure level for rapid flame extinction.
- Continuous deflagration and off-gas detection sampling for early hydrogen (H2) and carbon monoxide (CO) emission prior to thermal event initiation.
- Integrated mechanical deflagration relief panels engineered in compliance with NFPA 68 to redirect overpressure away from service corridors and adjacent solar equipment.
- External master emergency-stop loops interlocked with the main MV switchgear to ensure rapid galvanic disconnection during critical alarms.
Commissioning and Factory Acceptance Testing Procedure
Executing an orderly testing process ensures that every containerised pvef lithium battery pvef block satisfies isolation, capacity, and communication requirements before grid energisation. Electrical commissioning must adhere strictly to IEC 62619 clause 8.2 and IEC 62485-2 safety protocols.
- Pre-Power Visual and Mechanical Inspection: Verify all mechanical hold-downs, busbar bolt torques using calibrated torque wrenches according to manufacturer specifications, coolant pipe couplings for leaks, and grounding continuity from enclosure frame to site earthing grid (resistance below 1.0 Ω).
- DC Insulation and Dielectric Testing: Perform high-potential (Hi-Pot) insulation tests between the DC busbars and chassis ground at 2,500 V DC for 60 seconds; insulation resistance must exceed 100 MΩ under ambient dry conditions.
- BMS and Telemetry Integration: Power the low-voltage auxiliary circuits, verify cell-level voltage telemetry accuracy (within ±2 mV), calibrate individual thermocouple sensors, and validate emergency breaker shunt trips via Modbus TCP/IP or DNP3 protocol interfaces.
- Cooling System Pressure and Flow Verification: Charge the liquid cooling loops, bleed air bubbles from cold plates, confirm flow rates through ultrasonic flow meters, and verify chiller compressor cut-in thresholds under auxiliary power.
- Initial Balancing and C-Rate Capacity Run: Conduct a controlled 0.2C pre-charge up to 100% state of charge, hold for four hours to permit passive or active cell balancing, followed by a continuous 0.5C rated discharge cycle down to cut-off voltage to record baseline delivered capacity.
- Dynamic Grid Response Testing: Coordinate with the power conversion system (PCS) to verify active power ramp-rate control, frequency droop response, and reactive power injection under simulated grid disturbance signals.
Specification Checklist for Engineering RFQs
When preparing a formal Request for Quotation (RFQ) for a pvef lithium ion battery system, procurement teams must provide unambiguous parameters to equipment vendors. Incomplete specifications lead to design assumptions that can compromise project reliability or result in expensive post-award variation orders.
| Subsystem Parameter | Standard Industrial Value | Project-Specific Value / Notes |
|---|---|---|
| DC Bus Operating Voltage Range | 1,000 V DC to 1,500 V DC | Must align with PCS maximum MPPT/inverter input range |
| Cell Chemistry and Form Factor | LFP (LiFePO4), Prismatic | Prismatic hard-case cells (e.g. 280 Ah or 314 Ah capacity) |
| Cycle Life Guarantee | ≥ 6,000 cycles at 0.5C / 80% DoD | Specified at 25 °C ± 2 °C to 70% or 80% residual SOH |
| Cooling Architecture | Closed-loop Liquid Cooling | Internal cell temperature differential limited to < 2.5 °C |
| Ingress Protection and Corrosion Class | IP55 minimum, C4 or marine-grade coating | Required for high-insolation, dusty, or coastal solar environments |
| Safety Certifications | UL 1973, UL 9540, UL 9540A, IEC 62619 | Complete third-party test reports must be submitted with bid |
| Auxiliary Power Supply | 400 V AC / 480 V AC, 3-Phase, 50/60 Hz | Internal auxiliary consumption must be factored into system RTE |
Next steps: specifying and sourcing
Selecting the optimal battery chemistry, container design, and cooling architecture requires detailed coordination between your solar array production curves and grid interconnection constraints. Our engineering team assists contractors and project owners by delivering factory-integrated solutions, including our pre-engineered energy storage systems and modular liquid-cooled ESS containers built to international IEC, ANSI, and UL safety standards. To review project requirements, request single-line diagrams, or obtain a comprehensive commercial bid, submit your project specifications through our online quotation request or contact our technical team directly via the contact page.
Frequently asked questions
What does a PVEF lithium battery system do in a solar facility?
A PVEF lithium battery system stores surplus electricity generated by solar photovoltaic panels during peak sunlight hours. It releases this stored energy during high-demand evening periods, smooths out intermittent generation fluctuations caused by passing clouds, and provides frequency support to ensure grid stability.
Why is LFP preferred over NMC for solar energy facilities?
LFP chemistry provides superior thermal stability with an onset temperature of 270 °C compared to 210 °C for NMC. Furthermore, LFP delivers an operational life exceeding 6,000 cycles under daily cycling, lowering the levelised cost of storage for long-term solar firming projects where energy density is secondary to durability.
What is the typical lifespan of an industrial lithium battery in a solar park?
An industrial-grade lithium iron phosphate battery operating under active liquid thermal management typically lasts between 12 and 18 years. This lifespan corresponds to approximately 6,000 to 8,000 full equivalent cycles before capacity degrades to 70% of its initial rated capacity.
How does liquid cooling benefit a PVEF li ion battery installation?
Liquid cooling keeps the temperature variation across all battery cells within 2.5 °C, compared to 5 °C or higher with conventional air cooling. This thermal uniformity prevents premature degradation of individual cells, maximizes round-trip efficiency, and ensures reliable operation in high-ambient solar environments.
What standards govern the safety of lithium battery storage systems?
Key global safety standards include IEC 62619 for industrial lithium cell and rack safety, UL 1973 for stationary battery packs, UL 9540 for complete energy storage systems, and UL 9540A alongside NFPA 855 for fire propagation assessment and installation separation clearances.
