Pole Transformer Diagram: Engineering Guide & Schematics

Quick answer: A pole transformer diagram illustrates the electrical schematics, bushing terminal designations, primary high-voltage (HV) connections, and secondary low-voltage (LV) configurations of an overhead distribution transformer. It details internal winding arrangements—such as single-phase split-phase 120/240 V or three-phase Dyn11 configurations—alongside external surge arresters, cutout fuses, and ground paths required by standards such as IEEE C57.12.20 and IEC 60076.

Overhead distribution networks rely on pole-mounted units to step down medium-voltage distribution feeders (typically 11 kV to 34.5 kV) to commercial or domestic utilisation voltages. Reading a pole transformer diagram accurately is an essential engineering skill for sizing protection devices, confirming phase rotation, balancing secondary loads, and verifying safe earthing paths. Whether reviewing a single-phase residential pole unit or a banked pole-mounted transformer installation, understanding the internal schematic and physical terminal layout prevents misconnection hazards, ferroresonance, and catastrophic phase-to-ground faults.

Primary and Secondary Winding Schematics in a Pole Transformer Diagram

The core of any pole transformer diagram shows the magnetic coupling between the high-voltage primary winding and the low-voltage secondary winding. In North American and IEC-influenced grids, single-phase units utilise subtractive or additive polarity depending on the kVA rating and primary voltage class. According to IEEE C57.12.00 Table 5, single-phase transformers up to 200 kVA with primary voltage ratings of 8,660 V and below exhibit additive polarity, whereas larger units and those with primary voltages above 8,660 V use subtractive polarity.

In a standard single-phase schematic, the primary terminals are designated H1 and H2. On single-bushing configurations designed for grounded wye systems, H1 is connected to the overhead phase conductor via a cutout fuse, while H2 is internally bonded to the tank wall and grounded to the system neutral. The secondary winding is split into two equal 120 V coils connected across three secondary terminals labelled X1, X2, and X3. For a deeper analysis of core geometries and magnetic circuits, review our single phase transformer guide.

Understanding terminal polarity markings on the diagram is critical for banking: adjacent markings (H1 directly opposite X1) indicate subtractive polarity, whereas diagonal alignment (H1 diagonally across from X1) denotes additive polarity. When connecting multiple units to create polyphase outputs, connecting opposite polarities together results in severe short circuits across the secondary busbars.

Residential Transformer Diagram: 120/240V Split-Phase Schematics

A residential transformer diagram specifically depicts the three-wire single-phase split-phase connection used to supply domestic services. The primary winding receives medium-voltage current (such as 7.2 kV or 14.4 kV phase-to-neutral from a 12.47 kV or 24.94 kV nominal system), while the two secondary 120 V coils are linked in series at a shared centre tap.

The physical terminal arrangement in this residential transformer diagram features three low-voltage studs:

• X1 Terminal: The first ungrounded phase leg (Line 1), providing 120 V AC relative to the neutral terminal.
• X2 Terminal: The secondary centre tap, which serves as the grounded neutral conductor. It provides the return path for all 120 V branch circuits and is bonded to earth at the pole base.
• X3 Terminal: The second ungrounded phase leg (Line 2), operating 180 electrical degrees out of phase with Line 1.

Line-to-line loads connected between X1 and X3 receive the full 240 V potential for high-power residential loads like heat pumps and electric vehicle chargers. Line-to-neutral loads receive 120 V by tapping either outer phase leg to the neutral. Engineers reviewing a residential schematic must inspect the internal series-parallel links on the LV terminal block: if the two secondary windings are accidentally wired in parallel rather than series, the transformer will produce only 120 V across the outer terminals with doubled ampacity, failing to provide the 240 V split-phase supply.

3 Phase Distribution Transformer Pole Mounting and Vector Groups

A 3 phase distribution transformer on an overhead pole structure is installed either as a self-contained three-phase tank or as a cluster of three single-phase transformers mounted on a crossarm or cluster bracket. Standard internal arrangements for three-phase units follow vector groups defined in IEC 60076-1, most commonly Dyn11 or YNyn0, while ANSI/IEEE installations typically employ grounded wye-grounded wye (GrdY-GrdY) or delta-wye configurations.

When reviewing a pole transformer diagram for a balanced three-phase overhead installation, the wiring schematic changes according to the utility distribution architecture:

For high-density three-phase distribution, selecting the proper transformer configuration impacts downstream earthing, feeder protection, and zero-sequence current paths. For a comparative overview of primary network design, see our engineering guide to medium voltage electrical systems.

Power Line Transformer Diagram: Protection and Surge Arrester Schematics

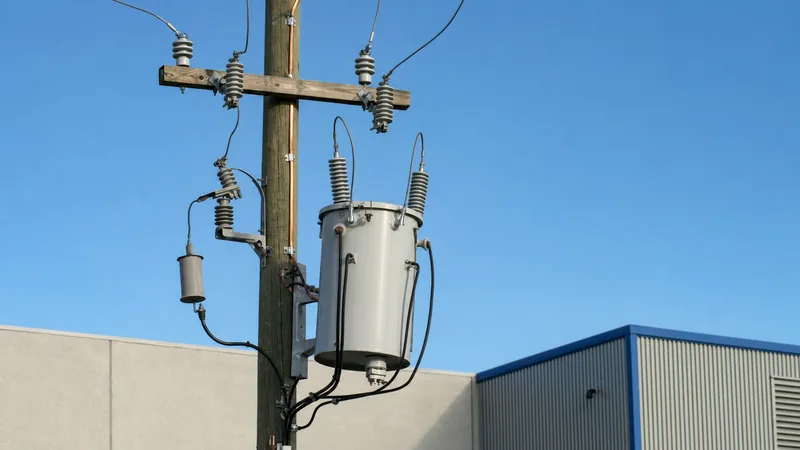

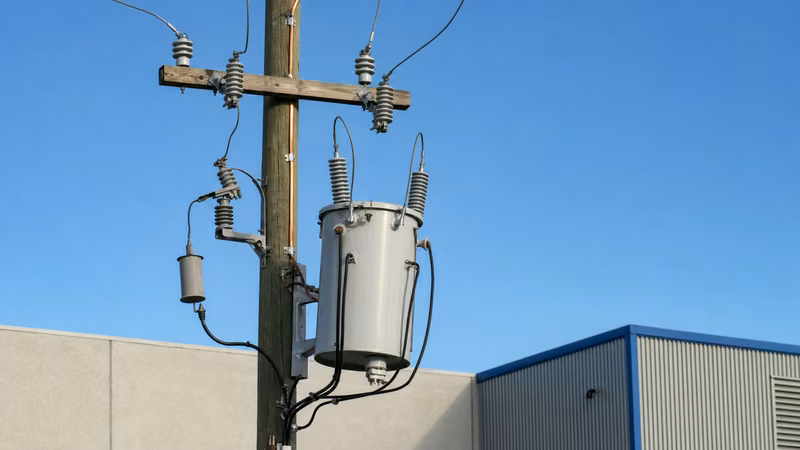

A complete power line transformer diagram incorporates the surrounding switchgear, overcurrent protective equipment, and lightning arresters that safeguard the transformer tank from lightning surges and downstream through-faults. Overhead lines are directly exposed to atmospheric strikes and switching transients, making correct schematic placement of arresters critical.

A typical power line transformer diagram depicts the following incoming circuit sequence:

1. Overhead Line T-Off: The MV phase tap connects directly from the medium-voltage conductor to the top terminal of an expulsion cutout fuse switch.
2. Surge Arrester Tap: A metal-oxide surge arrester (MOV) is installed immediately ahead of the primary bushing, connected between the live phase and the transformer tank earth. Per IEEE C62.22, lead lengths must be kept as short as possible (under 300 mm) to minimise inductive voltage drop during high-frequency lightning discharge.
3. Fuse Cutout: The fused cutout door houses a silver or tin expulsion fuse element calibrated to isolate the transformer during an internal short circuit or sustained secondary fault.
4. Bushing Interface: The protected lead passes from the bottom hinge of the cutout to the primary high-voltage porcelain or polymer bushing. Detailed inspection of insulator creepage is covered in our transformer bushing engineering guide.
5. Tank and Core Grounding: The transformer tank features a copper-faced grounding pad connected to a continuous copper conductor running down the pole to a driven earth electrode array, ensuring low ground impedance (< 10 ohms).

Terminal Markings, Bushing Identification, and Sizing Calculations

Standardised terminal labelling across both ANSI/IEEE and IEC standards prevents wiring errors during replacement or pole conversion work. On ANSI/IEEE single-phase units, the primary bushings are marked H1 (left) and H2 (right) when facing the high-voltage side. The low-voltage bushings are designated X1, X2, and X3 from right to left for subtractive polarity, or X3, X2, and X1 for additive polarity.

To illustrate the electrical values represented on a single-phase pole transformer diagram, consider a standard 50 kVA distribution unit stepping down an 11,000 V primary distribution line to a 240/120 V split-phase secondary. Calculating nominal currents allows engineers to correctly size the cutout fuse link and secondary drop cables.

Worked Calculation: Primary and Secondary Rated Current

1. Primary Full-Load Current ($I_{HV}$):

$$I_{HV} = \frac{S}{V_{HV}} = \frac{50,000\text{ VA}}{11,000\text{ V}} = 4.55\text{ A}$$

2. Secondary Full-Load Current at 240 V ($I_{LV}$ across X1 to X3):

$$I_{LV} = \frac{S}{V_{LV}} = \frac{50,000\text{ VA}}{240\text{ V}} = 208.33\text{ A}$$

3. Cutout Fuse Sizing: In line with IEEE C37.42 guidelines, distribution cutout fuses are generally sized between 150% and 200% of nominal full-load current to tolerate transformer inrush currents (typically 10 to 12 times full-load current for 0.1 seconds) while clearing sustained overloads. Sizing at approximately 175% yields: $4.55\text{ A} \times 1.75 = 7.96\text{ A}$. A standard 8A Type K fast-acting or Type T slow-acting fuse link is selected.

4. Short-Circuit Fault Current: Assuming a typical nameplate percentage impedance (%Z) of 2.1% (0.021 per unit):

$$I_{SC(LV)} = \frac{I_{LV}}{\%Z} = \frac{208.33\text{ A}}{0.021} = 9,920.5\text{ A} \approx 9.92\text{ kA}$$

The secondary main breaker or service entrance equipment must have an interrupting rating exceeding 10 kA to withstand a bolted dead fault at the transformer terminals.

Engineering Checklist for Specifying Pole-Mounted Transformers

When preparing procurement documentation or reviewing factory approval drawings against an engineering pole transformer diagram, technical personnel should verify the following parameters against design requirements:

To evaluate how overhead units compare with alternative pad-mounted or feeder topologies, consult our analysis on radial feed vs loop feed networks.

Next steps: specifying and sourcing

When preparing an inquiry for single-phase or three-phase overhead transformers, provide the factory engineering team with your required primary and secondary system voltages, Basic Impulse Level (BIL), tap-changer range (typically ±2 × 2.5%), loss evaluation figures, and environmental site ratings. Explore our range of factory-tested pole-mounted transformers and mineral-oil insulated oil-immersed transformers built strictly to IEC 60076 and IEEE C57 specifications. Contact our application engineering department or submit your technical specifications directly via our transformer quotation page to receive detailed general arrangement drawings, wiring schematics, and commercial pricing within 24 hours.
