How to Store Electricity: Engineering Guide & Systems

Quick answer: To store electricity at scale, electrical energy must be converted into potential, chemical, or kinetic forms, as alternating current cannot be accumulated directly. Electrochemical batteries, particularly lithium iron phosphate cells, are the primary method for commercial applications, converting alternating current into chemical potential via bidirectional power conversion systems with round-trip efficiencies exceeding 88%.

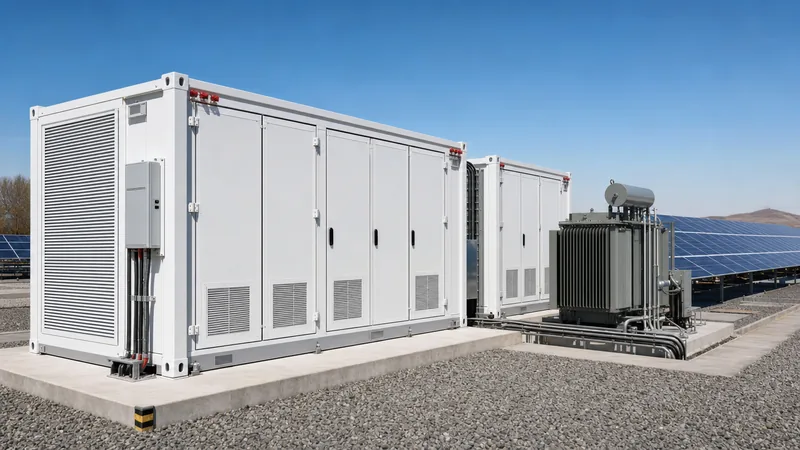

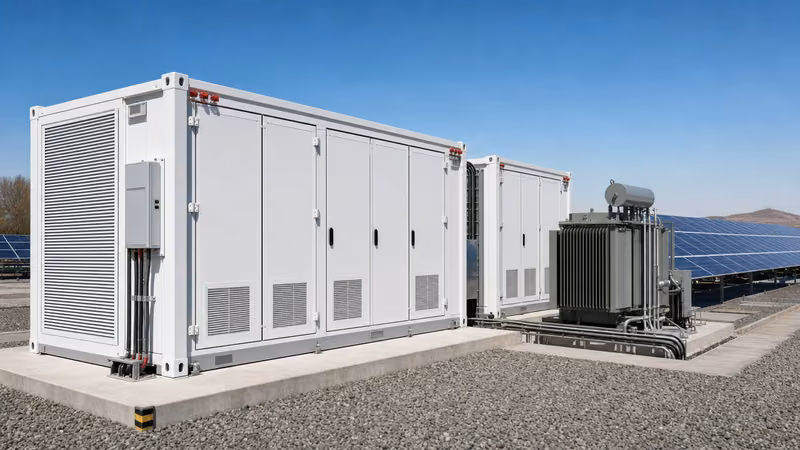

Understanding how to store electricity requires analysing the balance between instantaneous electrical grid demand and variable generation sources such as solar photovoltaics and wind turbines. For electrical engineers, EPC contractors, and plant operators, capturing surplus generation prevents curtailment and stabilizes grid frequency. Modern facilities deploy stationary electrochemical systems, pumped storage, and thermal mediums to bridge temporal discrepancies between power generation and consumption profiles.

Can power be stored: The physics of energy conversion

Direct electrical energy can only be stored electrostatically in dielectric capacitors or magnetically in superconducting coils, both of which face severe limitations regarding energy density and discharge duration. To answer whether can power be stored at scale: alternating current (AC) power cannot be bottled directly on a power network. Instead, the electrical power must do mechanical, thermal, or electrochemical work that can later be reversed to drive an electrical generator or inverter.

In electrostatic storage, electrostatic charges accumulate on opposing plates according to the fundamental relationship Q = C × V. While ultracapacitors offer exceptional cycle life exceeding 500,000 cycles and high power density (up to 10,000 W/kg), their low specific energy (typically 5 to 10 Wh/kg) restricts their practical utility to short-duration voltage stabilization and millisecond frequency regulation. For continuous power delivery spanning several hours, industrial facilities rely on intermediate electrochemical bonds within secondary battery cells. Detailed architectural approaches for these battery configurations are explored in our Battery Storage Engineering Guide: Solar BESS Specs & Sizing.

How can we store electricity: Primary technologies compared

Electrical energy is captured through five distinct physical mechanisms: electrochemical, mechanical, thermal, chemical, and electrical field storage. When determining how can we store electricity across commercial, utility, and microgrid installations, engineers evaluate round-trip efficiency (RTE), response time, footprint, and capital expenditure per kilowatt-hour.

Electrochemical systems, notably lithium iron phosphate (LiFePO4) and nickel manganese cobalt (NMC), dominate modular land-based installations due to rapid installation timelines and minimal geographic constraints. In contrast, mechanical pumped hydroelectric storage offers the lowest levelised cost for multi-gigawatt-hour requirements, though it demands specific topographical elevations and massive land areas. The operational parameters of primary commercial storage methods are compared below.

To evaluate cell chemistry trade-offs specifically between LFP and high-nickel formulations, refer to our comparative technical paper on LFP vs NMC Battery: Commercial BESS Chemistry Guide.

How to store electricity

Executing stationary electrical energy storage relies on coupling storage cells with a bidirectional power conversion system (PCS) that acts as the bridge to the three-phase alternating current network. When storing electricity from an electrical distribution feeder or direct solar photovoltaic array, the PCS operates in rectification mode, absorbing AC power at 400 V or 480 V and rectifying it into controlled DC current to charge series-parallel connected battery strings at direct-current voltages ranging from 600 V to 1,500 V DC.

During discharge, the PCS reverses operation into inversion mode, synthesizing synchronized sinusoidal AC waveforms matching the frequency (50 Hz or 60 Hz) and phase angle of the facility busbars. This process is governed by three primary functional layers:

• Cell-Level Electrochemistry: Reversible chemical intercalation of lithium ions between positive cathode active materials and negative carbon graphite anodes.
• Battery Management System (BMS): Continuous monitoring of cell voltages (typically 2.5 V to 3.65 V for LFP), internal module temperatures, and state-of-charge (SoC) calculations via coulomb counting and open-circuit voltage correlation.
• Energy Management System (EMS): High-level supervisory control executing algorithms for peak lopping, reactive power support (Volt-VAR control), and microgrid islanding as specified by IEEE 1547.4 clauses.

For an in-depth breakdown of bidirectional converter topology, pulse-width modulation techniques, and transformer matching, consult our Power Conversion System (PCS): Engineering Design & Sizing Guide.

Solar storage solutions for commercial and industrial facilities

Integrating commercial photovoltaic generation with energy storage addresses generation intermittency and demand-charge penalties imposed by distribution utilities. Modern solar storage solutions employ either DC-coupled or AC-coupled system topologies, depending on whether the installation is a greenfield development or a retrofit project.

In DC-coupled architectures, solar strings connect to the DC bus of the storage inverter via maximum power point tracking (MPPT) charge controllers. This arrangement eliminates redundant DC-AC-DC conversion cycles, delivering up to 3% higher total charging efficiency. Conversely, AC-coupled systems integrate separate solar inverters and battery inverters on the common 400 V / 480 V busbar. AC coupling allows independent maintenance of the solar field and storage assets, simplifying retrofits on operating commercial roofs. Understanding the balance-of-plant capital demands is essential when evaluating these layouts, as outlined in our analysis of Commercial Battery Storage Costs: Sizing & Price Guide.

Worked calculation: Sizing an industrial battery storage system

Accurate engineering sizing ensures an energy storage system reliably delivers targeted peak-shaving without prematurely degrading the battery cells. Consider an industrial manufacturing facility with a continuous base load of 800 kW, experiencing a daily peak demand of 1,300 kW for a 3.0-hour window each afternoon. The engineering objective is to shave the peak down to 900 kW using a containerised lithium iron phosphate battery system.

Step 1: Determine Required Power Output (P_req)

P_req = Peak Load - Target Threshold = 1,300 kW - 900 kW = 400 kW.

Step 2: Determine Required Net Discharge Energy (E_net)

E_net = P_req × Discharge Duration = 400 kW × 3.0 h = 1,200 kWh.

Step 3: Factor in System Efficiency and Deratings

• Inverter discharge efficiency (η_inv): 96.5% (0.965)
• Battery DC-to-DC discharge efficiency (η_dc): 95.0% (0.950)
• Total discharge path efficiency (η_dis): 0.965 × 0.950 = 0.9167 (91.67%)
• Auxiliary parasitic load allowance (HVAC, BMS, lighting): 25 kW × 3 h = 75 kWh
• Operational Depth of Discharge (DoD): 85% (0.85)
• End-of-Life (EoL) capacity retention target: 80% (0.80) to account for degradation over 10 years

Step 4: Compute Nameplate Battery Capacity (C_nameplate)

Total delivered energy required from DC bus = (E_net + Auxiliary) / η_dis = (1,200 kWh + 75 kWh) / 0.9167 = 1,390.86 kWh.

Factoring in usable operational DoD window and lifecycle degradation factor:

C_nameplate = 1,390.86 kWh / (DoD × EoL Factor) = 1,390.86 / (0.85 × 0.80) = 1,390.86 / 0.68 = 2,045.38 kWh.

Conclusion: The facility requires a minimum 2.05 MWh nameplate battery energy storage container rated at a continuous 500 kW / 625 kVA power conversion output, accommodating auxiliary overheads and dynamic response margins.

Step-by-step procedure: How to store electricity in a commercial facility

Executing an electrical energy storage installation requires following a rigorous engineering and commissioning sequence to ensure personnel safety, grid synchronization, and asset longevity.

1. Facility Load and Solar Profiling: Install Class 0.2 power quality meters at the main point of common coupling (PCC) to capture active power (kW), reactive power (kVAR), and harmonic distortion (THD) at 1-minute intervals over a minimum 30-day baseline period.
2. System Dimensioning and Busbar Analysis: Calculate short-circuit contribution from the storage inverters pursuant to IEC 60909; ensure the facility LV switchboard busbar rating can accommodate the backfeed current under full discharge conditions.
3. Battery Enclosure and Layout Selection: Select between prefabricated indoor battery racks or exterior containerised enclosures featuring thermal insulation, NEMA 3R / IP55 ingress protection, and seismic anchoring per local building codes.
4. Integration of Thermal and Environmental Management: Configure dedicated industrial liquid-cooling loops or variable-refrigerant HVAC units to maintain cell temperatures within the optimal 20°C to 25°C operating band, limiting cell-to-cell thermal divergence to ≤3°C.
5. Installation of Multi-Stage Electrical Protection: Deploy high-speed DC branch fuses rated up to 100 kA interrupting capacity, DC isolation contactors, insulation monitoring devices (IMD) per IEC 61557-8, and shunt trip breakers tied to the emergency stop circuit.
6. Fire Suppression and Safety Commissioning: Integrate gas detection (sensing hydrogen, off-gas carbon monoxide), very early smoke detection apparatus (VESDA), and total-flooding clean-agent extinguishing systems (FK-5-1-12) coupled with deflagration venting per NFPA 68.
7. Grid Interconnection and Acceptance Testing: Execute functional anti-islanding testing, step-load transient response verification, and power factor control compliance in accordance with IEEE 1547 Table 5 specifications before final commercial energisation.

Critical engineering standards and thermal safety codes

Deploying large-scale electrical storage requires compliance with international safety and interconnection frameworks to eliminate fire propagation and ensure network stability. Standard IEC 62619 defines safety requirements for secondary lithium cells used in industrial and stationary applications, mandating rigorous drop tests, thermal abuse verification, and internal short-circuit resistance testing.

At the system integration level, UL 9540A provides the definitive test methodology for evaluating thermal runaway fire propagation in battery energy storage systems. Compliance testing evaluates propagation limits across four stages: cell level, module level, rack level, and enclosure level. Furthermore, NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) dictates maximum group energy limits (typically 50 kWh for residential, 250 to 600 kWh for indoor industrial groupings without barriers) and mandates clear 3-foot (0.91 m) separation distances between adjacent storage racks to prevent cascading thermal events.

Next steps: specifying and sourcing

When preparing a technical request for quotation (RFQ) for energy storage equipment, engineering teams must supply the complete load profile, connection voltage, peak discharge power requirements, required autonomy duration, and local ambient temperature extremes. Providing precise project details allows the manufacturing engineering team to calculate optimum battery container footprints, auxiliary cooling requirements, and transformer impedances.

Explore our engineering solutions for modular energy storage systems and custom utility-grade liquid-cooled energy storage containers. For project sizing assistance or factory direct supply, submit your single-line diagrams to our technical department via the quotation inquiry page.
