Conversion Ampere kVA: Engineering Formulas & Sizing Guide

Quick answer: The conversion ampere kva determines the current flowing through an electrical circuit based on its apparent power rating and operational voltage. For a balanced three-phase system, current in amperes equals (kVA × 1,000) ÷ (Voltage × 1.73205). For a single-phase circuit, amperes equal (kVA × 1,000) ÷ Voltage.

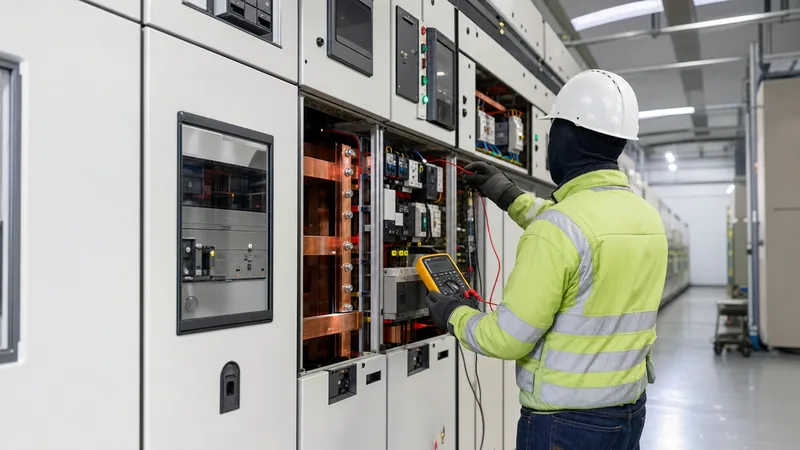

Accurate electrical sizing in industrial facilities, utility distribution networks, and containerised substations hinges upon precise electrical conversions. Specifying switchgear, power transformers, busbar trunks, and cable cross-sections requires converting equipment apparent power capacity into thermal line current. Miscalculating this relationship risks nuisance tripping, conductor overheating, or excessive capital expenditure on oversized electrical distribution apparatus. Whether engineering a new substation or retrofitting industrial distribution boards, mastering the mathematical relationship and operational nuances of the conversion ampere kva ensures network safety, standards compliance, and long-term asset reliability.

Ampere vs kVA: Understanding the Fundamental Electrical Difference

The core distinction in the debate of ampere vs kVA lies in what each unit physically measures within an alternating current (AC) power distribution system. An ampere (A) represents the physical flow of electrical charge through a conductor over time, directly governing the thermal dissipation ($I^2R$ losses) within cables, busbars, and circuit breaker contacts. In contrast, kilovolt-amperes (kVA) quantify apparent power, which combines both active power (kW) performing useful mechanical work and reactive power (kVAR) sustaining electromagnetic fields in inductive loads like motors and dry-type transformers.

In AC power engineering, apparent power represents the total generating and transmission capacity that an electrical network must support. Conductor insulation, terminal connectors, and switchgear ratings are dictated by thermal current limits (amperes), while transformers, alternators, and uninterruptible power supplies (UPS) are commercially rated in kVA. Crucially, the conversion ampere kva does not require knowledge of the system load power factor ($\cos \phi$), because both kVA and current reflect the total vector magnitude of the electrical stress placed upon the distribution infrastructure. When designing complete distribution architectures, engineers refer to comprehensive resources such as our unit substation engineering guide to balance these parameters across medium- and low-voltage boundaries.

Single-Phase Conversion: Calculating Amperes from kVA

Calculating single-phase current requires dividing total apparent power in volt-amperes by the line-to-neutral or line-to-line operating voltage. In single-phase power distribution circuits, such as residential feeds, control power circuits within switchgear, or dedicated pole-mounted distribution assets, the formula remains straightforward because phase-displacement factors are absent.

The standard mathematical expression for single-phase circuits is:

$$I = \frac{S_{(kVA)} \times 1000}{V}$$

Where:

• I = Current in amperes (A)
• S_{(kVA)} = Apparent power in kilovolt-amperes (kVA)
• V = Operational root-mean-square (RMS) system voltage in volts (V)

For example, consider a 50 kVA control-power auxiliary transformer serving an industrial facility at 230 V single-phase. Applying the conversion yields: $I = (50 \times 1000) / 230 = 217.39\text{ A}$. If the operational voltage drops by 5% to 218.5 V while the kVA load remains constant, the required line current rises to 228.83 A. Electrical engineers must calculate full-load amperes using the lowest anticipated operating voltage under IEC 60076-1 clause 4.1 to ensure that thermal ratings of incoming cables and protective trip units are never exceeded under continuous duty.

kVA to Amps Formula Three Phase: Derivation and Practical Application

The kva to amps formula three phase accounts for the 120-degree phase displacement between individual phase conductors by incorporating the square root of three ($\sqrt{3} \approx 1.73205$). Three-phase apparent power ($S$) represents the sum of apparent power across all three individual phases: $S = 3 \times V_{L-N} \times I_L$. Expressing the formula in terms of line-to-line voltage ($V_{L-L}$), where $V_{L-L} = \sqrt{3} \times V_{L-N}$, yields the universal three-phase engineering relationship:

$$I_L = \frac{S_{(kVA)} \times 1000}{\sqrt{3} \times V_{L-L}}$$

Where:

• I_L = Line current in amperes (A)
• S_{(kVA)} = Total three-phase apparent power in kilovolt-amperes (kVA)
• V_{L-L} = Line-to-line RMS system voltage in volts (V)
• √3 = Mathematical constant 1.73205

In medium-voltage and low-voltage electrical switchgear engineering, line-to-line voltage is standard notation. For instance, in a standard 400 V European three-phase secondary distribution system, the constant denominator is $400 \times 1.73205 = 692.82$. Consequently, each kilovolt-ampere of transformer capacity yields approximately 1.443 amperes of full-load secondary current. In a 480 V North American system, each kVA yields approximately 1.203 amperes. For detailed secondary current values across common commercial ratings, consult our specialised analysis on 75 kVA transformer amps sizing.

Step-by-Step Procedure: Three-Phase Current Calculation

Executing an accurate three-phase current calculation requires a structured method to avoid common oversights such as confusing phase voltage with line voltage or omitting secondary load growth margins. Follow these sequential steps during project FEED (Front End Engineering Design) studies:

1. Determine the Total Connected Apparent Load: Aggregate all inductive, capacitive, and resistive loads in kVA. If loads are documented in kilowatts (kW), convert them to kVA by dividing kW by the load power factor ($\text{kVA} = \text{kW} / \text{PF}$).
2. Establish Operational Line-to-Line Voltage: Identify the rated nominal three-phase line-to-line voltage at the equipment terminals (for example, 11,000 V for MV switchboards or 415 V for LV distribution centres).
3. Execute the Three-Phase Formula: Multiply the rated kVA by 1,000 to obtain total volt-amperes (VA), then divide by the product of line-to-line voltage and 1.73205.
4. Factor in Transformer Impedance and Voltage Variations: Verify system current under minimum permissible voltage conditions (−5% or −10% tolerance per national grid codes) to identify worst-case thermal amperes.
5. Size Conductors and Switchgear: Apply derating factors for ambient temperature, cable grouping, and installation topology in accordance with IEC 60364-5-52 or NFPA 70 (NEC) standards, linking back to our transformer selection chart for continuous rating boundaries.

Applying this sequence guarantees that switchgear incoming feeder circuit breakers, current transformers (CTs), and neutral buses satisfy both continuous steady-state loading and short-time withstand requirements.

Full-Load Conversion Ampere kVA Reference Chart

This reference chart presents continuous full-load line currents across standard industrial voltages for common apparent power capacities from 100 kVA to 2,500 kVA. Values are computed using balanced sinusoidal waveforms per IEC 60076-1 specifications.

For custom substation sizing beyond 2,500 kVA, or where dual primary voltages are employed, utilize our dedicated transformer sizing calculator guide to compute exact secondary currents under varied tap changer settings.

Equipment Sizing Pitfalls: Inrush, Power Factor, and Breaker Selection

A frequent error during electrical network design is sizing protective circuit breakers and busbar systems solely on nominal full-load amperes derived from the conversion ampere kva equation. Real-world distribution systems present dynamic electrical conditions that require substantial engineering allowances beyond simple steady-state math.

First, magnetising inrush current during transformer energisation frequently reaches 8 to 12 times rated full-load amperes for oil-immersed units, and up to 15 times for high-efficiency dry-type units, lasting several hundred milliseconds. If an engineer specifies an incoming air circuit breaker (ACB) or moulded case circuit breaker (MCCB) strictly at 100% of nominal full-load current without an adjustable short-time delay (ANSI device 51/50), the breaker will trip instantaneously during transformer black-start or re-energisation.

Second, downstream industrial motor loads produce starting currents reaching 600% of full-load amperes. Switchboards constructed in compliance with IEC 61439 low-voltage switchgear standards must balance the rated diversity factor (RDF) against these transient currents to prevent premature thermal stress on horizontal and vertical copper busbars.

Third, neglecting harmonic currents generated by non-linear loads (such as variable frequency drives and data centre power supplies) creates elevated neutral currents and excessive eddy-current losses in switchgear busbars. When non-linear loads exceed 30% of total kVA, busbars and incoming circuit breakers must be derated by 15% to 25%, or specified with dedicated harmonic K-factor ratings.

Next steps: specifying and sourcing

Translating mathematical conversions into robust electrical assets demands clear technical coordination. When preparing your request for quotation (RFQ), ensure you provide our engineering team with your required kVA ratings, nominal primary and secondary voltages, system frequency (50 Hz or 60 Hz), vector group configurations, and protection requirements. Explore our comprehensive range of HV and LV switchgear assemblies, prefabricated transformer substations, and dry-type power transformers engineered to IEC and IEEE standards. Submit your single-line diagrams (SLDs) and technical schedules directly via our substation quote portal or contact our application engineers at technical support for project-tailored switchgear and distribution solutions.
