Key takeaways
- Battery thermal management maintains lithium-ion cell temperatures between 15°C and 35°C to arrest premature capacity fade and mitigate thermal runaway risks.
- Liquid cooling cold plates achieve heat transfer coefficients between 500 and 1,500 W/(m²·K), outperforming forced-air systems by an order of magnitude.
- Total heat generation combines irreversible Joule heating (I²R) and reversible electrochemical entropic heat (IT·dE/dT), both of which scale with C-rate.
- An intra-pack temperature differential exceeding 3°C to 5°C accelerates cell-to-cell impedance mismatch, degrading the usable capacity of the entire string.
- Rigorous pressure decay testing at 1.5 times nominal operating pressure is mandatory during commissioning to prevent dielectric fluid leakage inside high-voltage enclosures.
Quick answer: Battery thermal management is an integrated thermodynamic architecture consisting of chillers, cold plates, sensors, and circulation pumps designed to regulate electrochemical cell temperatures within an optimal operational window of 15°C to 35°C while keeping cell-to-cell thermal gradients below 3°C.
Lithium-ion cells operating outside their thermal thresholds degrade rapidly. Elevated temperatures accelerate Solid Electrolyte Interphase (SEI) layer growth, active lithium consumption, and cathode transition-metal dissolution. Conversely, sub-ambient temperatures elevate charge transfer resistance and drive lithium plating during charging cycles, introducing direct internal short-circuit hazards. Whether deployed in containerised grid substations or road transport, effective battery thermal management is essential for asset longevity, round-trip efficiency (RTE), and system safety. For an exhaustive baseline on plant-wide architectures, refer to our Battery Cooling: Engineering Guide to Thermal Systems.
Fundamentals of Battery Pack Thermal Management
A battery pack thermal management architecture must dissipate or supply heat to counter two primary thermodynamic phenomena: irreversible overpotential losses and reversible entropic changes. As current passes through cell tabs, current collectors, and active coating materials, internal impedance generates irreversible Joule heating according to Ohm's law:
Qirr = I² · Rint
where I is instantaneous DC current and Rint is total internal cell resistance (the sum of ohmic resistance Rohm and polarization resistance Rpol). The reversible component, governed by entropic cell reactions, is expressed as:
Qrev = I · T · (dE / dT)
where T is cell temperature in Kelvin and dE/dT is the temperature coefficient of the open-circuit voltage (OCV). At high discharge rates (exceeding 1C), Joule heating dominates total thermal losses. However, during balanced shallow cycling, entropic heat can either add to or subtract from total thermal load depending on the state of charge (SoC). In stationary utility systems relying on lithium iron phosphate (LFP) chemistry, keeping cell differentials within a 3°C envelope is vital. A cell running 5°C warmer than its adjacent neighbour exhibits lower impedance, drawing disproportionate current and accelerating localised degradation across parallel module strings.
Comparing Cooling Topologies: Air, Liquid, and Immersion
Selecting an appropriate battery thermal management system depends on power density, duty cycle, space constraints, and capital expenditure targets. Forced air, indirect liquid cold plates, and direct single-phase or two-phase immersion represent the three core engineering approaches.
| Cooling Technology | Heat Transfer Coeff. [W/(m²·K)] | Parasitic Load [% of Pack Power] | Intra-Pack Delta T [°C] | Capital Cost Index | Complexity & Maintenance |
|---|---|---|---|---|---|
| Forced Air Convection | 25 – 100 | 4.0% – 8.0% | 5.0 – 8.0 | 1.0 (Baseline) | Low; fan replacements and HVAC air filter clearing. |
| Indirect Liquid Cold Plates | 500 – 1,500 | 1.5% – 3.0% | 1.5 – 3.0 | 1.6 – 2.2 | Moderate; coolant flushing, deionisation cartridges, leak testing. |
| Direct Immersion (Single-Phase) | 1,000 – 3,500 | 2.0% – 4.0% | < 1.5 | 3.0 – 4.0 | High; specialised hydrocarbon/fluorochemical fluids, hermetic seals. |
| Phase-Change Material (PCM) Hybrid | 150 – 400 | 0.5% – 1.5% | 2.0 – 4.0 | 2.0 – 2.5 | Low active maintenance; finite latent heat buffer, added dead weight. |

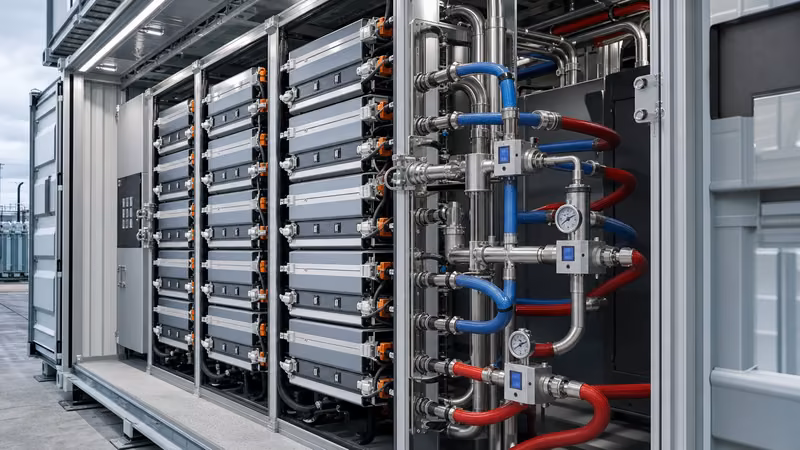

While air cooling was standard in legacy storage systems, modern utility-scale energy storage and commercial installations almost universally employ indirect liquid cold plates. Aluminium roll-bond or extruded cold plates positioned beneath or between prismatic cells achieve superior heat extraction with lower parasitic fan consumption, maintaining stringent temperature uniformity.
EV Thermal Management System vs Stationary BESS Architectures
An EV thermal management system operates under dynamic mechanical and environmental constraints that differ sharply from stationary battery energy storage systems (BESS). Electric vehicle thermal management must accommodate rapid transient spikes—such as regenerative braking and 350 kW DC fast charging—within tightly restricted volumetric footprints. Furthermore, an EV battery thermal management system links directly into the vehicle's heating, ventilation, and air conditioning (HVAC) loop via bi-directional heat pumps to provide passenger cabin comfort, motor inverter chilling, and battery pre-heating from a single centralised circuit.
In contrast, stationary BESS architectures deploy dedicated closed-loop chillers per container or rack. These stationary units run continuous, predictable C-rates (typically 0.25C to 1C) over 2 to 4-hour durations. To compare cell operational profiles across vehicle and stationary applications, review our guide on LFP vs NMC Battery: Commercial BESS Chemistry Guide. Stationary enclosures also have sufficient footprint to integrate dual-stage industrial pumps, bypass valves, and large air-cooled condensers mounted externally on the enclosure roof, as detailed in our Battery Enclosure: Engineering Design & Selection Guide.
Engineering Sizing Calculation for a Battery Thermal Management System
Designing an effective battery thermal management system requires sizing the chiller and coolant flow rates based on maximum continuous operational heat generation. Consider an industrial liquid-cooled battery rack rated at 500 kWh, utilizing 558 series-connected 3.2 V, 280 Ah LFP prismatic cells operating at a continuous 0.5C discharge (140 A DC current).
- Determine irreversible Joule heating per cell: Measure internal AC/DC resistance at 50% SoC (Rint = 0.20 mΩ = 0.00020 Ω).
Pirr = I² · Rint = (140 A)² · 0.00020 Ω = 3.92 W - Calculate reversible entropic heating per cell: At 25°C (298.15 K), with an empirical entropic coefficient (dE/dT) of 0.04 mV/K (4.0 × 10⁻⁵ V/K):
Prev = I · T · (dE / dT) = 140 A · 298.15 K · 0.00004 V/K = 1.67 W - Sum aggregate thermal output for the pack:
Qcell = 3.92 W + 1.67 W = 5.59 W
Qbattery = 558 cells · 5.59 W = 3,119 W ≈ 3.12 kW - Account for ambient thermal transmission: Ingress through container insulated walls under a 45°C ambient environment adds approximately 1.20 kW of thermal load:
Qtotal = 3.12 kW + 1.20 kW = 4.32 kW - Size the coolant mass flow rate: Using a 50/50 water-ethylene glycol mixture with a specific heat capacity cp = 3,300 J/(kg·K) and a target coolant temperature rise (ΔTcoolant) of 3.0 K across the cold plates:
ṁ = Qtotal / (cp · ΔTcoolant) = 4,320 W / (3,300 J/(kg·K) · 3.0 K) = 0.436 kg/s
Given a fluid density of 1,065 kg/m³, this equates to a continuous delivery volume of approximately 24.6 litres per minute (L/min). Selecting a multi-stage centrifugal pump operating against a calculated system head loss of 180 kPa ensures adequate turbulence within the cold plate micro-channels (Reynolds number Re > 2,300) without generating excessive parasitic pump consumption.
Standards, Safety, and Battery Thermal Management Compliance
Thermal control systems in utility and mobile installations must comply with strict international regulatory frameworks to manage the onset of thermal runaway. IEC 62619 clause 8.2 defines mandatory over-temperature safety controls, requiring a dual-tier protection architecture where the Battery Management System (BMS) triggers secondary contactor cut-offs if active thermal loops fail. For complete integration of monitoring architectures, see our Battery Monitoring System Guide: Engineering Specs & Design.
Under UL 9540A testing procedures, the thermal management loop plays a vital role in preventing cell-to-cell thermal propagation. When an induced failure causes an initiate cell to exceed 150°C, the adjacent liquid cold plate channels must carry heat away rapidly enough to keep neighbouring cells below their critical cathode breakdown threshold (typically 80°C to 110°C depending on chemistry). For transport applications involving a thermal management system for electric vehicles, ISO 6469-1 and UN 38.3 mandate that coolant passage ruptures must not bridge high-voltage busbars or introduce insulation resistance degradation below 100 Ω/V.
Commissioning and Factory Acceptance Testing Checklist
Commissioning an indirect liquid cooling circuit requires rigorous on-site verification before energising the DC busbars. Field engineers should follow this structured testing protocol:
- Hydrostatic and Pneumatic Leak Testing: Pressurise the dry cold-plate loop with dry nitrogen to 1.5 times the maximum rated operating pressure (typically 450 to 600 kPa) for 60 minutes. Log pressure drop; a decrease greater than 1% indicates a joint defect.
- Coolant Quality Verification: Sample the heat transfer medium to ensure a 50/50 deionised water to ethylene glycol ratio (refractive index 1.384 to 1.387). Verify fluid electrical conductivity is strictly below 10 µS/cm to prevent galvanic degradation and leakage currents.
- Flow Balancing and Purging: Circulate fluid at full capacity to expel entrained air via high-point automatic air vents. Inspect mechanical flow meters on individual rack manifolds to verify equal flow distribution within ±5% across all parallel cold plate branches.
- BMS Sensor Calibration and Chiller Interlocks: Verify that immersion NTC thermistors and surface RTD sensors track fluid loop inlet and outlet conditions to within 0.5°C. Confirm that the chiller PLC communicates fault states to the master controller via Modbus TCP or CANbus.
- Full-Power Thermal Baseline Soak: Charge and discharge the battery system at 100% rated current for two complete cycles while logging thermal camera captures and module internal sensor arrays to identify localised hotspots.
Next steps: specifying and sourcing
When specifying a complete thermal management architecture for your next energy storage installation, assemble site-specific parameters including continuous and peak C-rates, worst-case ambient temperature envelopes, parasitic load budgets, and required acoustic noise constraints. Our engineering group produces factory-integrated liquid-cooled energy storage containers and stationary commercial battery energy storage systems built to IEC, UL, and regional grid connection codes. To submit your thermal balance calculations, single-line diagrams, or request an EPC-level equipment quotation, visit our commercial quotation portal to speak with our application specialists.
Frequently asked questions
What is the optimal temperature range for a battery thermal management system?
The optimal operating window for lithium-ion battery packs is between 15°C and 35°C. Keeping cells within this zone prevents accelerated degradation mechanisms such as SEI layer decomposition at high temperatures and lithium plating during sub-ambient charging.
Why is liquid cooling preferred over air cooling in large battery packs?
Liquid cooling delivers significantly higher thermal conductivity and heat capacity than air, achieving heat transfer coefficients up to 1,500 W/(m²·K). This enables compact packaging, precise cell-to-cell thermal balance within 3°C, and lower parasitic energy consumption.
How does an EV thermal management system differ from a stationary BESS cooler?
An EV system must manage severe packaging constraints, dynamic vibration, cabin climate sharing, and extreme fast-charging spikes. Stationary BESS cooling focuses on steady-state multi-hour cycles, using external chillers and modular cold plates optimized for 15-to-20-year lifespans.
What coolant is used in indirect battery cooling plates?
The industry standard fluid is an inhibited 50/50 mixture of deionised water and ethylene glycol (or propylene glycol). This formulation provides freeze protection down to -37°C, contains corrosion inhibitors, and maintains low electrical conductivity.
What causes cell-to-cell temperature variation inside a battery pack?
Variations occur due to asymmetric coolant flow distribution across cold plate channels, boundary layer thermal resistance, proximity to external heat sources, and natural cell manufacturing impedance tolerances that cause uneven Joule heating.
