Battery ESS Engineering Guide: Architecture, PCS & Sizing

Quick answer: A battery ESS (energy storage system) is an integrated electrochemical installation that stores electrical energy in rechargeable battery strings and converts it to synchronous AC power via bidirectional inverters. It provides high-speed active and reactive power dispatch for grid stabilization, peak shaving, and renewable integration within milliseconds.

Industrial operators and grid utilities increasingly rely on these systems to bridge the gap between intermittent renewable generation and rigid transmission dispatch requirements. A complete technical understanding of how a BESS functions requires evaluating the entire electrical train—from electrochemistry and cell-level protection up to medium-voltage (MV) grid interconnect transformers.

What is a Battery ESS and How Does It Function?

A battery ESS functions as an automated bi-directional energy buffer between DC battery racks and the alternating current utility grid. The fundamental operational principle relies on controlled chemical-to-electrical energy transformation during discharge and electrical-to-chemical conversion during charging.

Modern utility-grade installations primarily utilise Lithium Iron Phosphate (LiFePO4 or LFP) chemistry due to its superior thermal stability, elevated cycle life (up to 6,000 cycles at 80% Depth of Discharge), and non-combustible olivine crystal structure. Multiple battery cells connect in series to form high-voltage DC modules, which assemble into vertical racks operating typically between 1,000 V DC and 1,500 V DC. These high operating voltages minimize I²R transmission losses across internal DC busbars before terminating at the bidirectional inverter.

Dynamic power flow control depends entirely on high-speed communications across four distinct control layers:

• Cell Level: Voltage, temperature, and internal impedance monitoring via distributed sensors.
• Rack Level: String-level contactors, high-speed DC pyrofuses, and String Battery Management System (BMS) controllers.
• Power Conversion Level: Bidirectional inverters using Silicon Carbide (SiC) or Insulated Gate Bipolar Transistor (IGBT) switches that execute rapid four-quadrant active (P) and reactive (Q) power adjustments.
• System Supervisory Level: The Energy Management System (EMS) which interfaces with utility Supervisory Control and Data Acquisition (SCADA) via DNP3 or IEC 60870-5-104 protocols.

Core Architecture of Modern ESS Systems

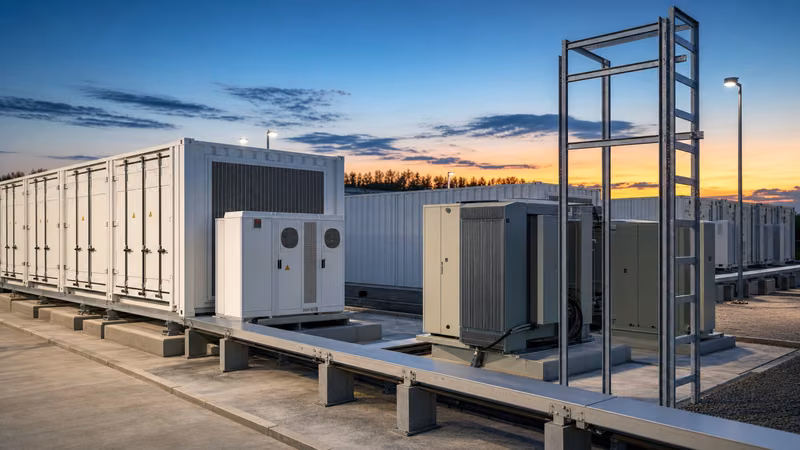

Modern ess systems incorporate electrical, thermal, structural, and communication subsystems engineered inside environmentally sealed containers rated to IP55 or NEMA 3R minimums. Every physical cabinet represents a self-contained generation and storage asset capable of autonomous protection during electrical transients.

The bidirectional Power Conversion System (PCS) serves as the core electronic interface. It rectifies three-phase AC utility voltage into DC bus voltage during off-peak charging and inverts DC string energy back into 400 V to 690 V AC during peak discharge events. For detailed PCS configuration, see our comprehensive power conversion system guide. Upstream, an integrated step-up transformer converts this low voltage to transmission or distribution levels—typically 11 kV, 22 kV, or 33 kV.

Cell longevity and thermal uniformity are preserved through active thermal management. While legacy projects relied heavily on forced-air HVAC, modern installations use closed-loop liquid-cooling systems with a chilled water-glycol mixture circulating directly across thermal cold plates bonded to cell casings. This approach limits cell-to-cell delta-T to less than 3 degrees Celsius, suppressing micro-cycle imbalance and mitigating thermal runaway risks governed by IEC 62619 clause 8.2.

Safety integration follows NFPA 855 standards, including multi-stage gas detection (hydrogen, carbon monoxide, off-gas volatile organics), automated aerosol or Novec 1230 fire suppression, and explosion-relief venting panels positioned away from personnel maintenance corridors.

PV ESS Meaning and Renewable Integration Topologies

The technical term pv ess meaning denotes the unified architectural coupling of photovoltaic solar generation arrays with electrochemical storage assets to eliminate generation intermittency. By pairing solar generation with storage, plants convert nondispatchable daytime production into firm, dispatchable capacity.

When engineering a combined solar and storage plant, system designers must select between DC-coupled and AC-coupled typologies, each presenting distinct transformer, switchgear, and inverter configurations:

AC-coupled topologies dominate utility-scale installations because they decouple generation and storage maintenance regimes. If a PV inverter suffers an isolated failure, the storage PCS continues providing ancillary grid balancing without operational interruption. For deeper insight into synchronising assets with fluctuating distribution grids, review our analysis of grid integration of renewable energy sources.

Power Electronics and Controls in an ESS Energy Storage System

Power electronics in an ess energy storage system dictate how rapidly the asset synchronises with, supports, or isolates from the electrical grid network. Modern four-quadrant bidirectional inverters rely on pulse-width modulation (PWM) switching frequencies between 2 kHz and 8 kHz to synthesise clean sinusoidal current waveforms conforming to IEEE 519 total harmonic distortion (THD) limits under 3%.

Grid-following inverters rely on internal phase-locked loops (PLL) to track the voltage vector angle of the transmission grid. However, as high penetrations of inverter-based resources displace rotating synchronous generators, modern battery ESS installations increasingly specify grid-forming (GFM) control capabilities. GFM algorithms emulate virtual synchronous machines (VSM) by establishing voltage magnitude and internal phase angle autonomously, delivering instantaneous synthetic inertia through droop equations:

P_output = P_nominal - K_p * (f_measured - f_nominal)

Where K_p represents the programmed frequency-power droop gain (typically calibrated between 2% and 5% per IEEE 1547 Table 1). When grid frequency collapses below threshold values, the storage PCS reacts in under 20 milliseconds to inject active power, preventing the tripping of under-frequency load shedding (UFLS) protection schemes.

Hierarchical BMS control manages this power exchange safely. As explored in our BMS battery engineering guide, the rack-level controller calculates dynamic state of charge (SoC), state of health (SoH), and real-time charging/discharging current limits (CCL/DCL). These operational boundaries are streamed via high-speed CANbus or Modbus TCP to the PCS every 10 to 50 milliseconds to prevent lithium dendrite plating under high-rate charging conditions.

Engineering Sizing Calculation for a Battery ESS Installation

Accurately sizing a battery ESS requires calculating usable energy delivery while compensating for internal component losses, operational constraints, and electrochemical degradation over time. Oversizing unnecessarily inflates capital expenditure, whereas undersizing leads to liquidated damages under strict utility power purchase agreements (PPAs).

Consider an engineering design requirement for a commercial microgrid delivering a firm active power output of 2.0 MW for 2.0 hours (4.0 MWh usable capacity) at the point of common coupling (PCC) at end-of-life (Year 10).

Input Parameters:

• Required Net Export Energy (E_net): 4,000 kWh
• Target Daily Cycles: 1.5 cycles per day
• Maximum Depth of Discharge (DoD): 90% (operational range: 5% to 95% SoC)
• PCS Inversion Efficiency (η_pcs): 98.2%
• MV Step-Up Transformer Efficiency (η_tx): 98.8%
• Battery DC-to-DC Coulombic / Round-Trip Efficiency (η_bat): 94.0%
• Internal Auxiliary / Parasitic Losses (Cooling, BMS, Controls) (L_aux): 3.5% of throughput
• Allowable Degradation Retention at End-of-Life (SOH_eol): 75%

Step 1: Calculate Required AC Energy Output at Inverter Terminals
Account for step-up transformer losses between the inverter LV output and the utility MV bus:
E_inverter = E_net / η_tx = 4,000 kWh / 0.988 = 4,048.58 kWh

Step 2: Calculate Required DC Energy Discharged from the Battery Racks
Account for inverter inversion efficiency and auxiliary operational losses:
E_dc_discharge = E_inverter / (η_pcs * (1 - L_aux))
E_dc_discharge = 4,048.58 / (0.982 * 0.965) = 4,048.58 / 0.9476 = 4,272.46 kWh

Step 3: Calculate Nameplate Nominal DC Battery Capacity (End-of-Life)
Account for restricted depth of discharge to avoid cell accelerated ageing:
E_dc_nominal_eol = E_dc_discharge / DoD = 4,272.46 kWh / 0.90 = 4,747.18 kWh

Step 4: Calculate Installed Nameplate DC Capacity at Day One (Beginning-of-Life)
Compensate for calendar and cycle fade across the 10-year design lifespan:
E_nameplate_bol = E_dc_nominal_eol / SOH_eol = 4,747.18 kWh / 0.75 = 6,329.57 kWh (~6.33 MWh)

The engineering specification must therefore contract a gross installed DC capacity of not less than 6.33 MWh to guarantee a reliable 4.0 MWh dispatch at Year 10. The system inverter and MV step-up transformer must be rated for at least 2.25 MVA to handle auxiliary parasitics, power factor correction down to 0.90 leading/lagging, and ambient thermal derating at 45 degrees Celsius.

Factory Acceptance Testing and Commissioning Checklist for ESS Systems

Commissioning an industrial energy storage project demands systematic verification of safety circuits, communications, and power electronics performance before utility energisation. EPC contractors and plant engineers should execute the following sequentially verified checklist during Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) per IEC 62933-5-2:

1. Insulation and High-Potential Testing: Perform DC insulation resistance measurements (Megger) on DC busbars at 2,500 V DC, verifying minimum insulation resistance greater than 100 Megaohms to ground before closing rack contactors.
2. BMS Telemetry & Safety Trip Validation: Simulate individual cell overvoltage (3.65 V DC), undervoltage (2.50 V DC), and high-temperature (55 degrees Celsius) limits to confirm that hardwired interlocks open main rack breakers within 50 milliseconds.
3. Auxiliary Emergency Systems Interlocking: Validate that fire detection systems (NFPA 72) trigger rapid HVAC shutoff, activate chemical fire extinguishing dampers, and trip MV circuit breakers via the container master shunt trip.
4. PCS Cold and Hot Phasing Checks: Confirm matching phase rotation between PCS output terminals, the LV side of the transformer, and the medium-voltage switchgear bus before primary synchronization.
5. Dynamic Four-Quadrant Inverter Dispatch: Command full-power reactive steps (-100% to +100% kVAR) to verify internal control loop stability and harmonic current rejection per IEC 61000-4-30 Class A.
6. Loss of Mains (Anti-Islanding) Field Verification: Disconnect the incoming utility MV feeder under balanced load conditions (zero power import/export) to ensure passive and active anti-islanding mechanisms trip the PCS within 2.0 seconds per IEEE 1547 clause 8.1.
