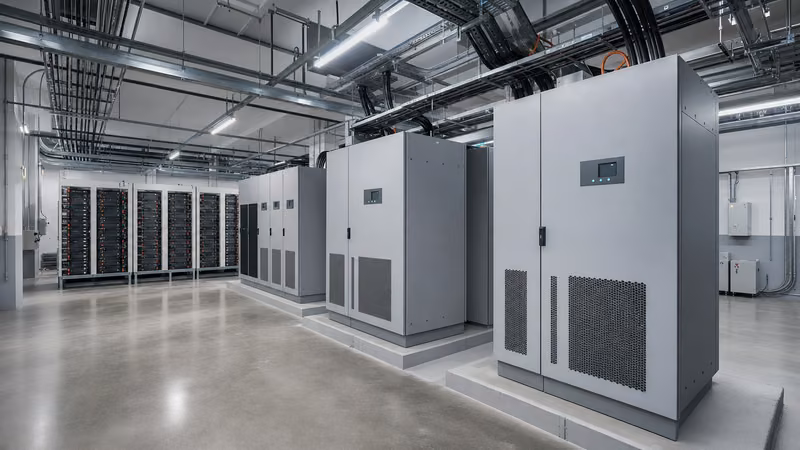

Battery Backup Power Supply: Industrial & Commercial Guide

Quick answer: A battery backup power supply safeguards critical electrical loads against outages, sags, and frequency instability by instantly supplying stored electrochemical energy through an inverter. For industrial operations, data centers, and commercial infrastructure, these systems deliver true uninterrupted continuity, isolating sensitive equipment from grid disturbances via double-conversion topology.

Modern power distribution networks face increasing stress from distributed generation, switching transients, and grid instability. For mission-critical facilities, an unconditioned loss of power of even 20 milliseconds can disrupt automated production lines, corrupt industrial control systems, and halt supervisory data acquisition networks. Deploying a purpose-built battery backup power supply provides continuous power conditioning and bridges the operational window until standby diesel generators synchronize or utility feeds recover.

Facility managers and electrical engineers must select backup architectures that match their exact load profiles. While an office workstation might require a small ups power supply or standard computer ups power device, enterprise operations demand centralized, three-phase industrial battery bank systems capable of sustaining heavy inductive, capacitive, and dynamic loads across entire facility distribution switchboards.

Topologies of Uninterruptible Power Supply Solutions

Uninterruptible power supply solutions are categorized under IEC 62040-3 into three distinct architectures: passive standby (offline), line-interactive, and online double conversion.

Passive standby units represent the simplest architecture. Under normal conditions, utility power passes directly to the load while a basic charger keeps the internal accumulator float-charged. When mains power fails or deviates beyond set voltage limits, an internal transfer switch engages the inverter. This transfer requires 4 to 12 milliseconds, making it suitable as a low-cost ups machine for computer setups or basic peripheral devices, but unacceptable for process instrumentation.

Line-interactive topology introduces an automatic voltage regulator (AVR) autotransformer that adjusts for under-voltage and over-voltage scenarios without discharging the battery. This design serves well as a small business power supply for point-of-sale terminals and network closets. Transfer time typically ranges between 2 and 6 milliseconds.

For critical infrastructure, the online double-conversion uninterruptible power supply ups device is the industrial benchmark. It continuously rectifies incoming alternating current (AC) into direct current (DC) to power the DC bus and charge the energy reserve, while a solid-state inverter continuously regenerates clean, regulated AC sine-wave power for the load. The transfer time between utility operation and battery discharge is zero milliseconds (0 ms), fully adhering to IEC 62040-3 VFI standards for complete power isolation and harmonic filtration.

Sizing a Battery Backup Power Supply: Worked Engineering Calculation

Accurate sizing of a battery backup power supply prevents premature inverter shutdown and ensures operational autonomy during emergency power events.

To illustrate the design process, consider a critical sub-distribution panel requiring an autonomy time of 30 minutes (0.5 hours). The load profile consists of building control automation, emergency lighting, and server hardware with an aggregate active demand of 72 kW and an apparent demand of 80 kVA (power factor 0.90).

To calculate the required battery bank capacity, an engineer must apply three essential correction factors: inverter conversion efficiency (η_inv), depth of discharge limit (DOD), and a battery ageing factor per IEEE 485 guidelines (typically 1.25 to account for an 80% end-of-life replacement threshold):

1. Determine Required DC Input Power: Assuming a high-efficiency IGBT double-conversion inverter with η_inv = 0.94:
   P_dc = P_ac / η_inv = 72 kW / 0.94 = 76.60 kW
2. Calculate Raw Energy Requirement: For 0.5 hours of autonomy:
   E_raw = P_dc × Runtime = 76.60 kW × 0.5 h = 38.30 kWh
3. Apply Battery Derating and Aging Allowances: Designing for a maximum Depth of Discharge of 85% (0.85) and an IEEE 485 ageing margin of 80% (0.80 usable at end-of-life):
   E_nominal = E_raw / (DOD × Ageing Factor) = 38.30 kWh / (0.85 × 0.80) = 56.32 kWh
4. Calculate Ampere-Hour (Ah) Rating for System DC Bus: For a system configured with a 384 V DC bus (comprising 120 series-connected 3.2 V lithium iron phosphate cells or 32 valve-regulated lead-acid blocks):
   C_Ah = (E_nominal × 1000) / V_dc = 56,320 Wh / 384 V = 146.67 Ah

In practice, the specifying engineer will select the next standard commercially available capacity: a 150 Ah or 160 Ah battery string. Understanding the efficiency curves of the connected power conversion system ensures the battery operates within safe discharge current thresholds (C-rates) without causing thermal runaway or excessive voltage drop.

Uninterruptible Power Supply with External Battery vs Integrated Racks

Selecting between integrated battery enclosures and an uninterruptible power supply with external battery modules depends on required runtime, floor loading limits, and battery chemistry.

Integrated systems house both the power electronics modules and internal battery backup units within a standard 19-inch equipment rack or standalone cabinet. These setups are engineered for short-duration hold-up applications (5 to 15 minutes), allowing graceful shutdown of IT infrastructure or bridging the starting sequence of an auxiliary diesel generator. However, high power density creates concentrated heat, accelerating cell degradation if environmental climate control fails.

Conversely, industrial and utility-scale installations deploy a large ups power supply connected to external battery racks or dedicated battery rooms. External configurations allow operators to scale runtime to hours rather than minutes, accommodating long-duration facility continuity. This separation also enables distinct ambient temperature controls: power electronics can operate reliably at 25°C to 30°C, whereas Valve-Regulated Lead-Acid (VRLA) batteries require 20°C to prevent capacity degradation (every 10°C rise above 20°C halves VRLA service life per Arrhenius' rule).

For facilities seeking a long lasting ups energy storage installation, lithium iron phosphate (LFP) chemistry has superseded lead-acid. LFP cells deliver 4,000 to 6,000 cycles at 80% DOD, tolerate higher ambient temperatures up to 35°C without severe degradation, and reduce the structural floor loading footprint by up to 60% compared to equivalent lead-acid installations.

Integrating a UPS for Electrical Panel and Facility Sub-Distribution

Integrating a centralized ups for electrical panel infrastructure requires rigorous coordination with upstream medium-voltage/low-voltage transformers and downstream distribution circuit breakers.

In industrial plants, critical distribution boards (CDBs) power essential process drives, PLC control panels, solenoid valves, and dedicated power backup for ac chilling loops. When supplying these mixed loads, the system must withstand inrush currents without transferring to bypass or dropping load voltage below the CBEMA/ITIC curve thresholds.

Engineers must integrate a maintenance bypass cabinet (MBC) with make-before-break rotary switches or interlocked breakers. This switchgear assembly isolates the inverter and rectifier modules for maintenance or replacement while feeding the panel loads through an alternate utility bypass line. When supplying sensitive IT equipment, incorporating high-reliability transformers for data centers provides galvanic isolation, attenuates common-mode electrical noise, and establishes a stable local neutral-to-ground bond on the secondary side.

Furthermore, downstream short-circuit coordination must be assessed. The battery inverter possesses a lower short-circuit capability (typically 1.5 to 2.0 times rated current for 200 milliseconds) compared to a distribution transformer (which can supply 10 to 20 times rated current). If a downstream fault occurs, the backup supply must rapidly transfer to static bypass to utilize the utility grid's fault energy to trip the downstream protective breaker selectively, without causing facility-wide voltage collapse.

Specification and Selection Matrix for Facility Backup Systems

Selecting the appropriate emergency backup system requires comparing electrical topologies, storage chemistries, and environmental ratings against the intended operational environment.

The following engineering decision matrix compares common backup power configurations used across commercial and industrial installations:

When selecting systems for larger industrial networks, consulting guides on emergency energy storage solutions ensures that auxiliary power requirements, fire suppression compliance (NFPA 855), and seismic restraint criteria are met.

Factory Acceptance Testing and Commissioning Procedures

Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) verify that the battery backup system satisfies performance standards prior to energization.

Commissioning engineers should carry out the following step-by-step testing sequence under IEC 62040-3 and IEEE 1188 protocols:

1. Static and Dynamic Load Step Testing: Apply resistive-reactive load banks at 0%, 25%, 50%, 75%, and 100% of nominal rating. Record output voltage transient response; deviations must recover within ±1% of nominal voltage within 20 milliseconds.
2. Utility Interruption and Transfer Simulation: Simulate an abrupt total loss of incoming AC utility at 100% load. Verify seamless zero-millisecond inverter transfer to battery discharge using a high-speed digital storage oscilloscope.
3. Static Bypass Operation: Trigger simulated inverter overload conditions (125% and 150%) to verify that static semiconductor bypass transfers without phase desynchronization or downstream waveform notch disruption.
4. Full Autonomy Discharge Verification: Discharge the battery string under 100% design load down to final cut-off voltage. Monitor cell-level voltages, terminal temperatures via infrared thermography, and verify total run time against sizing calculations.
5. Harmonic Distortion and Power Factor Verification: Measure Total Harmonic Distortion for Voltage (THDv < 2% on linear loads) and Current (THDi < 3% at full rated capacity) using a calibrated power quality analyzer.
