Key takeaways
- A 3 phase 4 wire system delivers both line-to-line voltage for heavy loads and line-to-neutral voltage for single-phase circuits via a star-connected secondary winding.
- The neutral conductor carries the vector sum of unbalanced phase currents and must be sized for triplen harmonics in non-linear commercial installations per IEC 60364-5-52.
- Dyn11 is the predominant vector group for distribution transformers feeding 4 wire three phase low-voltage networks, providing neutral stability and isolating third harmonics.
- Under balanced resistive loads, neutral current is zero, but high zero-sequence harmonic currents can cause neutral currents to exceed phase currents by up to 173%.
- Testing phase rotation, neutral-to-earth voltage, and secondary neutral grounding continuity is mandatory prior to energising any three phase 4 wire system.
Quick answer: A 3 phase 4 wire system is a low-voltage electrical distribution configuration consisting of three line conductors and one common neutral conductor derived from a grounded wye (star) transformer secondary winding. It delivers two distinct operating voltages simultaneously: line-to-line voltage for three-phase industrial equipment and line-to-neutral voltage for single-phase branch circuits.

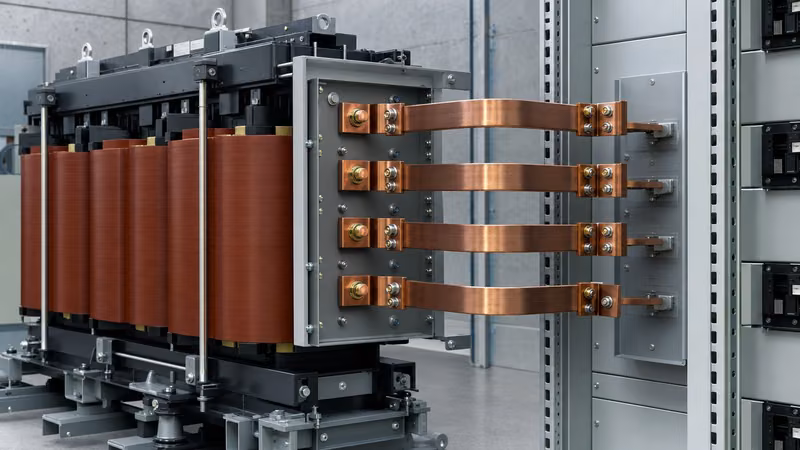

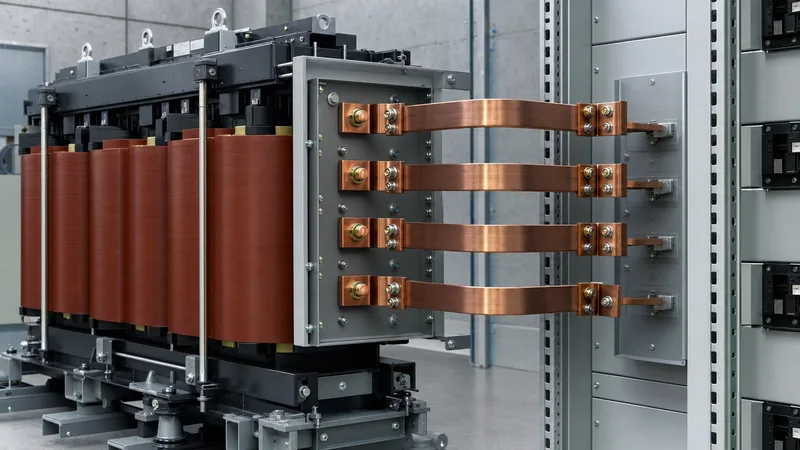

In modern electrical power distribution, the 3 phase 4 wire system forms the backbone of commercial, institutional, and industrial secondary networks. By deriving a neutral conductor from the centre star point (X0) of a distribution transformer secondary winding, network designers eliminate the need for dedicated single-phase step-down transformers across mixed-load facilities. Understanding the vector relationships, neutral loading dynamics, and grounding topologies of this configuration is essential for sizing conductors, switchgear, and transformers correctly.
What is a 3 Phase 4 Wire System and How Does It Operate?
A 3 phase 4 wire system operates by tapping the three outer terminals of a star-connected (Y) secondary transformer winding alongside the common star point, which acts as the neutral return. This arrangement establishes two symmetrical voltage tiers separated by a square root of three (1.732) mathematical ratio, governed by the phase displacement of 120 electrical degrees between individual line conductors.
In an international 400V/230V network operating at 50 Hz, the line-to-line voltage ($V_{LL}$) measured across any two phase conductors (L1, L2, or L3) is 400 V, whereas the line-to-neutral voltage ($V_{LN}$) measured from any single phase to the neutral conductor (N) is 230 V ($400 / \sqrt{3} = 230.94\text{ V}$). In North American commercial installations, common configurations include 208Y/120 V and 480Y/277 V systems. Industrial facilities requiring 120 V receptacle power alongside three-phase mechanical loads frequently rely on 208V 3 phase power, while larger production plants deploy 480V 3 phase power to drive high-capacity motors at 480 V while running fluorescent or LED luminaire racks directly at 277 V line-to-neutral.
When loads across all three phases are perfectly balanced, the return currents cancel out entirely at the star point due to vector summation: $\vec{I}_N = \vec{I}_{L1} + \vec{I}_{L2} + \vec{I}_{L3} = 0$. However, when single-phase loads create an unbalance, the neutral conductor conducts the net residual current back to the transformer star point, maintaining stable phase-to-neutral voltages across all three individual phases.
Star Connection vs Delta: Why the 4 Wire Three Phase Setup Dominates
The primary reason a 4 wire three phase configuration dominates low-voltage distribution over a three-wire delta network is its ability to support unbalanced single-phase loads without phase voltage shifting. In a three-wire delta system, connecting a single-phase load between two phases causes the phase voltages to float relative to earth unless specialised high-leg grounding is implemented, as explored in our guide to 3 phase high leg systems.
Distribution transformers supplying low-voltage grids typically feature a delta primary winding and a star secondary winding (such as Dyn11 or Dyn1 per IEC 60076-1). The delta primary traps third-harmonic currents circulating within its closed loop, preventing them from propagating upstream into the medium-voltage grid, while the star secondary establishes a stable neutral point for the low-voltage network.
| Design Parameter | 3-Phase 3-Wire (Delta Secondary) | 3-Phase 4-Wire (Wye Secondary) | High-Leg Delta 4-Wire |
|---|---|---|---|
| Conductors Provided | 3 Phases (No Neutral) | 3 Phases + 1 Neutral | 3 Phases + 1 Centre-Tapped Neutral |
| Available Voltages | Single $V_{LL}$ only (e.g., 400 V or 480 V) | Dual: $V_{LL}$ and $V_{LN}$ (e.g., 400/230 V) | Three: $V_{LL}$, $V_{LN}$, and $V_{High-Leg}$ |
| Neutral Load Handling | None (Cannot serve $V_{LN}$ loads) | Full rated capacity for unbalance | Limited to centre-tapped phase capacity |
| Zero-Sequence Fault Path | Requires grounding transformer | Inherent path via grounded star point | Asymmetric path via centre tap |
| Standard IEC Vector Group | Dd0, Dd6 | Dyn11, YNyn0 | Non-standard / Split-winding |
| Typical Applications | Heavy motors, delta furnaces, MV grids | Commercial buildings, factories, mixed LV | Small rural workshops with legacy delta |
Neutral Current and Conductor Sizing in a Three Phase 4 Wire System
Neutral conductor sizing in a three phase 4 wire system requires evaluating both fundamental load unbalance and zero-sequence harmonic currents. Under fundamental linear conditions with unity power factor, the neutral current ($I_N$) is calculated using the following formula derived from vector geometry:
$$I_N = \sqrt{I_A^2 + I_B^2 + I_C^2 - (I_A I_B + I_B I_C + I_C I_A)}$$
Consider a practical building feeder where the measured phase currents are $I_A = 220\text{ A}$, $I_B = 185\text{ A}$, and $I_C = 140\text{ A}$ at $0.95$ lagging power factor. Substituting these values into the fundamental unbalance equation yields:
$$I_N = \sqrt{220^2 + 185^2 + 140^2 - (220 \times 185 + 185 \times 140 + 140 \times 220)}$$
$$I_N = \sqrt{48400 + 34225 + 19600 - (40700 + 25900 + 30800)} = \sqrt{102225 - 97400} = \sqrt{4825} \approx 69.46\text{ A}$$
While $69.46\text{ A}$ represents the unbalance current, non-linear loads such as variable frequency drives, LED drivers, and server power supplies introduce triplen harmonics (3rd, 9th, 15th orders). Unlike the fundamental currents that cancel at 120-degree displacement, triplen harmonics are in-phase zero-sequence components. They do not cancel; instead, they add arithmetically in the neutral conductor ($I_{N(3rd)} = 3 \times I_{phase(3rd)}$). In facilities with high harmonic distortion, such as those evaluated in our engineering review of transformers for data centers, the neutral current can reach 140% to 173% of the line current.
Under IEC 60364-5-52 clause 524.2, when third-harmonic content exceeds 33% of the phase current, the neutral conductor must not be reduced in cross-section relative to the line conductors. In extreme harmonic environments, engineers must specify an oversized 200% neutral busbar and cable run to prevent thermal failure.
Earthing and Grounding Schemes for a 3 Phase Four Wire System
Earthing arrangements for a 3 phase four wire system dictate how fault currents return to the transformer star point, directly defining touch voltages and protective device tripping speeds. Standardized under IEC 60364-3 and IEEE Std 142 (Green Book), low-voltage networks fall into three primary grounding architectures:
In a TN-S system, separate neutral (N) and protective earth (PE) conductors run throughout the entire installation from the transformer star point to the final circuit. The transformer secondary neutral bushing (X0) is bonded to the main earthing terminal (MET) at the substation, providing an isolated path for earth faults that prevents residual neutral load currents from flowing through equipment enclosures.
In a TN-C-S system (often referred to as protective multiple earthing or PME), the neutral and protective earth functions are combined in a single PEN conductor from the transformer secondary to the main facility switchboard, where they split permanently into distinct N and PE conductors. While cost-effective in external distribution, a break in the upstream PEN conductor creates a severe hazard, as line-to-neutral load currents elevate exposed metal enclosures to phase voltage.
In a TT system, the transformer neutral is directly earthed at the substation, but consumer equipment frames are connected to an independent local earth electrode. Because earth-fault loop impedance in a TT network is high, standard overcurrent protective devices (MCBs or MCCBs) cannot clear ground faults rapidly, mandating the use of residual current devices (RCDs) on all incoming supplies.
Step-by-Step Testing and Commissioning for a 3 Phase 4 Wire System
Commissioning a 3 phase 4 wire distribution installation requires strict sequential verification to avoid catastrophic phase-to-neutral overvoltages caused by an open or floating neutral conductor. The following commissioning procedure must be completed prior to energising commercial loads:
- De-energised continuity and insulation testing: Isolate the incoming transformer secondary breaker. Perform an insulation resistance test at 1000 V DC between phase-to-phase conductors, phase-to-neutral, and phase-to-earth per IEC 60364-6, confirming a minimum resistance of $1.0\text{ M}\Omega$ (typical healthy readings exceed $50\text{ M}\Omega$).
- Verify star-point bonding: Inspect the neutral-to-earth bonding strap at the transformer X0 terminal or main low-voltage switchgear board, ensuring compliance with IEC 61439 low-voltage switchgear assembly standards. Measure earth electrode resistance using a 3-point fall-of-potential tester, verifying values below $10\text{ }\Omega$ ($1\text{ }\Omega$ for mission-critical substations).
- No-load voltage verification: Energise the distribution transformer secondary under zero load. Measure line-to-line voltages (e.g., phase 1 to phase 2, phase 2 to phase 3, and phase 3 to phase 1 should read within $\pm 2\%$ of nominal 400 V) and line-to-neutral voltages (phase 1 to neutral, phase 2 to neutral, and phase 3 to neutral should read within $\pm 2\%$ of 230 V). A high line-to-neutral reading indicates a missing or high-resistance neutral bond.
- Phase rotation check: Connect an analogue or digital phase sequence meter across L1, L2, and L3. Confirm standard clockwise phase rotation (such as R-Y-B or sequential phase order) to prevent three-phase induction motors from running in reverse rotation upon startup.
- Neutral-to-earth floating voltage check: Measure AC voltage between the neutral busbar and the protective earth bar at the furthest sub-distribution board under partial single-phase load. The reading must not exceed 2 to 3 V AC; excessive voltage indicates undersized neutral conductors, high harmonic distortion, or loose terminal terminations.
Transformer Specification Checklist for 4 Wire Three Phase Networks
Specifying a distribution transformer for a 4 wire three phase network requires engineering parameters that account for neutral load unbalance, zero-sequence flux, and harmonic heating. Engineers preparing technical specifications for procurement should incorporate the criteria listed below:
- Vector Group Configuration: Specify Dyn11 (Delta primary, Wye secondary with neutral brought out, 30-degree secondary phase lag). Dyn11 suppresses primary-side triplen harmonic transmission, provides low zero-sequence impedance ($Z_0$), and accommodates 100% continuous neutral unbalance without distorting line voltages.
- Secondary Neutral Bushing Rating: Mandate an external X0 bushing on the transformer cover or tank wall with a continuous current rating equal to 100% of the phase current rating ($I_{n}$). For data centre or industrial rectifier loads, specify a 200% rated neutral bushing.
- Harmonic K-Factor Rating: Where non-linear single-phase electronic loads account for more than 40% of the aggregate demand, specify a K-factor transformer (minimum K-4 or K-13) in accordance with IEEE C57.110 to withstand eddy-current losses in windings caused by triplen neutral return currents.
- Zero-Sequence Impedance ($Z_0/Z_1$): Ensure the manufacturer provides verified zero-sequence impedance data. A low $Z_0$ (typically $0.85$ to $1.0$ times positive-sequence impedance $Z_1$ for core-type Dyn11 units) is required to ensure sufficient phase-to-neutral ground fault current to trip magnetic circuit breaker elements instantaneously.
- Neutral CT Provision: Require an internal or bushing-mounted neutral current transformer (CT) for restricted earth fault (REF) protection (ANSI 87N / IEC 60255), protecting the secondary star winding against internal ground faults.
Next steps: specifying and sourcing
When preparing an inquiry or tender for transformers feeding a low-voltage 3 phase 4 wire distribution network, send your complete electrical parameters to our engineering team. Essential details include primary medium voltage, required secondary voltage (e.g., 400/230 V or 480/277 V), secondary vector group (Dyn11 standard), kVA capacity, non-linear load percentage, and site ambient conditions. Explore our heavy-duty oil-immersed transformers for outdoor substation pads or our cast-resin dry-type transformers for indoor switchgear rooms. Submit your single-line diagram and load schedule directly through our transformer quotation page for factory-backed engineering sizing and pricing.
Frequently asked questions
What is the difference between a 3 phase 3 wire and a 3 phase 4 wire system?
A 3 phase 3 wire system supplies three line conductors without a neutral, supporting only line-to-line voltages for balanced three-phase loads like motors. A 3 phase 4 wire system adds a neutral conductor from a star-connected transformer, allowing the simultaneous supply of line-to-line loads and single-phase line-to-neutral loads.
Can the neutral wire carry more current than the phase wires in a 3 phase 4 wire system?
Yes, non-linear single-phase loads such as switch-mode power supplies produce third and ninth triplen harmonic currents that do not cancel at the star point. These zero-sequence currents add arithmetically in the neutral conductor, potentially driving neutral current up to 173% of the nominal phase current.
What happens if the neutral wire breaks in a 3 phase 4 wire system?
A broken or open neutral conductor creates a floating star point, causing single-phase voltages to shift unpredictably based on the load resistance on each phase. Lightly loaded phases experience severe overvoltages that destroy appliances, while heavily loaded phases suffer brownouts.
Why is the vector group Dyn11 preferred for 4 wire three phase systems?
Dyn11 provides a delta primary that confines circulating third-harmonic currents and an earthed star secondary that stabilizes phase-to-neutral voltages. It exhibits low zero-sequence impedance, allowing high ground-fault currents that enable protective circuit breakers to trip rapidly.
How do you calculate neutral current in an unbalanced 3 phase 4 wire system?
For linear loads, neutral current is the vector sum of the three phase currents: IN = √(IA² + IB² + IC² - IA·IB - IB·IC - IC·IA). When harmonic distortion is present, total neutral current must be calculated as the square root of the sum of fundamental unbalance squared plus all triplen harmonic currents squared.
