20kWh Battery Systems: Engineering Sizing and Specs Guide

Quick answer: A 20kwh battery is an energy storage assembly engineered to deliver 20 kilowatt-hours of total electrical energy, providing steady power for commercial peak lopping, light industrial backup, and extended residential microgrids. Paired with appropriate power conversion equipment, it sustains a continuous 5 kW electrical load for over 3.3 hours or a 2 kW baseline load for approximately 8.5 hours at standard operational depth of discharge.

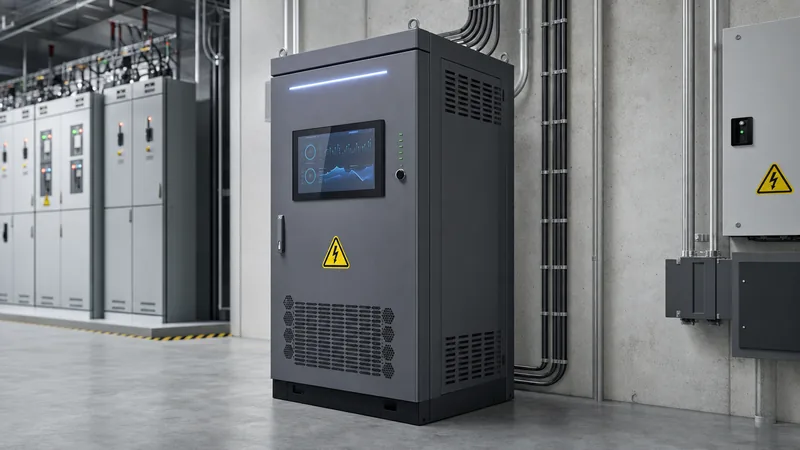

Stationary energy storage deployments frequently require compact, modular energy blocks capable of bridging utility outages, storing local solar generation, or arbitrating time-of-use tariffs. In modern electrical distribution infrastructure, a 20kWh battery serves as a versatile building block. Selecting and deploying an energy storage system of this capacity demands a clear engineering understanding of nominal versus usable capacity, discharge rates (C-ratings), thermal dissipation limits, and power electronics coordination. Specifying engineers must evaluate cell chemistry, system bus voltages, fault current contributions, and safety compliance under IEC and UL standards to achieve reliable, long-term operation.

20kWh Battery vs 20kW Battery: Distinguishing Energy and Power

A 20kWh battery defines stored electrical energy capacity, whereas a 20kw battery configuration refers to the continuous rate of power conversion. Confusing kilowatt-hours (kWh) with kilowatts (kW) remains one of the most common pitfalls in energy storage specifications. Energy (kWh) represents the total volume of work the system can perform over time, while power (kW) designates the instantaneous rate at which that energy can be charged or discharged through the connected power conversion system.

The operational link between energy and power is governed by the discharge rate, or C-rate. A 20kWh battery pack rated at 1C can technically deliver 20 kW of continuous power for one hour, assuming thermal management systems and battery management system (BMS) contactors are sized for high continuous current. Conversely, the identical pack rated at 0.5C will supply a maximum continuous discharge of 10 kW across two hours. For applications such as microgrid frequency stabilisation or heavy motor starts, engineers often specify high-discharge architectures as detailed in our guide to power conversion system design. In contrast, energy shifting and tariff arbitrage applications typically favour lower C-rates (0.2C to 0.5C) to maximise cell cycle life and preserve electrochemical efficiency.

Architecture and Chemistries of the 20kWh Battery Pack

A modern 20kwh battery pack relies almost universally on Lithium Iron Phosphate (LiFePO4 or LFP) prismatic cells due to their thermal stability, chemical safety, and extended cycle life under deep cyclic operation. While nickel manganese cobalt (NMC) cells offer higher volumetric energy density, LFP dominates stationary installations because of its lower risk of thermal runaway and longer calendar aging characteristics, as examined in our analysis of LFP vs NMC battery chemistry.

Internally, a 20kWh battery is constructed using either low-voltage (LV) or high-voltage (HV) topologies:

• Low-Voltage Architecture (48V / 51.2V nominal): Comprises 16 LFP cells in series (16S) using 100Ah to 400Ah cells, or multiple parallel modules (e.g., four 51.2V 100Ah packs connected to common DC busbars). While LV systems operate below dangerous touch voltage thresholds, they incur significant I²R resistive losses and require large-cross-section DC conductors when delivering high kW loads (e.g., 200 A for a 10 kW discharge).
• High-Voltage Architecture (200V to 400V+ nominal): Arranges multiple modules in series (e.g., 60S to 125S). By multiplying voltage, continuous current decreases proportionally for the same kW output. A 400V 50Ah string yields 20 kWh, requiring only 25 A to deliver 10 kW. This reduction improves round-trip efficiency, slashes copper conductor sizing, and integrates directly into commercial three-phase hybrid inverters without bulky DC-DC boost stages.

The table below compares standard technical specifications across both 20kWh architectures.

Engineering Sizing Calculation: Usable Energy and Autonomy

Calculating the true runtime of a 20kwh battery requires derating nominal capacity by depth of discharge, power conversion efficiency, temperature factors, and end-of-life capacity margins. Relying solely on the faceplate rating inevitably leads to premature system shutdown during critical power continuity events.

To illustrate, consider a light commercial facility requiring critical backup for an average continuous load of 4.5 kW with a required autonomy window. The mathematical determination of net delivered runtime proceeds as follows:

1. Nominal Stored Energy (E_nom): 20.0 kWh
2. Permissible Depth of Discharge (DoD): 90% (0.90) to ensure a minimum 6,000-cycle operational life per IEC 62619 clause 7.3.
3. Inverter/PCS Conversion Efficiency (η_inv): 94% (0.94) across the dynamic load profile.
4. DC Cable and Interconnect Resistive Losses (η_dc): 98% (0.98).
5. Battery Degradation Factor at Year 5 (SOH): 90% (0.90).

The net usable energy (E_usable) available at Year 5 is calculated as:

E_usable = E_nom × DoD × η_inv × η_dc × SOH

E_usable = 20.0 kWh × 0.90 × 0.94 × 0.98 × 0.90 = 14.92 kWh

With a continuous critical load (P_load) of 4.5 kW, the available backup autonomy time (T_runtime) is:

T_runtime = E_usable / P_load = 14.92 kWh / 4.5 kW = 3.31 hours (3 hours, 19 minutes)

If the load includes inductive components, such as HVAC compressors or water pumps, engineers must verify that the surge rating of the inverter and the peak discharge capability of the 20kwh battery pack can handle the starting inrush kVA without triggering DC bus under-voltage protection, as outlined in our lithium battery backup sizing guide.

Inverter Coupling and Grid-Tied Integration

Integrating a 20kwh battery into an industrial or commercial electrical distribution network is executed through either DC-coupled or AC-coupled topologies. The choice of topology directly impacts installation cost, switchboard arrangement, and round-trip efficiency during utility interaction.

In a DC-coupled configuration, solar photovoltaic arrays connect to the battery via maximum power point tracking (MPPT) charge controllers on a common DC bus. This design minimises inverter losses because excess solar energy charges the 20kWh battery directly without transitioning through intermediate AC stages. It is highly advantageous for greenfield solar-plus-storage projects where new infrastructure is deployed simultaneously.

In an AC-coupled arrangement, the 20kwh battery interfaces with a dedicated battery inverter/charger connected directly to the facility's low-voltage switchboard. AC coupling provides superior flexibility for retrofitting existing commercial solar systems or integrating storage alongside modular HV and LV switchgear. It also simplifies isolation during scheduled maintenance, as the battery storage subsystem can be decommissioned or serviced without interrupting the existing rooftop solar or distribution transformer feed.

Safety Standards, Thermal Management, and Siting Requirements

Safe deployment of a 20kWh battery requires strict compliance with international thermal management and fire mitigation codes. Although modern LFP cells exhibit high decomposition temperatures (approx. 270°C compared to 150°C for standard NMC chemistries), abnormal conditions such as mechanical puncturing, internal short circuits, or prolonged overcharging can still precipitate off-gassing and thermal runaway.

Key safety codes governing 20kWh installations include:

• IEC 62619: Specifies mandatory tests for industrial lithium secondary cells and batteries, verifying functional safety under electrical misuse, short circuits, drop tests, and thermal abuse.
• UL 9540 and UL 9540A: Standard for Energy Storage Systems and Equipment, requiring large-scale fire testing to assess flammability characteristics, toxic gas emissions, and the potential for cell-to-cell thermal propagation.
• NFPA 855: Standard for the Installation of Stationary Energy Storage Systems. For systems exceeding 20 kWh aggregate capacity, NFPA 855 prescribes clear physical separation distances (typically 0.9 metres between separate units and perimeter walls) unless tested and certified to show non-propagation under UL 9540A.

Thermal regulation is equally paramount. At a continuous discharge rate of 0.5C (10 kW), a 20kWh battery pack operating at 95% electrochemical efficiency generates roughly 500 Watts of thermal energy. While forced-air cooling suffices for climate-controlled indoor equipment rooms maintained between 15°C and 25°C, outdoor enclosures subject to severe ambient solar irradiance require integrated HVAC or precision liquid cooling plates. Liquid cooling ensures uniform cell-to-cell temperature deltas (below 3°C), preventing localized degradation and extending system longevity, an approach commonly utilized in modern liquid-cooled energy storage cabinets.

Factory Acceptance Testing and RFQ Specification Checklist

A comprehensive specification checklist ensures that procurement teams receive equipment meeting all mechanical, operational, and electrical performance benchmarks. Factory acceptance testing (FAT) protocols must confirm battery management parameters, internal impedance, insulation resistance, and communication protocols prior to site shipment.

Engineers should insert the following checklist directly into tender documents and RFQ requests:

1. Cell and Pack Certification: Require verified test reports confirming compliance with IEC 62619, UN 38.3 (transport safety), and UL 1973 for stationary storage modules.
2. Insulation Resistance and Dielectric Withstand: Measure insulation resistance between active DC terminals and the grounded chassis at 1000 VDC; minimum threshold must exceed 100 MΩ. Perform dielectric withstand testing in accordance with IEC 62477-1.
3. BMS Telemetry and Integration: Validate native communication protocols (Modbus TCP, RS485, or CAN 2.0B). The BMS must report individual cell voltages, maximum/minimum cell temperatures, state of charge (SOC), state of health (SOH), and fault codes to plant SCADA systems.
4. Capacity Verification Test: Conduct a full 0.5C charge and discharge cycle at factory ambient (25°C ± 2°C) to verify that the delivered kWh matches or exceeds 100% of nominal 20 kWh rating.
5. Overcurrent and Short-Circuit Protection: Verify coordination between onboard fast-acting DC fuses, DC contactors, and the external breaker tripping curves under prospective short-circuit fault currents.

Next steps: specifying and sourcing

Deploying a high-reliability 20kWh battery requires defining precise duty cycles, ambient site conditions, fault-level clearances, and inverter compatibility. When preparing your project enquiry, provide your target operating voltage, continuous and peak discharge kW requirements, enclosure rating (IP20 for indoor cleanrooms vs IP55 for outdoor installations), and desired communication protocols. To explore industrial-grade utility options and containerised configurations, review our complete line of energy storage systems. For tailored technical engineering support, multi-unit volume pricing, or custom sub-distribution integration, submit your single-line diagrams directly via our quote request page or reach out through our contact page.
