Key takeaways
- A 120V to 240V converter steps single-phase utility voltage up by a 1:2 turns ratio to power 240V equipment from standard 120V circuits.
- Autotransformer topologies provide up to 50 percent size and cost reductions for non-isolated loads, whereas galvanic isolation transformers eliminate direct neutral-to-ground fault paths.
- Continuous electrical loads running over three hours require a minimum 125 percent nameplate sizing factor per National Electrical Code (NEC) Article 215.
- Inductive motor loads demand an initial inrush allowance of three to five times full-load running amperes (FLA) to prevent converter core saturation and circuit breaker tripping.
- Proper grounding demands that derived 240V secondary neutrals or chassis terminals meet bonding specifications under IEEE C57.12 and local wiring regulations.

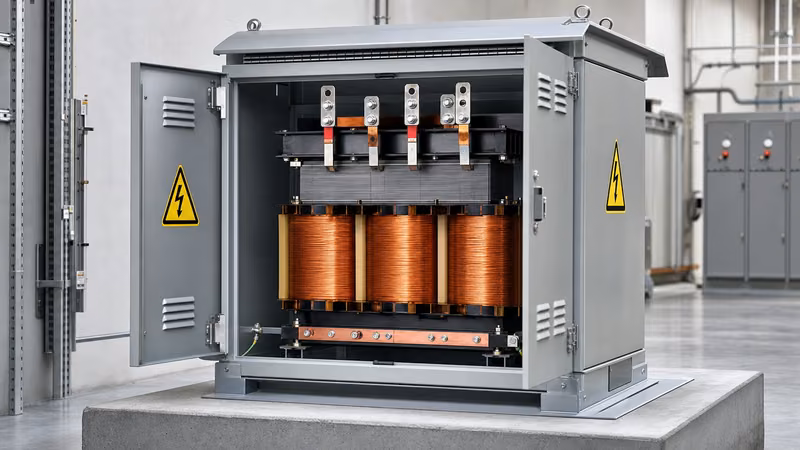

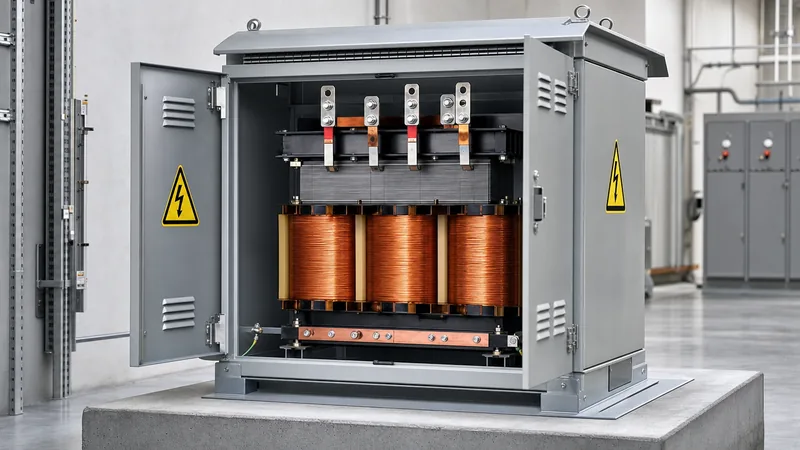

Quick answer: A 120V to 240V converter is an electromagnetic step-up unit that doubles single-phase supply voltage through a 1:2 turns ratio to energise 240V appliances, industrial tools, or imported machinery from standard 120V mains supplies. Depending on system earthing and isolation needs, it is configured either as an autotransformer or an isolation transformer.
In commercial facilities, light industrial workshops, and field sites across North America and standard 60 Hz territories, plant engineers frequently encounter European, Asian, or heavy-duty single-phase equipment rated for 220V, 230V, or 240V. When running a dedicated 240V two-pole feeder from the main distribution panel is physically impractical or cost-prohibitive, deploying a dedicated 120v to 240v voltage converter bridges the supply gap reliably.
Selecting the correct magnetic unit requires a thorough understanding of continuous power ratings, inrush current characteristics, total thermal dissipation, and National Electrical Code (NEC NFPA 70) compliance. For related step-up topologies, engineers can review our detailed 120 to 240 transformer engineering guide and examine broader high-ratio systems in the step up transformer guide.
How Does a 120V to 240V Converter Work?
A 120V to 240V converter functions on Faraday’s law of electromagnetic induction, coupling magnetic flux between primary and secondary windings through a laminated silicon steel core to double potential difference. When an alternating 120V root-mean-square (RMS) voltage is applied to the primary winding, it induces an alternating magnetic flux in the core according to the formula:
V_s / V_p = N_s / N_p
Where V_p is 120V, V_s is 240V, and the winding turns ratio (N_s : N_p) is exactly 2:1. Because electrical power is conserved (ignoring core and copper losses), halving the output current doubles the input current demand: a 240V, 10 A load drawn on the secondary side reflects back to the 120V primary branch circuit as a 20 A load plus transformer magnetising losses.
Engineers must note that converting voltage does not alter system frequency. A 60 Hz input delivers a 60 Hz output. If European 230V equipment designed strictly for 50 Hz operation is energised at 60 Hz, synchronous motor speeds increase by 20 percent (from 1,500 rpm to 1,800 rpm for a four-pole motor), while magnetic saturation margins change. For variable-voltage and tap-adjusted configurations, see our guide on buck boost transformer sizing and wiring.
Autotransformer vs Galvanic Isolation in a 120V to 240V Transformer
Choosing between an autotransformer design and a dual-winding isolation transformer dictates physical footprint, thermal efficiency, earth fault paths, and equipment safety. A standard 120v to 240v transformer can be engineered using either electrical topology depending on the downstream application.
An autotransformer utilises a single continuous tapped winding wound around a shared magnetic core. The 120V supply connects across the common section (neutral to tap), while the 240V load connects across the entire winding length. Because part of the winding is shared, autotransformers achieve lower winding losses, smaller physical dimensions, and higher efficiency (often exceeding 98 percent). However, they provide no galvanic isolation: direct electrical connection exists between input neutral and output conductors.
An isolation transformer employs completely separate primary and secondary copper or aluminium windings insulated to withstand standard dielectric test voltages (typically 2.5 kV to 4 kV per UL 1561 and IEC 60076-11). This separation blocks common-mode electrical noise, breaks ground loops, and permits the creation of a separately derived system where the secondary neutral can be grounded independently. For facility managers upgrading indoor distribution networks, specifications can be cross-referenced with standard dry type transformer engineering specs.
| Engineering Parameter | Autotransformer Topology | Galvanic Isolation Transformer |
|---|---|---|
| Physical Core & Copper Size | 50% equivalent physical rating | 100% full capacity rating |
| Full-Load Electrical Efficiency | 97.5% – 99.0% | 94.0% – 97.0% |
| Electrical Isolation | None (conductive path) | Complete (dielectric barrier >2.5 kV) |
| Common-Mode Noise Rejection | Low (<10 dB) | High (>60 dB with Faraday shield) |
| NEC Separately Derived System | No | Yes (per NEC Article 250.30) |
| Standard Application | General industrial machinery, tools | Medical devices, sensitive IT, marine |
How to Size a 120 Volt to 240 Volt Converter Correctly
Sizing a 120 volt to 240 volt converter correctly requires calculating total connected apparent power in volt-amperes (VA) or kilovolt-amperes (kVA), factoring in steady-state thermal margins and motor starting inrush. Undersized units suffer core saturation, severe voltage drop, and thermal breakdown of winding insulation classes (Class F 155°C or Class H 180°C).
- Calculate running apparent power: Multiply nominal load voltage (240V) by the full-load current rating (A) listed on the equipment nameplate. For example, a 240V, 8.5 A commercial heater consumes 240 x 8.5 = 2,040 VA (2.04 kVA).
- Apply the continuous duty derating factor: Under NEC Article 215 and Article 384, loads operating continuously for three hours or more must not exceed 80 percent of the transformer's maximum rated capacity. Multiply the running VA by 1.25 (2,040 VA x 1.25 = 2,550 VA).
- Evaluate motor inrush currents: Inductive loads, such as hermetic refrigeration compressors, machine tool spindles, and hydraulic pumps, exhibit starting locked-rotor amperes (LRA) between 300 percent and 600 percent of full-load running amperes for 100 to 500 milliseconds. Select a converter with an intermittent short-time thermal rating capable of sustaining this peak without output voltage sagging below 204V (85 percent of nominal).
- Verify primary circuit supply capacity: Ensure the upstream 120V branch circuit breaker and conductors can handle double the secondary current. A 2,400 VA load at 240V draws 10 A, reflecting 20 A at 120V, requiring a dedicated 25 A or 30 A primary circuit breaker.
Step-by-Step Installation and Wiring Procedure
Safe installation of a 120 240 volt converter demands strict adherence to earthing continuity, overcurrent protection sizing, and phase polarity verification. Prior to commencing electrical work, isolate upstream power and verify zero energy state using an adequately rated multimeter.
- Mount the enclosure: Secure the dry-type converter housing vertically to a non-combustible surface, ensuring at least 150 mm of unobstructed clearance around ventilation louvres for natural convection cooling.
- Route primary conductors: Pull line (hot), neutral, and equipment grounding conductor (EGC) from the dedicated 120V supply panel through metallic conduit, securing connections to the transformer input terminal lugs (typically labelled H1 for Line and H2 for Neutral).
- Establish equipment grounding: Bond the incoming equipment grounding conductor directly to the transformer chassis ground lug using a copper conductor sized according to NEC Table 250.122.
- Wire the 240V secondary terminals: On an isolation transformer, connect the secondary output terminals (X1 and X2) to the load side. If establishing a 120/240V split-phase secondary with a centre tap (X0), bond X0 to an approved grounding electrode conductor if local jurisdiction classifies it as a separately derived system.
- Install overcurrent protection: Fit primary branch circuit breakers rated not higher than 125 percent of the primary current rating per NEC Article 450.3(B), or secondary fuses rated up to 125 percent if downstream branch distribution is incorporated.
- Perform pre-commissioning testing: Measure insulation resistance between windings and to ground using a 500V DC megohmmeter (minimum acceptable reading: 100 Megohms) prior to energisation.
Common Engineering Challenges and Voltage Drop Mitigation
High line impedance and undersized feed conductors represent the primary failure modes when operating a 120V to 240V voltage converter under dynamic loading conditions. Because current drawn at 120V is double the secondary output current, voltage drop along the primary branch circuit is magnified significantly.
According to standard engineering practices (and NEC Informational Note 210.19), total conductor voltage drop across branch circuits and feeders should not exceed 3 percent for optimal operating efficiency. The formula for single-phase voltage drop (V_d) on copper conductors is:
V_d = (2 x K x I x L) / CM
Where K is the resistivity of copper (approx. 12.9 ohms-cmil/ft at 75°C), I is the current in amperes, L is one-way conductor length in feet, and CM is the conductor circular mil area. If a 3 kVA converter pulls 25 A at 120V over a run of 75 feet on standard 10 AWG wire (10,380 CM):
V_d = (2 x 12.9 x 25 x 75) / 10,380 = 4.66 V (3.88% drop)
This drop lowers the primary input from 120V to 115.34V, causing the secondary voltage to sag from 240V down to 230.68V under steady load, and even lower during motor starting events. To mitigate this, engineers must increase primary copper sizing to 8 AWG or specify a transformer equipped with primary compensation taps (+2.5%, +5%, -2.5%, -5%) to adjust for known line losses. Compare these mechanics with downstream stepped systems in our step down voltage converter guide.
Next Steps: Specifying and Sourcing
When specifying a robust dry-type or oil-immersed step-up conversion unit for commercial facilities, industrial automation lines, or OEM integration, having precise operational data ensures seamless manufacturing and factory testing. Gather your required continuous kVA rating, duty cycle (continuous versus intermittent), primary voltage fluctuations, operating ambient temperature, and required enclosure IP or NEMA rating.
Our engineering team designs and manufactures high-efficiency dry type transformers and durable oil immersed distribution transformers compliant with IEC 60076, IEEE C57, and UL standards. Submit your project requirements via our transformer quotation request form or reach out to our application engineers through the technical contact page for detailed single-line reviews, outline drawings, and custom winding options.
Frequently asked questions
Can a 120v to 240v converter change 60Hz to 50Hz frequency?
No, a standard magnetic 120V to 240V converter changes voltage only and cannot alter electrical frequency. The secondary output remains at 60 Hz if fed with 60 Hz input mains. Changing frequency requires a solid-state rotary converter or a variable frequency drive (VFD) containing a rectifier and inverter stage.
What size 120v to 240v transformer do I need for a 15 amp 240v load?
You need a minimum 4.5 kVA to 5 kVA transformer for a 15 A, 240V continuous load. A 15 A load at 240V consumes 3,600 VA (3.6 kVA), and applying the standard 125 percent continuous duty safety multiplier yields 4,500 VA (4.5 kVA). The incoming 120V circuit must provide at least 37.5 A capacity.
Is an autotransformer or isolation converter safer for industrial use?
An isolation transformer is safer for sensitive industrial, damp, or marine environments because it eliminates physical conductive coupling between input and output. Autotransformers are electrically safe when properly enclosed and bonded, but fault conditions on the primary neutral can propagate directly to the secondary load.
Can I back-feed a standard 240V to 120V step-down transformer to step up voltage?
Yes, many dual-winding dry-type transformers can be reverse-fed, but inrush current increases substantially because winding turns ratios and tap designs are optimised for forward excitation. When reverse-feeding, primary protection must be sized higher to prevent nuisance tripping, and manufacturer approval should be verified.
Why does my 120V circuit breaker trip when turning on a 240V converter?
Circuit breakers trip due to intense core magnetising inrush current or an undersized primary circuit feeding the doubled current draw. A transformer draws up to 10 to 12 times its rated current for a few cycles during energisation; using a motor-duty or high-magnetic trip breaker (such as Curve D) resolves nuisance inrush tripping.
