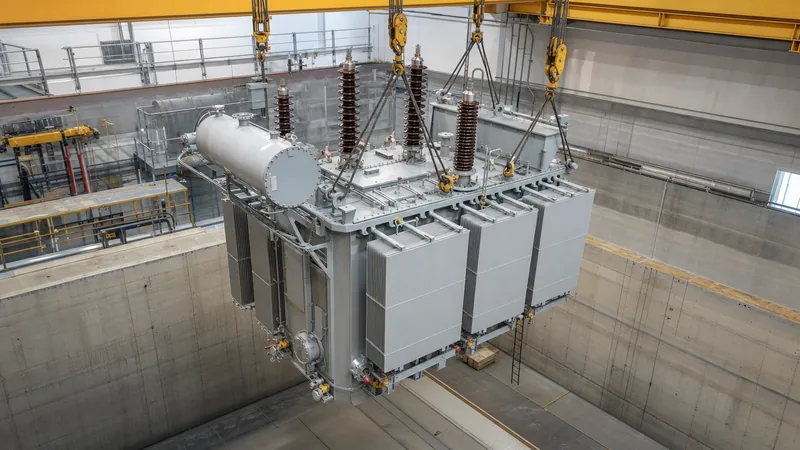

Transformer Weight: Engineering Sizing Chart and Guide

Quick answer: Electrical transformer weight ranges from roughly 150 kg for a 50 kVA pole-mounted unit to over 150 tonnes for a 100 MVA transmission transformer. Total weight depends on rating, core-and-coil material, cooling fluid volume, and structural enclosure, with oil accounting for roughly 25% of liquid-filled mass.

For electrical design consultants, civil engineers, and EPC contractors, accurate estimation of unit mass is essential long before the factory acceptance test. Weight directly dictates structural pad sizing, crane hiring, transportation permits, and seismic anchoring requirements. When evaluating project layouts using our comprehensive transformer sizing calculator guide, physical parameters must be verified alongside electrical throughput to avoid structural overruns.

What Determines Electrical Transformer Weight?

Transformer weight is determined primarily by the electrical rating, core steel volume, winding conductor material, tank construction, and the volume of insulating dielectric medium. Each functional subsystem contributes distinct mass profiles governed by the magnetic flux density and thermal dissipation limits stipulated in IEC 60076-1 and IEEE C57.12.00.

The internal active parts consist of the laminated magnetic core and the high-voltage (HV) and low-voltage (LV) coils. The magnetic core uses grain-oriented silicon steel (CRGO) or amorphous alloys, which exhibit high density (approximately 7.65 g/cm³). Winding material selection causes the largest variance in active part mass: electrolytic copper has a density of 8.96 g/cm³, whereas electrical-grade aluminium has a density of only 2.70 g/cm³. Although aluminium requires a larger cross-sectional area to achieve equivalent current density, an aluminium-wound active core-and-coil assembly can be up to 15% to 30% lighter overall, though it demands larger physical dry-type transformer enclosures and tanks.

The balance of the unit consists of mechanical steelwork and cooling fluid. In liquid-immersed equipment, uninhibited mineral oil conforming to IEC 60296 has a relative density between 0.87 and 0.89 at 20 °C. The structural steel tank, corrugated cooling fins or external radiators, conservator vessel, cable boxes, and high-voltage bushings contribute another 15% to 25% of total mass, detailed extensively in our review of the construction of transformer core, windings, and tanks.

Distribution Transformer Weight and Dimensions Chart

Standard distribution transformer dimensions and operational weights vary systematically according to rated power (kVA) and voltage class. The table below outlines typical engineering parameters for standard three-phase 11 kV/415 V oil-immersed (ONAN) and cast resin dry-type (AN) units designed to European Ecodesign Tier 2 (EN 50588-1) and equivalent international efficiency standards.

Values shown reflect typical industrial designs using copper conductors. Cast resin dry-type weights include standard ventilated steel enclosures. Consult individual factory certified outline drawings prior to final foundation pouring.

How to Calculate Approximate Transformer Weight and Oil Volume

Approximate transformer weight can be derived during preliminary front-end engineering using empirical scaling equations based on rated capacity. In high-efficiency distribution equipment, mass scales non-linearly with power according to the power law where mass is proportional to rated kVA raised to the exponent of 0.75 to 0.80.

For modern three-phase, copper-wound, 11 kV to 33 kV mineral oil-immersed transformers, field engineers apply the following standard estimation formulae:

1. Calculate active part weight (W_active): W_active (kg) ≈ 3.2 × (kVA)^0.78. This encompasses the wound core, clamping frame, and lead assemblies.
2. Calculate insulating oil mass (W_oil): Oil volume (litres) ≈ 1.3 × (kVA)^0.75. Multiply volume by 0.88 kg/L to convert litres to kilograms.
3. Calculate tank and mechanical fittings (W_tank): W_tank (kg) ≈ 0.22 × (W_active + W_oil).
4. Sum for total gross weight (W_total): W_total = W_active + W_oil + W_tank.

For instance, applying this formula to an 800 kVA transformer gives an estimated active part weight of roughly 1,850 kg, approximately 650 litres (572 kg) of oil, and 530 kg of steel tankwork, yielding a calculated total mass of 2,952 kg. This closely tracks the actual nameplate shipping weight of typical units conforming to IEC standards.

Large Power Transformer Weight: Transport vs Operational Mass

Large power transformer weight differs significantly between transport condition and operational state because heavy insulating oil and fragile external appendages must be removed prior to shipping. On units rated above 20 MVA or 69 kV, transporting a fully assembled, fluid-filled unit frequently breaches highway bridge weight limits and railway loading gauges.

When assessing equipment discussed in our large power transformers engineering guide, three discrete weight ratings appear on certified rating plates:

• Dry Core-and-Coil Weight: The net weight of the untanked active assembly, including laminations, conductors, and solid cellulosic insulation.
• Transport Weight: The stripped unit prepared for transport. The transformer oil is drained, external radiators, conservator, and high-voltage bushings are packed separately, and the main tank is filled with dry nitrogen or synthetic air at positive pressure (20 kPa to 35 kPa) to prevent moisture ingress. Transport weight is typically 55% to 65% of the total assembled weight.
• Total Operating Weight (Untanking Mass): The complete operational weight including the main tank fully flooded with dielectric liquid, all radiator banks, pumps, fans, on-load tap changer (OLTC) mechanisms, and oil-filled terminal chambers.

For a 63 MVA, 110 kV grid transformer, the transport weight with dry gas may be 48 tonnes, whereas the total operating weight on the pad reaches 78 tonnes once filled with 34,000 litres of dielectric fluid.

Pad and Substation Civil Engineering Sizing Considerations

Civil engineering foundations must be designed to withstand both the static operational transformer weight and dynamic transient forces generated during seismic events or internal faults. Pouring an undersized concrete pad can lead to uneven foundation settling, ruptured oil pipe flanges, bushing mechanical failure, and compromised neutral earth connections.

Civil structural designers follow specific guidelines when translating nameplate mass into foundation blueprints:

1. Static Load Factoring: Multiply the maximum operational weight (including full fluid capacity) by a safety factor of 1.25 to 1.50 to accommodate future replacement by higher-capacity low-loss units.
2. Soil Bearing Capacity: Ensure site soil capacity (typically 100 kPa to 250 kPa for compacted ground) matches total footing pressure: P = (Total Weight × 9.81 m/s²) / Area.
3. Dynamic Short-Circuit Thrust: Electrical faults impose sudden electromagnetic shear forces across the core anchors; civil tie-down bolts must meet shear calculations dictated by Eurocode 8 or ASCE 7.
4. Integrated Oil Containment: Environmental regulations (such as IEEE 980 and IEC 61936-1) require an underlying oil containment bund or catchment pit sized to hold 100% of the transformer dielectric volume plus rainwater accumulation margins.

Next steps: specifying and sourcing

When preparing procurement documentation or requesting a formal equipment tender, providing precise dimensional, weight, and delivery access constraints is vital. Forward your site footprint boundaries, maximum crane hook limitations, seismic acceleration coefficients, and terminal box orientations to our team. Explore our certified range of oil-immersed transformers, compact pad-mounted transformers, and high-voltage power transformers built to IEC, ANSI, and IEEE standards. Submit your single-line diagrams, civil envelope constraints, and required loss values directly through our technical transformer quotation portal to receive factory-certified dimension drawings and weight breakdowns.
