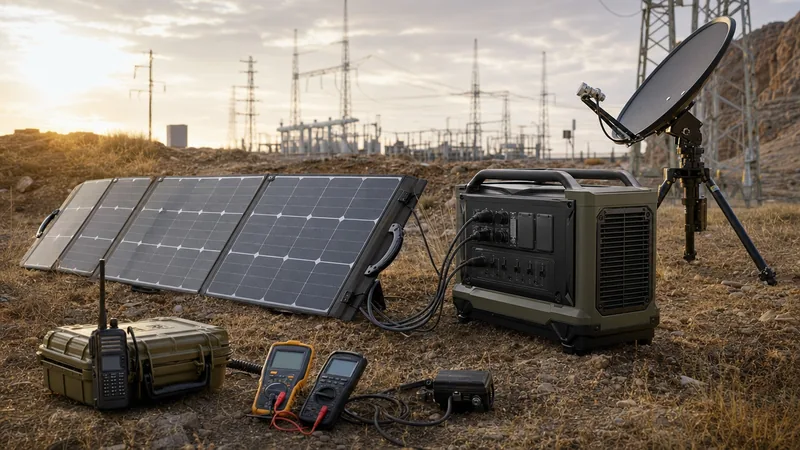

Solar Powered Survival Gear: Sizing & Engineering Guide

Quick answer: Reliable solar powered survival gear combines high-efficiency photovoltaic panels, a Maximum Power Point Tracking (MPPT) charge controller, and a durable Lithium Iron Phosphate (LiFePO4) battery enclosure. Engineered to sustain mission-critical communications, medical apparatus, and basic illumination during prolonged grid failures, these systems deliver autonomous electrical power independent of volatile fuel supplies.

When primary utility distribution networks fail due to severe meteorological phenomena, physical infrastructure compromise, or technical blackouts, conventional fuel generators introduce supply-chain vulnerabilities. Liquid fuels degrade within months, produce toxic exhaust gases, and require ongoing mechanical maintenance. In contrast, solar powered survival gear harnesses solar irradiance to sustain low-voltage direct current (DC) and alternating current (AC) loads indefinitely. Sizing this equipment demands rigorous engineering calculations rather than consumer-grade guesswork, balancing panel peak wattage, battery round-trip efficiency, and depth of discharge against seasonal solar insolation variations.

Understanding how field systems integrate into wider resilience frameworks requires consulting our comprehensive emergency energy storage technical review and the broader battery storage engineering guide. Whether deploying tactical communications, remote medical refrigeration, or off-grid base camp utilities, survival power equipment must be selected against stringent environmental, thermal, and electrical metrics.

Core Architecture of a Rugged Solar Survival Kit

A dependable solar survival kit operates as an isolated microgrid consisting of generation, power conversion, energy storage, and distribution stages.

The photovoltaic generation stage typically uses portable monocrystalline panels featuring contact-laminated Ethylene Tetrafluoroethylene (ETFE) surface layers. ETFE delivers high ultraviolet resistance, thermal stability across -20°C to 80°C, and superior transmittance compared to standard PET laminates. These folding or semi-rigid arrays must withstand mechanical shock and environmental moisture according to IEC 61215 design qualification standards.

The balance of system (BOS) centres around three fundamental subsystems:

• Power Conversion System: Dedicated MPPT controllers sweep the voltage-current characteristic curve of the PV module dozens of times per second, tracking the knee point to extract maximum energy even in diffuse light or partial shading.
• Electrochemical Energy Storage: Sealed battery enclosures house cells governed by a comprehensive Battery Management System (BMS) with over-voltage, under-voltage, short-circuit, and cell-balancing protection. For portable utility, engineers consult our lightweight solar battery guide to evaluate gravimetric energy density trade-offs.
• Load Distribution Interface: Direct 12 V and 24 V DC bus terminals bypass inverter conversion penalties for base communication gear, while pure sine wave inverters convert energy to 230 V or 120 V AC with Total Harmonic Distortion (THD) below 3% to safeguard sensitive switch-mode power supplies.

Engineering Sizing: Critical Loads for Solar Power Survival Gear

Sizing solar power survival gear requires calculating total daily watt-hours (Wh) adjusted for component conversion losses, ambient derating, and days of complete solar autonomy.

Consider an emergency field station operating five essential electrical loads: a UHF/VHF base transceiver (25 W for 4 hours/day = 100 Wh), a portable satellite communications hub (15 W for 6 hours/day = 90 Wh), an active portable water filtration unit (40 W for 1.5 hours/day = 60 Wh), LED incident lighting (10 W for 8 hours/day = 80 Wh), and critical battery-charging ports for medical telemetry (30 W for 3 hours/day = 90 Wh). The unadjusted base load equals 420 Wh per day.

To establish the required battery bank capacity ($E_{batt}$), apply an inverter and conversion efficiency factor ($\eta_{inv} = 0.90$), a maximum Depth of Discharge ($\text{DoD} = 0.85$ for LiFePO4), and a design autonomy requirement ($N_{aut} = 2.5\text{ days}$):

$$\text{Effective Daily Load} = \frac{420\text{ Wh}}{0.90} = 466.7\text{ Wh/day}$$

$$E_{batt} = \frac{466.7\text{ Wh/day} \times 2.5\text{ days}}{0.85} = 1,372.6\text{ Wh}$$

A nominal 51.2 V, 30 Ah (1,536 Wh) lithium module fully satisfies this requirement. Sizing the photovoltaic array ($P_{pv}$) requires factoring in the geographic Peak Sun Hours (PSH) during the winter solstice (e.g., 2.8 hours), an MPPT efficiency of 97%, and a combined dust, thermal, and wiring derating factor ($\eta_{sys} = 0.80$):

$$P_{pv} = \frac{466.7\text{ Wh/day}}{2.8\text{ PSH} \times 0.97 \times 0.80} = 214.8\text{ W}$$

Consequently, specifying two 120 W folding monocrystalline modules in series (240 W total array) guarantees sufficient generation margin to support the load while replenishing the battery bank following prolonged bad weather.

Solar Powered Survival Equipment: Cell Chemistries and Standards

Selecting reliable solar powered survival equipment requires examining battery electrochemistry, thermal performance boundaries, and safety certifications.

Portable survival enclosures deploy either Lithium Iron Phosphate (LiFePO4 / LFP) or Lithium Nickel Manganese Cobalt (NMC). While NMC chemistry offers a higher gravimetric energy density of approximately 200–250 Wh/kg versus 130–170 Wh/kg for LFP, LFP offers superior chemical and thermal stability. The olivine crystal structure of LFP does not liberate oxygen upon thermal decomposition, raising the thermal runaway initiation threshold to beyond 270°C, compared to roughly 210°C for NMC. For installations interfacing with wider distribution networks or small cabins, our 48V solar battery guide covers larger rack-mounted topologies.

All industrial survival gear must meet international certification benchmarks. The battery pack must satisfy IEC 62619 clause 7 for safety requirements in industrial applications and UN Manual of Tests and Criteria Section 38.3 for transport vibration, thermal shock, and altitude simulation. Enclosures should achieve minimum ingress ratings of IP65 according to IEC 60529 to prevent dust ingress and water jet penetration during emergency field operations.

Selection Matrix for Solar Powered Items for Survival

Evaluating solar powered items for survival involves assessing load criticality, electrical operating thresholds, and physical durability under harsh field conditions.

The following engineering matrix outlines typical field equipment characteristics, recommended operating voltages, storage capacities, and protective enclosures:

Prioritising equipment with direct DC inputs eliminates standby and conversion losses from internal inverters, extending usable operational runtime by up to 20% on a single battery charge.

Deployment Procedure for Field Emergency Solar Gear

Commissioning solar power survival gear during an emergency requires following an orderly operational sequence to avoid high-voltage DC arcing, reverse polarity, or system overload.

1. Siting and Solar Array Geometry: Position the folding solar panels on stable, unshaded ground facing true solar South (in the northern hemisphere) or true North (in the southern hemisphere). Set module inclination using the formula: local latitude $\pm 15^\circ$ depending on season, maximising perpendicular irradiance.
2. Electrical Open-Circuit Verification: Measure the open-circuit voltage ($V_{oc}$) of the array at the disconnected terminal leads using a calibrated digital multimeter. Confirm that $V_{oc}$ stays below the maximum input voltage rating of the charge controller under ambient operating temperatures (compensating for the negative temperature coefficient of voltage).
3. System Earthing and Battery Connection: Connect the battery terminals to the charge controller before connecting the PV array. This ensures the MPPT logic unit boots correctly, identifies the system nominal voltage (12 V, 24 V, or 48 V), and activates its internal protection circuits. Where ground rods are feasible, bond the chassis to ground per NFPA 70 / NEC Article 690 guidelines.
4. Photovoltaic Array Coupling: Connect the solar module leads to the solar controller terminals using touch-safe MC4 or industrial Anderson connectors. Verify that the charge indicator confirms bulk charging status.
5. Critical Load Commissioning: Energise DC load circuits first. If powering AC equipment, energise the pure sine wave inverter, observe steady-state voltage and frequency output (e.g., 230 V at 50 Hz), and connect critical end-use devices sequentially, starting with the highest inrush inductive loads.

Technical RFQ and Quality Inspection Checklist

Procurement teams sourcing solar survival equipment for municipal emergency services, humanitarian relief organisations, or defence logistics must verify physical and electrical build quality before field deployment.

Use this technical specification and inspection checklist for vendor evaluations and factory acceptance testing:

• Battery Cell Provenance and Quality: Verify Grade-A prismatic or cylindrical LiFePO4 cells with test reports detailing cell capacity match within 1.5% and internal AC impedance ($\le 0.5\text{ m}\Omega$). Confirm certifications to IEC 62133-2 and UL 1642.
• Charge Controller Topology: Reject units using PWM topology; mandate synchronous rectification MPPT controllers boasting peak efficiencies $\ge 98\%$ with wide operating voltage windows ($V_{mpp}$ range spanning 15 V to 100 V DC).
• Mechanical Housing Enclosure: Inspect casing construction. Enclosures should be rotationally moulded polyethylene or high-impact polypropylene with integrated pressure relief valves to equalize atmospheric pressure during air transport.
• Inverter Output Waveform: Check output using an oscilloscope under zero-load, 50% resistive load, and 100% inductive load conditions. Total Harmonic Distortion must remain under 3% for linear loads and under 5% for non-linear loads.
• Thermal Runaway Mitigation: Inspect internal fire barrier materials between cells, independent secondary thermal cut-off switches, and conformal coating across all internal printed circuit boards (PCBs) to resist humidity condensation.

Next steps: specifying and sourcing

Sizing and procuring durable energy resilience assets requires detailed load profiles, duty cycle figures, and clear environmental criteria. For temporary base camps or regional operations, pairing portable gear with an engineered fixed-site system ensures continuous capability. Review our heavy-duty commercial energy storage system offerings or deploy modular containerised storage with our advanced liquid-cooled ESS container line for permanent multi-megawatt survival installations. To discuss precise electrical specifications, system integration needs, or to submit your project bill of quantities, contact our technical team directly via our contact page or submit an RFQ through our quote page.
