kVA a Amperes: Sizing and Current Calculation Guide

Quick answer: To convert kVA a amperes, divide the apparent power in volt-amperes (kVA × 1,000) by the line-to-line voltage multiplied by 1.732 for three-phase systems, or by the line-to-neutral voltage for single-phase circuits. At 400 V three-phase, 1 kVA equals approximately 1.44 A, while at 480 V it equals 1.20 A.

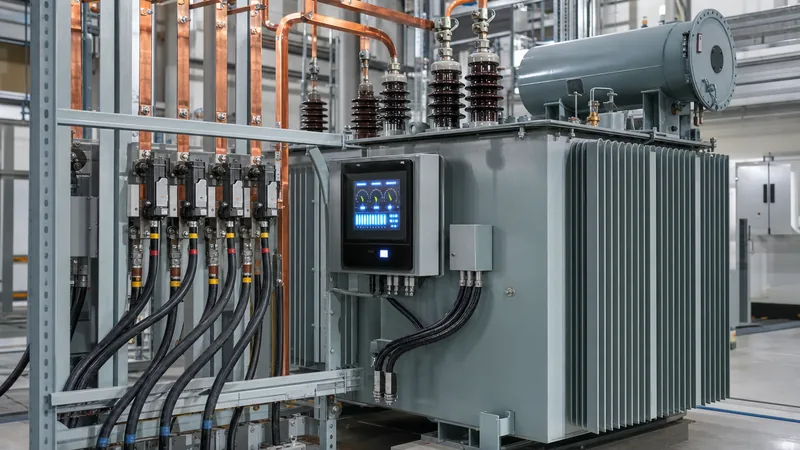

In electrical equipment manufacturing and plant design, translating apparent power into terminal full-load current is a foundational task. Whether you are specifying a distribution transformer, commissioning a standby power generator, or sizing cables for an industrial switchboard, knowing how to execute the conversion kva a amperes ensures protective coordination, prevents thermal overloading, and complies with international standards such as IEC 60076-1 and IEEE C57.12.00. For complex projects, plant designers often cross-reference a transformer calculator sizing guide to automate cable, fuse, and breaker selections under non-linear operating conditions.

The Electrical Fundamentals of kVA a Amperes

Converting kVA to amperes requires distinguishing between apparent power, active power, and reactive power. Apparent power, denoted as S and measured in kilovolt-amperes (kVA), represents the vector sum of real active power (P, measured in kW) and reactive power (Q, measured in kvar), as defined in IEC 60076-1 clause 4.1. Electrical machinery, including transformers and alternators, is rated in kVA because internal thermal stress depends strictly on the physical insulation voltage limit and the thermal dissipation caused by current flowing through winding conductors ($I^2R$ losses), regardless of whether that current does mechanical work.

The power factor ($\cos\phi$) dictates the phase angle between terminal voltage and load current. However, when sizing conductors, busbars, and protection devices, our engineering team works with apparent current. The relationship shows that even when a load operates at a poor power factor, the actual current circulating through the windings remains dictated by the kVA rating. Calculating kva a amperes accurately prevents underestimating thermal rise in transformers and generator alternators.

Formulas for Single-Phase and Three-Phase kVA to Amps

Calculating full-load current requires using the correct formula based on the system phase configuration and connection topology. Using an accurate converter kva to amps prevents costly undersizing of switchgear and conductor cross-sections.

For single-phase alternating current circuits, current is determined directly by dividing apparent power by the applied system voltage:

$$I = \frac{\text{kVA} \times 1000}{V}$$

Where $I$ is current in amperes (A), $\text{kVA}$ is apparent power, and $V$ is line-to-neutral voltage. In North American split-phase or European single-phase networks, this calculation directly governs service entrance cable sizing, as explored in our guide to single phase transformer engineering.

For balanced three-phase systems, the line current must account for the phase-displacement factor of $\sqrt{3}$ (approximately 1.73205):

$$I = \frac{\text{kVA} \times 1000}{\sqrt{3} \times V_{L-L}}$$

Where $V_{L-L}$ is the line-to-line RMS voltage. If an engineer is using a 1 kva to amps calculator baseline at 400 V three-phase, the formula yields:

$$I = \frac{1 \times 1000}{1.73205 \times 400} = \frac{1000}{692.82} = 1.443\text{ A}$$

This multiplier of 1.443 A per kVA at 400 V (or 1.203 A per kVA at 480 V) allows rapid mental estimation on the factory floor or construction site.

Step-by-Step Procedure: Generator and Transformer Full-Load Calculation

Determining full-load amperage requires systematically identifying nameplate parameters and application-specific derating constraints. Whether you are running calculations manually or using a generator kva to amps calculator, follow this engineering workflow:

1. Identify the system topology: Determine whether the equipment operates on a single-phase 2-wire, single-phase 3-wire, three-phase 3-wire delta, or three-phase 4-wire wye configuration.
2. Determine rated terminal voltage: Confirm the nominal line-to-line voltage ($V_{L-L}$) under loaded conditions. For transformers, establish whether you are calculating primary medium-voltage current or secondary low-voltage current.
3. Apply the apparent power rating: Insert the nominal continuous kVA rating based on standard cooling methods (e.g., ONAN or AN).
4. Calculate baseline line current: Compute rated current using the single-phase or three-phase formula.
5. Factor in continuous duty limits: Per standards such as NEC Article 450 and IEC 61439, apply continuous load factors (typically sizing conductors and protective trip units to 125% of the continuous current).
6. Verify inrush and short-circuit capability: Ensure terminal switchgear can withstand the initial magnetising inrush current of transformers (typically 8 to 12 times full-load amps for 100 ms) or generator subtransient reactance ($X''_d$) currents.

Quick Reference: kVA to Amp Conversion Chart for Standard Voltages

A comprehensive kva to amp conversion chart enables quick cross-referencing of nominal full-load currents across commercial and industrial distribution voltages. The table below outlines balanced three-phase line currents calculated per IEEE C57.12.00 Table 5 and IEC 60076-1 guidelines across common capacity steps, ranging from 5 kva to amps up to large substation capacities like 800kva to amps.

When selecting gear for package installations, such as an integrated unit substation engineering guide setup, matching these secondary amperages with low-voltage switchboard bus ratings is vital for operational reliability.

Worked Engineering Examples: 15 kVA, 20 kVA, 75 kVA, and 150 kVA

Applying conversion equations to field examples illustrates how voltage levels impact terminal current. A common query from commissioning contractors is: how many amps is 20kva?

Consider a balanced three-phase distribution system operating at 400 V line-to-line:

$$I = \frac{20 \times 1000}{\sqrt{3} \times 400} = \frac{20,000}{692.82} = 28.87\text{ A}$$

If that exact 20 kVA capacity is supplied to a single-phase 230 V branch circuit, the resulting current increases dramatically:

$$I = \frac{20 \times 1000}{230} = 86.96\text{ A}$$

Here is how other standard power steps compare across common commercial voltages:

• 15 kva to amps: At 480 V three-phase, $I = 15,000 / (1.732 \times 480) = 18.04\text{ A}$. At 208 V three-phase, the current rises to 41.64 A.
• 75 kva to amps: At 400 V three-phase, $I = 75,000 / (1.732 \times 400) = 108.25\text{ A}$. In a North American 480 V installation, this transformer delivers 90.21 A per phase.
• 150 kva to amps: At 400 V, nominal current is 216.51 A. At 480 V, it draws 180.42 A, requiring a minimum 225 A or 250 A molded-case circuit breaker (MCCB) under continuous loading rules.
• 800kva to amps: Sizing an 800 kVA unit substation secondary at 400 V requires handling 1,154.70 A full-load current, mandating a 1,600 A low-voltage air circuit breaker (ACB) to maintain thermal margin.

Real-World Sizing Factors: Derating, Harmonics, and Inrush

A direct mathematical conversion provides the ideal full-load amperage, but real-world installations demand derating adjustments. Industrial facilities rarely operate under standard reference conditions (40 °C ambient temperature, pure 50/60 Hz sinusoidal voltage, and unity power factor).

First, high ambient temperatures reduce thermal dissipation. Per IEEE C57.96, transformers operating in environments exceeding 40 °C peak or 30 °C daily average require load derating of roughly 1.5% for every degree Celsius above the threshold. Second, non-linear loads common in modern power conversion introduce harmonic currents. In mission-critical environments, such as those evaluated in our guide to transformers for data centers, triplen harmonics overload neutral conductors and cause excessive eddy current heating in core laminations. Under significant harmonic distortion (THDi > 15%), engineers must specify K-factor rated units (such as K-4, K-13, or K-20) or dry-type designs with electrostatic shields.

Finally, cable sizing must account for terminal connection ratings. NEC 110.14(C) dictates that for circuits rated over 100 A, conductors must be sized based on 75 °C insulation column ampacities, even when using 90 °C rated cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) insulated cables.

Next Steps: Specifying and Sourcing

When preparing a technical specification or Request for Quotation (RFQ), provide the exact system voltage, phase count, anticipated load profile, ambient conditions, and calculated full-load amperes. Our engineering team designs and manufactures high-efficiency oil-immersed transformers, cast-resin dry-type transformers, and integrated pad-mounted transformers compliant with IEC, IEEE, and ANSI standards. Whether you need standard distribution ratings or a custom-engineered substation transformer, submit your single-line diagram and schedule to our technical team via our quotation page or reach out through our contact form for detailed engineering verification.
