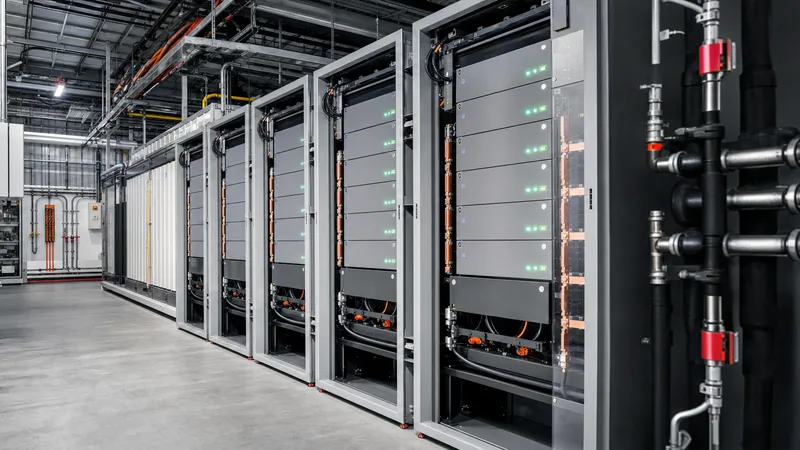

Industrial Lithium Batteries: Sizing, Chemistry & Specs

Quick answer: Industrial lithium batteries are high-capacity electrochemical energy storage systems engineered for continuous cycling, peak shaving, and critical backup in demanding utility, grid, and manufacturing environments. Most modern installations employ lithium iron phosphate (LFP) cells configured into high-voltage strings (up to 1,500 V DC), delivering over 6,000 cycles at 80% depth of discharge with sub-second response times.

Industrial facilities and grid operators face tightening power reliability tolerances, volatile peak demand charges, and aggressive decarbonisation mandates. While legacy lead-acid systems served stationary applications for decades, industrial battery bank installations increasingly mandate higher energy density, lower maintenance overhead, and rapid power delivery. Deploying industrial lithium batteries bridges the operational performance gap between high-power short-duration support and multihour energy shifting.

Selecting and commissioning an industrial lithium energy storage system requires rigorous attention to cell chemistry, string voltage architecture, thermal management topologies, and international safety codes. This guide outlines the engineering parameters necessary to specify, size, and procure utility- and facility-scale battery assets without operational compromise.

Chemistry Selection: Comparing Industrial Lithium Batteries

Lithium iron phosphate (LiFePO4 or LFP) and nickel manganese cobalt oxide (LiNiMnCoO2 or NMC) represent the two primary chemistries deployed across industrial lithium ion installations. For stationary power systems, chemical stability and operational longevity take precedence over raw volumetric energy density, making LFP the standard engineering selection for over 90% of stationary projects.

LFP chemistry features covalent phosphorus-oxygen bonds within the olivine crystal lattice. This structural configuration prevents oxygen release under internal short-circuit or overcharge conditions until internal temperatures exceed 270°C. Conversely, NMC layered-oxide structures begin exothermically decomposing and releasing oxygen between 210°C and 220°C, increasing the probability and intensity of self-sustaining thermal runaway events.

For a detailed breakdown of cell dynamics, consult our analysis on LFP versus NMC battery performance. The following table provides standard engineering parameters across commercial-grade cell formats.

Commercial Lithium Battery Architecture and DC Bus Design

A commercial lithium battery system transitions from individual electrochemical cells to multimegawatt containerised plant assets through hierarchical electrical stages. Cells are initially welded into parallel and series groups to form modules (typically 48 V or 51.2 V nominal), which are then stacked in vertical enclosures to establish high-voltage DC strings.

Legacy commercial battery systems operated at nominal voltages between 600 V and 1,000 V DC. Modern grid-tied and large-scale industrial installations now standardise on 1,500 V DC bus architectures. Elevating the DC bus voltage to 1,500 V (typically operating within a window of 1,150 V to 1,450 V DC) delivers distinct electrical advantages:

• Conductor Mass Reduction: Current is inversely proportional to system voltage for an equivalent power delivery. Increasing bus voltage from 1,000 V to 1,500 V reduces the continuous line current by 33%, allowing engineers to specify smaller copper or aluminium cross-sections for DC busbars and collection cables.
• Inverter Efficiency Gains: Central inverters and bidirectional converters operating from a 1,500 V DC rail achieve higher conversion efficiencies (often exceeding 98.8%), as switching losses scale more favourably with reduced current throughput. Integrating these with a dedicated power conversion system optimises round-trip energy performance.
• Switchgear Footprint: Higher voltage arrays allow higher energy density per string rack, consolidating rack count and simplifying DC combiner box deployment.

Every commercial lithium ion battery string incorporates a dedicated String Control Management Unit (SCMU). The SCMU houses high-speed DC contactors, optical isolation relays, and pyro-fuses rated for prospective fault currents exceeding 30 kA, isolating faulted strings within 10 milliseconds to prevent fault escalation to adjacent racks.

Thermal Management and Fire Safety Compliance

Thermal regulation is the primary determinant of calendar life, performance equity, and operational safety in a lithium ion battery industrial system. Operating cells outside the target temperature window of 20°C to 25°C accelerates solid electrolyte interphase (SEI) degradation, while localized temperature differentials exceeding 5°C across a module induce uneven internal resistance, leading to cell imbalance and premature string derating.

Engineering selections for industrial lithium batteries divide between forced-air HVAC cooling and closed-loop liquid cooling. Liquid-cooled plates, positioned directly beneath or between prismatic cells, exhibit thermal transfer coefficients up to three times higher than forced air. Liquid systems maintain pack temperature gradients below 3°C even during sustained 1C discharge profiles, conserving substantial parasitic HVAC power in harsh ambient environments. See our specialised engineering analysis on battery cooling systems for flow rate and heat exchanger calculations.

Safety architectures for stationary installations must satisfy strict international compliance criteria:

1. Cell and Pack Abuse Testing (IEC 62619:2022): Clause 8.2 requires rigorous testing against internal short-circuits, continuous overcharging, and mechanical drop tests without case rupture, ignition, or sustained fire.
2. Fire Propagation Resistance (UL 9540A): Mandates thermal runaway initiation via electrical or cartridge heaters at cell, module, unit, and installation levels. The system must verify that a single-cell thermal failure cannot propagate uncontrollably through the rack or release explosive concentrations of combustible off-gases (such as hydrogen, carbon monoxide, and methane) exceeding 25% of the Lower Flammability Limit (LFL).
3. Stationary Siting and Separation (NFPA 855): Outlines maximum stored energy limits per unit (typically 50 kWh for commercial interior spaces without blast relief, and up to 250 kWh or 600 kWh for designated exterior enclosures) along with 3-foot (0.9-metre) clear spacing requirements between racks and structural boundaries.

Engineering Calculation: Sizing an Industrial Lithium Ion System

Sizing an industrial lithium ion system requires factoring in load duration, inverter efficiency, cyclic depth of discharge, and irreversible battery degradation over the planned asset lifespan. Relying strictly on nominal factory capacity results in under-designed battery banks that fail before their target operational lifespan.

Consider an industrial manufacturing facility requiring peak shaving and critical process support under the following baseline criteria:

• Required Peak Shave Power ($P_{req}$): 500 kW
• Required Support Duration ($t$): 2.0 hours
• Net Usable Energy Needed ($E_{usable}$): $500 \text{ kW} \times 2.0 \text{ h} = 1,000 \text{ kWh}$
• Maximum Operational Depth of Discharge ($DoD$): 85% (0.85)
• Power Conversion System (PCS) Round-Trip Efficiency (Discharge phase $\eta_{pcs}$): 96% (0.96)
• DC Cable and Isolation Loss Efficiency ($\eta_{dc}$): 98% (0.98)
• End-of-Life (EoL) Degradation Limit ($SOH_{eol}$): 80% (0.80) after 10 years
• Design Temperature Derating Factor ($f_{temp}$): 97% (0.97) for ambient variance

The gross DC nameplate energy storage capacity ($E_{gross}$) is determined by compounding these operational factors:

$$E_{gross} = \frac{E_{usable}}{DoD \times \eta_{pcs} \times \eta_{dc} \times SOH_{eol} \times f_{temp}}$$

Substituting the application parameters:

$$E_{gross} = \frac{1000}{0.85 \times 0.96 \times 0.98 \times 0.80 \times 0.97}$$

$$E_{gross} = \frac{1000}{0.6205} = 1,611.6 \text{ kWh}$$

To support a 500 kW, 2-hour discharge profile safely across a 10-year operating horizon without breaching the 80% state-of-health threshold, the facility must specify a minimum DC nameplate capacity of 1,612 kWh. Assuming standardised industrial 1,500 V DC battery racks rated at 215 kWh nominal capacity each, the plant requires 8 parallel rack strings ($8 \times 215 \text{ kWh} = 1,720 \text{ kWh}$ nominal DC capacity). This configuration yields an actual initial operational C-rate of approximately 0.29C, well within the continuous endurance limits of LFP cell chemistry.

Specification and RFQ Inspection Checklist

Engineers preparing technical tender documentation or executing factory acceptance testing (FAT) for a commercial lithium ion battery project should verify compliance against a standardised inspection framework. The checklist below highlights vital mechanical, electrical, and control verification criteria.

Next steps: specifying and sourcing

Procuring high-reliability energy storage equipment requires comprehensive mechanical and electrical specifications matched directly to site operational loads. When submitting your inquiry for custom configurations, supply your required single-line diagram (SLD), peak continuous discharge power (kW), support duration, grid interconnect voltage, and site ambient temperature profiles.

Explore our engineering capabilities across complete turn-key solutions, including our containerised energy storage systems and modular liquid-cooled ESS containers. For project sizing assistance, engineering consultation, or detailed tender documentation, request an equipment quotation directly from our technical sales engineering team.
