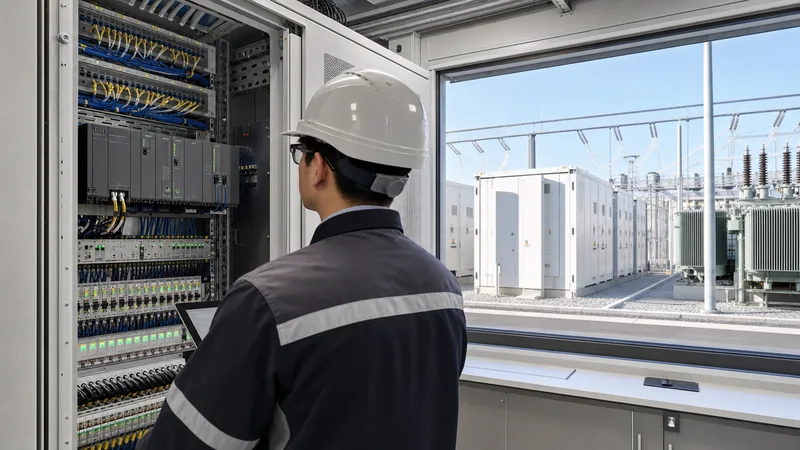

EMS Battery Storage: Architecture, Control & Dispatch Guide

Quick answer: An EMS battery storage platform is the supervisory software and hardware layer that coordinates battery strings, power conversion systems (PCS), auxiliary systems, and the grid to dispatch active and reactive power safely, economically, and automatically. It determines when, how fast, and to what level an energy storage installation charges or discharges.

In utility-scale and commercial installations, battery assets cannot operate efficiently through raw battery management commands alone. While the lower-level safety controls protect electrochemical cells from thermal and electrical extremes, an intelligent supervisory system must evaluate market signals, solar irradiance forecasts, transformer capacities, and tariff structures in real time. Deploying an enterprise-grade battery energy management system ensures high round-trip efficiency, prevents unnecessary cycle degradation, and maintains strict grid code compliance at the point of common coupling (PCC).

Understanding the architecture, control algorithms, and communications interfaces of modern energy storage controls is essential for project developers, EPC contractors, and electrical design engineers selecting components for commercial and industrial projects.

Architecture of a Battery Energy Management System

A battery energy management system operates as the central intelligence within a four-tier operational hierarchy governing energy storage assets.

The hierarchy separates safety-critical millisecond functions from long-term economic scheduling:

• Layer 1 (Cell & Rack Protection): The local battery management system monitors individual cell voltages, temperatures, and state of charge (SoC). As detailed in our BMS battery engineering guide, this layer executes immediate contactor trips during overvoltage, undervoltage, or thermal runaway events.
• Layer 2 (Power Conversion): The power conversion system controls bidirectional four-quadrant inverter bridges, managing four-quadrant P-Q control, synthetic inertia, and anti-islanding within tens of milliseconds.
• Layer 3 (Plant Control - The BESS EMS): The local bess ems runs deterministic algorithms on an industrial programmable automation controller (PAC) or edge server. It monitors site load meters, solar inverters, auxiliary transformers, and fire suppression systems, calculating setpoints for the PCS.
• Layer 4 (Cloud Orchestration & SCADA): Centralised enterprise SCADA platforms aggregate multi-site telemetry, run machine-learning revenue models, interface with transmission system operators (TSO), and dispatch wholesale dispatch commands down to the site EMS via secure APIs.

By decoupling sub-second power electronic switching from supervisory asset management, this modular architecture prevents control hunting, protects the cells, and guarantees system uptime during network telemetry loss.

Core Control Modes in EMS Battery Storage Applications

An industrial ems battery executes distinct operating modes depending on off-taker requirements, interconnection agreements, and revenue structures.

Commercial and industrial facilities frequently implement multi-use application stacking, toggling dynamically between the following control routines:

1. Peak Shaving and Demand Limiting: The EMS continuously reads active power at the primary utility revenue meter. When site load exceeds a contracted threshold, the EMS commands the PCS to discharge battery power, flattening the demand spike. Sizing and operational methodologies for this mode are explored in our guide to peak shaving battery energy storage.
2. Dynamic Tariff Arbitrage: The system imports cheap off-peak power during low-tariff windows (or during local solar generation peaks) and exports or self-consumes during expensive peak windows. Algorithms account for round-trip system efficiency (RTE) losses to ensure each cycle yields a positive net economic margin.
3. Frequency Containment and Regulation: Operating to national grid codes, the EMS monitors grid frequency via high-speed transducers. If grid frequency drops below nominal (e.g. 50.0 Hz in European or 60.0 Hz in North American grids), the system injects active power within 200 milliseconds to stabilise the network.
4. Power Factor Correction and Voltage Support: The EMS calculates reactive power (VAr) requirements at the PCC, commanding the PCS to operate in leading or lagging quadrants to satisfy utility power factor targets without derating active battery capacity.
5. Microgrid Islanding and Black Start: Upon loss of mains voltage, the EMS coordinates with medium-voltage switchgear relays, commanding the PCS to transition from grid-following to grid-forming mode, creating a stable local voltage reference.

Communications Protocols and Hardware Topologies

Deterministic communications interfaces are required to maintain closed-loop control across the diverse sub-components of an energy storage installation.

Deployments combine hardwired digital/analogue I/O for safety-critical interlocks with high-speed fieldbus architectures. The table below outlines standard network protocols, interfaces, and deterministic cycle requirements across the bess ems stack:

To adhere to IEC 62443-3-3 cybersecurity standards, modern ems battery storage architectures enforce physical or VLAN separation between local OT control networks and wide-area cloud management interfaces, preventing unauthorised remote setpoint modifications from threatening grid stability.

Worked Calculation: EMS Peak-Shaving Dispatch Optimization

A practical calculation demonstrates how an EMS evaluates whether to discharge an ems battery during a peak industrial tariff window.

Consider an industrial manufacturing facility with a 500 kW / 1,000 kWh lithium iron phosphate (LFP) energy storage system linked to an on-site transformer. The facility manager seeks to shave a 400 kW peak load exceeding the contracted maximum demand threshold of 1,200 kW during a 2-hour window (16:00 to 18:00).

• Peak grid demand tariff: £18.50 per kW/month
• On-peak electricity price: £0.28 per kWh
• Off-peak charging electricity price: £0.09 per kWh
• System round-trip efficiency (RTE): 86%
• Cell degradation amortisation cost: £0.045 per delivered kWh
• Battery reserve limit: Minimum 10% SoC; Maximum 90% SoC (80% usable = 800 kWh)

Step 1: Calculate discharge energy demand:

The load exceeds the threshold by: P_shave = 1,600 kW - 1,200 kW = 400 kW.

Energy delivered over 2 hours: E_discharge = 400 kW × 2 h = 800 kWh. This matches the exact usable window of the 1,000 kWh storage asset (10% to 90% SoC).

Step 2: Calculate operational cost of discharge:

To discharge 800 kWh through an 86% RTE system, the required off-peak input energy is: E_charge = 800 kWh / 0.86 = 930.23 kWh.

Input charging cost: 930.23 kWh × £0.09/kWh = £83.72.

Cell degradation cost: 800 kWh × £0.045/kWh = £36.00.

Total cycle operational cost: £83.72 + £36.00 = £119.72.

Step 3: Calculate gross operational savings:

Energy cost offset: 800 kWh × £0.28/kWh = £224.00.

Demand charge reduction achieved for the monthly billing cycle: 400 kW × £18.50/kW = £7,400.00.

Assuming 22 operational billing days per month, demand savings allocated to this single dispatch event equal: £7,400 / 22 = £336.36.

Total single-event savings: £224.00 + £336.36 = £560.36.

Step 4: Net economic yield:

Net Benefit = £560.36 - £119.72 = £440.64 per dispatch event.

Because the net benefit is positive and the required discharge power (400 kW) falls comfortably within the PCS rating (500 kW), the EMS dispatch algorithm sets the PCS active power setpoint to 400 kW discharge while monitoring rack temperatures and SoC constraints. Comprehensive system layout rules for such setups can be referenced in our battery ESS engineering guide.

Factory Acceptance and Commissioning Checklist for BESS EMS

A structured factory acceptance testing (FAT) and site commissioning program validates that control response times, safety trips, and fail-safe states perform within design limits.

Engineers should verify the following verification stages before energisation:

1. Point-to-Point I/O and Telemetry Validation: Verify register mapping between the EMS, the BMS master, and the PCS. Ensure scaling multipliers, signed integer conversions, and unit definitions (kW vs W, 0.1 V vs 1 V) are fully verified against vendor interface sheets.
2. Loss-of-Communication Failsafe Tests: Unplug the primary Modbus TCP communication cable between the EMS controller and the PCS. Confirm that the inverter transitions to its programmed safety state (typically zero active and reactive power output) in less than the maximum allowable trip time (e.g. 500 ms).
3. Emergency Stop & Interlock Loops: Validate hardwired emergency stop (E-Stop) circuitry. Activating any field E-stop, container fire detection relay, or gas detection sensor must bypass software logic, opening the primary MV/LV breakers and isolating the battery racks directly.
4. Closed-Loop Meter Follow Tracking: Inject simulated meter signals via a secondary injection test set to replicate rapid load swings. Verify that the EMS adjusts PCS output to match target setpoints without overshoot or ringing exceeding 2% of rated power.
5. SoC Boundary Enforcement: Attempt manual charge commands when the BMS reports maximum charge limit (SoC = 100%), and discharge commands when at low cut-off limit (SoC = 5%). Verify the EMS rejects supervisory override commands that violate BMS safety boundaries.
6. Cybersecurity and Network Segmentation Audit: Test that outbound telemetry uses encrypted channels (TLS 1.3), default passwords are deactivated, and remote access conforms to IEEE 1686 substation IED security standards.
