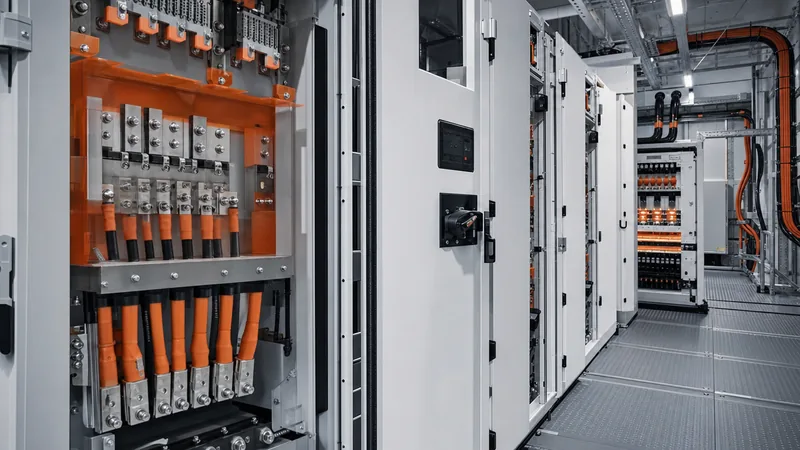

BESS Connections: Electrical Interface & Wiring Guide

Quick answer: BESS connections comprise the complete physical and electrical architecture linking lithium-ion battery modules to rack busbars, DC combiners, power conversion systems (PCS), medium-voltage transformers, and auxiliary balance-of-plant systems. Proper interface engineering guarantees high conversion efficiency, precise state-of-charge tracking, and fault interruption up to 1,500 V DC.

Designing utility-scale and commercial energy storage requires managing high-current direct current (DC) circuits and alternating current (AC) grid interconnections. Unlike conventional distribution circuits, battery storage circuits act as continuous power sources capable of delivering high fault currents with virtually zero source impedance during the initial cycles of an electrical fault. Every junction, crimp, busbar bolted joint, and communication loop must withstand repetitive thermal cycling and dynamic electrodynamic forces.

Engineers specifying these interfaces must balance thermal management, fire barrier integrity under NFPA 855, galvanic isolation, and strict insulation coordination. This guide examines the engineering practices governing physical and electrical connections across utility and commercial installations.

BESS Components and Interconnection Architecture

The core bess components are structured into distinct DC power, AC power, auxiliary power, and communication subsystems that interface at discrete boundary points. To maintain system reliability, engineers must establish precise physical boundaries between low-voltage DC, medium-voltage AC, and sensitive microelectronics.

A modern grid-scale installation incorporates several critical battery energy storage system components: rack-level battery modules, a high-voltage switchgear box (BPU or rack management unit), central or string power conversion systems, liquid cooling chillers, fire suppression manifolds, and the master site energy management system (EMS). The DC coupling architecture links individual cell blocks in series strings up to nominal operating voltages of 1,000 V DC or 1,500 V DC. These strings terminate at a DC switchboard or inverter input through rapid-clearing protection devices.

In utility-scale layouts, systems route multiple rack outputs into dedicated outdoor-rated enclosures or walk-in containers. Understanding the thermal boundaries and layout of these subsystems is essential, as detailed in our guide to battery enclosure engineering design. The table below outlines how primary subsystems connect within a standard 1,500 V DC containerised architecture.

DC BESS Connections: Module, Rack, and Combiner Level

DC bess connections require mechanical tolerance accommodation and thermal-expansion relief because high charge-discharge cycling causes continuous expansion and contraction of conductor interfaces. Solid copper links between adjacent modules often suffer stress fracturing when exposed to repetitive thermal cycles; therefore, multi-layer flexible copper bridge connectors with tin or nickel plating are preferred.

At the rack level, series-connected modules build system voltage up to 1,500 V DC. Each battery string terminates at a rack control box housing a high-voltage DC contactor, an isolation disconnector, a shunt resistor, and a fast-acting semiconductor or gBat fuse. In accordance with IEC 60269-7, gBat fuses are specifically calibrated to clear high prospective short-circuit currents while handling repetitive cyclic loading without fatigue ageing.

Terminations at DC combiners must employ torque-controlled compression lugs or bolted pressure plates with Belleville spring washers. A Belleville washer maintains constant clamping pressure over operating ranges spanning -30°C to +60°C ambient temperatures. Using unplated copper against aluminium terminals causes galvanic corrosion; engineers must specify bimetallic friction-welded lugs or nickel-plated interface plates treated with contact grease to eliminate oxidation at terminal joints.

AC Coupling vs DC Coupling in BESS Connections

Deciding between AC-coupled and DC-coupled bess connections dictates inverter topology, protective relay allocation, round-trip efficiency, and substation physical layout. AC-coupled architectures interface battery storage and co-located generation via distinct inverters onto a common AC busbar, whereas DC-coupled systems integrate storage behind a shared inverter via intermediate DC-DC converters.

For retrofits and utility-scale dispatch facilities, AC coupling is standard. In this arrangement, the battery cluster connects directly to a bidirectional power conversion system that handles grid synchronisation, active/reactive power dispatch, and black-start commands. The AC output passes through low-voltage switchgear to a dedicated step-up transformer. This physical decoupling isolates DC fault propagation exclusively to the battery zone, allowing standard AC switchgear to isolate grid disturbances.

DC coupling routes energy from photovoltaic (PV) arrays directly into the battery DC bus through maximum power point tracking (MPPT) buck-boost converters. While DC coupling eliminates one stage of power conversion—improving round-trip charging efficiency by 1.5% to 2.5%—it complicates fault protection. A DC fault can simultaneously draw short-circuit current from both the PV array and the battery strings, demanding multi-pole DC circuit breakers rated for high prospective breaking capacities.

Grid-Side and Medium-Voltage BESS Connections

Medium-voltage bess connections bridge the low-voltage AC terminals of the power conversion system to the utility distribution or transmission network via a step-up transformer and MV switchgear. In large utility-scale systems, multiple inverters feed the low-voltage split-windings of an outdoor transformer (typically stepping up from 690 V to 13.8 kV, 24 kV, or 33 kV).

Grid interconnection must comply with IEEE 1547-2018 or regional grid codes such as ENTSO-E requirements for fault ride-through (FRT), dynamic reactive current support, and frequency response. Detailed design approaches for connecting these systems to utilities are outlined in our guide to grid integration of renewable energy sources. At the point of common coupling (PCC), protective relays monitor voltage unbalance, phase displacement, reverse power flow, and anti-islanding conditions.

Harmonic distortion generated by fast-switching IGBT or SiC power stages requires passive LCL filters at the inverter output. The step-up transformer typically employs an electrostatic copper shield between the LV and MV windings to attenuate high-frequency common-mode noise generated by inverter pulse-width modulation (PWM). Cable connections between the inverter and transformer should follow close trefoil formations to minimise inductive reactance and cancel electromagnetic interference (EMI) affecting adjacent balance-of-plant cabling.

DC Cable Sizing and Short-Circuit Calculation for BESS Connections

Calculating conductor cross-sections for DC bess connections requires evaluating continuous current limits, voltage drop criteria, and short-circuit thermal withstand (I²t). Battery circuits present significant short-circuit hazards because internal electrochemical resistance governs the fault current, with no alternating-current zero crossings to assist in arc quenching.

Consider a 1,000 kW / 2,000 kWh utility BESS container consisting of 8 parallel strings operating at a nominal voltage of 1,280 V DC (discharge cut-off: 1,120 V DC; maximum float: 1,440 V DC). We size the main DC feeder from a rack combiner to the central inverter.

1. Continuous Current Calculation: The maximum continuous discharge current ($I_{\text{max}}$) occurs at minimum battery discharge voltage ($V_{\text{min}}$). Assuming a rated rack cluster discharge of 1,000 kW:
   $$I_{\text{max}} = \frac{P}{V_{\text{min}}} = \frac{1,000,000 \text{ W}}{1,120 \text{ V}} = 892.86 \text{ A}$$
2. Application of Safety and Continuous Factors: In compliance with NEC 706.31 and IEC 60364-5-52, conductors must be sized for 125% of maximum continuous current:
   $$I_{\text{design}} = 892.86 \text{ A} \times 1.25 = 1,116.1 \text{ A}$$
3. Conductor Selection and Derating: Running three parallel runs of single-core copper conductor per polarity with cross-linked polyethylene (XLPO 90°C) insulation. Each conductor must carry:
   $$I_{\text{cable}} = \frac{1,116.1 \text{ A}}{3} = 372 \text{ A}$$Applying an ambient temperature derating factor ($k_{\text{temp}} = 0.87$ for 45°C ambient within the container trench) and a grouping factor ($k_{\text{group}} = 0.82$ for cables in close proximity):
   $$I_{\text{corrected}} = \frac{372 \text{ A}}{0.87 \times 0.82} = 521.4 \text{ A}$$According to IEC 60364-5-52 Table B.52.4, a 240 mm² copper conductor provides an installation current-carrying capacity of 538 A, satisfying the continuous thermal requirement.
4. Short-Circuit Withstand Evaluation: Each rack has an internal resistance of $R_{\text{rack}} = 35 \text{ m}\Omega$. With 8 strings in parallel, the equivalent source resistance is:
   $$R_{\text{eq}} = \frac{35 \text{ m}\Omega}{8} = 4.375 \text{ m}\Omega$$The prospective peak DC short-circuit current ($I_{\text{sc}}$) at maximum float voltage (1,440 V) is:
   $$I_{\text{sc}} = \frac{1,440 \text{ V}}{0.004375 \Omega} = 329.14 \text{ kA}$$This high prospective fault requires rapid-clearing ultra-fast fuses (clearing time $t \le 5 \text{ ms}$) within each individual rack BPU to clear local faults before prospective container currents accumulate at the central bus.

Commissioning and Inspection Checklist for BESS Connections

Commissioning bess connections requires structured physical and electrical validation prior to initial energisation to prevent arc-flash events and premature component degradation. Low-resistance contact integrity and precise communication wiring are both required for stable operations.

Digital monitoring interfaces must be verified across every tier of the control hierarchy, following the architectural guidelines in our battery monitoring system guide. Field engineers must execute the following sequential commissioning protocol:

1. Torque and Mark Verification: Verify torque markings across all bolted busbars and power lugs using a calibrated torque wrench to the exact manufacturer values. Apply torque seal lacquer across nuts and studs to provide an immediate visual indication of vibrational loosening.
2. Insulation Resistance (Megohmmeter) Testing: Disconnect sensitive electronic voltage sensors and execute a DC insulation test at 2,500 V DC between positive and ground, negative and ground, and between poles (with isolation switches open). Measured resistance must exceed 100 MΩ under ambient dry conditions.
3. Micro-Ohm Contact Resistance Measurement: Measure contact resistance across all series module links and busbar splices using a digital low-resistance ohmmeter (DLRO). Joint resistances exceeding 15 µΩ must be unbolted, cleaned of surface oxidation, recoated with contact compound, and re-torqued.
4. Polarity and Open-Circuit Voltage Checks: Confirm strict polarity matches on every string disconnect switch before combiner closure. A reversed polarity connection on a 1,500 V string will cause instantaneous destruction of input stages upon breaker closure.
5. Communication Loop and Shield Continuity: Verify that CAN bus, serial Modbus, and Ethernet networks maintain drain wire earthing at one single point only (single-point grounding) to prevent ground loops that corrupt BMS telemetry.
