Quick answer: In clean energy ventures portfolio long duration energy storage systems, utility-scale assets are engineered to provide rated power continuously for 10 to over 100 hours, balancing multi-day renewable generation deficits. These venture-backed technologies prioritize earth-abundant, low-cost chemistries—such as iron-air, aqueous flow, and thermal systems—to decouple power (MW) from stored energy (MWh) and reduce capacity capital expenditure below $20/kWh.

As electricity grids integrate higher proportions of non-synchronous wind and solar power, the operational ceiling of standard four-hour lithium-ion batteries becomes apparent. While conventional batteries excel at frequency regulation and short-duration peak shifting, addressing seasonal shortfalls, wind droughts, and prolonged transmission outages demands multi-day storage architectures. Analysing the clean energy ventures portfolio long duration energy storage paradigm reveals how innovative electrochemical and thermomechanical designs bridge this multi-day endurance gap, and how balance-of-plant electrical equipment must adapt to support extended charge and discharge durations.

Core Architectures in Clean Energy Ventures Portfolio LDES Battery Systems

A clean energy ventures portfolio LDES battery is characterised by electrochemical decoupling of power and energy ratings, minimal capacity degradation over decades, and non-flammable operational chemistries. Unlike lithium-ion cells where anode, cathode, and electrolyte are enclosed in a fixed cell ratio, many portfolio technologies physically separate the energy-bearing medium from the power-generating reaction surfaces.

The principal electrochemical categories found within leading institutional portfolios include:

• Iron-air batteries: Utilising the reversible oxidation of metallic iron (rusting and de-rusting cycle), these systems achieve theoretical discharge durations of 80 to 150 hours. The primary raw materials—iron, water, and atmospheric oxygen—yield low cell-level material costs, making 100-hour grid backup commercially viable despite a modest AC round-trip efficiency (RTE) of 45% to 55%.
• Aqueous redox flow batteries: Employing circulating liquid electrolytes based on vanadium, iron-chromium, or zinc-bromine chemistries. The liquid electrolyte is stored in atmospheric external bulk tanks, allowing project engineers to increase duration simply by expanding tank capacity and electrolyte volume without purchasing additional cell stacks.
• Zinc-hybrid and metal-anode batteries: Featuring aqueous, non-combustible electrolytes that operate safely without the complex fire suppression infrastructures required under NFPA 855 for conventional batteries. These systems are detailed in the Long Duration Energy Storage: Engineering Guide to LDES Systems.
• High-temperature thermal storage: Converting electricity into thermal energy stored in solid media (such as graphite, ceramic blocks, or molten salt) and recovering it via steam turbine-generators or thermophotovoltaic cells for combined heat and power applications.

Comparing these assets with standard installations examined in our Utility Scale Battery Storage: Engineering & Sizing Guide demonstrates that LDES focuses entirely on minimising the levelised cost of storage (LCOS) for durations exceeding 10 hours.

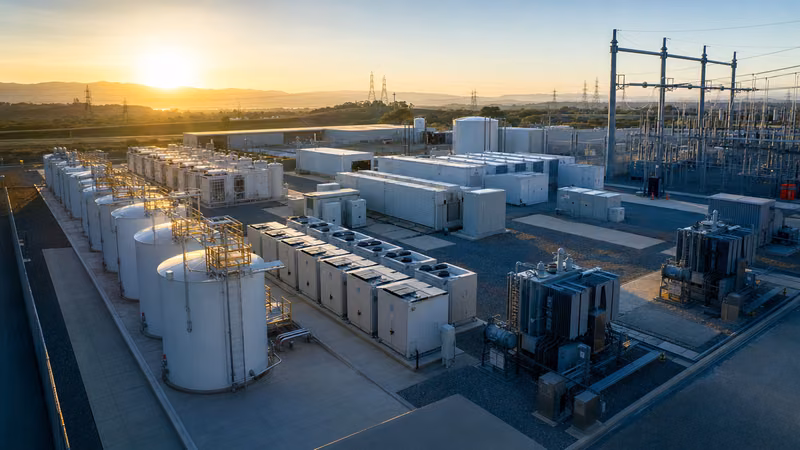

Clean Energy Ventures Portfolio Long Duration Energy Storage

Clean energy ventures portfolio long duration energy storage deployment requires a fundamental shift from power-centric sizing to energy-centric continuous discharge engineering. While conventional lithium-ion installations dimension their power conversion system (PCS) and battery racks at a 1:2 or 1:4 power-to-energy ratio (for example, 100 MW / 400 MWh), LDES facilities operate at 1:10 to 1:100 ratios.

Consider a utility sub-transmission interconnection requiring 20 MW of firm continuous generation to manage a 48-hour winter wind drought:

1. Required Net Energy Output: 20 MW × 48 h = 960 MWh net delivered energy to the 34.5 kV substation collector bus.
2. Efficiency Compensation: Assuming an iron-air system with an AC-to-AC round-trip efficiency of 50%, the nominal DC storage rating must account for depth of discharge (DoD) limits and auxiliary loads:$$E_{gross} = \frac{960\text{ MWh}}{0.95\text{ DoD} \times 0.96\text{ auxiliary factor}} = 1,052.6\text{ MWh}$$
3. Power Conversion Rating: The PCS inverter rating is sized for the peak generation export:$$P_{PCS} = \frac{20\text{ MW}}{0.985\text{ inverter eff}} = 20.3\text{ MVA (minimum)}$$
4. Recharge Sizing: If the asset must fully recharge within a 72-hour window following the discharge event, the required continuous input power from the grid is:$$P_{charge} = \frac{1,052.6\text{ MWh}}{72\text{ h} \times 0.50\text{ RTE} \times 0.985\text{ PCS eff}} \approx 29.67\text{ MW}$$

This calculation illustrates that while the inverter capacity remains modest (20 to 30 MW), the storage yard requires over 1,050 MWh of storage media. Detailed battery cell selection principles can be referenced in our review of LFP vs NMC Battery: Commercial BESS Chemistry Guide.

Clean Energy Ventures Portfolio LDES Battery Performance Comparison

System selection within long-duration portfolios depends on trade-offs between footprint, round-trip efficiency, parasitic thermal auxiliary loads, and capital cost per additional kilowatt-hour. Standard lithium iron phosphate containers remain the benchmark for short durations, but their linear scaling cost makes them uneconomical beyond 8 to 10 hours of storage.

The following decision matrix evaluates technical parameters across utility-grade storage chemistries:

As demonstrated in the comparison, iron-air and thermal assets sacrifice instantaneous electrical efficiency to reach an incremental storage capital cost below $30/kWh. This economic tipping point allows plant developers to overbuild energy capacity without incurring prohibitive capital equipment debt.

Electrical Balance of Plant and Substation Integration for LDES

Electrical balance-of-plant (BOP) engineering for LDES installations requires thermal continuous-duty ratings on all step-up transformers, medium-voltage switchgear, and power conversion systems. Unlike four-hour battery facilities where power transformers cycle between peak load and rest periods, multi-day systems expose magnetics and conductors to uninterrupted 100% rated current for dozens of continuous hours.

Key balance-of-plant design mandates include:

• Transformer Thermal Limits: Step-up transformers must be engineered per IEC 60076-2 for continuous ONAN (Oil Natural Air Natural) or ONAF (Oil Natural Air Forced) operation without relying on cyclic cooling intervals. High harmonic currents generated by long-duration inverters demand transformers with electrostatic shielding and a minimum K-factor rating of K-4 to K-9 to prevent excessive eddy current heating in tank walls and core laminations.
• Inverter Continuous Duty: Centralised inverters require oversized thermal heat sinks and liquid cooling loops designed for continuous ambient operating temperatures up to 50°C. Inverter staging and control architectures are explored in our Power Conversion System (PCS): Engineering Design & Sizing Guide.
• Grid-Forming Interconnection: LDES plants connected to weak transmission nodes must provide virtual inertia, fast fault current injection, and black-start capabilities in accordance with IEEE 2800-2022 clause 4. Grid-forming inverter controls maintain voltage and frequency stability when the transmission grid is stressed by renewable generation deficits.
• Medium-Voltage Protection: Due to low short-circuit current contributions from inverter-interfaced assets, switchgear protection relies on directional overcurrent relays (ANSI 67) and sensitive earth-fault detection (ANSI 50N/51N) rather than standard thermal-magnetic tripping curves.

Site Acceptance and Commissioning Procedure for Multi-Day Systems

Commissioning an LDES battery facility requires extended verification procedures to confirm thermal stability, balance-of-plant auxiliary loads, and sustained discharge capacity under field conditions. Field testing must adhere to international standards including IEC 62933-2-1 clause 5.2 for electrical energy storage systems.

1. Pre-Commissioning Cold Checks: Verify torque specifications on all medium-voltage DC busbars and MV cable terminations. Conduct insulation resistance testing (megohmmeter test at 2.5 kV or 5 kV DC per IEEE 43) and confirm dielectric integrity of all transformer oil samples per IEC 60156.
2. Auxiliary Power and Thermal System Validation: Energise auxiliary systems including electrolyte circulation pumps, thermal heat management loops, and ventilation chillers. Confirm parasitic power draw does not exceed maximum engineering thresholds under maximum ambient summer design temperatures.
3. Continuous Full-Power Charge Verification: Initiate a 100% state-of-charge cycle at the rated continuous power injection limit. Monitor transformer top-oil temperature and winding hot-spot rises using calibrated RTD sensors to ensure compliance with IEC 60076-7 limits.
4. Sustained Multi-Day Discharge Test: Discharge the battery bank across its full operational window (e.g., 24 to 100 continuous hours) into the collector grid or an on-site resistive load bank. Record energy delivered at the Point of Common Coupling (PCC) revenue meter to verify rated net discharge energy capacity (MWh).
5. Emergency Trip and Safety Isolation: Trigger an emergency power off (EPO) signal during full discharge. Ensure DC contactors, medium-voltage vacuum circuit breakers, and liquid fluid isolation valves open within established safety thresholds without arcing or transient overvoltages exceeding IEEE 1547 tolerances.

Next steps: specifying and sourcing
