Checking Insulation Resistance: Complete Engineering Guide

Quick answer: Checking insulation resistance involves applying a steady high-voltage direct-current (DC) potential across an electrical dielectric system to measure leakage current and verify ohmic resistance integrity. Conducted using a calibrated megohmmeter, this test identifies moisture contamination, thermal degradation, and mechanical fractures before energising electrical apparatus.

In electrical power engineering, the dielectric insulation system represents the primary barrier protecting transformers, switchgear, and medium-voltage cables from catastrophic phase-to-phase and phase-to-earth flashovers. Dielectric degradation accounts for over 40% of sudden high-voltage apparatus failures. Establishing a rigorous protocol for an electrical insulation resistance test enables asset managers and commissioning engineers to detect moisture ingress, surface tracking, carbonisation, and mechanical breakdown well before energisation. Whether executed during routine substation maintenance or as part of a formal factory acceptance protocol, an transformer factory acceptance testing checklist relies on these baseline ohmic measurements. This guide details the foundational physics, international testing standards, step-by-step procedures, and diagnostic interpretation methods essential for power engineers executing diagnostic insulation assessments.

What Does a Megger Measure in Electrical Apparatus?

A megohmmeter measures total electrical leakage current across an insulating barrier under applied direct voltage and converts it into an ohmic resistance reading expressed in megohms, gigohms, or teraohms. When engineers ask what does megger measure, the instruments quantify three discrete current components that traverse or bypass the dielectric medium: capacitive charging current, dielectric absorption current, and true conduction (leakage) current.

Upon initiating an insulation resistance test, the total current $I_{total}(t)$ flowing through the insulation varies as a function of time according to the following dynamic relationship:

$$I_{total}(t) = I_c(t) + I_a(t) + I_R$$

The constituent currents operate under distinct physical mechanisms:

• Capacitive charging current ($I_c$): A high-magnitude current that charges the geometric capacitance between conductors. It decays exponentially to zero within seconds in compact apparatus, though it persists longer in lengthy transmission cables.
• Dielectric absorption current ($I_a$): A decaying current caused by molecular polarisation within the composite dielectric material. In sound insulation, this polarising current decreases asymptotically towards zero over approximately 10 minutes.
• True conduction leakage current ($I_R$): The steady-state, time-invariant current that passes through the bulk volume of the insulation and along external creepage surfaces. This represents the critical variable: a high conduction current indicates moisture saturation, conductive particulate bridging, or thermal charring.

By monitoring the rate of decay of total current over 60 seconds to 10 minutes, an electrical megger test determines whether current conduction is dominated by true dielectric leakage or normal molecular polarisation.

Standard Test Voltages for Electrical Insulation Testing

Test voltage selection depends strictly on the nominal operating voltage of the winding or cable under test, following guidelines established in IEEE C57.12.90, IEC 60076-1, and NETA MTS (Maintenance Testing Specifications). Applying an excessive test voltage risks puncturing aged or delicate dielectric barriers, whereas an insufficient potential fails to excite latent pinholes, voids, and tracking paths.

For liquid-immersed and dry-type distribution transformers, standard DC test potentials differ between initial factory acceptance tests and in-situ field maintenance diagnostics. Below are the standard DC potentials utilised during diagnostic electrical insulation testing:

Prior to commissioning transformers detailed in our field and factory transformer testing guide, verify that voltage suppressors, surge arresters, and instrument potential transformers (PTs) are disconnected to prevent false leakage paths or component damage.

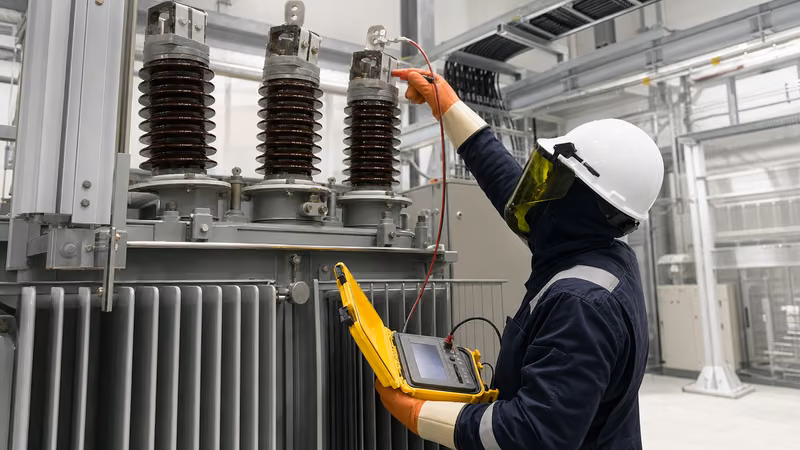

Procedure for Checking Insulation Resistance on Transformers

Checking insulation resistance on a transformer requires isolating all phases, shorting the respective winding terminals together, and measuring dielectric leakage across winding groups and to the earthed frame. Standard evaluations require three primary diagnostic configurations: High Voltage to Low Voltage plus Earth (HV to LV + E), High Voltage to Earth with Low Voltage guarded (HV to E [LV Guarded]), and Low Voltage to High Voltage plus Earth (LV to HV + E).

To perform an accurate megohmmeter test on a power or distribution unit, execute the following step-by-step procedure:

1. Isolate and verify de-energisation: Open all upstream and downstream circuit breakers. Lock out and tag out (LOTO) the system. Test all bushings with an approved voltage detector to verify zero electrical energy.
2. Earth and discharge: Apply temporary safety grounds to all high-voltage and low-voltage terminals for at least five minutes to dissipate any accumulated capacitive residual charge.
3. Short individual winding groups: Using bare copper bonding jumpers, short-circuit all primary terminals together (e.g., H1, H2, H3, H0) and all secondary terminals together (e.g., X1, X2, X3, X0). This neutralises internal inductive loop effects during direct-voltage injection.
4. Clean bushing creepage surfaces: Wipe down porcelain or composite bushings with anhydrous isopropyl alcohol to eliminate atmospheric dust, grease, and moisture films that distort surface leakage measurements.
5. Connect the instrument leads: Attach the negative line (L) terminal of the test set to the high-voltage winding bundle. Connect the positive earth (+) lead to the bare metal transformer tank ground. When measuring winding-to-winding resistance, connect the instrument guard (G) terminal to the low-voltage winding to divert stray surface and inter-winding leakage around the internal measuring circuit.
6. Execute the injection sequence: Apply the pre-selected DC potential (e.g., 2,500 V or 5,000 V DC). Record the resistance values at 15 seconds, 30 seconds, 60 seconds, and continuously up to 10 minutes (600 seconds) for polarisation index calculations.
7. Discharge the winding: Stop voltage generation and allow the test unit's internal discharge resistor to bleed down the test charge. Maintain direct earthing contact on the terminal bundle for a minimum duration of four times the test duration before touching leads.

For resin-encapsulated equipment such as units described in our dry-type transformer engineering guide, maintaining absolute cleanliness along the winding cast surfaces is critical, as minor ambient humidity condensation severely degrades dry insulation baseline readings.

Megger Test for Cables and Auxiliary Circuitry

A megger test for cables evaluates dielectric strength between individual conductors and between each conductor and the metallic earth shield or armour. In medium-voltage power distribution, an electrical cable megger test identifies physical gouges, water treeing within cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR), and degraded joint splices before terminating into switchboards or substations.

When completing insulation testing with a megger on a three-core armoured cable, the line lead attaches to phase A, while phases B and C are connected directly to the outer armour and substation ground. The test set injects voltage into phase A for 60 seconds. This sequence repeats sequentially for phase B and phase C. Under NETA MTS standards, newly installed shielded 15 kV cable must exhibit a minimum 60-second insulation resistance greater than 5,000 MΩ at 20°C when tested at 2,500 V DC.

Similarly, performing a megohmmeter check electrical circuits on low-voltage secondary control circuits, current transformer (CT) loops, and trip-coil wiring validates integrity against ground faults. Control and relay circuits operating at 110 V or 220 V DC are routinely evaluated with an electrical meg test at 500 V DC, where any reading falling below 2 MΩ demands immediate investigation for trapped moisture in conduit runs or pinched terminal wires.

Temperature Normalisation and Dielectric Ratios: DAR and PI

Dielectric resistance varies inversely with temperature: an increase in insulation temperature accelerates ionic mobility, effectively halving measured resistance for every 10°C rise. To make valid historical comparisons, every field megohm test reading must be corrected to a baseline reference temperature of 20°C using the standard temperature conversion coefficient:

$$R_{20} = R_T \times K_T$$

Where $R_T$ represents the resistance measured at temperature $T$ (°C), and the correction factor $K_T$ is defined in IEEE C57.12.90 as:

$$K_T = 2^{\frac{T - 20}{10}}$$

Because raw resistance values depend heavily on core mass, insulation thickness, and ambient temperature, diagnostic engineers rely on dimensionless ratios: the Dielectric Absorption Ratio (DAR) and the Polarization Index (PI). These ratios divide a late-stage resistance reading by an early-stage reading taken during the same continuous charge cycle, cancelling out ambient temperature effects.

$$DAR = \frac{R_{60s}}{R_{30s}}$$

$$PI = \frac{R_{10min}}{R_{1min}}$$

In a healthy insulation system with minimal moisture, molecular dipoles align gradually, driving total current down and pushing the 10-minute resistance value significantly higher than the 1-minute value. According to IEEE 43 and IEEE C57.12.90, acceptable evaluation thresholds are standardised as follows:

• Dangerous / Unacceptable: PI < 1.0 (indicates severe conductive tracking, active water ingress, or heavy carbonisation).
• Questionable: 1.0 ≤ PI < 1.5 (requires immediate dry-out or oil reclamation).
• Fair: 1.5 ≤ PI < 2.0 (typical for aged transformer assets; continuous monitoring advised).
• Good / Excellent: 2.0 ≤ PI ≤ 4.0 (standard for modern synthetic, cellulose, and resin systems).
• Brittle / Overheated: PI > 5.0 (often observed in dry, thermally aged, or physically embrittled insulation wraps requiring mechanical inspection).

When liquid-immersed transformers yield substandard PI ratios, pairing insulation resistance checks with dissolved gas analysis and dielectric fluid testing—as outlined in our guide on transformer oil purification and vacuum processing—identifies whether contamination resides predominantly within the bulk fluid or the solid winding paper.

Interpreting Insulation Resistance Test Results

Interpreting test results requires benchmarking corrected insulation resistance against OEM factory records, asset baseline trends, and absolute international pass/fail limits. The classic historical rule of thumb—specifying 1 MΩ per rated kilovolt plus 1 MΩ—is insufficient for modern power transformers and vacuum-pressure-impregnated (VPI) coils, which regularly exhibit baseline resistances in the tens of gigohms.

To establish compliance, engineers use the empirical minimum limit derived from winding rated kVA and primary voltage ratings per standard IEEE guidelines:

$$R_{min} = \frac{V_{LL} \times C}{\sqrt{kVA}}$$

Where $V_{LL}$ is the line-to-line voltage in volts, $kVA$ is the rated capacity, and $C$ is a constant equal to 1.5 for oil-immersed units at 20°C (or 30.0 for dry-type systems in ventilated enclosures).

Modern digital instruments used in mega ohm meter testing also generate graphical absorption curves. If resistance reaches a plateau within 60 seconds instead of rising continuously over the 10-minute cycle, excessive leakage paths are short-circuiting the polarisation process. In such scenarios, technicians should run high-potential (Hi-Pot) and power-factor dissipation tests before approving re-energisation.

Common Mistakes During Insulation Resistance Testing

Common mistakes during insulation testing include ignoring ambient humidity, failing to clean bushing ceramic skirts, omitting the guard terminal in high-humidity environments, and rushing capacitive discharge cycles. Even advanced megger meter testing delivers inaccurate data if these critical environmental and physical vectors are neglected.

• Omitting the Guard Terminal: Surface moisture or industrial grime along external bushing surfaces creates an alternate parallel leakage path to earth. By wrapping a bare wire around the bushing ceramic between the terminal stud and the tank flange and landing it on the instrument Guard (G) terminal, surface currents bypass the internal measurement shunt, ensuring only true bulk insulation resistance is registered.
• Failing to Temperature-Correct: Comparing a 45°C post-shutdown test directly against a 15°C baseline without applying the $K_T$ multiplier produces an apparent 800% drop in resistance, often causing unneeded downtime and panic.
• Inadequate Test Duration: Terminating an electrical insulation resistance test after 15 seconds measures only initial capacitive charging current, entirely missing slow-forming insulation degradation and rendering DAR/PI calculations impossible.
• Improper Grounding of Untested Windings: When testing high-voltage windings to ground, leaving low-voltage windings floating creates erratic electrostatic capacitive coupling. All windings not under direct excitation must be bonded to earth or to the guard circuit.
