What Is Battery Energy? Engineering Sizing & Metrics Guide

Quick answer: Battery energy is the total electrical work an electrochemical cell or battery bank can deliver over time, quantified in kilowatt-hours (kWh) or megawatt-hours (MWh). It equals the mathematical product of the electrical charge (in Ampere-hours) and the average operating discharge voltage under specified load and thermal conditions.

In utility-scale and commercial electrical engineering, understanding what is battery energy goes beyond fundamental physics. A battery does not store raw electricity; it stores chemical potential energy within the active materials of its electrodes. When an external circuit closes, reversible electrochemical reduction-oxidation (redox) reactions drive an electric current through the load. For electrical engineers, EPC contractors, and system designers, calculating and managing this energy requires distinguishing between theoretical cell capacity, installed nameplate capacity, and net usable energy at the point of common coupling.

What Is Battery Energy and How Is It Measured?

Battery energy is the integral of instantaneous terminal voltage multiplied by discharge current over the total duration of the discharge cycle until the lower cut-off voltage is reached. While electric capacity describes the total charge displaced—expressed in Ampere-hours (Ah)—energy accounts for the electrical potential at which those charges move, measured in Watt-hours (Wh), kilowatt-hours (kWh), or megawatt-hours (MWh).

Mathematically, the total electrical energy \(E\) delivered during discharge is defined by the following integral:

E = ∫ V(t) · I(t) dt

For engineering approximations under steady-state direct current conditions, this is simplified to:

E (Wh) = V_nom × C (Ah)

where V_nom is the nominal voltage of the electrochemical cell or battery module, and C is the discharge capacity in Ampere-hours. Standards such as IEC 62620 clause 6.3.1 stipulate strict discharge conditions to determine rated energy. Testing requires a stabilised ambient temperature of 25°C ± 2°C and a continuous reference discharge rate (typically 0.2C or 0.5C) terminating at the manufacturer's specified cut-off voltage. Precision measurement of energy throughput is vital for system control, which relies heavily on high-precision tracking through a dedicated battery monitoring system guide to prevent under-voltage stress and thermal runaway.

Does a Battery System Have Energy? Chemical Mechanics Explained

A battery system possesses electrochemical potential energy stored within the molecular lattices and chemical bonds of its active cathode and anode materials. When assessing whether does a battery system have energy when sitting idle, the answer is found in chemical thermodynamics: the energy exists as a Gibbs free energy difference (ΔG) between the charged and discharged states of the reactants.

The relationship between chemical thermodynamic potential and electrical potential is governed by the Nernst equation and Faraday's law:

ΔG = -n · F · E_cell

where n is the number of moles of electrons transferred per mole of reaction, F is the Faraday constant (96,485 C/mol), and E_cell is the electromotive force (EMF) of the electrochemical cell. In secondary (rechargeable) systems like Lithium Iron Phosphate (LiFePO4) or Nickel Manganese Cobalt (NMC), lithium ions de-intercalate from the cathode host structure and intercalate into the graphitic anode matrix during charging. This non-spontaneous process stores energy by elevating the chemical potential of the electrons. During discharge, electrons travel spontaneously through the external electrical load while ions travel internally across the electrolyte through a micro-porous polymer separator.

Because battery energy is stored electrochemically, state retention and energy availability fluctuate with dynamic variables including ambient temperature, internal cell resistance (DCIR), and cycle history. Operational monitoring tracks these dynamics using advanced metrics detailed in our battery SOC engineering guide.

Storing Energy in Batteries: Chemistries and Density Metrics

Storing energy in batteries requires selecting the appropriate electrochemical couple based on gravimetric energy density (Wh/kg), volumetric energy density (Wh/L), thermal stability, and operational cycle life. Grid-scale and commercial energy storage applications prioritise round-trip efficiency (RTE) and levelised cost of storage (LCOS) over absolute weight savings.

Commercial battery energy systems utilise several established chemistries, each demonstrating distinct thermodynamic and mechanical characteristics. The table below compares the primary storage chemistries deployed in modern stationary energy storage projects in accordance with IEC 62619 and IEEE 1679.1 standards:

For containerised installations, LFP has become the dominant technology because its olivine phosphate crystal structure resists oxygen liberation under thermal stress, mitigating thermal runaway risks as outlined in our technical breakdown on high voltage battery pack design.

Calculating Usable vs Nameplate Battery Energy: A Worked Engineering Example

A critical engineering failure in storage sizing is conflating installed nameplate DC energy with usable AC energy delivered to the load. System losses, operational operating windows, and lifecycle capacity fade reduce the actual net energy available during project execution.

Consider a design requirement for a commercial facility requiring a guaranteed net energy delivery of 1,000 kWh AC at the 400 V point of connection over a 2-hour discharge duration (a 500 kW constant load profile) at the end of a 10-year design life.

The engineering parameters are defined as follows:

• Operating Depth of Discharge (DoD): 80% (operating between 10% and 90% State of Charge to preserve cell longevity).
• Power Conversion System (PCS) Inverter Efficiency: 97.0% (0.97) under rated load.
• Balance of System (BOS) DC Losses: 1.5% (0.985 efficiency) representing cable resistance and protection component drops.
• Auxiliary Loads (HVAC & Controls): 2.0% parasitic energy draw (0.98 factor).
• End-of-Life (EoL) State of Health (SoH): 80% (0.80) capacity retention after 10 years of daily cycling.

The calculation proceeds from required net AC energy back to the necessary installed nameplate DC energy:

E_{net_DC} = E_{net_AC} / η_PCS = 1,000 kWh / 0.97 = 1,030.93 kWh

Factoring in balance-of-system distribution losses and ongoing auxiliary consumption:

E_{gross_DC_delivered} = 1,030.93 kWh / (0.985 × 0.98) = 1,067.99 kWh

Accounting for the allowable operational Depth of Discharge window (80%):

E_{beginning_of_life_DC} = 1,067.99 kWh / 0.80 = 1,334.99 kWh

Finally, factoring in the 80% End-of-Life capacity retention threshold to ensure the system satisfies contract guarantees on Day 3,650:

E_{installed_nameplate} = 1,334.99 kWh / 0.80 = 1,668.74 kWh

This calculation demonstrates that delivering a nominal 1,000 kWh AC load requires an installed DC battery capacity of approximately 1,670 kWh. Specifying merely 1,000 kWh of nameplate capacity would result in contractual non-compliance and early power curtailment.

Battery Energy System Architecture: From Cell to Grid

Battery energy aggregates from individual millimetre-scale electrochemical cells into megawatt-hour grid assets through a multi-tier physical and electrical architecture. Individual prismatic cells, typically rated at 3.2 V and 280 Ah or 314 Ah, deliver roughly 0.896 to 1.005 kWh of raw energy per unit.

To assemble utility-grade storage, cells are grouped through defined packaging levels:

• Cell Level: The fundamental electrochemical building block storing charge.
• Module Level: Cells connected in series and parallel (e.g., 1P16S or 1P24S configuration) housed with cell-balancing circuitry and thermal management interfaces.
• Rack / String Level: Modules wired in series to achieve standard industrial direct-current bus levels, commonly 1,000 V DC to 1,500 V DC, to minimise resistive \(I^2R\) losses across conductors.

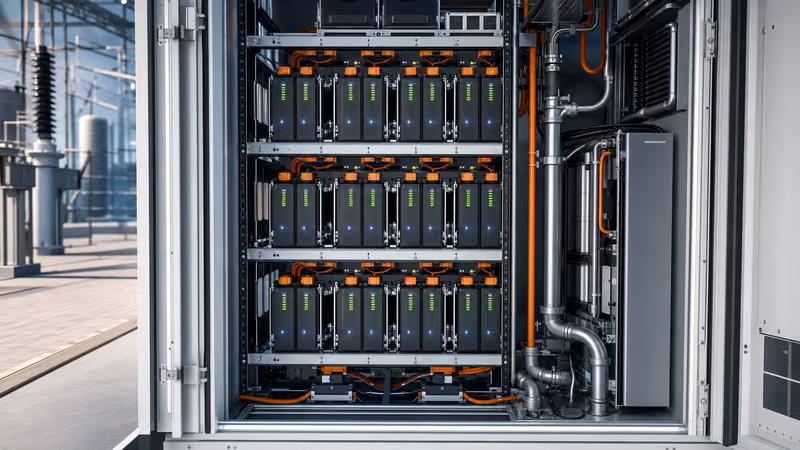

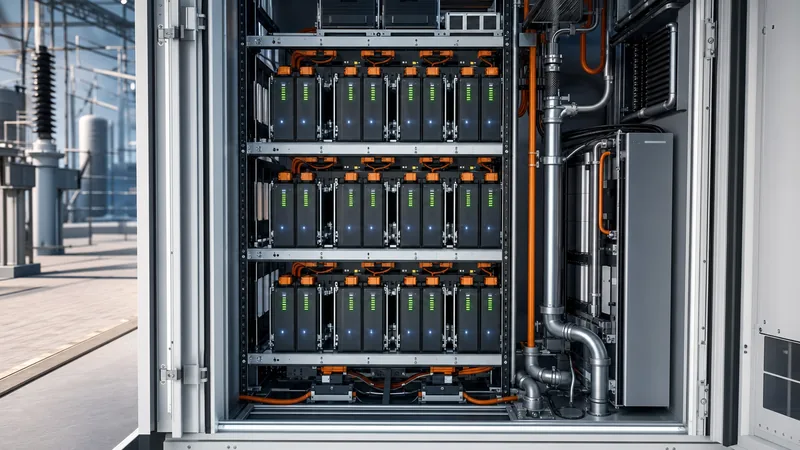

• Enclosure / Container Level: Multiple racks connected in parallel at a common DC bus, integrating fire suppression (NFPA 855 compliant), aerosol or Novec agents, and liquid cooling systems such as those seen in an industrial liquid-cooled ESS container.
• Power Conversion and Transformation: Direct current passes through a bi-directional inverter, thoroughly analysed in our power conversion system guide, and steps up through a distribution or power transformer for grid export.

Integrating turnkey hardware such as a utility energy storage system ensures that thermal gradients across thousands of cells remain within a narrow ±2°C envelope, preventing uneven energy degradation across parallel strings.

Verification and Testing Procedures for Battery Energy

Verifying the actual delivered energy of an industrial battery storage installation requires rigorous testing prior to commercial energisation. On-site commissioning and factory acceptance testing (FAT) validate capacity ratings against contract performance standards.

The standard verification procedure follows a defined sequence based on IEEE 2800 and IEC 62619 clause 6.3:

1. Thermal Preconditioning: Soak the battery system at 25°C ± 2°C for a minimum of 12 hours until all internal cell temperatures stabilise within 1°C of ambient.
2. Initial Full Charge: Charge the system using the manufacturer-specified constant-current constant-voltage (CCCV) regime until the charging current tapers to the defined cut-off threshold (typically 0.05C).
3. Rest Period: Maintain the battery system in an open-circuit rest condition for 60 minutes to eliminate surface charge and allow electrochemical diffusion equilibrium.
4. Constant-Current Discharge Test: Discharge the system at the contracted C-rate (e.g., 0.5C) using calibrated power analysers with accuracy exceeding 0.2% per IEC 61000-4-30 Class A, until the minimum string cut-off voltage is reached.
5. Data Integration and Energy Calculation: Integrate instantaneous voltage and current measurements over time to record total delivered DC energy (kWh), then compare this value to nameplate tolerances.
6. Recharge and Round-Trip Efficiency Calculation: Immediately recharge the system to 100% SoC under identical metering to compute actual round-trip efficiency: RTE = E_discharge / E_charge × 100%.

Next steps: specifying and sourcing

When preparing requests for quotation (RFQs) or technical specifications for industrial battery projects, define your exact energy requirements at the AC point of interconnection rather than stating bare DC capacity. Include your anticipated daily duty cycles, maximum acceptable degradation rate at 10 years, local ambient temperature extremes, and target round-trip efficiency. Our engineering team designs and manufactures containerised utility-scale and commercial systems configured for high-demand applications. Review our turnkey energy storage system configurations or navigate to our quote engineering page to submit your single-line diagram and load profile requirements for a custom system sizing assessment.
