High Voltage Battery Systems: BMS & Pack Design Guide

Quick answer: A high voltage battery is an energy storage system operating above 60 V DC—most commonly between 600 V DC and 1500 V DC in industrial applications—designed to minimise current draw, eliminate resistive thermal losses, and couple directly with medium-voltage power conversion systems.

Industrial energy storage design has shifted decisively away from low-voltage 48 V topologies towards higher string potentials. As facility demands expand into megawatt-hour capacities, distribution losses at lower voltages dictate impractically large copper busbars and substantial conduction losses. A properly configured high voltage battery pack consolidates hundreds of lithium cells in series, delivering equivalent power at a fraction of the operating current. This architectural choice improves overall system efficiency, reduces thermal dissipation overheads, and streamlines integration with commercial inverters.

However, stepping up DC bus voltages introduces distinct engineering challenges. Designing a high voltage battery requires rigorous galvanic isolation, dedicated insulation resistance monitoring, high-voltage interlock loops (HVIL), and components rated to withstand severe DC arc faults. This guide outlines the core engineering considerations, electrical trade-offs, BMS architectures, and safety standards governing industrial high-voltage storage installations.

What Defines a High Voltage Battery Pack?

A high voltage battery pack is an interconnected assembly of electrochemical cells configured in series to achieve an operating potential exceeding standard extra-low voltage thresholds, conforming to IEC 60038 and IEC 62619 standards.

In standard low-voltage DC systems, nominal voltages rarely exceed 48 V or 60 V DC. These extra-low voltage regimes avoid touch-hazard safety mandates but become unworkable when power demands exceed 50 kW. Industrial standards classify high-voltage DC storage across defined bands:

• Commercial and Industrial (C&I) Class: Typically nominal voltages between 400 V DC and 800 V DC, matching standard 380 V to 480 V AC three-phase grid interconnections via transformerless or step-up inverters.
• Utility and Grid-Scale Class: Nominal voltages from 1000 V DC up to 1500 V DC, governed by standards such as IEC 62619 and UL 1973 to maximize the efficiency of multi-megawatt power conversion systems (PCS).

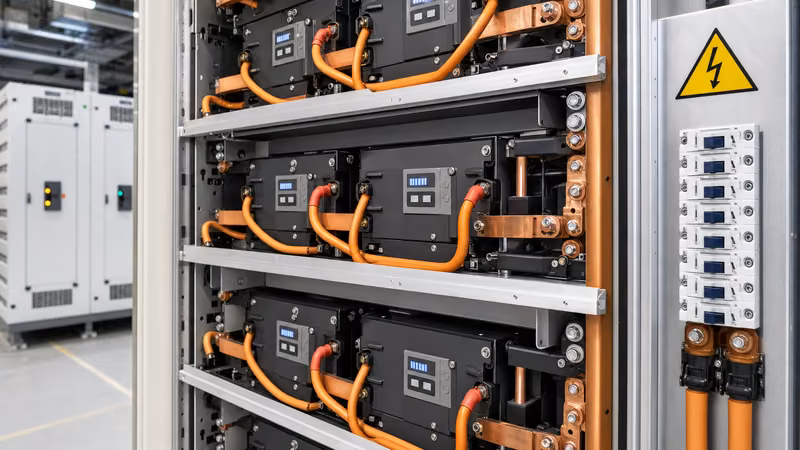

Constructing a high voltage battery involves connecting individual prismatic or pouch cells (such as 3.2 V Lithium Iron Phosphate chemistry) into modules, which are subsequently wired in series strings within a structural rack. A string operating at 1024 V nominal requires 320 LFP cells in series (320S). At this potential, creepage and clearance distances across printed circuit boards and busbars must strictly align with IEC 60664-1 insulation coordination parameters, accounting for pollution degrees and micro-environments within the battery enclosure.

Electrical Efficiency: Low Voltage vs High Voltage Battery

Operating an energy storage asset at high voltage improves overall system efficiency by lowering the operating current, which exponentially diminishes conductor I²R losses according to Joule's first law.

When transferring a fixed block of active power ($P$), current ($I$) is inversely proportional to voltage ($V$). Conductor resistive heating loss ($P_{\text{loss}}$) scales with the square of the current ($P_{\text{loss}} = I^2 R$). Therefore, increasing string voltage lowers conductor losses and cable mass throughout the DC distribution infrastructure.

Consider a 250 kW battery discharge cycle delivered across a 25-metre DC cable run using copper conductors ($R = 0.0175\ \Omega\cdot\text{mm}^2/\text{m}$):

At 48 V, handling over 5,000 amperes creates severe engineering bottlenecks: prohibitive copper cable mass, excessive mechanical strain on terminal lugs, and extensive cooling requirements to manage localized cabinet heating. Conversely, the 800 V high voltage battery requires only a single 95 mm² conductor per polarity, cutting thermal stress and boosting conversion efficiency at the inverter stage.

BMS Architecture and Galvanic Isolation for High Voltage Strings

A high-voltage string demands a distributed, master-slave battery management system (BMS) with high galvanic isolation barriers to prevent lethal pack potentials from propagating into low-voltage digital control loops.

In a high voltage battery pack, cell monitoring units (slave BMS) interface directly with series cell clusters (typically 12 to 24 cells per module). These slave units read millivolt-level voltages and temperature sensor data. They transmit packetised signals to the primary battery control module via isolated communication buses such as daisy-chained SPI, isolated CAN 2.0B, or Modbus over a serial bus. The isolation transformers or digital capacitive isolators must provide continuous working isolation ratings of at least 2500 V AC / 5000 V DC surge endurance.

Key sub-assemblies inside the high-voltage control box (or String Combiner Box) include:

• Insulation Monitoring Device (IMD): Continuously measures the insulation resistance between positive/negative DC rails and earth ground per IEC 61557-8. If insulation falls below 100 Ω/V (or 500 Ω/V for stricter utility regimes), the IMD triggers an immediate alarm or trip sequence.
• High-Voltage Interlock Loop (HVIL): A low-voltage closed circuit looping through all module covers, service disconnect plugs, and cable connectors. Breaking the physical loop instantly signals the main controller to open the vacuum or gas-sealed DC contactors before any mechanical terminal is pulled under load.
• State and Balancing Logic: Active and passive balance circuits equalise series cells to extend string life, integrated with algorithms detailed in our battery monitoring system guide.
• Pre-Charge Circuit: A dedicated contactor wired in series with a ceramic power resistor to slowly ramp DC bus capacitor voltages inside the PCS prior to closing main contactors.

Sizing the Pre-Charge Circuit to Mitigate Inrush Currents

A pre-charge circuit protects the DC contactors and inverter DC-link capacitors by limiting catastrophic current spikes during high-voltage system energisation.

When a high voltage battery is connected to a power conversion system, the PCS input stage contains large electrolytic or film capacitor banks ($C_{\text{bus}}$). Connecting a 1000 V DC pack directly across an uncharged capacitor bank (initial state $V_c = 0\text{ V}$) acts as a dead short-circuit. The resulting peak current ($I_{\text{peak}} = V_{\text{bus}} / R_{\text{internal}}$) can exceed tens of thousands of amperes within microseconds, welding main contactor tips and stressing capacitor dielectrics.

The pre-charge circuit bypasses this through a high-resistance, thermally certified resistor path. Engineers size the circuit using five time constants ($5\tau$):

1. Determine DC-Link Capacitance: Obtain the total capacitance from the PCS input specification (for example, $C_{\text{bus}} = 6,000\ \mu\text{F}$).
2. Define Target Pre-Charge Time: Select an acceptable charging duration, usually $t = 1.0\text{ to }2.0\text{ seconds}$.
3. Calculate Resistance ($R_{\text{pre}}$): Because a capacitor charges to 99.3% after $5\tau$ ($t = 5 R C$), calculate: $$R_{\text{pre}} = \frac{t}{5 \times C_{\text{bus}}} = \frac{1.5}{5 \times 0.006} = 50\ \Omega$$
4. Compute Peak Inrush and Energy Absorption: The initial peak current through the pre-charge resistor will be: $$I_{\text{peak}} = \frac{V_{\text{nom}}}{R_{\text{pre}}} = \frac{1000\text{ V}}{50\ \Omega} = 20\text{ A}$$ The total energy ($E$) absorbed by the resistor during a single charge event is: $$E = \frac{1}{2} C_{\text{bus}} V^2 = 0.5 \times 0.006 \times 1000^2 = 3,000\text{ J} \ (3\text{ kJ})$$

The specified resistor must be rated to handle a short-duration thermal surge of 3 kJ without dielectric breakdown or winding flashover, conforming to pulse-handling wirewound standards.

High Voltage Battery Safety: Arc Flash and Protection Architecture

Direct current arc faults in high voltage battery installations do not possess a natural AC zero-crossing, requiring fast-acting protection hardware specifically engineered to clear continuous DC arcs.

When an internal short occurs across a 1000 V or 1500 V DC rack, the fault current rises in less than 2 milliseconds to levels exceeding 20 kA, governed primarily by cell internal DC resistance ($R_{\text{dc}}$) and busbar inductance. To guarantee system safety per NFPA 855 and UL 9540A, protection schemes rely on coordinated devices:

• High-Speed Semiconductor Fuses: Fuses certified to IEC 60269-7 (gBat class) rated specifically for battery protection, delivering breaking capacities up to 100 kA DC with clearing times under 10 ms.
• Hermetically Sealed DC Contactors: Main positive and negative contactors filled with inert gas (such as hydrogen or nitrogen under pressure) to rapidly quench electric arcs during mechanical contact opening.
• Pyro-Breakers (Pyrotechnic Fuses): Optically or electronically triggered chemical actuators that drive a physical blade through solid copper conductors within 1.5 milliseconds of an overcurrent trigger, completely severing the circuit.
• Overcurrent Relaying: String-level sensors tracking rate-of-current-rise ($dI/dt$) to trip disconnects before peak fault currents materialize, aligned with principles outlined in our LiFePO4 battery management system guide.

High Voltage Battery Pack Specification Checklist for RFQs

A comprehensive procurement specification for a high voltage battery pack must establish explicit electrical, thermal, and functional parameters to ensure compatibility with site-level equipment.

Engineers and EPC contractors should utilize the following checklist when assembling Request for Quotation (RFQ) schedules for commercial and industrial battery strings:

Field Commissioning and Insulation Testing Procedure

Commissioning a high-voltage battery string requires structured validation of isolation integrity, pre-charge timing, and control logic before energising the system into an operational PCS.

1. Visual and Mechanical Torquing Audit: Verify all terminal connections with a calibrated torque wrench to the exact manufacturer values (typically 8 to 12 Nm for M8 cell posts). Confirm clear mechanical separation between DC positive, DC negative, and protective earth conductors.
2. Cold Insulation Resistance (Megohmmeter) Testing: Disconnect the BMS electronics and external ground paths to avoid damaging sensitive microcontrollers. Apply a calibrated 1000 V DC insulation tester (per IEEE 43 and IEC 62619 guidelines) between:
   • DC Positive Busbar and Protective Earth
   • DC Negative Busbar and Protective Earth
   • DC Positive Busbar and DC Negative Busbar (with internal string fuses extracted)
   Verify the measured resistance exceeds 10 MΩ (well above the operational baseline of 500 Ω/V).
3. HVIL Continuity and Trip Verification: Power the low-voltage auxiliary supply. Break the high-voltage interlock connector at the farthest end of the string. Verify through BMS telemetry that the status instantly transitions to an interlock fault and contactor closing commands are hardware-locked.
4. Pre-Charge Circuit Timing Validation: Monitor DC bus voltage via an oscilloscope or high-speed data logger while initiating manual closure. Verify that the pre-charge contactor engages, bus voltage rises linearly to >95% of battery nominal voltage within the design time window ($1.5\pm 0.3\text{ s}$), and the main positive contactor closes with negligible current transient.
5. Thermal Baseline Scan: Run the battery pack under a 0.5C charge/discharge profile for two hours while using a calibrated infrared thermal camera to check for high-resistance terminal points or abnormal cell module heating.

Next steps: specifying and sourcing

Deploying a resilient high voltage battery architecture requires close alignment between cell string sizing, BMS communication protocols, switchgear interrupt capabilities, and thermal cooling systems. When preparing technical schedules or requesting proposals for custom high-voltage packs, provide your nominal DC bus voltage requirements, target capacity in kilowatt-hours, inverter DC link capacitance, and site environmental classifications.

Review our integrated energy storage system solutions and engineered liquid-cooled ESS containers for industrial deployments. To review your project drawings or obtain factory-direct technical proposals from our electrical engineering department, submit your parameters through our quotation inquiry page or reach out directly via the contact page.
