Key takeaways
- A standard 10,000 mAh Qi solar power bank contains 37.0 watt-hours of nominal energy at 3.7 volts DC.
- Integrated 1.2-watt to 1.5-watt monocrystalline panels require 30 to 36 peak sun hours to fully replenish an exhausted cell.
- Wireless power transmission operating on the Qi inductive standard yields an end-to-end electrical efficiency of 70% to 75%.
- Thermal regulation governed by IEC 62133-2 requires charging cut-offs when internal cell temperatures exceed 45 degrees Celsius.
- Dual-port USB-C Power Delivery outputs deliver up to 88% conversion efficiency compared to resonant wireless induction.

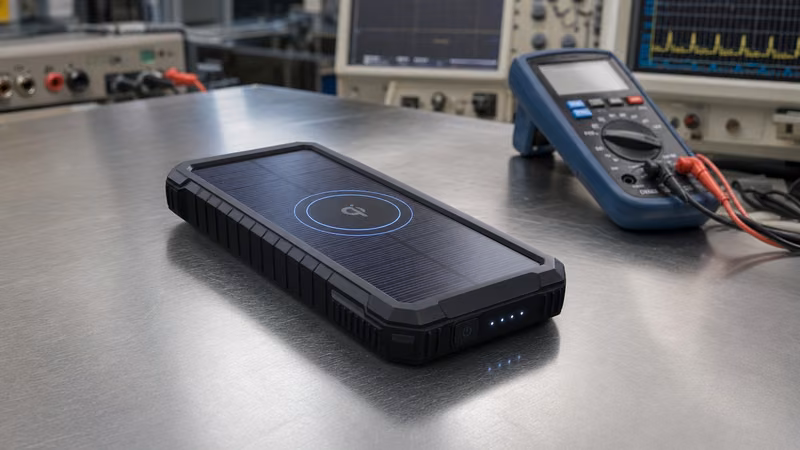

Quick answer: A Qi solar power bank is a portable secondary energy storage unit that combines a lithium-ion cell, a surface-mounted photovoltaic panel, and a resonant inductive coil certified under Wireless Power Consortium specifications. It provides cable-free 5W to 15W power delivery to compatible devices while retaining trickle-charging capability under direct sunlight.
Portable energy harvesting has evolved from standalone battery packs into hybrid multi-source power distribution devices. For remote industrial inspections, military field communication, and utility line maintenance, having backup power independent of grid infrastructure is critical. While large-scale installations rely on utility and commercial setups outlined in our battery storage engineering guide, compact personal storage units fill the gap for field telemetry, emergency logistics, and handheld diagnostic meters. The inclusion of the Qi wireless standard introduces inductive magnetic coupling alongside integrated photovoltaic (PV) generation, creating an independent power source with distinct operational characteristics and thermal profiles.
How Qi Wireless Charging Operates in a Solar Power Bank
Wireless power transfer in a portable power bank relies on resonant electromagnetic induction operating between 110 kHz and 205 kHz to transfer energy across an air gap. The system houses an internal planar transmitter coil wound from multi-strand Litz wire, shielded by an underlying sintered ferrite plate to prevent eddy currents from heating the adjacent lithium-ion pouch cell.
When a compatible receiver device rests on the charging pad, digital communication establishes device authentication via backscatter modulation in accordance with WPC Qi 1.3 specifications. Once handshake protocols confirm receiver alignment, the power bank inverter drives alternating current through the primary coil. This magnetic flux couples with the secondary coil inside the target handset or instrument, inducing an AC voltage that is subsequently rectified to direct current.
The engineering challenge in a compact hybrid device is balancing parasitic losses. Inductive coupling inherently loses 25% to 30% of supplied energy as waste heat. When combined with radiant solar exposure, the thermal threshold of the internal lithium pouch cell can be approached rapidly. High-integrity designs incorporate negative temperature coefficient (NTC) thermistors adjacent to both the wireless coil and the battery core to dynamically de-rate wireless output from 15W to 5W if internal temperatures breach 45°C.
Evaluating a Power Bank Solar 10000mAh: Capacity and Energy Yield
A power bank solar 10000mah rating denotes nominal battery cell capacity at 3.7V, which yields an absolute internal energy capacity of 37.0 watt-hours. Sizing calculations must account for boost converter steps, inductive coupling losses, and photovoltaic conversion limitations rather than assuming 10,000 mAh is available at device charging voltages.
Consider an engineering calculation for a standard 10,000 mAh lithium polymer battery pack supplying power via both USB-C and Qi wireless interfaces:
- Nominal Stored Energy: 10.0 Ah × 3.7 V = 37.0 Wh
- Usable DC Output (Wired USB-C at 5V, 90% DC-DC efficiency): 37.0 Wh × 0.90 = 33.3 Wh (equivalent to 6,660 mAh at 5.0 V)
- Usable Inductive Output (Qi Wireless, 72% overall efficiency): 37.0 Wh × 0.72 = 26.64 Wh (equivalent to 5,328 mAh delivered into the receiver battery system)
When assessing the integrated solar panel, standard dimensions on a handheld enclosure limit cell area to approximately 0.012 m². Assuming high-efficiency monocrystalline silicon operating at 21% efficiency under Standard Test Conditions (STC: 1,000 W/m², 25°C cell temperature, AM 1.5 spectrum):
- Peak Solar Power Output: 0.012 m² × 1,000 W/m² × 0.21 = 2.52 W gross peak.
- Sub-optimal Enclosure Derating (cover glass, angle of incidence, thermal rise): 2.52 W × 0.55 = 1.38 W net generation.
- Current Generated at 5V Buck Circuit: 1.38 W / 5.0 V = 0.276 A (276 mA).
- Calculated Full Replenishment Time: 37.0 Wh / (1.38 W × 0.92 charging efficiency) = 29.1 peak sun hours.
Under realistic environmental conditions providing 4.5 peak sun hours per day, replenishing an exhausted 10,000 mAh pack exclusively from its built-in solar cell requires approximately 6.5 full days. This confirms that the surface PV cell serves primarily as an emergency top-up mechanism rather than a primary replenishment method, as detailed further in our analysis of lightweight solar battery systems.
Photovoltaic Harvesting vs Direct Charging Performance
Direct electrical replenishment via USB-C Power Delivery charges a battery pack up to thirty times faster than integrated photovoltaic harvesting. Field engineers must differentiate between grid-assisted re-energisation and off-grid maintenance charging when planning site assignments or survival communication kits, a topic expanded in our review of solar powered survival gear.
| Operational Metric | Integrated Solar Panel (STC) | Qi Wireless Output (EPP) | USB-C PD Fast Charging (Input/Output) |
|---|---|---|---|
| Voltage Range (V DC) | 5.0 - 5.5 | 5.0 / 9.0 | 5.0 / 9.0 / 12.0 |
| Current Rating (A) | 0.20 - 0.28 | 1.0 - 1.67 | 2.0 - 3.0 |
| Peak Transfer Power (W) | 1.1 - 1.5 | 5.0 - 15.0 | 18.0 - 20.0 |
| Average Transfer Efficiency (%) | 18 - 22 (PV cell) | 70 - 75 | 88 - 93 |
| Time to Charge 10,000 mAh (Hours) | 28 - 36 | N/A (Output only) | 2.5 - 3.5 |
| Thermal Generation Under Load | Ambient + Solar Soak (High) | Inductive Coil Losses (Medium) | Internal Switching Losses (Low) |
The comparative data highlights that while wireless transmission provides unmatched mechanical ingress protection by eliminating connector wear, wired USB-C pathways conserve critical milliwatt-hours in resource-constrained environments.
Engineering Standards, Thermal Management, and Safety Testing
A 10000 solar power bank deployed in professional settings must comply with stringent international standards to mitigate thermal runaway risks. The combination of radiant solar absorption and internal resistance heat during rapid discharge demands precise safety margins.
Key international standards governing these portable systems include:
- IEC 62133-2: Specifies requirements for the safe operation of portable sealed secondary lithium cells under intended use and reasonably foreseeable misuse, including continuous charging voltage endurance and external short-circuit tests.
- UN 38.3: Mandates rigorous mechanical, thermal, and altitude simulation criteria ensuring secondary lithium cells can withstand air transport without depressurisation or combustion.
- WPC Qi Specification v1.3: Requires Foreign Object Detection (FOD). If metal objects such as coins or paperclips fall between the power bank and the target device, the primary coil must terminate transmission within milliseconds to prevent extreme inductive heating.
- IEC 62368-1: Sets energy hazard criteria, flammability ratings for the enclosure plastics (minimum UL 94 V-0 or V-1 self-extinguishing ratings), and touch-temperature safety thresholds.
Specialised battery chemistry selection is critical. While large stationary facilities favour Lithium Iron Phosphate for cycle life, as highlighted in our guide on lithium solar batteries, compact power banks predominantly employ Lithium Nickel Manganese Cobalt (NMC) or Lithium Cobalt Oxide (LCO) pouch cells to achieve the volumetric energy density (exceeding 220 Wh/kg) required for pocketable devices.
Specification Checklist for Field-Grade Qi Solar Storage
Procuring personal solar battery systems for utility field crews, defense personnel, or remote environmental engineers requires scrutinising mechanical and electrical specifications beyond nominal capacity. Consumer-grade devices often lack the ingress protection and power management safeguards necessary for challenging environments.
| Component Subsystem | Commercial Consumer Grade | Field-Grade Specification | Verification Standard |
|---|---|---|---|
| Ingress Protection | IP54 (Splash resistant) | IP65 to IP67 (Dust tight, water jet/immersion resistant) | IEC 60529 |
| Enclosure Resin | ABS / Standard Polycarbonate | Flame-retardant Polycarbonate + TPU shock bumpers | UL 94 V-0 |
| Battery Chemistry | Standard Li-ion Pouch (300 cycles to 80%) | High-rate Li-Po or 21700 Cylindrical (500+ cycles) | IEC 62133-2 |
| Wireless Protection | Basic thermal switch | Multi-coil array with active Foreign Object Detection (FOD) | WPC Qi v1.3.2 |
| Photovoltaic Surface | Epoxy resin coated monocrystalline | ETFE lamination with UV and micro-crack resistance | IEC 61215 accelerated aging |
| Operating Ambient Temp | 0°C to +35°C | -10°C to +50°C (with thermal throttling) | Factory climatic chamber |
Next steps: specifying and sourcing
Industrial infrastructure projects, microgrid substations, and remote utility installations require dependable electrical distribution and scalable energy storage architectures. Whether specifying containerised battery energy storage systems or industrial power distribution equipment, establishing accurate load profiles and environmental ratings is essential.
Explore our engineering capabilities across dedicated energy storage systems and custom liquid-cooled ESS containers designed to harsh industrial specifications. To discuss comprehensive turnkey system designs, technical compliance sheets, or factory acceptance criteria for your next capital project, submit your requirements via our request a quote page or connect directly with our engineering sales group.
Frequently asked questions
Can a Qi solar power bank charge a phone completely without cables?
Yes, a Qi solar power bank charges any Qi-compatible device wirelessly without external cables. It transmits electrical energy across an air gap of up to 5 millimetres via inductive resonant coupling at power levels between 5W and 15W.
How long does it take to charge a 10000mAh solar power bank using sunlight?
It typically takes 28 to 36 hours of direct peak sunlight (1,000 W/m²) to fully recharge an exhausted 10,000 mAh pack. Under average environmental conditions of 4 to 5 peak sun hours daily, full solar replenishment requires roughly six to eight days.
Is wireless charging less efficient than cable charging on a solar power bank?
Wireless charging is approximately 15% to 20% less efficient than wired cable charging. Qi inductive charging operates at roughly 70% to 75% transfer efficiency due to magnetic hysteresis and coil resistance, whereas direct USB-C ports reach 88% to 93% efficiency.
Can leaving a solar power bank in the sun damage the battery?
Excessive solar heat can degrade the internal battery if the unit lacks proper thermal isolation. High quality units incorporate ETFE front layers, thermal barrier air gaps, and NTC thermistor shut-offs that interrupt charging when temperatures exceed 45°C.
What does Qi certification mean on a solar power bank?
Qi certification confirms that the power bank complies with the Wireless Power Consortium international safety and interoperability standard. It guarantees foreign object detection, reliable resonance control, and electromagnetic interference shielding to prevent damage to host devices.
