Power Pole Transformer Guide: Specs, Sizing & Sourcing

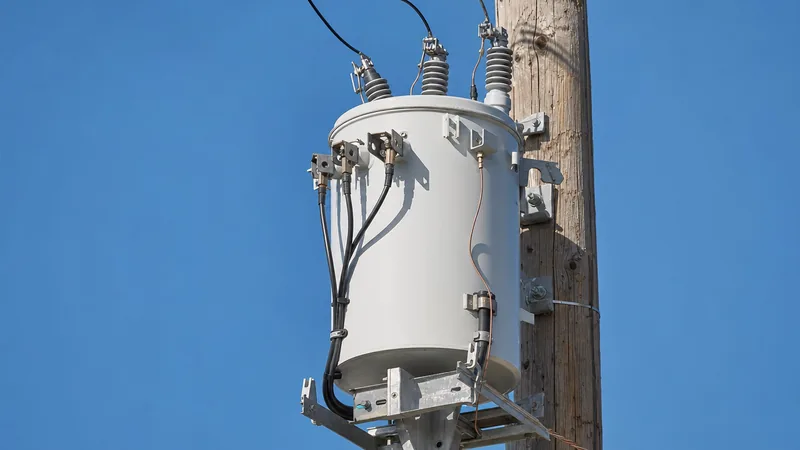

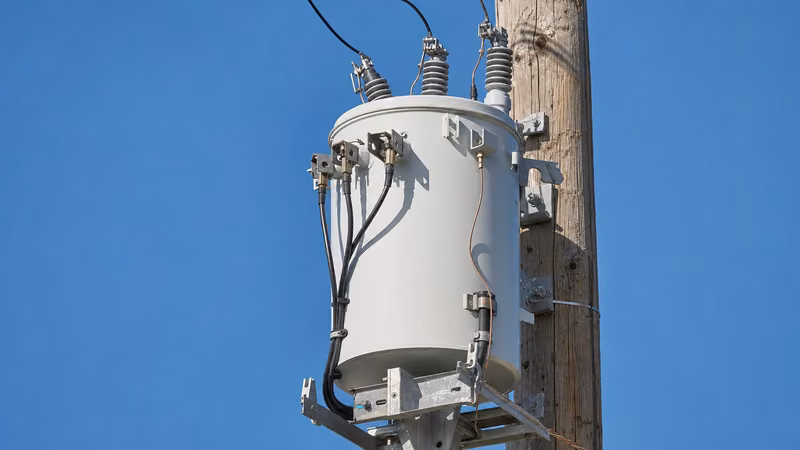

Quick answer: A power pole transformer (or pole mounted transformer) is an overhead, liquid-immersed distribution transformer mounted on a utility pole. It steps down primary distribution voltages (typically 2.4 kV to 34.5 kV) to low-voltage utilisation levels (such as 120/240 V split-phase or 400 V three-phase) to supply residential, rural, and light commercial consumers.

Overhead distribution networks remain the backbone of electricity delivery globally due to their low capital installation cost and ease of maintenance compared to underground cabling. Often informally referred to as a telephone pole transformer or electric pole transformer, this critical asset converts medium-voltage distribution power into safe, usable electricity right at the consumer boundary. Whether you are managing network upgrades, rural electrification schemes, or industrial facility supplies, selecting the correct pole distribution transformer requires evaluating winding designs, loss evaluations, short-circuit withstand capabilities, and mounting mechanics.

What Is a Power Pole Transformer and How Does It Work?

A power pole transformer operates on the principle of electromagnetic induction to convert high distribution voltages into lower utilisation voltages through magnetically coupled windings sharing a laminated silicon steel or amorphous metal core. The medium-voltage (MV) primary winding receives alternating current from overhead lines, generating a varying magnetic flux within the magnetic core. This flux links with the low-voltage (LV) secondary winding, inducing a proportional voltage determined strictly by the turns ratio in accordance with Faraday's law.

Because these units operate outdoors in elevated, exposed environments, the core-and-coil assembly is sealed inside a cylindrical, heavy-gauge steel tank filled with dielectric insulating liquid. This fluid acts as both an electrical insulation medium and a heat-transfer coolant. Under thermodynamic natural convection, the oil circulates through the winding ducts, absorbs copper and core heat, and transfers it to the outer corrugated or smooth tank walls for air dissipation. When planning network capacity, engineers often consult our guide on how to size a distribution transformer to match anticipated consumer demand without driving the core into thermal overload.

Utility Pole Transformer Types: Single-Phase vs Three-Phase Configurations

Pole mounted distribution transformers are predominantly categorized into single-phase residential units and three-phase industrial or commercial clusters. In North American and Latin American networks governed by ANSI/IEEE frameworks, the ubiquitous utility pole transformer is a single-phase cylindrical unit with a centre-tapped secondary producing 120/240 V split-phase power. In contrast, three-phase overhead power is supplied either by ganging three single-phase transformers into a delta-wye or open-delta bank on crossarms, or by installing a single, integrated three-phase overhead transformer on a dedicated wooden or concrete H-frame platform.

European, African, and Asian networks adhering to IEC standards frequently deploy three-phase pole transformers directly to supply 400/230 V four-wire services to entire villages or commercial strips. Where right-of-way is restricted or aesthetic concerns dominate, developers often evaluate pad-mounted transformers versus pole-mounted units to resolve ground-level footprint constraints. For specialized applications such as lighting infrastructure, an auxiliary transformer light pole arrangement can tap the overhead line directly to feed dedicated public lighting networks.

Key Technical Specifications of a Pole Mounted Distribution Transformer

Specifying an overhead transformer requires detailing nominal kVA capacity, primary and secondary voltages, basic lightning impulse insulation level (BIL), and impedance values to match grid fault levels. The electrical design must comply rigorously with regional norms, predominantly IEEE C57.12.20 for 60 Hz networks or IEC 60076 for 50 Hz international utilities.

The table below provides typical baseline engineering parameters for standard single-phase and three-phase pole distribution transformer designs:

To withstand lightning strikes on exposed overhead lines, the primary bushings feature high-creepage porcelain or composite cycloaliphatic insulators rated for environmental pollution classes from light to extreme marine levels.

Internal Components and Protection Schemes of a Pole Transformer

A pole transformer incorporates critical active components and safety protection features designed to prevent tank rupture during secondary short circuits or internal dielectric breakdown. At its core, high-grade cold-rolled grain-oriented (CRGO) electrical steel—or low-loss amorphous metal alloys—forms a wound or stacked magnetic core, surrounded by rectangular copper or aluminium strip windings insulated with high-dielectric thermally upgraded Kraft paper.

Protection architecture generally falls into two distinct philosophies: conventional designs and Completely Self-Protected (CSP) designs. Conventional units rely on external crossarm-mounted dropout expulsion fuses (cutouts) and external lightning arresters. CSP transformers, widely preferred in rural networks as detailed in our analysis of pole-mounted transformers for rural electrification, incorporate protective devices directly into the tank:

• Primary Weak-Link Fuse: Mounted internally in series with the high-voltage winding to disconnect the transformer from the feeder during an internal winding breakdown, preventing upstream breaker trips.
• Secondary Circuit Breaker: Submerged in the dielectric oil, this thermal-magnetic breaker monitors both secondary load current and oil temperature, opening during sustained overloads or secondary faults.
• Direct-Mounted Surge Arrester: Metal-oxide varistor (MOV) arresters are mounted externally on the tank wall directly adjacent to the primary bushings to shunt lightning surges straight to the ground plane, minimizing lead inductance.
• Automatic Pressure Relief Valve: Vents hazardous overpressures caused by high-energy arcing faults, preventing violent catastrophic tank ruptures in compliance with safety standards.

Installation and Rigging Procedures for an Overhead Transformer

Installing a pole mounted transformer requires strict adherence to structural engineering clearances, utility lifting safety protocols, and National Electrical Safety Code (NESC) or local occupational guidelines. Rigging a transformer weighing between 150 kg and 1,500 kg requires certified crane or line-truck derrick equipment to ensure safe overhead positioning.

1. Pole and Crossarm Structural Verification: Inspect the utility pole for structural integrity, rot, and class rating, ensuring the wood, concrete, or steel column can safely withstand the cantilevered load and wind shear moments.
2. Mounting Hardware Attachment: Secure hot-dip galvanised mounting brackets or channel iron crossarms to the pole using heavy-duty machine bolts and square curved washers torqued to design specifications.
3. Rigging and Hoisting: Attach certified synthetic slings exclusively to the transformer lifting lugs welded to the tank wall; never rig lifting lines through primary or secondary bushings.
4. Tank Mounting and Bolting: Hoist the unit into place, sliding the tank-mounted mounting lugs into the pole brackets, and secure the safety retention bolts.
5. Earthing (Grounding) Installation: Connect the transformer tank grounding lug, secondary neutral bushing, and surge arrester grounds to a low-resistance copper grounding conductor running down the pole to an earth rod array, ensuring ground impedance stays below 5 to 10 ohms.
6. Electrical Termination: Connect secondary low-voltage cables first, followed by primary medium-voltage jumpers via cutout switches and surge arresters, ensuring drip loops are formed to prevent water ingress.

Efficiency Standards and Procurement Factors for Pole Transformers for Sale

Procuring an electric pole transformer requires balancing initial capital expenditure against lifecycle operating losses, as distribution units remain continuously energised for decades. Utilities evaluate both no-load core losses (hysteresis and eddy currents) and load losses (resistive $I^2R$ copper dissipation). Under modern efficiency mandates—such as the US Department of Energy (DOE 2016) regulations and European Ecodesign Tier 2 standards—manufacturers utilise laser-scribed magnetic core materials and optimized conductor geometry to drastically minimize operational heat output.

When evaluating bids for a pole transformer for sale, project managers should calculate Total Cost of Ownership (TCO) using capitalisation formulas: $TCO = Capital Cost + (A imes P_{nl}) + (B imes P_{ll})$, where $A$ represents the net present value of no-load loss watts, $B$ is the value of load loss watts, and $P$ represents the guaranteed losses. Specifiers should also evaluate whether mineral oil or high-fire-point natural ester fluids are required, particularly for installations located in sensitive forestry corridors where biodegradable, flame-resistant properties reduce wildfire hazards, as explored in our guide on oil-immersed vs dry-type transformers.

Next steps: specifying and sourcing

When submitting a formal Request for Quotation (RFQ) for overhead transformers, provide our engineering department with your essential system parameters: nominal kVA, primary line voltage and BIL, secondary voltage requirements, vector group, ambient temperature ranges, seismic zones, and required loss capitalisation values ($A$ and $B$ factors). Review our comprehensive range of pole-mounted transformers and heavy-duty oil-immersed transformers engineered to international standards. Contact our application engineering team directly through our quotation inquiry page to receive custom project drawings, type-test documentation, and competitive factory pricing.
