How to Size a Distribution Transformer: kVA Calculation Guide

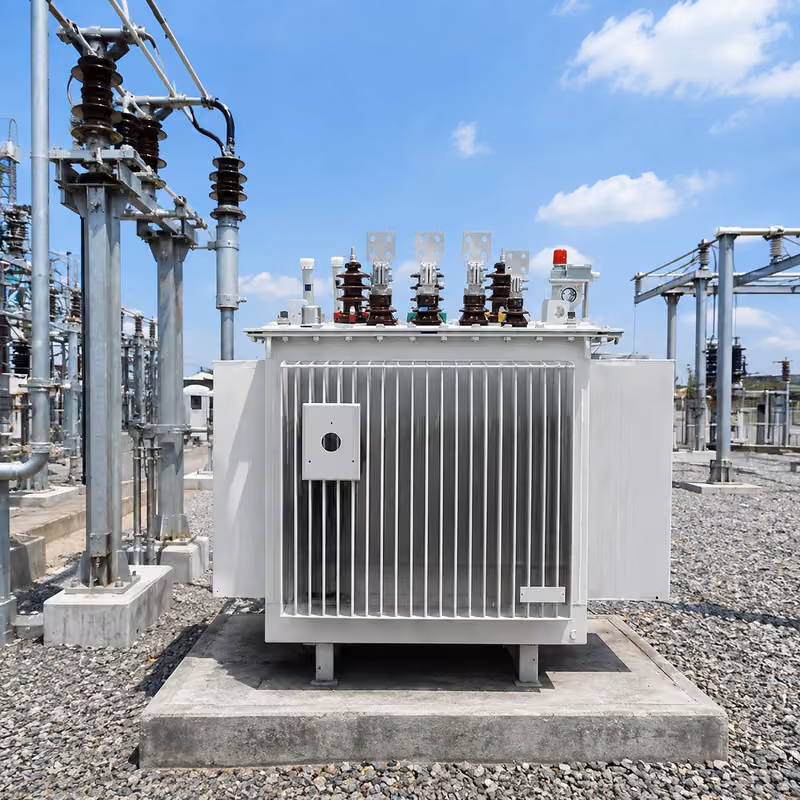

Sizing a distribution transformer correctly means calculating the actual demand load in kVA — not the sum of nameplate ratings — then adding margin for motor starting and future growth before rounding up to the nearest standard rating. Undersizing causes chronic overheating and shortened insulation life; oversizing wastes capital and increases no-load losses over the transformer’s service life. The method below works for a single building, a substation feeder, or an industrial plant.

Step 1: Establish the connected load

Start with a load schedule listing every piece of equipment the transformer will feed, in kW (or kVA at its rated power factor): lighting circuits, HVAC, motors, process equipment, receptacles, and any known future additions. This total is the connected load, and it is almost always higher than what the installation will actually draw at any given moment, because not every load runs simultaneously or at full nameplate rating.

Using connected load alone to size a transformer is the single most common sizing error — it produces a unit that is 30-60% larger than necessary, adds unneeded no-load loss over decades of operation, and increases capital cost without benefit.

Step 2: Apply a demand (diversity) factor

Demand factor is the ratio of maximum demand to connected load, and it is always less than or equal to 1. It accounts for the fact that lighting, HVAC and process loads cycle, and that not all circuits peak together. Typical demand factors, drawn from common utility and consulting engineering practice, are:

• Residential/apartment blocks: typically 0.4-0.6 for the aggregate feeder, though individual dwelling demand factors are higher
• Commercial/office buildings: typically 0.6-0.8
• Light industrial/workshops: typically 0.65-0.85
• Continuous-process industrial loads: typically 0.85-0.95

A related concept, the diversity factor, is used when combining several sub-loads or several transformers on a common feeder — it is the ratio of the sum of individual peak demands to the coincident peak of the group, and it is normally greater than 1 (the group peak is lower than the sum of individual peaks).

Demand (kW) = Connected load (kW) x Demand factor

Step 3: Convert to kVA using power factor

Transformers are rated in kVA (apparent power), while load schedules are usually built in kW (real power). Convert using the expected power factor of the combined load:

kVA = kW / power factor

If the installation has no power factor correction, a mixed commercial/industrial load typically runs at 0.80-0.85 lagging; well-corrected industrial loads can reach 0.92-0.98. Motor-heavy loads without correction can be lower still. Using an assumed power factor that is too optimistic is a common cause of undersizing — always use a conservative, documented value, ideally measured or specified by the equipment supplier rather than assumed.

Step 4: Check motor starting requirements

Steady-state demand is not always the governing case. Motors, particularly large ones started direct-on-line, draw locked-rotor (starting) current typically 6-8 times full-load current for a brief period, which can cause an unacceptable voltage dip if the transformer impedance is too high relative to motor size, even though the thermal loading is momentary. For installations with one or more large motors:

• Check the transformer’s per-unit impedance (commonly 4-6% for distribution units) against the largest motor’s starting kVA
• Confirm the resulting voltage dip at the transformer’s LV terminals meets the equipment and utility limits, typically within 10-15% momentary dip for process equipment
• Consider soft starters or variable frequency drives to reduce starting kVA where the alternative is an oversized transformer bought only to cover a starting transient

Step 5: Add a future growth margin

Distribution transformers are long-lived assets, commonly in service for 20-30 years, while the facilities they feed are rarely static. Adding a margin of typically 20-25% above the calculated present-day demand kVA is standard practice, covering planned expansion, added equipment such as EV charging, and normal load growth without forcing an early replacement or a parallel unit. Sites with a firm, documented expansion plan may justify a higher margin; sites with a genuinely fixed, non-expanding load (a single dedicated motor feeder, for example) can use a smaller one.

Step 6: Round up to a standard IEC kVA rating

Once the margin-adjusted kVA figure is known, select the next standard rating at or above it rather than ordering a bespoke size. The common IEC-aligned preferred series for distribution transformers is:

50, 100, 160, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500 kVA

Larger power transformers extend beyond this series in application-specific steps; MARS manufactures power transformers up to 31,500 kVA at up to 110 kV class for larger substation and industrial applications, alongside the standard distribution range from 5 kVA upward. Standard sizes shorten lead time, simplify spares holding, and are typically more cost-effective than custom kVA values because they use established core and coil designs.

Step 7: Apply altitude and ambient temperature derating

A transformer’s nameplate kVA rating assumes standard reference conditions — typically an installation altitude of 1000 m or less and a maximum ambient temperature within the design range specified in IEC 60076-1 (commonly 40 degrees C maximum, 20 degrees C daily average, 30 degrees C annual average, for oil-immersed units; cast-resin dry-type transformers follow IEC 60076-11 with their own reference conditions). Two site conditions require correction:

• Altitude: Above roughly 1000 m, reduced air density lowers convective cooling efficiency for both oil-immersed (ONAN/ONAF) and dry-type (AN/AF) units. IEC 60076-1 gives correction factors that reduce usable output, or require the next larger kVA size to deliver the same effective capacity at altitude.
• Ambient temperature: Where the maximum or average ambient exceeds the reference values, the transformer’s temperature rise allowance is consumed faster, shortening insulation life at a given load unless the unit is derated or a lower temperature-rise design is specified.

Both factors should be confirmed against site data before finalising kVA, particularly for installations above 1000 m or in consistently hot climates.

Worked example

A small commercial building has the following connected load: lighting and receptacles 80 kW, HVAC 150 kW, kitchen/process equipment 60 kW, and a planned 40 kW EV charging bank. Connected load totals 330 kW.

1. Apply a demand factor of 0.7 for this mixed commercial load: 330 x 0.7 = 231 kW demand
2. Convert to kVA at an assumed 0.85 power factor: 231 / 0.85 = 271.8 kVA
3. Add a 25% future growth margin: 271.8 x 1.25 = 339.7 kVA
4. Round up to the nearest standard rating: 400 kVA

If the site sits above 1000 m altitude, the calculation should be revisited against the applicable IEC 60076-1 correction factor before confirming 400 kVA as final, and may point to the next size, 500 kVA, instead.

Comparison of typical demand factors by facility type

These are typical planning ranges only; site-specific measurement or manufacturer data should govern the final calculation.

Common sizing mistakes to avoid

A few errors recur often enough in sizing reviews to be worth naming explicitly:

• Sizing to connected load instead of demand load. This is the most frequent mistake and typically results in a transformer one or two standard sizes larger than necessary, adding unneeded no-load loss for the unit’s entire service life.
• Assuming an optimistic power factor. Using 0.95 when the actual uncorrected load runs at 0.80-0.85 understates required kVA meaningfully; always use a documented or measured value.
• Ignoring motor starting entirely. A transformer sized correctly for steady-state demand can still produce an unacceptable voltage dip on motor start if impedance and starting kVA are not checked together, particularly on smaller transformers feeding a single large motor.
• Skipping the growth margin because “the load is fixed today”. Facilities rarely stay static for the 20-30 year life of a transformer; a modest margin is cheap insurance against a costly mid-life upgrade or a parallel second unit.
• Forgetting altitude and ambient derating on sites outside standard reference conditions. A transformer that is correctly sized at sea level and 30 degrees C average ambient can be materially underrated once installed at altitude or in a consistently hot climate.

Why transformers are rated in kVA, not kW

Transformer losses and thermal limits are governed by current, not by real power delivered, and current depends on the combination of voltage and total (apparent) power drawn, regardless of how much of that power is real versus reactive. Rating in kVA keeps the transformer’s rating independent of the connected load’s power factor, which the manufacturer cannot control and which can vary significantly between installations and even over time at a single site. This is also why a load schedule built in kW must be converted to kVA using the actual or assumed power factor before it can be compared against a transformer’s nameplate rating — comparing kW demand directly against a kVA nameplate figure understates the load the transformer will actually see.

Use a calculator for a first-pass estimate

Working through connected load, demand factor, power factor, motor starting and derating by hand is the reliable method, but MARS’ transformer sizing calculator applies the same logic to give a fast first-pass kVA estimate rounded to the nearest standard rating, which can then be checked against a full load schedule before ordering.

How MARS can help

MARS manufactures oil-immersed and cast-resin dry-type distribution transformers from 5 kVA to 31,500 kVA at 3-35 kV, designed to IEC 60076 with ANSI/IEEE, GB and GOST variants available for 50 Hz and 60 Hz systems. Capacity, vector group, winding material, insulation class and cooling method can be configured to match a calculated kVA requirement and site conditions. Browse the transformer range or request a quote with your load schedule for a sizing review.
