Key takeaways
- A two-stage high-vacuum oil purification machine can reduce transformer oil moisture content from above 40 ppm to below 5 ppm in a multi-pass circulation cycle.
- Dielectric breakdown voltage improves from substandard levels under 30 kV to beyond 70 kV across a standard 2.5 mm electrode gap per IEC 60156 after processing.
- Total dissolved gas content can be lowered from 10% by volume to less than 0.1% using vacuum chambers operating below 1 mbar (100 Pa) absolute pressure.
- Operating temperature during thermal-vacuum treatment must remain between 55°C and 65°C to avoid thermal cracking of mineral insulating oil.
- Sizing a purification plant requires a circulating flow capacity capable of turning over the entire transformer oil volume at least three to five times within the scheduled maintenance window.

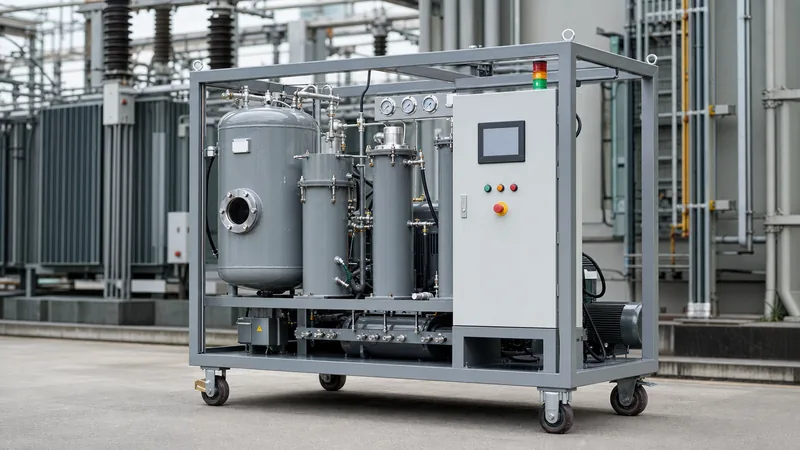

Quick answer: An oil purification machine is a specialized thermal-vacuum processing unit designed to extract dissolved moisture, combustible and atmospheric gases, and particulate contaminants from transformer mineral oil, restoring its dielectric strength to meet standards such as IEC 60422 and IEEE C57.106.
Insulating liquid in high-voltage apparatus serves a dual purpose: providing electrical dielectric insulation between energized windings and carrying thermal losses away from the core to external radiators. Over time, ingress of atmospheric moisture, thermal stress, and internal oxidation introduce water, free acids, sludges, and dissolved gases into the fluid. Without intervention, moisture migrates into the solid cellulose paper insulation, permanently reducing the mechanical tensile strength of the paper and risking catastrophic dielectric breakdown. Installing or contracting a dedicated oil purifier machine enables substation asset managers to perform either de-energized or energized oil conditioning, extending the operating life of high-voltage assets.
For comprehensive asset management strategies that integrate fluid testing with thermal limits, consult our Transformer Maintenance: Engineering Procedures & Testing Guide and the Insulating Oil Guide: Types, Testing & Selection Specs.
How an Oil Purification Machine Works
A high-vacuum oil purification machine operates by utilizing heating, filtration, and vacuum dehydration processes to remove dissolved water, gases, and particulate matter from dielectric oil.
