Key takeaways
- An industrial power transformer steps down incoming medium or high voltage from 11 kV to 110 kV down to plant distribution levels such as 3.3 kV, 6.6 kV, or 415 V.
- Correct continuous kVA sizing requires calculating base running load, applying diversity factors, and derating by at least 15% to 25% for harmonic distortion caused by non-linear industrial loads.
- Percentage impedance (%Z) directly controls downstream prospective short-circuit current, voltage drop during motor starting, and parallel load sharing according to IEC 60076-1 standards.
- Procuring from a qualified custom industrial transformer manufacturer ensures core and winding configurations comply with thermal class limits and specific K-factor harmonic profiles.
- Routine and type testing per IEEE C57.12.00 and IEC 60076 verifies basic impulse insulation levels (BIL), temperature rise, winding resistance, and total active losses before dispatch.
Quick answer: An industrial power transformer is a heavy-duty electrical unit that converts utility transmission or distribution voltages into internal facility operating voltages, typically ranging from 500 kVA to upwards of 31.5 MVA. It provides continuous, thermally stable power under cyclical industrial demands, high harmonic currents, and harsh operational conditions.
Modern manufacturing plants, chemical processing facilities, data centres, and mining sites depend heavily on uninterrupted electrical distribution. Unlike standard commercial installations, industrial duty involves inductive motor starting, cyclic overloads, non-linear thyristor loads, and fluctuating power factors. Engineers and procurement teams must evaluate core loss figures, winding geometries, cooling topologies, and short-circuit withstand capabilities when selecting an industrial transformer engineering specification. Sourcing the right unit prevents premature thermal breakdown, reduces facility lifetime operating expenditure (OPEX), and guarantees regulatory safety compliance under international guidelines like IEC 60076 and IEEE C57.

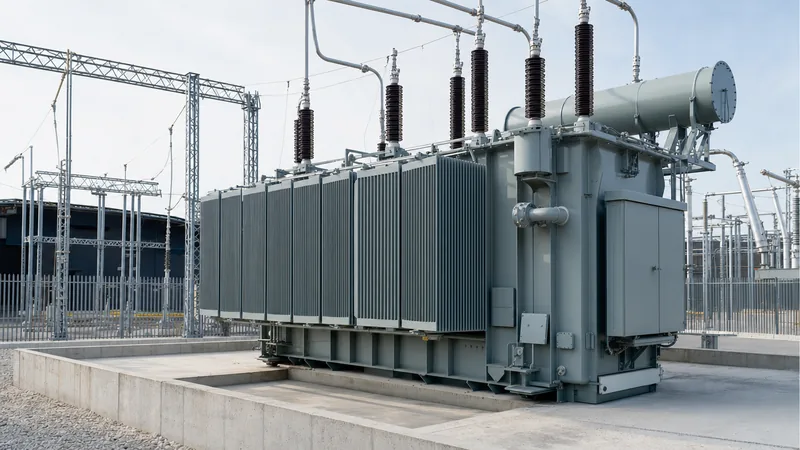

What is an industrial power transformer and how does it function?
An industrial power transformer is a stationary electromagnetic device that steps down utility supply voltages to plant operating levels using mutual electromagnetic induction between primary and secondary windings. Utility sub-transmission lines deliver power at voltages such as 33 kV, 66 kV, or 110 kV, which the plant transformer reduces to medium voltages like 11 kV, 6.6 kV, or 3.3 kV for primary distribution, or to 400 V / 415 V for low-voltage motor control centres. For larger sites interconnected directly to high-voltage grids, plants often mirror the principles found in a utility-grade transmission transformer to handle primary step-down duties safely.
Electromagnetic flux links the high-voltage (HV) and low-voltage (LV) windings through a high-permeability, laminated silicon steel core. The induced voltage ratio strictly mirrors the turns ratio: Vp / Vs = Np / Ns. Industrial designs incorporate mechanical bracing capable of withstanding dynamic electromagnetic forces exceeding tens of kilonewtons during downstream short circuits. Windings utilize high-conductivity electrolytic copper or high-grade electrical aluminium insulated with thermally upgraded Kraft paper or aramid materials to resist cyclic thermal expansion.
Sizing an industrial power transformer: load calculations and harmonics
Sizing an industrial power transformer accurately requires summing the total connected load in kilovolt-amperes (kVA), applying realistic continuous demand and diversity factors, and incorporating a safety margin for future expansion and harmonics. Sizing begins with the apparent power equation: S = (P / cos φ) × Df, where P represents the active real power in kilowatts (kW), cos φ denotes the operational operating power factor, and Df is the facility diversity factor, typically between 0.75 and 0.90 depending on plant duty cycles.
When assessing motor loads, starting transients require thorough attention. Large direct-on-line (DOL) medium-voltage induction motors draw starting inrush currents between 5.5 and 7.0 times full-load current (FLA). The transformer must supply this reactive current without allowing the secondary terminal voltage to drop below 85% of nominal, which could trip adjacent sensitive control circuits. Furthermore, industrial plants running variable speed drives (VSDs), induction furnaces, or electrolysis rectifiers introduce non-linear current harmonics that escalate stray eddy-current losses in windings and core structural clamping components. According to IEEE C57.110, transformers feeding harmonic loads must be derated or specified with a suitable K-factor rating (typically K-4, K-13, or K-20) to keep winding hotspot temperatures within permissible insulation thermal classes.
Comparing technical specifications: industrial ratings and parameters
Technical parameters for industrial transformers must be tailored to the exact fault capacity, ambient conditions, and electrical balance of the operating plant. The choice between an oil-immersed unit and a dry-type unit depends on installation siting, environmental restrictions, and fire safety regulations. The table below compares the standard engineering specifications for typical industrial power transformer variants operating under IEC 60076 and IEEE standards.
| Engineering Parameter | Dry-Type Cast Resin | Oil-Immersed (Mineral) | Oil-Immersed (Synthetic Ester) |
|---|---|---|---|
| Power Capacity Range | 500 kVA – 25 MVA | 500 kVA – 31.5+ MVA | 500 kVA – 31.5 MVA |
| Primary Voltage Levels | Up to 36 kV | Up to 110 kV | Up to 66 kV |
| Basic Impulse Level (BIL) | Up to 170 kV BIL | Up to 550 kV BIL | Up to 350 kV BIL |
| Cooling Class | AN / AF | ONAN / ONAF | KNAN / KNAF |
| Fire Risk Classification | F1 (Self-extinguishing) | O1 (High combustibility) | K3 (Fire point > 300 °C) |
| Typical Impedance (%Z) | 6.0% – 8.0% | 6.5% – 10.0% | 6.5% – 10.0% |
| Harmonic Load Capability | K-4 to K-20 available | Standard K-1 (Derate) | Customized K-factors |
| Installation Siting | Indoor plant floor / Basements | Outdoor switchyards / Bunded | Indoor / Close-to-load areas |
Selecting percentage impedance (%Z) requires a trade-off. A higher impedance (e.g., 8.0% to 10.0%) limits prospective symmetrical short-circuit current, permitting lower breaking-capacity ratings for downstream switchgear. Conversely, higher impedance increases internal voltage drop during dynamic load shifts. For applications requiring precise line regulation, plants specify on-load tap changers (OLTC) with typical regulation ranges of ±10% in 1.25% or 2.5% steps to stabilize bus voltages under fluctuating loads.
Why partner with a custom industrial transformer manufacturer?
A custom industrial transformer manufacturer engineers transformers to fit constrained plant footprints, non-standard system voltages, and severe industrial duty cycles that catalog models cannot accommodate. Standard off-the-shelf catalog units assume benign ambient environments, standard 50 Hz or 60 Hz sinusoidal currents, and balanced loads. However, heavy industries such as steel milling, mining, and oil refining frequently impose severe phase unbalance, direct DC bias from rectifiers, and high ambient temperatures up to 50 °C.
By collaborating with an engineering-focused manufacturing facility, project consultants can specify bespoke mechanical and electrical parameters: optimized tank dimensions to slide into pre-existing switchgear rooms, dual-secondary phase-shifting windings (e.g., 12-pulse or 24-pulse converter supplies) to cancel out 5th and 7th harmonics, and specialized anti-corrosion marine-grade coatings for coastal chemical processing plants. Custom engineering also integrates digital online monitoring systems, including fibre-optic hotspot temperature probes, dissolved gas analysis (DGA) sensors, and smart magnetic oil gauges, providing real-time data feeds directly into facility SCADA platforms.
Core and winding technology in heavy industrial service
The long-term operating efficiency and structural reliability of an industrial transformer depend directly on its magnetic core material and winding configuration. High-tier industrial units use cold-rolled grain-oriented (CRGO) silicon steel sheets assembled with multi-step lap-mitred joints. Step-lap stacking dramatically reduces magnetic flux leakage and core excitation currents, minimizing no-load (iron) losses and acoustic noise generation, in strict alignment with the Ecodesign Tier 2 regulations (EN 50588-1) and equivalent international efficiency mandates.
Windings are configured as continuous disc, helical, or foil arrangements depending on rated current and system voltage class. In heavy industrial environments prone to lightning strikes and switching surges from vacuum circuit breakers, continuous disc windings provide superior uniform distribution of transient surge voltages across the turns. Disc spacers and axial clamping rings constructed from high-density transformerboard maintain a uniform mechanical pre-stress. This ensures the coil assembly does not loosen under thermal cycling or shift laterally when subjected to severe radial and axial forces during fault conditions, a fundamental requirement documented in our comprehensive large power transformers engineering guide.
Step-by-step procurement procedure for industrial transformers
Procuring an industrial transformer involves an engineering-driven sequence from initial specification drafting through factory acceptance testing (FAT) to on-site commissioning. Following a structured procedure mitigates commercial risk and ensures complete integration with site switchgear and grounding schemes.
- Define operational conditions and electrical ratings: Establish primary and secondary voltages, frequency (50/60 Hz), vector group (e.g., Dyn11 or YNd11), nominal kVA capacity, ambient temperature extremes, elevation above sea level, and anticipated harmonic spectrum (THD).
- Establish cooling and environmental requirements: Determine if internal safety constraints dictate dry-type cast resin or if outdoor placement allows oil-immersed cooling (ONAN/ONAF). Detail any seismic zone, containment bunding, or fire-barrier requirements.
- Calculate system fault levels and specify impedance: Coordinate with your power systems consultant to select percentage impedance (%Z) based on maximum utility upstream fault MVA and downstream switchgear interrupting ratings. Reference sizing benchmarks from our step down power transformer guide.
- Review technical bid tenders and loss capitalisation: Compare competitive proposals using total owning cost (TOC) formulas: TOC = Initial Purchase Price + (A × No-Load Loss) + (B × Load Loss), where A and B represent monetary capitalisation figures over the expected 30-year asset life.
- Conduct Factory Acceptance Testing (FAT): Witness or verify certified third-party testing according to IEC 60076-1 / IEEE C57.12.90, including winding resistance, turns ratio, polarity, impedance, load losses, partial discharge, and applied/induced overvoltage withstand tests.
- Oversee site delivery, installation, and commissioning: Carry out oil breakdown voltage (BDV) tests, insulation resistance (Megger), frequency response analysis (FRA), and vector group verification prior to energisation. Consult our 3 phase transformer buyer guide for pre-energisation checklists.
Next steps: specifying and sourcing
When specifying an industrial power transformer for your upcoming industrial expansion or capital replacement, compile your Single Line Diagram (SLD), site environmental conditions, load growth profile, and required accessories before requesting tenders. Explore our specialized power transformer engineering line and high-efficiency oil-immersed transformer units to match your substation specifications. If your installation requires indoor cast-resin isolation, review our fully certified dry-type transformer solutions. For custom engineering consultations, complete equipment quotations, and design drawings, submit your project details directly via our transformer quotation portal.
Frequently asked questions
What is the typical lifespan of an industrial power transformer?
An industrial power transformer typically operates for 25 to 35 years under normal operating conditions. Regular oil purification, continuous dissolved gas analysis (DGA), and operating within nominal winding temperature limits (Class A 105 °C or Class F 155 °C) can extend mechanical and electrical asset life beyond 40 years.
How does ambient temperature affect an industrial transformer's rating?
Ambient temperatures above standard reference levels (typically 40 °C peak or 30 °C daily average per IEC 60076) reduce cooling capacity and require derating. For every degree Celsius above the standard limit, transformer output must typically be derated by 1% to 1.5% to prevent exceeding maximum winding hotspot temperatures.
Why is percentage impedance (%Z) critical when ordering a transformer?
Percentage impedance determines the voltage drop under load and limits the maximum short-circuit current available at the secondary terminals. Sizing %Z correctly ensures downstream circuit breakers can safely interrupt downstream electrical faults while maintaining acceptable bus voltage stability during heavy motor starting.
What is the difference between ONAN and ONAF cooling ratings?
ONAN (Oil Natural Air Natural) relies entirely on natural convection to cool the transformer oil and external radiator banks. ONAF (Oil Natural Air Forced) activates external cooling fans to boost heat dissipation, typically increasing the transformer's continuous kVA capacity by 25% to 33% without enlarging the internal tank footprint.
When should an industrial plant choose dry-type over oil-filled transformers?
Industrial plants should choose dry-type transformers for indoor switchrooms, multi-storey industrial buildings, underground facilities, and areas near process chemicals where flammable mineral oil poses an unacceptable fire hazard. Dry-type cast resin units eliminate oil spill risks and do not require concrete catchment bunds.
