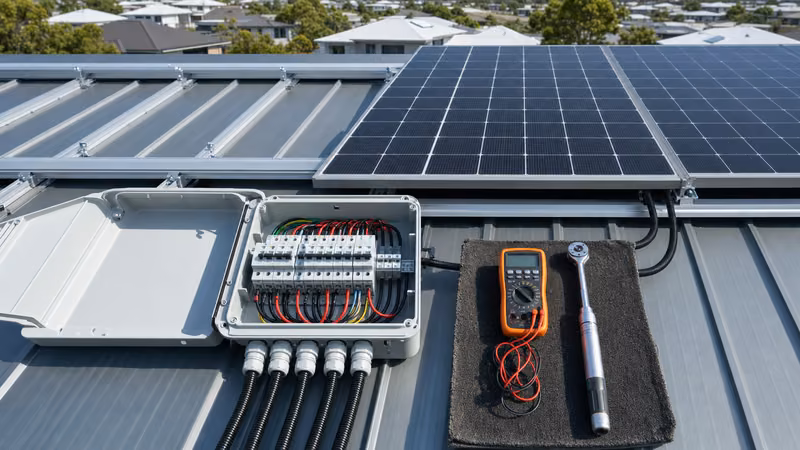

Do It Yourself Solar System: Engineering, Sizing & Safety

Quick answer: A do it yourself solar system combines photovoltaic modules, racking, a power conversion inverter, and optional battery storage assembled without a turnkey contractor. Executing a safe, compliant installation requires rigorous string voltage calculations, compliant overcurrent protection, correct equipment grounding, and strict adherence to regional grid interconnection codes such as IEEE 1547.

Building an autonomous or grid-synchronised power generation facility on your property represents an attractive route to energy sovereignty and capital savings. However, transitioning from a basic concept to a functional generation facility involves complex electrical engineering challenges. A photovoltaic (PV) array produces non-interruptible direct current (DC) whenever daylight strikes the semiconductor cells. Unlike alternating current (AC) domestic circuits where current alternates through zero points, DC faults sustain fierce electrical arcs that do not self-extinguish. Achieving a reliable installation demands an engineer's approach to conductor ampacity, overcurrent protection, structural ballast, and battery storage chemistry.

Do It Yourself Solar System Feasibility: Sizing and Electrical Architecture

A functional do it yourself solar system begins with quantifying historical load consumption alongside available roof or ground surface area. Monthly energy bills provide average kilowatt-hour (kWh) metrics, but sizing generation equipment requires matching peak demand (kW) to regional solar irradiance (peak sun hours). To establish baseline array sizing, divide daily consumption by your location's lowest seasonal average peak sun hours, factoring in an overall system efficiency derating of 80% to account for soiling, thermal degradation, and inverter losses.

System design paths diverge into three primary electrical topologies:

• Grid-Tied String Inverter: Directly feeds converted AC power into the main service panel; economical, but shuts down during utility outages per IEEE 1547 anti-islanding mandates.
• Hybrid Storage System: Merges array charging and a battery bank into a single multi-mode inverter; prioritises critical backup circuits while remaining grid-synchronised.
• Pure Off-Grid Topology: Operates entirely isolated from electrical distribution utilities, requiring extensive battery autonomy and supplementary generator integration.

For an in-depth breakdown of array capacities and daily demand modelling, consult our analysis on what size solar system do I need, or review our pillar resource covering the battery storage engineering guide to evaluate storage capacities alongside generation profiles.

DC String Sizing and Inverter Selection for a DIY Home Solar System

DC string calculations ensure that the maximum series voltage never breaches inverter ratings or safety standards when building a diy home solar system. Photovoltaic modules demonstrate a negative temperature coefficient of open-circuit voltage ($β_{Voc}$), meaning voltage increases significantly as ambient temperature drops. Under NEC 690.7 and IEC 62548, string sizing calculations must evaluate the module open-circuit voltage ($V_{oc}$) at the local historical minimum temperature, rather than standard test conditions (STC) of 25°C.

Consider this practical sizing calculation for an array using 400 W monocrystalline panels:

• Rated $V_{oc}$ at STC (25°C): 37.2 V
• Temperature coefficient of $V_{oc}$ ($β_{Voc}$): -0.28%/^°C
• Inverter maximum permissible DC input voltage: 600 V
• Inverter Maximum Power Point Tracking (MPPT) operating window: 120 V to 550 V
• Local extreme design minimum ambient temperature: -10°C

First, calculate the temperature differential: $ΔT = -10°C - 25°C = -35°C$.

Next, determine the maximum open-circuit voltage per module under extreme cold:

$$V_{oc(cold)} = V_{oc(STC)} imes [1 + (β_{Voc} / 100 imes ΔT)]$$

$$V_{oc(cold)} = 37.2 imes [1 + (-0.0028 imes -35)] = 37.2 imes [1 + 0.098] = 40.85 ext{ V}$$

Dividing the 600 V inverter ceiling by 40.85 V yields 14.68 modules. Therefore, the absolute physical limit is 14 modules connected in series ($14 imes 40.85 ext{ V} = 571.9 ext{ V}$), maintaining a compliant safety margin below the 600 V threshold. Exceeding this calculation by stringing 15 modules would induce instantaneous overvoltage destruction of the inverter front-end input stage on freezing mornings.

Battery Energy Storage Integration: AC vs DC Coupling

Integrating energy storage into a generation asset dictates how efficiently power moves between panels, storage cells, and household appliances. DC-coupled systems route solar output straight to a charge controller or hybrid inverter sharing a high-voltage or low-voltage DC bus. This preserves efficiency because solar DC charges the battery bank directly without undergoing intermediary conversion cycles. Round-trip efficiency for DC-coupled lithium systems typically ranges between 92% and 96%.

Conversely, AC-coupled architectures rely on distinct solar and battery inverters connected at the main AC distribution board. While highly convenient for retrofitting an established array, dual energy conversions (DC to AC, then AC back to DC for storage) decrease overall efficiency down to 84% to 88%. When configuring domestic energy storage, modern installations universally favour lithium iron phosphate (LFP) chemistry over nickel-manganese-cobalt (NMC) due to exceptional thermal stability, reduced risk of oxygen liberation under mechanical stress, and life cycle ratings exceeding 6,000 cycles at 80% depth of discharge.

Engineers evaluating custom configurations should review our detailed analysis on lithium solar batteries and consult the technical procedures within our solar battery installation guide to ensure correct battery disconnect sizing and thermal layout clearance.

System Architecture Comparison Matrix

Selecting the appropriate technical architecture requires balancing installation complexity against electrical efficiency, equipment cost, and power resilience. The following matrix contrasts primary equipment layouts deployed in self-assembled residential and light-commercial installations.

Regulatory Compliance, Permitting, and Grid Intertie for Self Install Solar

Executing a self install solar project requires meeting the identical electrical codes and local utility criteria that govern licensed commercial contractors. Bypassing building permits or utility interconnection applications is dangerous and risks physical disconnection, denied home insurance coverage, and liability if unapproved hardware exports power into a de-energised utility line during maintenance work.

Key statutory compliance mandates include:

• IEEE 1547-2018: Standard for Interconnection and Interoperability of Distributed Energy Resources with Associated Electric Power Systems Interfaces. Outlines specific voltage and frequency ride-through profiles, as well as mandatory anti-islanding parameters.
• UL 1741 SB / IEC 62109: Product certifications ensuring inverter equipment autonomously ceases power delivery to the utility grid within two seconds of utility loss.
• NEC Article 690.12 (Rapid Shutdown): Dictates that array circuits located inside or more than 1 metre (3 feet) from the array boundary must be reduced to 30 V or less within 30 seconds of shutdown initiation, protecting emergency responders from high-voltage DC lines.
• NEC Article 705 & 706: Regulates interconnected electric power production sources and electrical energy storage systems, specifying busbar derating rules (such as the 120% busbar rule) to prevent panel overload.

For systems intended to export excess production while retaining grid backup, our technical overview of grid intertie solar electric systems details utility synchronisation requirements and service equipment derating.

Step-by-Step Installation and Commissioning Checklist

System commissioning demands a disciplined, linear verification protocol before closing circuit breakers or energising internal DC switches. Rushing energisation without verifying earthing paths and mechanical connection torques is a primary root cause of electrical fires and equipment failure.

1. Structural Substructure Assembly: Fix roof brackets or ground rails into structural rafters or concrete footings; confirm uplift torque ratings and flash all penetrations with compatible waterproofing membranes.
2. Module Mounting and Bonding: Secure PV frames using manufacturer-specified mid- and end-clamps; verify that integrated grounding pins breach anodised aluminium coatings to establish equipotential bonding.
3. DC Cabling and Cable Management: Route cross-linked polyethylene (XLPO) double-insulated solar cables through UV-resistant metallic or rigid PVC conduit; ensure zero mechanical tension and no sharp contact with racking edges.
4. DC Disconnect and Surge Protection Integration: Terminate string conductors into an external lockable DC disconnect enclosure equipped with Type 1 or Type 2 surge protective devices (SPDs) compliant with IEC 61643-31.
5. Insulation Resistance Verification: Prior to inverter landing, conduct an insulation resistance test between live conductors (DC+ and DC- shorted together) and protective earth using a calibrated 1000 V insulation tester per IEC 62446-1 Clause 6; measured resistance must read strictly above 1.0 megohm.
6. Polarity and Open-Circuit Voltage Audit: Measure open-circuit voltage ($V_{oc}$) of each individual string with a calibrated true-RMS digital multimeter set to DC volts; verify exact positive and negative orientation and cross-reference with theoretical temperature-adjusted values.
7. AC Switchboard Interconnection: Land dedicated inverter feed conductors onto an appropriately rated overcurrent protective device (OCPD) in the main switchboard, complying with busbar capacity limits.
8. Firmware and Parameter Configuration: Energise AC supply first, followed by DC isolators; program local grid code profiles (voltage thresholds, frequency trip boundaries) and battery charging parameters into the system controller.

Common Field Pitfalls and Prevention Engineering

Forensic inspection of failed self-installed generation systems identifies consistent installation errors that bypass visual checks. The most severe hazard involves the cross-mating of PV connectors from varying brands. While many connectors share a nominal 4 mm profile, subtle internal tolerances and dissimilar copper alloys cause contact resistance to multiply under high current loads. This impedance rise generates thermal degradation, housing deformation, and catastrophic high-voltage DC arcing. Always utilise matched connectors supplied by the same manufacturer and crimp them using calibrated ratcheting tools designed specifically for the pin profile.

A second recurring failure mode is neglecting terminal torque specifications on high-current battery and circuit breaker lugs. Under sustained cyclic thermal loading, loose mechanical connections loosen further, producing localised hotspots exceeding 120°C. Every power terminal must be set using a calibrated torque wrench to the exact Newton-metre (N·m) or inch-pound rating stamped on the equipment housing. Lastly, ensure that high-voltage DC conductors and low-voltage communication cables (such as CAN bus or RS485 lines for Battery Management Systems) run in separate conduits. Coupling high-voltage switching noise into unshielded communication wiring causes packet drops, erroneous state-of-charge tracking, and sudden system shut-downs.

Next steps: specifying and sourcing

Transitioning from system engineering calculations to actual procurement requires verified equipment specifications. Before requesting quotations, compile your exact array layout, site temperature extremes, single-line diagrams, and battery capacity requirements. For scalable residential storage, commercial installations, or isolated mini-grids, explore our engineered energy storage system platforms, robust HV/LV switchgear, and industrial liquid-cooled ESS containers built to international utility codes. Submit your technical drawings directly through our quote page or discuss project interconnect parameters with our engineering team via the contact page.
