Key takeaways
- A utility-scale big battery pack couples hundreds of lithium iron phosphate cells in series-parallel configurations to deliver standard direct-current bus operating potentials between 1,000 VDC and 1,500 VDC.
- Liquid cooling plates maintain internal temperature variance within a large battery pack below 3 degrees Celsius, extending operational cycle life beyond 6,000 equivalent full cycles.
- Short-circuit prospective currents in a multi-megawatt big battery bank routinely exceed 50 kA, demanding coordinated DC semiconductor fuses and pyrotechnic circuit interrupters.
- A 1 MW, 4-hour large capacity battery installation requires roughly 4.88 MWh of nameplate DC storage to guarantee an end-of-life delivered energy of 4.0 MWh after accounting for round-trip degradation and auxiliary loads.
- Safety compliance mandates adherence to UL 9540A unit-level and installation-level thermal runaway fire propagation testing alongside NFPA 855 separation distances.
Quick answer: A big battery pack is an engineered industrial direct-current (DC) storage assembly that integrates electrochemical cells, thermal management, and battery management electronics into high-voltage racks capable of delivering megawatt-scale power to electric grids or heavy industrial sites. Most commercial configurations operate between 1,000 VDC and 1,500 VDC using lithium iron phosphate (LFP) chemistry to guarantee operational stability and thermal safety.
Deploying energy storage at commercial, industrial, and utility scale requires an understanding of how individual cell assemblies scale into a high-density, multi-megawatt DC block. When engineering a big battery pack, systems designers must resolve competing physical constraints: energy density versus thermal rejection, rapid discharge capability versus cell degradation, and high short-circuit vulnerability versus selective electrical protection. As renewables increase grid volatility, industrial plants and independent power producers deploy these large-scale systems for peak shaving, arbitrage, and primary frequency control. For foundational concepts on multi-megawatt system layout, consult our utility-scale energy storage engineering guide.
Engineering Architecture: From Cell to Big Battery Pack

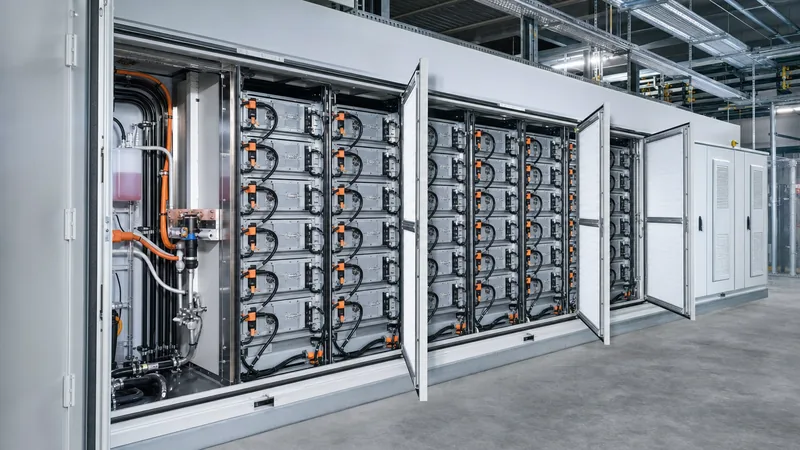

A large battery pack is constructed through a strict mechanical and electrical hierarchy: individual pouch or prismatic cells connect in series and parallel to form modules, which are mounted into standardised racks, and then aggregated into containerised enclosures.
In high-capacity utility installations, the fundamental building block is typically a 280 Ah or 314 Ah prismatic lithium iron phosphate (LFP) cell operating at a nominal 3.2 VDC. To reach modern 1,500 VDC architectures conforming to IEC 62619 and UL 1973, engineers arrange 416 to 448 cells in strict series (1P416S to 1P448S). Connecting cells purely in series eliminates circulating currents between parallel-connected cells within a module, simplifying state-of-charge (SoC) estimation and reducing cell-balancing losses. Individual modules slide into a structural steel rack equipped with integrated high-voltage direct-current (HVDC) busbars, internal communication harnesses, and quick-connect liquid cooling manifolds. Each rack terminates in a dedicated high-voltage control box containing a motorised DC contactor, solid-state circuit protection, and a local Rack Battery Management System (BMS) unit. For an analysis of broader commercial DC topologies, explore our battery bank industrial systems guide.
Thermal Management and Degradation in a Large Battery Pack
A large battery pack relies on active thermal management to restrict cell operating temperatures between 20°C and 28°C and suppress intra-pack temperature gradients below 3°C.
Cell ageing acceleration correlates exponentially with elevated temperature, as described by the Arrhenius reaction rate. Operating an LFP-based big battery bank at 38°C rather than 25°C nearly doubles the solid electrolyte interphase (SEI) growth rate, causing premature capacity loss and lithium plating during high-rate charging. Liquid cooling systems have superseded forced-air convective systems in modern multi-megawatt packs. A closed-loop liquid thermal management system pumps a mixture of water and ethylene glycol (typically a 50/50 volumetric ratio) across cold plates situated beneath or between cell blocks. This configuration yields a heat transfer coefficient ten times higher than air, permitting the system to reject the heat generated by 1C charge and discharge cycles without permitting hot spots. For detailed design rules on fluid circuit velocity and chiller sizing, refer to our comprehensive battery cooling engineering guide.
Sizing Calculations for a Large Capacity Battery Installation
Sizing a large capacity battery requires engineers to calculate total beginning-of-life (BOL) capacity by compounding depth of discharge, round-trip efficiency, auxiliary power drain, and expected end-of-life (EOL) retention.
Consider an industrial facility specifying a 1,000 kW (1 MW) constant-power storage system with a required discharge duration of 4.0 hours at its terminal bus, yielding 4,000 kWh (4.0 MWh) of net AC energy. The engineering parameters are defined as follows:
- Required net AC energy delivered: 4,000 kWh
- Maximum depth of discharge (DoD): 90% (0.90)
- Power conversion system (PCS) discharge efficiency: 97.5% (0.975)
- DC busbar, cabling, and rack auxiliary losses: 2.0% (efficiency = 0.98)
- Target system lifespan: 10 years at 1.5 cycles/day (5,475 cycles)
- Projected EOL capacity retention: 75% (0.75)
The calculation proceeds in two steps to isolate the net DC discharge energy required at EOL, and then the gross BOL DC capacity needed to guarantee performance:
- Calculate required net DC discharge energy at EOL:
Net DC Energy = Required AC Energy / (PCS Efficiency × DC Path Efficiency)
Net DC Energy = 4,000 kWh / (0.975 × 0.98) = 4,000 / 0.9555 = 4,186.3 kWh - Calculate gross BOL DC nameplate capacity:
Gross BOL Capacity = Net DC Energy / (DoD × EOL Retention)
Gross BOL Capacity = 4,186.3 kWh / (0.90 × 0.75) = 4,186.3 / 0.675 = 6,201.9 kWh (~6.20 MWh)
Thus, specifying a huge battery pack installation for a 4.0 MWh delivered project requires a BOL nameplate capacity of roughly 6.2 MWh to ensure the contractually guaranteed energy is delivered in year ten without replacing cells prematurely.
Comparison: Containerised Big Battery Bank Configurations
A big battery bank can be configured across different mechanical formats and voltage thresholds depending on installation footprint and inverter compatibility.
The table below provides direct engineering comparisons between common utility-grade storage enclosure configurations:
| Design Parameter | 1,000 VDC Air-Cooled 20ft | 1,500 VDC Liquid-Cooled 20ft | 1,500 VDC Liquid-Cooled 40ft |
|---|---|---|---|
| DC Energy Capacity (MWh) | 1.5 to 2.2 MWh | 3.4 to 3.72 MWh | 5.0 to 6.7 MWh |
| Cell Configuration | 1P312S to 1P336S | 1P416S to 1P448S | 1P416S to 1P448S |
| Cell Form Factor / Capacity | Prismatic 280 Ah | Prismatic 314 Ah | Prismatic 314 Ah |
| Max Intra-Rack Temp Spread | ≤ 6.0 °C | ≤ 2.5 °C | ≤ 3.0 °C |
| Auxiliary Power Load (% of total) | 4.5% - 6.0% | 2.0% - 3.0% | 1.8% - 2.5% |
| Prospective Short-Circuit Current | 30 - 40 kA | 50 - 65 kA | 65 - 85 kA |
| Applicable Standards | IEC 62619, UL 1973 | IEC 62619, UL 9540A | IEC 62619, UL 9540A |
Selecting 1,500 VDC architectures allows system designers to reduce copper conductor cross-sections by approximately 33% relative to 1,000 VDC systems for the same power rating, while cutting inverter count. Match these parameters with appropriate power conversion gear detailed in our power conversion system sizing guide.
Protection, BMS, and Fire Safety for a Huge Battery Pack
A huge battery pack demands multilayered electrical protection and deflagration mitigation to prevent individual cell thermal events from propagating through adjacent modules.
At the electrical layer, short-circuit current protection must clear within milliseconds. In a 1,500 VDC rack string, internal cell impedance is extremely low (typically 0.18 to 0.25 mΩ per 314 Ah cell). A bolted busbar fault produces a prospective fault current exceeding 50 kA. Traditional molded-case circuit breakers (MCCBs) lack the clearing speed to prevent thermal destruction of the cell terminals; therefore, engineers implement ultra-rapid semiconductor fuses rated in accordance with IEC 60269-4, paired with high-speed pyrotechnic disconnectors operated directly by the primary BMS.
Fire safety follows NFPA 855 and UL 9540A testing protocols. Systems incorporate gas detection systems that monitor carbon monoxide (CO) and hydrogen (H2) release during early cell off-gassing, initiating emergency shutdown minutes before thermal runaway commences. Containment architecture features total-flooding clean-agent extinguishing systems (such as FK-5-1-12) coupled with external dry-pipe water deluge systems to cool exterior cell structures and satisfy insurance requirements.
Factory Acceptance Testing (FAT) and Commissioning Checklist
Commissioning a commercial energy storage system requires rigorous verification of safety circuits, insulation resistance, and balancing functions prior to grid energisation.
Engineers should execute this factory acceptance testing sequence on every incoming DC container:
- Insulation Resistance and Hi-Pot Testing: Apply a test potential of 2,500 VDC for 60 seconds between the isolated DC positive/negative busbars and structural earth. Verify insulation resistance exceeds 10 MΩ per rack, confirming cable jacket and busbar clearance integrity.
- Dielectric Coolant Circuit Integrity: Pressurise the liquid cooling loops with dry nitrogen to 1.5 times the maximum rated operating pressure (typically 4.5 to 6.0 bar) for four hours. Verify zero barometric drop, then flush and fill with premixed dielectric glycol solution, testing for air locks.
- BMS Communication and Calibration: Validate that every local cell voltage measurement exhibits an accuracy within ±2 mV and temperature readings match reference thermocouples within ±0.5°C. Trigger simulated over-voltage (3.65 V) and under-voltage (2.50 V) signals to verify that the high-voltage contactor opens within 10 milliseconds.
- Full-Cycle Thermal and Capacity Balance: Execute a baseline charge-discharge cycle at rated continuous C-rate (0.5C or 1.0C). Record individual cell end-of-charge voltages; reject or rebalance any rack exhibiting a delta greater than 30 mV across its series string.
Next steps: specifying and sourcing
When specifying a big battery pack for utility, solar-plus-storage, or critical commercial installations, compile clear design boundary conditions: nominal DC bus voltage, required discharge duration, auxiliary supply parameters, and site-specific seismic and climatic data. Our factory designs and fabricates containerised energy storage systems engineered to IEC, ANSI, and UL requirements. Explore our integrated energy storage systems and high-density liquid-cooled ESS containers, or pair your battery bank with an engineered transformer substation. Contact our technical team or submit your site Single Line Diagram through our quotation inquiry page for full engineering evaluation and thermal modeling.
Frequently asked questions
What is the difference between a big battery pack and a battery module?
A battery module is an intermediate mechanical assembly of cells, whereas a big battery pack is the complete, high-voltage system that combines multiple modules with thermal control, power distribution, and a battery management system.
What voltage does a commercial big battery pack operate at?
Commercial and utility-scale installations typically operate at either 1,000 VDC or 1,500 VDC. The 1,500 VDC standard is preferred in modern plants because it decreases cable conductor sizing, minimizes ohmic losses, and matches modern central power conversion systems.
Why is LFP chemistry preferred for a large battery bank?
Lithium iron phosphate (LFP) is preferred due to its superior chemical stability, lower risk of thermal runaway, and extended cycle life of 6,000 to 10,000 cycles compared to nickel manganese cobalt alternatives.
How does a large capacity battery prevent thermal runaway propagation?
Systems isolate thermal runaway through internal cell-to-cell aerogel barrier insulation, liquid-cooled cold plates that draw away excess heat, rapid off-gas detection, and fire suppression systems built to UL 9540A standards.
How long will a utility-scale huge battery pack last?
A properly managed utility battery pack typically operates for 10 to 15 years. Operational lifespan depends on operational depth of discharge, ambient temperature control, and the daily cycling regime.
