Battery Management IC Guide: Architecture, Selection & Specs

Quick answer: A battery management ic is a specialised mixed-signal semiconductor that measures individual cell voltages, pack temperatures, and busbar currents while providing hardware-level overvoltage, undervoltage, and thermal protection. In utility-scale and industrial battery storage, it acts as the high-precision analogue front-end that delivers digitised telemetry to the system controller.

As stationary storage systems scale from 48 V telecom cabinets to 1,500 V DC containerised infrastructure, monitoring fidelity dictates overall pack safety, cycle life, and thermal stability. Specifying a battery monitoring system guide architecture requires balancing analogue-to-digital converter (ADC) resolution against channel density, internal switch resistance, and functional safety certification. Selecting the optimal battery management integrated circuit forms the baseline of any reliable utility or industrial battery design.

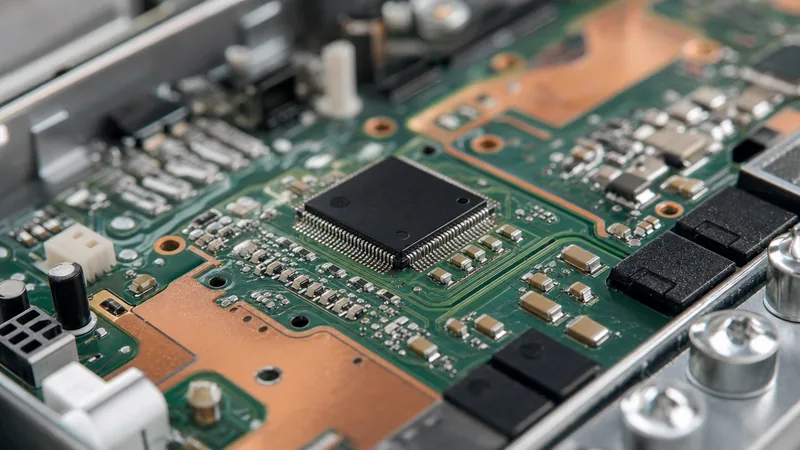

What Is a Battery Management IC in Modern Energy Storage?

A battery management ic is a monolithic or multi-die integrated circuit designed to interface directly with electrochemical cells to monitor, protect, and balance them throughout charge and discharge cycles. Rather than relying on discrete op-amps and multiplexers, a single modern battery management integrated circuit integrates multichannel differential ADCs, precision voltage references, programmable hardware comparators, low-dropout regulators (LDOs), and internal discharge FET switches into a single package.

In high-capacity lithium iron phosphate (LFP) installations, the primary role of the battery management ic is capturing cell potentials with laboratory-grade precision across harsh industrial operating temperatures from -40°C to +85°C. Because stationary energy storage systems connect dozens or hundreds of cells in series, these chips must also withstand common-mode voltages spanning up to 1,500 V DC across the full stack while sustaining reliable inter-board communications.

Core Architectures: AFE vs Fully Autonomous Battery Management System IC

Choosing between an Analogue Front-End (AFE) transceiver and an autonomous battery management system ic depends on where your control firmware resides within the pack architecture.

An AFE-style battery management ic functions as an intelligent peripheral. It continuously digitises cell voltages and temperatures, executes continuous hardware limit checks against hard-coded threshold registers, and streams raw telemetry across a serial link to an external microcontroller (MCU). This architecture offers maximum flexibility for custom estimation algorithms, complex multi-pack orchestration, and third-party communications. Conversely, an autonomous battery management system ic integrates an on-board MCU, non-volatile EEPROM memory, and pre-flashed state-estimation algorithms (including Coulomb counting and state-of-health tracking) directly on chip.

For industrial energy storage racks and high voltage battery systems, tier-one designs almost universally specify AFE architectures. Offloading high-level algorithms to a dedicated system microcontroller enables engineers to update State of Charge (SoC) lookup tables, alter safety interlocks, and run predictive analytics without requiring requalification of the silicon layer.

Measurement Precision, ADC Resolution, and LFP Error Budgets

Measurement accuracy in a battery management ic directly dictates the usable operating window of the battery bank, especially when using lithium iron phosphate chemistry. Between 20% and 80% SoC, an LFP cell displays an exceptionally flat open-circuit voltage curve, varying by as little as 0.5 mV to 1.0 mV per percentage point of capacity change.

If an ic battery monitor exhibits a total unadjusted error (TUE) of ±5 mV across its operating temperature envelope, this minor analogue deviation induces an SoC estimation error of 5% to 10%. Over an entire 2 MWh containerised system, that measurement uncertainty forces the power conversion system to impose wider operating guard bands, effectively stranding 100 kWh to 200 kWh of paid-for capacity to prevent accidental over-discharge.

To understand the silicon requirements, evaluate the measurement error budget. For a high-precision battery management ic utilizing an internal delta-sigma (ΔΣ) ADC with an effective number of bits (ENOB) of 16:

• Full-scale input range: 0.0 V to 5.0 V
• Theoretical LSB resolution: 5.0 V / 2¹⁶ = 76.3 μV/LSB
• Bandgap reference thermal drift: ±3 ppm/°C across ΔT = 65°C (yielding ~0.98 mV worst-case reference error)
• Quantisation and offset error: ±0.5 mV
• Total worst-case unadjusted error: ~1.48 mV

High-end chips couple this delta-sigma core with an auxiliary successive-approximation register (SAR) ADC. The SAR ADC captures fast voltage transients caused by short-circuits or inrush currents in microseconds, while the higher-resolution delta-sigma converter tracks steady-state values for capacity monitoring alongside dedicated battery shunt monitor telemetry.

Cell Balancing Topologies Integrated into an IC Battery Monitor

A critical operational requirement for any battery management ic is maintaining cell voltage uniformity across the pack via passive or active balancing topologies. Without continuous balancing, standard production capacity tolerances cause individual cells to drift, triggering premature undervoltage shutdowns on the weakest series element.

Internal passive balancing uses on-chip drain-source MOSFETs embedded within the battery management ic to bleed off energy from high-voltage cells through low-wattage resistors. However, internal silicon switches typically limit balancing current to between 10 mA and 50 mA due to die thermal dissipation constraints. Calculate the thermal power generated inside the chip package via:

P_die = I_bal² × R_DS(on) × N_channels

If a 16-channel ic battery monitor attempts to balance 8 adjacent cells simultaneously at 50 mA with an internal switch on-resistance of 10 Ω, the internal power dissipation is:

P_die = (0.05 A)² × 10 Ω × 8 = 0.20 W

In a cramped enclosure lacking forced airflow, a thermal resistance of 35°C/W will elevate the silicon die temperature by 7°C above ambient, quickly pushing internal bandgap references into thermal drift. Consequently, industrial BESS packs with capacities exceeding 100 Ah require external N-channel MOSFET gate drivers controlled by the battery management ic. This shifts thermal dissipation onto rugged, chassis-mounted ceramic resistors, permitting balancing currents from 200 mA to beyond 1 A as detailed in our guide to lithium ion cell balancing.

Daisy-Chain Communications and Galvanic Isolation in High-Voltage Stacks

In utility battery energy storage systems, individual module battery management ics must transmit high-speed data down the communication chain to the master battery control unit across immense potential differences. Standard non-isolated CAN or SPI buses cannot connect directly between modules sitting at 0 V ground and those floating at 1,200 V DC without fatal common-mode breakdown.

Modern battery management ic designs solve this using proprietary isolated daisy-chain physical layers. These physical layers employ transformer-coupled (magnetic) or capacitor-coupled differential signaling capable of rejecting common-mode slew rates exceeding 50 V/ns (IEC 60664-1 compliance). A single twisted-pair cable routes from module to module in a ring or ladder topology:

1. The master controller transmits command packets through an isolated transceiver interface IC located at the bottom of the stack.
2. Each successive battery management ic receives the differential packet, strips its local configuration data, appends its local cell measurements, and re-transmits the frame up the daisy chain within 10 to 20 microseconds.
3. A return loop routed from the top module back to the master controller creates a dual-path redundant communication link. If a physical wire fractures midway along the rack, bidirectional addressing enables the controller to interrogate the stack from both ends without data loss.

Engineering Selection Matrix for Battery Management ICs

When specifying a battery management ic for industrial equipment, engineering teams must evaluate operational voltage limits, ADC architectures, balancing provisions, and functional safety ratings. Use the following decision matrix to align silicon specifications with project requirements:

Next steps: specifying and sourcing

Specifying the optimal battery management ic requires clear alignment between target pack voltages, cell chemistry, thermal limits, and functional safety standards such as IEC 62619 and ISO 26262. For complete, grid-ready solutions, explore our factory-integrated energy storage system enclosures and multi-megawatt liquid-cooled energy storage cabinets engineered for utility and industrial demands. When preparing your project requirements, submit your cell specifications, rack voltage targets, and environmental constraints directly through our quote request form or discuss architecture requirements with our senior engineering team.
