At a glance
| Country | Egypt |
|---|---|
| Application | Utility transmission and distribution substation, desert environment |
| System | 66 kV/11 kV oil-immersed grid transformer with radiator cooling and on-load tap changer |
| Voltage | 66 kV primary / 11 kV secondary |
| Frequency | 50 Hz |
| Standards basis | IEC 60076 series (-1 general, -2 temperature rise, -3 insulation levels and dielectric tests, -5 short-circuit withstand, -7 loading guide, -10 sound levels), IEC 60214-1 and IEC 60076-21 for tap changers, IEC 60137 for bushings, IEC 60099-4 for surge arresters, IEC 61869 for instrument transformers, IEC 60815 for pollution-related insulator selection, IEC 61936-1 and IEC 62271-202 practice for the bay and containment; the purchasing network owner's own specification would govern where it is more onerous |
| Visual status | Representative project visualization |
The engineering problem
At 66 kV this is a sub-transmission grid transformer, not a distribution unit, and that changes the specification in four connected ways.
First, it regulates a busbar. An 11 kV busbar fed from a 66 kV network has to be held within limits while the upstream voltage and the downstream load both move through the day, so the unit needs an on-load tap changer with its automatic voltage regulator, not off-circuit links. The tapping range, step size and regulation band come out of a voltage study of the network at that point, and the tap changer then becomes the transformer’s only moving mechanical assembly and its principal maintenance item.
Second, protection is unit protection. A transformer of this size and position is protected by differential relaying with vector group and ratio compensation, restricted earth fault on the windings, and Buchholz gas and surge relays that respond to incipient faults inside the tank before they become electrical. Buchholz is not redundant with differential — it sees slow gassing that differential never will.
Third, the oil is an environmental system as well as an insulating one. A bunded, drained containment area sized for the full oil volume plus firefighting water, with separation from adjacent plant, is part of the design and part of the civil works.
Fourth, desert ambient is the design case. IEC’s standard cooling-air limits are referenced values; a site that exceeds them is bought either with reduced temperature rise or with more cooling surface. Sand and dust foul radiator fins, block filters and accumulate on bushing surfaces, so creepage class and cooling margin both move.
System configuration
| Item | Description | Specification notes |
|---|---|---|
| Main tank and active part | Three-phase oil-immersed core-type transformer, 66 kV/11 kV | Insulation levels to IEC 60076-3 for the 66 kV system; short-circuit withstand demonstrated to IEC 60076-5 against the network's actual fault level; core flux density set for 50 Hz operation, so a unit designed for 60 Hz is not interchangeable |
| Cooling | Detachable radiator banks, ONAN or ONAF with fan stages | Rating declared at the site's design ambient rather than at the standard reference ambient; fin spacing and filtration chosen against airborne sand; fans staged from oil and winding temperature |
| On-load tap changer | Diverter and selector with motor drive, automatic voltage regulator and remote indication | Tapping range and step size from the voltage regulation study; separate OLTC oil compartment, its own conservator section and dedicated protective relay; operation counter and mechanism heating |
| Conservator and oil preservation | Conservator with rubber diaphragm or air-cell separation and dehydrating breather | Sealed preservation keeps atmospheric moisture out of the oil, which matters where the daily temperature swing drives large breathing volumes; breather condition is a routine inspection point |
| Bushings and terminations | 66 kV HV bushings, 11 kV MV bushings, neutral bushing | Creepage distance selected under IEC 60815 for the site pollution class, since desert dust with morning condensation is conductive; bushing type, mounting angle and clearance coordinated with the bay layout |
| Surge protection | Metal-oxide surge arresters on the HV and MV sides | Rated and continuous operating voltage set from the system earthing arrangement; arrester leads kept short and directly bonded, since lead inductance defeats a correctly rated arrester |
| Protection and monitoring | Differential and restricted earth fault, Buchholz gas and oil-surge relays, pressure relief device, oil and winding temperature indicators, oil level | CT ratios and vector group compensation set at the relay; Buchholz alarm and trip stages separately wired; winding temperature by thermal image with fan and alarm contacts; optional online dissolved gas monitoring |
| Oil containment | Bunded, drained containment pit under the transformer with separator and firefighting provision | Capacity for the full oil volume plus water; separation distances and any firewall to the practice adopted for the bay |
| Auxiliaries and interfaces | Marshalling kiosk, control and alarm wiring, anti-condensation heating, communication gateway | Kiosk IP rating and gasketing specified against sand ingress; interface to the substation control system over IEC 61850, IEC 60870-5-104 or Modbus as the scheme requires |
Installation sequence
Overview

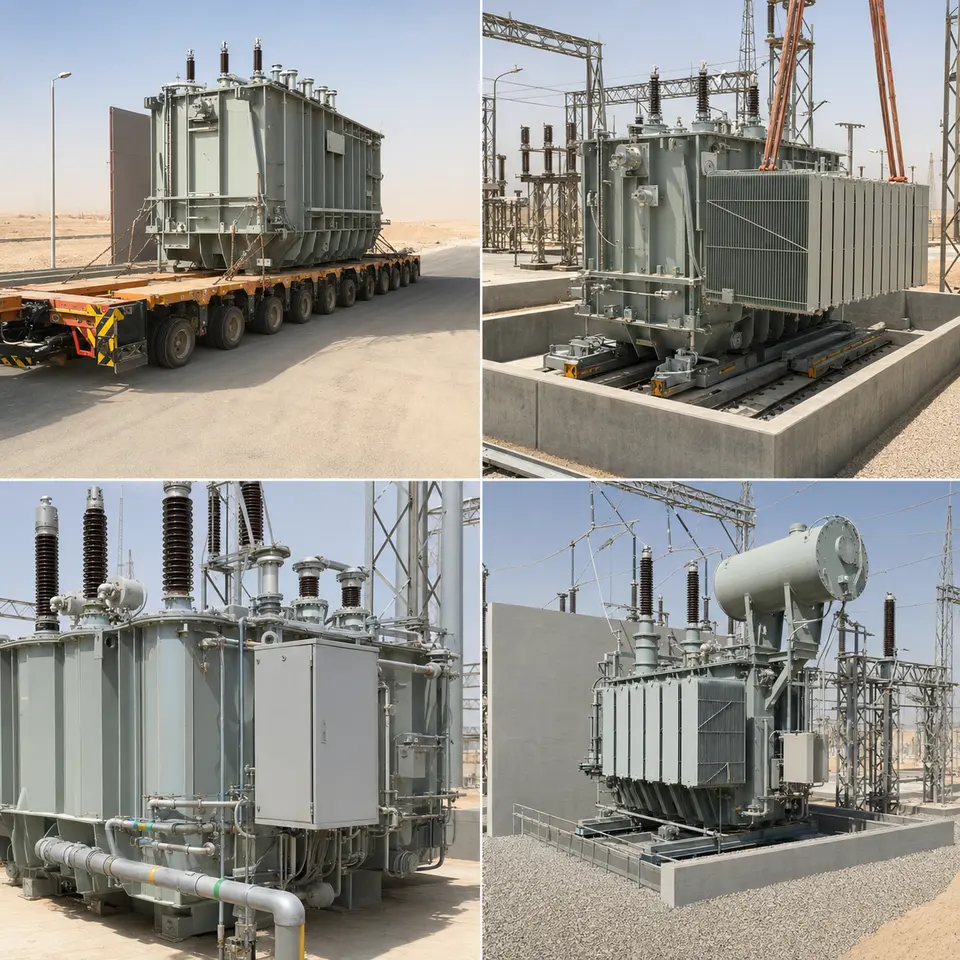

The contact sheet sets out the four stages of an installation of this type: multi-axle heavy transport, placement and radiator assembly, bushing and auxiliary connection, and the completed transformer bay. The sequence is governed by what the tank permits. The unit travels without radiators, conservator and often without bushings, so those are fitted after placement. Oil work follows mechanical assembly, and the tank is not left open to desert air longer than the exposure limit allows. Electrical testing comes after oil filling and the standstill period that lets entrained gas clear, and the bay is closed and the containment completed only once the unit has been proved.
Delivery

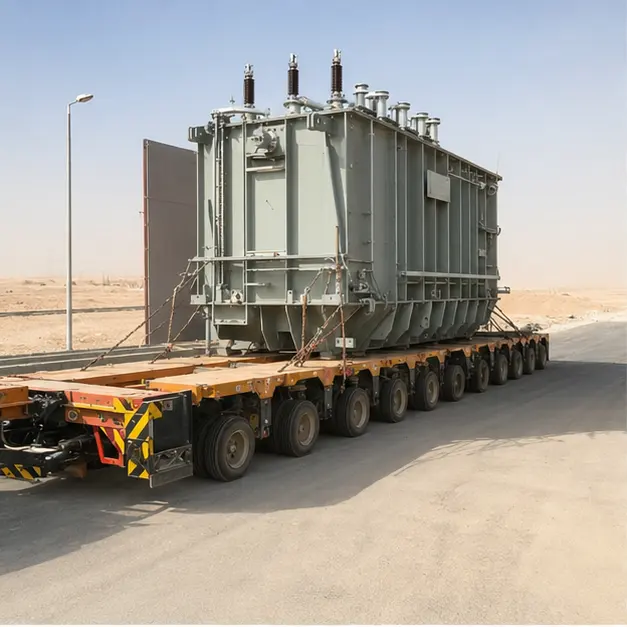

A 66 kV transformer moves as an indivisible load on a multi-axle trailer, and the route is engineered before the unit leaves the works. Axle loading, bridge and culvert capacity, gradient, camber, overhead clearance and turning radii are surveyed, and desert road sections are assessed for bearing capacity where the shoulder is soft. The tank is transported braced, usually filled with dry air or nitrogen at a positive pressure that is logged along the route, and fitted with impact recorders on more than one axis. On arrival the readings are downloaded and compared against the accepted limit before the unit is off-loaded, because an over-limit impact is a reason to inspect the active part rather than to continue. Gas pressure, dew point, and the condition of blanking plates and valves are checked and recorded at handover.
Placement and assembly

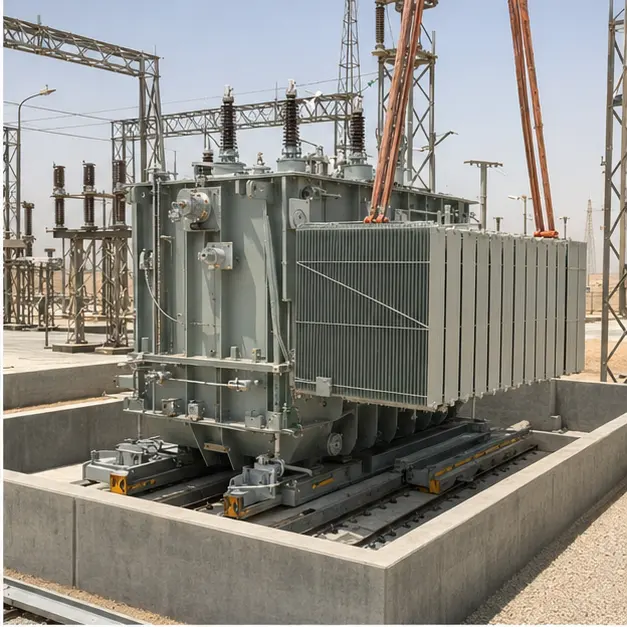

Placement uses the designated jacking pads and lifting lugs, with the lift planned around a centre of gravity that sits high and shifts once the tank is filled. The plinth and rails are confirmed level, since an out-of-level tank distorts oil level indication and can leave a radiator bank incompletely filled. Wheels or rails are then locked and the unit anchored to the seismic and wind detail for the bay. Radiator banks, conservator and pipework are assembled onto the tank with new gaskets, and valve positions are checked and recorded — a closed radiator valve is one of the more common causes of a hot transformer in service. Oil is filled under vacuum through a treatment plant, with moisture content, breakdown voltage and dissolved gas sampled before and after, then the assembly is left to stand so entrained air can release before any voltage is applied.
Connection

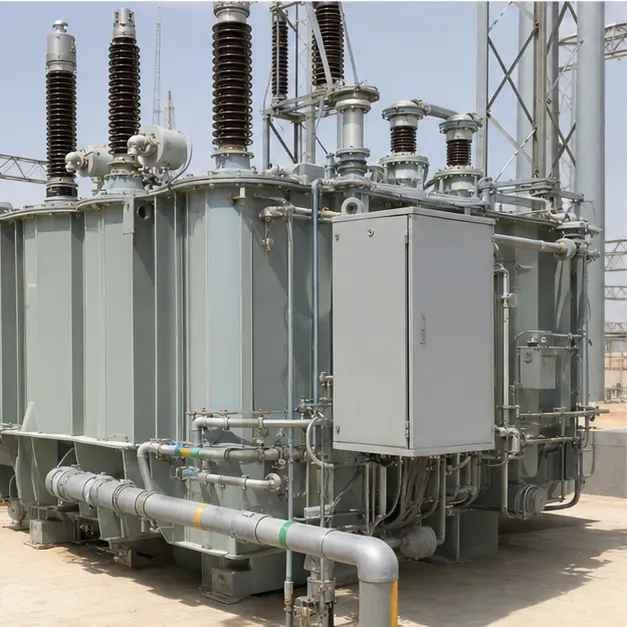

Bushing installation is precision work. Each unit is checked for transport damage, oil level and capacitance and tan-delta values against its test certificate, then fitted with the correct gasket compression and torque sequence, and the draw-lead or connection is made without twisting the internal conductor. Clearances from live terminals to earthed structure and between phases are measured on the built arrangement. Surge arresters are mounted with the shortest practicable earth lead directly to the bay earth grid. Auxiliary work covers the Buchholz relay’s mounting angle and pipe gradient — it does not function correctly if the pipe run is level — the pressure relief device, oil and winding temperature indicators with their capillaries protected from the sun, the tap changer drive and its limit and interlock settings, and the marshalling kiosk with its heating, sealing and cable gland arrangement.
Completed configuration

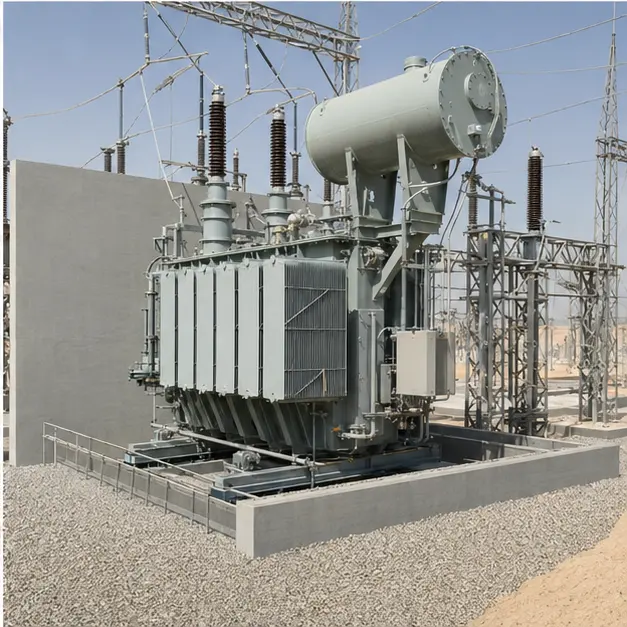

The completed configuration shows the transformer in a fenced bay over its containment pit, with radiators, conservator, arresters and marshalling kiosk in place. Before energisation the unit is proved as a chain: insulation resistance and polarisation index, winding resistance on every tap, turns ratio and vector group on every tap, magnetising current, capacitance and tan-delta on windings and bushings, and a final oil sample for moisture, breakdown voltage and dissolved gas as the baseline against which all future samples will be read. Protection is proved end-to-end by injection, with differential stability checked and the Buchholz alarm and trip paths proved separately. The tap changer is run through its full range under supervision and its counter recorded. Energisation is staged, with the unit charged unloaded, inspected and left to soak before load is applied.
Specification options
For a comparable utility enquiry, MARS can develop a grid transformer around the required capacity, impedance and impedance tolerance, vector group and neutral arrangement, with the tapping range, step size and regulation band set by the voltage study. Cooling can be ONAN, ONAF or ONAN/ONAF dual-rated with the fan staging defined, and the rating declared at a stated site ambient rather than the reference ambient. On-load or off-circuit tap changing can be supplied, with automatic voltage regulator, parallel-operation scheme and remote indication. Bushing creepage class can be selected for the site pollution level, with surge arresters coordinated to the system earthing. Protection and monitoring can extend from conventional differential, restricted earth fault, Buchholz and temperature devices to online dissolved gas and bushing monitoring, reporting over IEC 61850, IEC 60870-5-104 or Modbus. Loss capitalisation, sound level limits, containment arrangement and paint and corrosion class can all be specified.
What we need to quote a comparable system
Send as many of the following as you have. Missing items are not a problem — we will ask.
- Single-line diagram of the substation and the transformer's position in it
- Rated capacity, ONAN and ONAF ratings required, and the loading profile including any cyclic or emergency overload duty
- Required impedance and its tolerance, vector group and neutral earthing arrangement
- Tapping range, step size, regulation band, and whether on-load or off-circuit tap changing is required
- System fault level on both sides, required short-circuit withstand duration and the applicable insulation levels
- Protection philosophy, relay types, CT ratios and the interlocking and alarm schedule
- Communication protocol and the substation control system points list
- Site ambient temperature range including the design maximum, altitude, solar radiation and sand or dust pollution class
- Loss evaluation or capitalisation formula, and any sound level limit at a stated distance
- Bay layout, containment pit arrangement, separation distances and any firewall requirement
- Paint system, corrosion category and any specific colour or marking requirement
- Transport route survey, permissible axle loading, available crane capacity, and delivery and site-service terms
