Protector Relay: Working Principles, ANSI Codes & Sizing

Quick answer: A protector relay is an intelligent electrical sensing and control device that continuously monitors circuit conditions—such as current, voltage, frequency, and phase angle—and issues a trip command to a circuit breaker when parameters exceed safe tolerances. By isolating faulty assets within tens of milliseconds, it preserves electrical equipment integrity and safeguards personnel.

In electrical power distribution, reliability relies on rapid, deterministic fault clearing. Whether defending a primary substation transformer against thermal burn-out or isolating secondary distribution networks from reverse energisation, the protector relay operates as the brain of the switchgear assembly. Modern power distribution architectures deploy micro-processor-based protection relays that combine measurement, disturbance recording, automation logic, and digital communications over IEC 61850 protocols. Sizing and configuring these units requires an understanding of fault physics, current transformer (CT) dynamics, and coordination standards across utility and industrial interfaces.

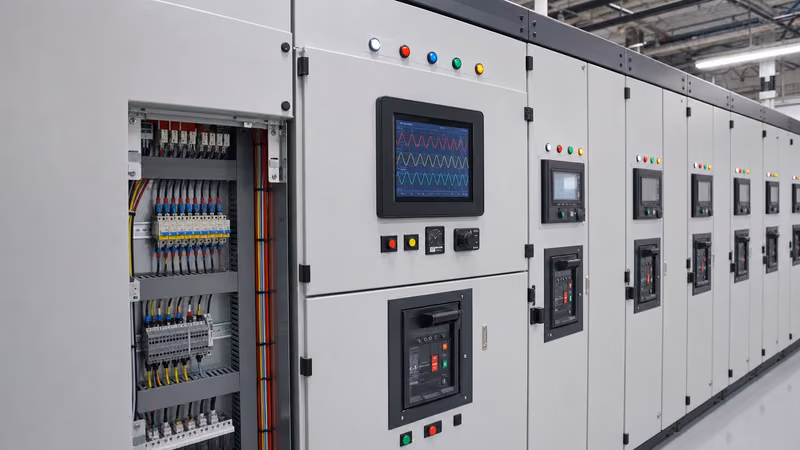

Core Operating Principles of the Modern Protector Relay

A protector relay operates by translating analog inputs from instrument transformers into digital representations, calculating electrical quantities, and comparing them against pre-programmed logic curves. Current transformers (CTs) and voltage transformers (VTs) step down high primary currents and voltages to standard secondary levels—typically 1 A or 5 A for current and 110 V or 100 V phase-to-phase for voltage.

Internal analog-to-digital converters (ADCs) sample these signals at sampling rates typically between 32 and 128 samples per cycle. Digital signal processors (DSPs) extract the fundamental frequency component using Discrete Fourier Transforms (DFT), rejecting high-frequency noise and harmonics unless specific harmonic restraint algorithms are engaged. If the calculated magnitude exceeds a threshold defined under IEEE C37.90 or IEC 60255-1, an internal logic timer initiates. If the fault persists through the preset delay, the output contacts close to energise the breaker trip coil.

For complex installations detailed in our Substation Protection: Engineering, Schemes & Relay Guide, relays perform multifaceted calculations including differential vectors, negative-sequence unbalance, and directional power flow within clear time windows.

Network Protector Relays vs General Substation Relays

The term protector relay historically denotes a dedicated secondary network protector relay, but in modern engineering parlance it encompasses both specialised network protectors and multifunctional substation relays.

A specialised network protector relay is designed specifically for low-voltage secondary network systems governed by IEEE C37.108. In these configurations, multiple distribution transformers feed a common low-voltage grid or busbar. The network protector relay controls an electrically operated low-voltage circuit breaker (a network protector). It prevents reverse power from flowing from the secondary grid back into the medium-voltage supply system if a primary feeder faults or trips. The relay senses reverse active current as small as the transformer core magnetising current (typically 0.1% to 0.5% of rated load) and trips the breaker instantly. When primary voltage restores, the relay senses phase angle and voltage magnitude differentials across the open breaker contacts to initiate automatic reclosing only when power will flow forward into the network.

In contrast, general substation relays monitor medium- and high-voltage feeders, busbars, and transformers across radial, ring, or mesh topologies. These units incorporate wide setting ranges, programmable scheme logic, and coordinated time-overcurrent profiles to isolate faulted segments while keeping healthy network branches energised.

Key ANSI Protection Functions in Power Protection Relays

Standardised ANSI/IEEE C37.2 numbers define each discrete protection function implemented in modern power protection relays.

Industrial installations and distribution substations rely on coordinated functional blocks to deliver primary and backup clearance. The following table highlights the essential functions specified for transformer and switchgear protection schemes:

For large power transformers, differential protection (87T) remains the primary scheme, offering unit protection strictly bounded by the CT locations, as outlined in our Transformer Protection: Complete Substation Engineering Guide.

Worked Engineering Calculation: Overcurrent and Reverse Power Sizing

Engineers must size protection relay pickup thresholds to avoid spurious trips under peak loading while ensuring positive operation under minimum prospective fault levels.

Consider an indoor substation stepping down 11 kV to 415 V via a 2,500 kVA oil-immersed transformer with an impedance of 6.0% ($Z = 0.06$). We will calculate the phase overcurrent (51) pickup setting and the reverse power (32R) trip setting for an incoming protector relay scheme.

1. Calculate Primary and Secondary Full-Load Currents:

   Primary nominal current at 11 kV:

   $$I_{n,primary} = \frac{S}{\sqrt{3} \times V} = \frac{2,500\text{ kVA}}{\sqrt{3} \times 11\text{ kV}} = 131.22\text{ A}$$

   Secondary nominal current at 415 V:

   $$I_{n,secondary} = \frac{2,500\text{ kVA}}{\sqrt{3} \times 0.415\text{ kV}} = 3,478.1\text{ A}$$

2. Select CT Ratios:

   Primary side CT ratio selected: 150/5 A (Ratio $CTR_{primary} = 30$).

   Secondary side CT ratio selected: 4000/5 A (Ratio $CTR_{secondary} = 800$).

3. Establish 51 Overcurrent Pickup ($I_s$):

   Per IEC 60255-151 and IEEE guidelines, set the phase overcurrent pickup to 125% of nominal transformer capacity to accommodate short-duration emergency overloading:

   $$I_{pickup, primary} = 1.25 \times 131.22\text{ A} = 164.03\text{ A}$$

   Secondary relay current setting:

   $$I_{s} = \frac{164.03\text{ A}}{30} = 5.47\text{ A}$$

   Program the relay plug setting to 5.47 A (or 1.094 × nominal relay rating $I_n = 5\text{ A}$). Apply an IEC Standard Inverse curve with a Time Multiplier Setting (TMS) of 0.15 to coordinate with downstream switchgear breakers.

4. Determine Network Reverse Power Setting (32R):

   If operating as a network backfeed protector on the 415 V incoming breaker, reverse magnetising flow must trigger a disconnection. The transformer core no-load loss is 0.35% of rating: $P_0 = 0.0035 \times 2,500\text{ kW} = 8.75\text{ kW}$.

   Set reverse active power pickup to 50% of no-load core losses to guarantee positive detection of backward energy export:

   $$P_{trip} = 0.50 \times 8.75\text{ kW} = 4.375\text{ kW}\quad (0.175\%\text{ of }S_n)$$

   Configure a definitive time delay of 100 ms to avoid nuisance trips during transient system swings.

For further design insights on coordinating multiple protection stages, review our technical guide on Transformer Overcurrent Protection: Sizing, Settings & Design.

Commissioning and Injection Testing Procedures

Commissioning a protector relay requires physical verification of wiring, secondary injection of test signals, and primary trip confirmation before applying system voltage.

Field personnel must adhere to systematic commissioning procedures per IEC 60255-1 and IEEE C37.90.2 to ensure the protection chain operates predictably under real fault events:

1. Visual Inspection and Insulation Testing: Inspect terminal strip torques, earthing points, and CT shorting links. Perform a 500 V DC insulation resistance test between current circuits, voltage circuits, trip circuits, and ground. Values must exceed 100 MΩ.
2. CT Polarity and Ratio Verification: Carry out a primary or secondary injection flick test to confirm correct polarity markings ($P_1/P_2$ to $S_1/S_2$) and measure winding ratios across all phases.
3. Secondary Current and Voltage Injection: Connect a calibrated three-phase relay test set. Inject test currents at 1.05×, 2.0×, and 5.0× pickup value to measure operating times against manufacturer tolerance bands (typically ±5% or ±20 ms).
4. Directional and Angle Sensitivity Verification: Inject test voltages and currents with shifting phase angles from -180° to +180° to confirm the maximum torque angle (MTA) and trip boundaries for reverse power and directional overcurrent functions.
5. Binary Input and Output Contact Validation: Force each digital input and software output contact via relay test software. Verify breaker trip coil circuit energisation and breaker status feedback response.
6. Trip Circuit Supervision (ANSI 74) Verification: Disconnect the trip circuit wire under open- and closed-breaker conditions to verify that the relay flags an alarm within 1.0 s.

Detailed onsite testing methodologies are documented in our Substation Testing Guide: Field Procedures & Commissioning.

Specification Checklist for Power Protection Relays

Specifying engineers must provide unambiguous requirements when preparing relay schedules for switchgear and substation tenders.

Use the following checklist to ensure tender documents avoid operational gaps, communication mismatches, or testing shortfalls:

Next steps: specifying and sourcing

Configuring the optimal protector relay scheme demands exact alignment between your system fault levels, instrument transformer characteristics, and switchgear operational philosophies. To obtain an engineering review or procurement estimate, provide our technical desk with your single-line diagram (SLD), prospective short-circuit levels, CT/VT transformation ratios, and preferred communications protocols. Our team delivers factory-integrated solutions across medium-voltage switchboards, integrated power transformers, and prefabricated unit substations. Explore our range of HV & LV switchgear, integrated transformer substations, and utility-grade power transformers, or submit your schedules directly through our quotation inquiry page.
