3 Kilowatt Hours Battery: Engineering Specs & Sizing

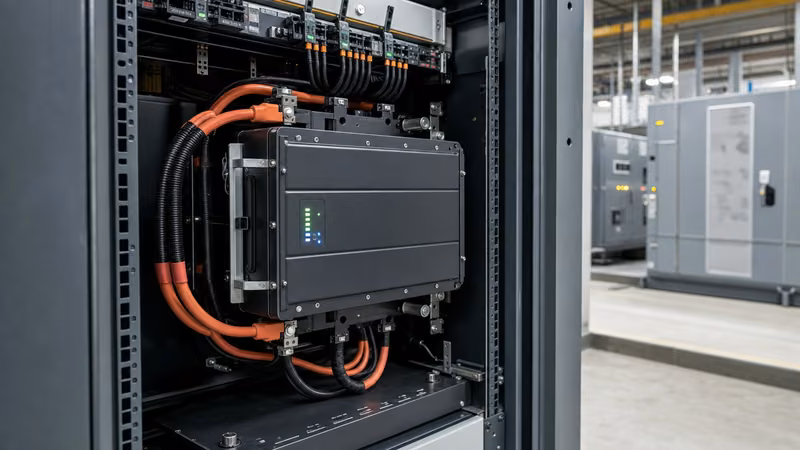

Quick answer: A 3 kilowatt hours battery is a compact energy storage unit capable of delivering 3,000 watt-hours of electrical energy, typically configured as a 48V or 51.2V direct current (DC) pack. It serves distributed grid applications, edge-of-grid telecommunication power systems, and targeted sub-circuit power resilience during localised grid outages.

In electrical distribution systems, sub-circuits and critical control equipment often require autonomy without the footprint or thermal footprint of multi-megawatt-hour containers. A 3 kilowatt hours battery delivers modular energy retention for mission-critical supervisory control and data acquisition (SCADA) nodes, remote instrumentation, and micro-distributed solar storage. Understanding how to integrate this energy class demands rigorous analysis of nominal versus usable capacity, discharge limits (C-rate), thermal dissipation, and conversion infrastructure. For broader concepts on balancing generation capability against storage capacity, review our guide on power vs energy sizing for grid services.

Technical Specifications of a 3 Kilowatt Hours Battery

A 3 kilowatt hours battery is defined by its cell chemistry, electrochemical arrangement, DC operating voltage window, and round-trip efficiency. Most modern industrial installations utilise lithium iron phosphate (LiFePO4 or LFP) chemistry due to its thermal stability and cycle life under demanding duty profiles.

At nominal voltages, a 3 kWh module is usually arranged in a 15S or 16S prismatic cell architecture. A 16S configuration features a nominal voltage of 51.2 V (16 cells × 3.2 V) and a capacity of roughly 60 Ah, resulting in a total nominal energy of 3,072 Wh. In contrast, nickel manganese cobalt (NMC) packs operate at higher cell nominal voltages (3.6 V to 3.7 V), yielding a lighter footprint but introducing stricter requirements under UL 9540A fire safety testing. For an in-depth comparison of these chemistries, consult our breakdown on LFP vs NMC commercial BESS chemistry.

Key operating limits specified by IEC 62619 clause 8.2 mandate that internal battery management systems (BMS) govern individual cell over-voltage, under-voltage, over-current, and temperature cut-offs. The following table contrasts baseline electrical characteristics between standard chemistries for a stationary 3 kWh battery configuration:

Runtime and Load Sizing: Worked Calculation for a 3 kWh Battery

Calculating the operational duration of a 3 kWh battery requires accounting for inverter conversion losses, depth-of-discharge (DoD) constraints, and wiring voltage drops rather than dividing gross capacity by instantaneous load. Real-world usable energy is always lower than nameplate capacity.

The standard formula for estimating battery runtime is:

Runtime (hours) = (Nominal Energy × DoD × System Efficiency) / Continuous Load (kW)

Consider an actual industrial remote telemetry station with a constant active load of 450 W (0.45 kW), backed by a nominal 3.07 kWh LFP battery. The engineering parameters are defined as follows:

• Nominal Battery Capacity ($E_{nom}$): 3.07 kWh
• Design Depth of Discharge ($\text{DoD}$): 90% (0.90)
• DC-to-AC Inverter Efficiency ($\eta_{inv}$): 93% (0.93) at nominal load
• DC Distribution and Cabling Efficiency ($\eta_{cable}$): 98% (0.98)
• Continuous Critical Load ($P_{load}$): 0.45 kW

First, calculate total usable energy delivered to the load:

$E_{usable} = 3.07 \text{ kWh} \times 0.90 \times 0.93 \times 0.98 = 2.518 \text{ kWh}$

Next, determine autonomous runtime under uninterrupted operation:

$\text{Runtime} = \frac{2.518 \text{ kWh}}{0.45 \text{ kW}} = 5.59 \text{ hours}$ (approximately 5 hours and 35 minutes).

If the load surges, such as during automated valve actuation pulling 1.8 kW intermittently, the discharge rate elevates to roughly 0.6C. Higher discharge rates lower terminal voltage due to internal cell impedance ($R_{int}$), which can marginally decrease total effective capacity per Peukert's phenomenon, although LFP exhibits minimal Peukert degradation compared to lead-acid variants. To understand module interconnections for scaling capacity, refer to our analysis on battery module architecture and BESS sizing.

Integrating a Solar Battery 3kW Inverter Configuration

A solar battery 3kw setup connects an energy storage bank to an inverter capable of delivering 3 kW of active power, demanding careful coordination between continuous power limits and stored energy. A common error in project design is conflating the energy capacity of a 3 kilowatt hours battery with the 3 kW continuous power capacity of a conversion unit.

Pairing a 3 kWh battery with a 3 kW inverter implies an operational discharge rate of 1.0C when running at full inverter nameplate capacity ($3 \text{ kW} / 3 \text{ kWh} = 1.0 \text{ h}^{-1}$). While modern high-rate LFP cells tolerate continuous 1C discharging, prolonged operation at this rate increases internal cell temperatures. According to Arrhenius equations governing chemical kinetics, operating continuously at elevated cell temperatures ($>40^\circ\text{C}$) accelerates State of Health (SOH) degradation. For system topologies matching dedicated inverters with distributed cells, explore our reference guide on power conversion systems.

When laying out the DC bus architecture for a solar battery 3kw configuration:

• The minimum nominal DC voltage should maintain steady inverter modulation without clipping; for a 48V bus delivering 3 kW, continuous current reaches: $I_{DC} = \frac{3,000 \text{ W}}{48 \text{ V} \times 0.94} \approx 66.5 \text{ A}$.
• Peak startup currents from inductive motor loads can surge to 150% of nominal rating for 5 to 10 seconds, pushing instantaneous battery draw beyond 100 A.
• DC bus overcurrent protection devices (OCPD) must be rated according to IEC 60947-2, incorporating DC-rated moulded case circuit breakers (MCCBs) with a short-circuit breaking capacity matching the battery's prospective fault current.

Grid Services and Edge Resilience for Distributed Storage

Aggregated arrays of distributed 3 kilowatt hours battery installations provide rapid frequency response and local voltage regulation at the distribution network edge. While utility-scale facilities manage transmission balancing, small modular battery packs deployed at secondary substations neutralise local transformer overloading and voltage sags caused by reverse power flows from domestic and commercial solar arrays.

Compliant with IEEE 1547-2018 clause 5, modern grid-tied inverters connected to 3 kWh storage units can execute Volt-VAR and Volt-Watt autonomous curves. In a Volt-VAR mode, the system injects or absorbs reactive power ($Q$) without drawing down the 3 kWh energy reserve unless active power curtailment is specifically dispatched. When active power injection is needed for transient frequency stabilisation, the sub-second response times of lithium chemistry outpace mechanical governors in conventional spinning reserves. Furthermore, distributed units provide black-start DC excitation power to auxiliary switchgear tripping circuits during wider substation outages.

Installation, Testing, and Commissioning Procedures

Commissioning a 3 kilowatt hours battery involves structured safety isolation, mechanical verification, and functional electrical testing to satisfy IEC 62485-2 criteria. Technicians must enforce strict electrostatic discharge (ESD) and arc-flash protocols throughout installation.

1. Mechanical mounting and ventilation check: Secure the battery housing to a load-bearing surface or standard 19-inch equipment rack. Verify clearance distances of at least 100 mm on all ventilation sides to maintain convective heat transfer.
2. Insulation resistance (Megger) testing: Prior to closing the DC isolator, isolate the battery terminals and verify that insulation resistance between the live DC conductors (positive and negative tied together) and protective earthing (PE) reads at least 1 MΩ at a test voltage of 500 V DC, complying with IEC 60364-6.
3. Polarity and open-circuit voltage verification: Measure open-circuit voltage ($V_{OC}$) across terminal studs using a calibrated true-RMS multimeter. Confirm polarity matches the upstream inverter DC input terminals precisely to prevent catastrophic diode bridge failure.
4. Torque marking and connection security: Tighten all DC bus terminal bolts to the manufacturer's specified torque (typically 8 to 12 Nm for M8 studs) using an insulated torque wrench. Apply torque seal lacquer across the bolt head and busbar to provide visual indication of any mechanical relaxation.
5. BMS communication loop commissioning: Connect the battery management communication link (RS485 or CAN bus) to the energy management controller. Verify parameter handshake: confirm cell voltage differentials are under 20 mV across all series strings and ensure ambient temperature telemetry matches physical gauge readings.
6. Functional charge and discharge cycling: Execute a controlled charge cycle at 0.2C up to absorption cut-off voltage, followed by a full load test. Measure thermal elevation across all interconnection points using an infrared camera to verify absence of high-resistance micro-junctions.

Procurement and RFQ Specification Checklist

Specifying a 3 kWh battery for commercial tenders or EPC packages requires explicit electrical, thermal, and lifecycle boundary parameters to ensure vendor accountability. Avoid open-ended performance requirements by issuing precise technical parameters.

Engineers preparing technical requisition sheets should incorporate the following procurement checklist criteria:

• Nominal and usable energy: Explicitly state both metrics (e.g., minimum 3.0 kWh nominal, minimum 2.7 kWh usable at 0.5C discharge rate).
• Operating voltage window: Define low-voltage cutoff (e.g., 43.2 V) and upper bulk charge voltage (e.g., 57.6 V) compatible with the specified power conversion system.
• Thermal containment: Stipulate cell-level safety certifications under IEC 62619, UL 1973, and transport testing under UN 38.3.
• Communication protocols: Mandate MODBUS TCP/RTU or CAN 2.0B interfaces with fully documented register maps for third-party SCADA integration.
• Cycle life guarantees: Demand a minimum warrantied cycle life (e.g., 4,000 full cycles at 25°C with 80% State of Health retention).
• Enclosure ingress protection: Specify IP20 for climate-controlled equipment rooms or a standard unit 3R for outdoor distributed deployment enclosures.

Next steps: specifying and sourcing

When specifying a 3 kilowatt hours battery or scaling distributed storage for grid-edge applications, system reliability hinges on matching cell chemistry, thermal controls, and conversion switchgear. Our factory manufactures engineered energy storage systems and medium-voltage interface infrastructure built to international standards. For custom multi-unit banks or containerised site systems, explore our integrated energy storage systems and specialised liquid-cooled energy storage cabinets. Contact our engineering team directly via our quotation inquiry page to submit load profiles, single-line diagrams, and technical specifications for rapid tender evaluation.
