Technical specifications
| Parameter | Value |
|---|---|
| Product Type | SF6 Gas-Insulated MV/HV Switchgear (RMU) |

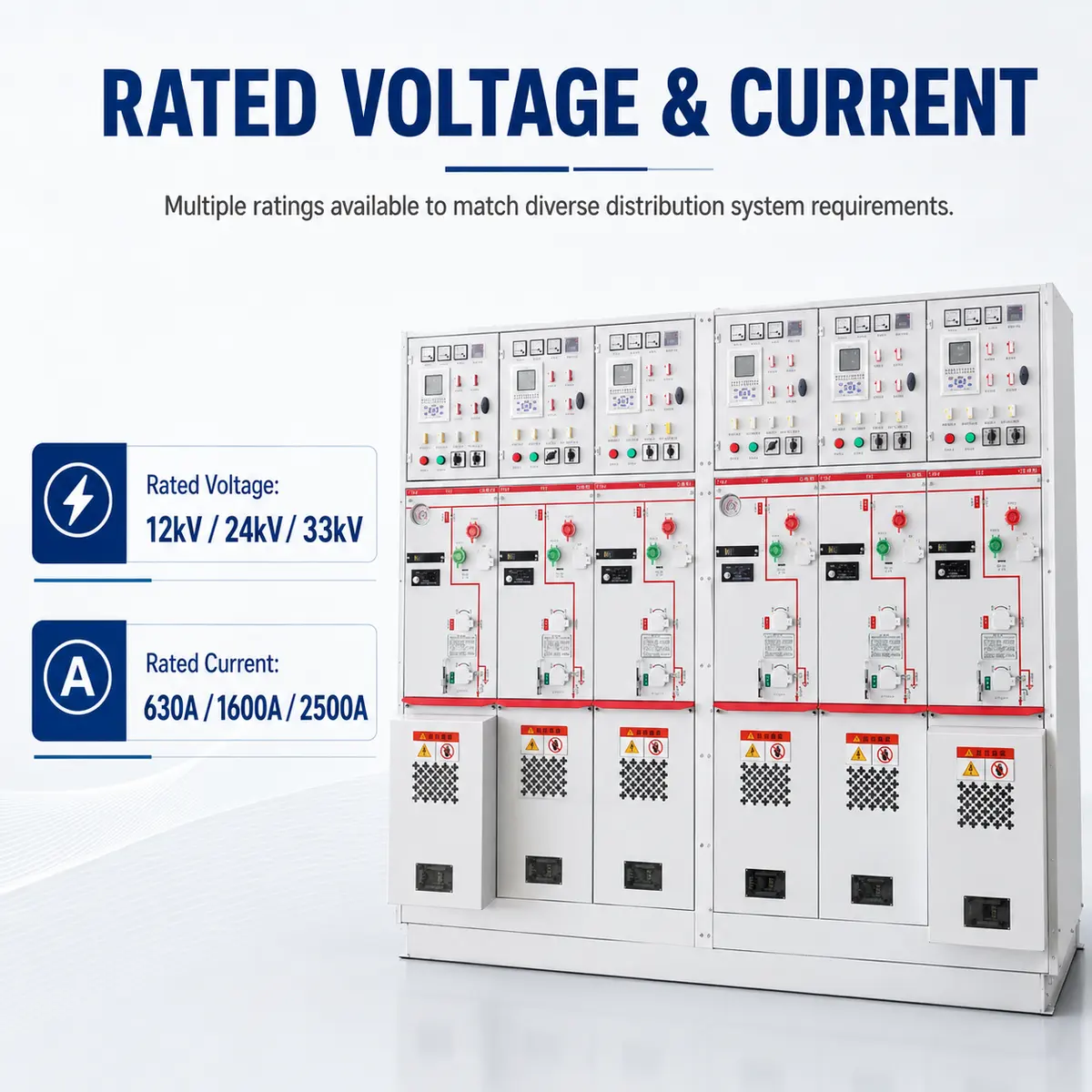

| Rated Voltage | 12 kV / 24 kV / 33 kV |
| Rated Current | 630 A / 1600 A / 2500 A |
| Frequency | 50 / 60 Hz |

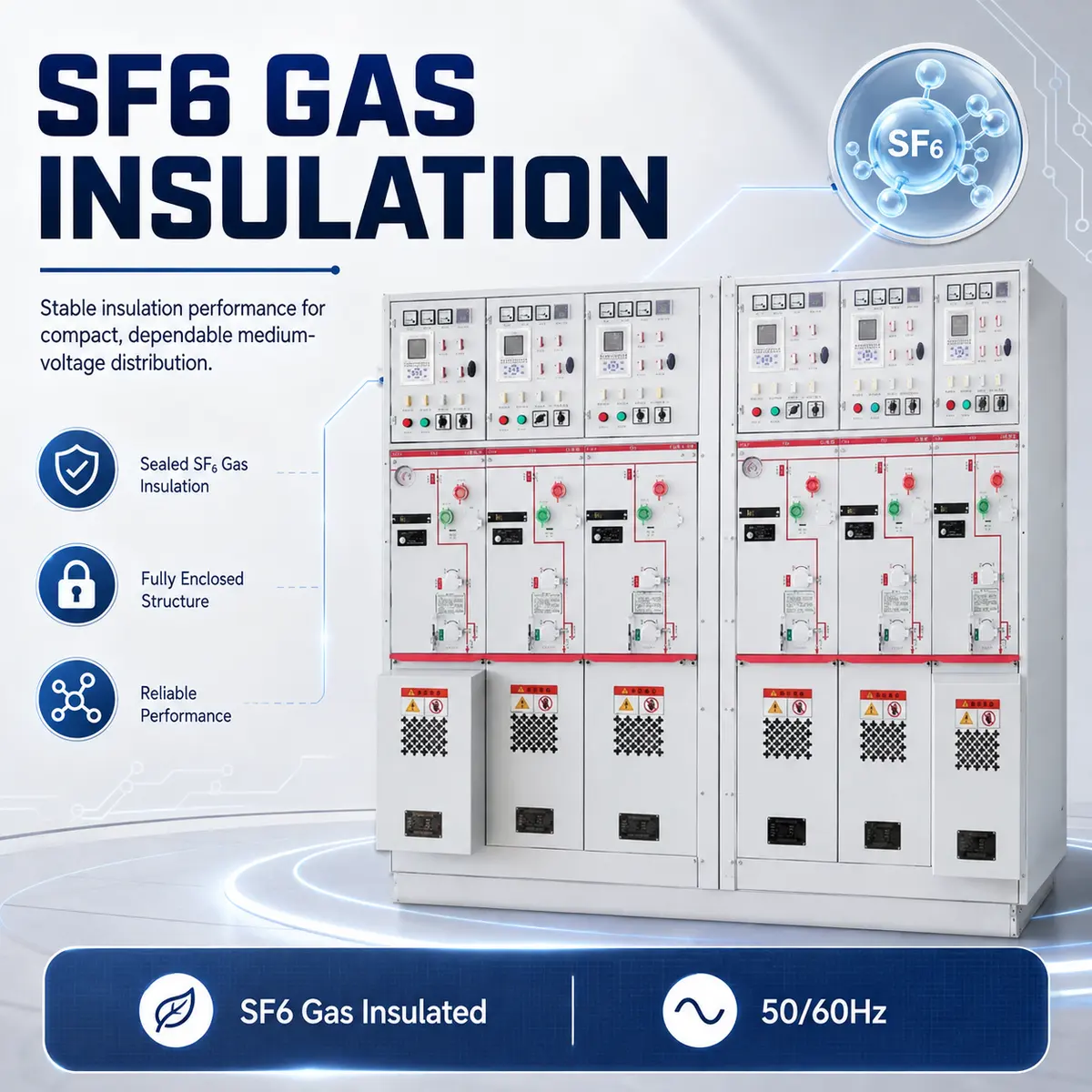

| Insulation | SF6 Gas |

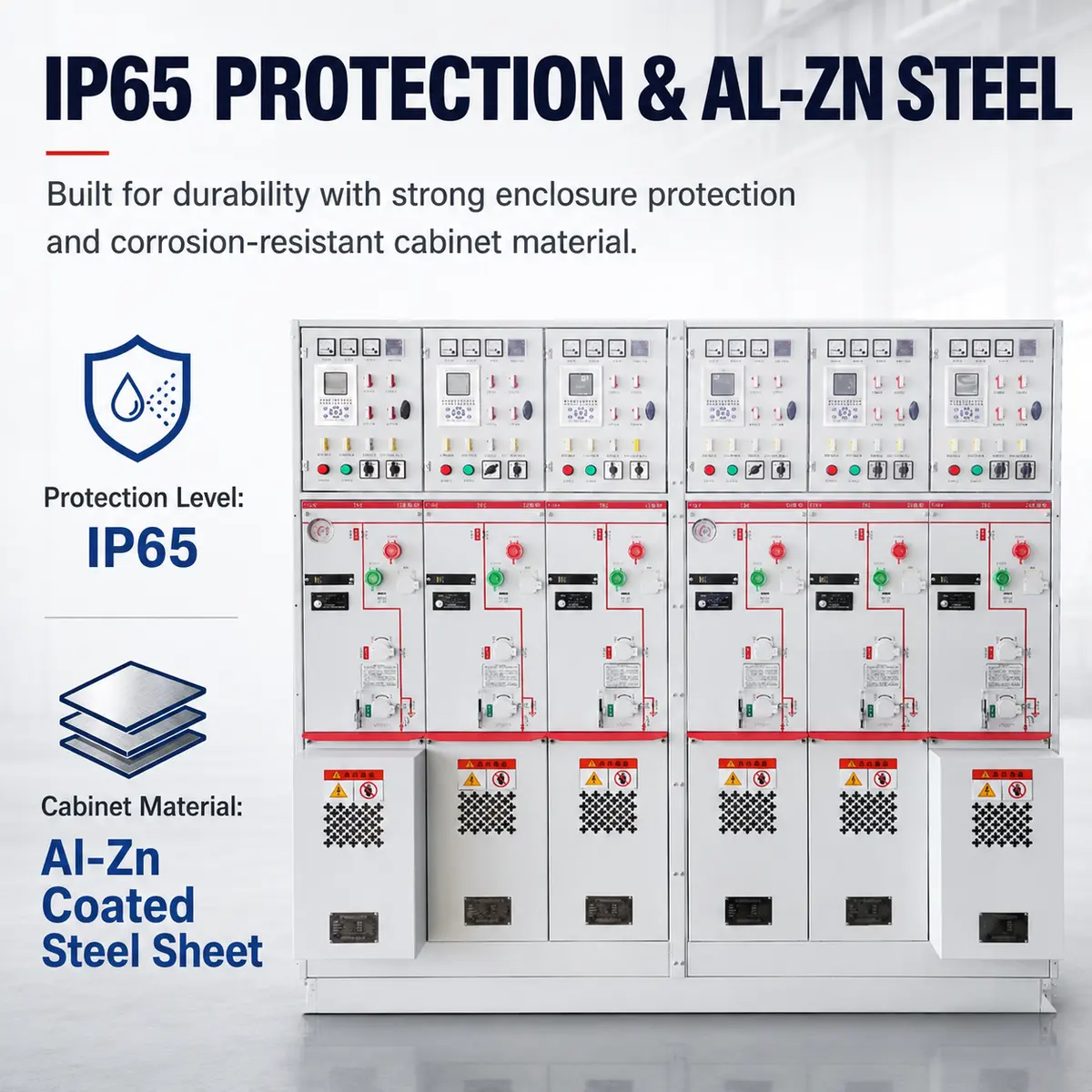

| Protection Level | IP65 (IP30/IP32/IP40/IP66 optional) |
| Enclosure Material | Aluminium-Zinc Coated Plate |
| Application | Electric Power Transmission & Distribution |
| Feature | Energy Saving |
| Certification | ISO9001, Test Report |
| Color | Customized |
| Packing | Wooden Case |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.
Features and construction

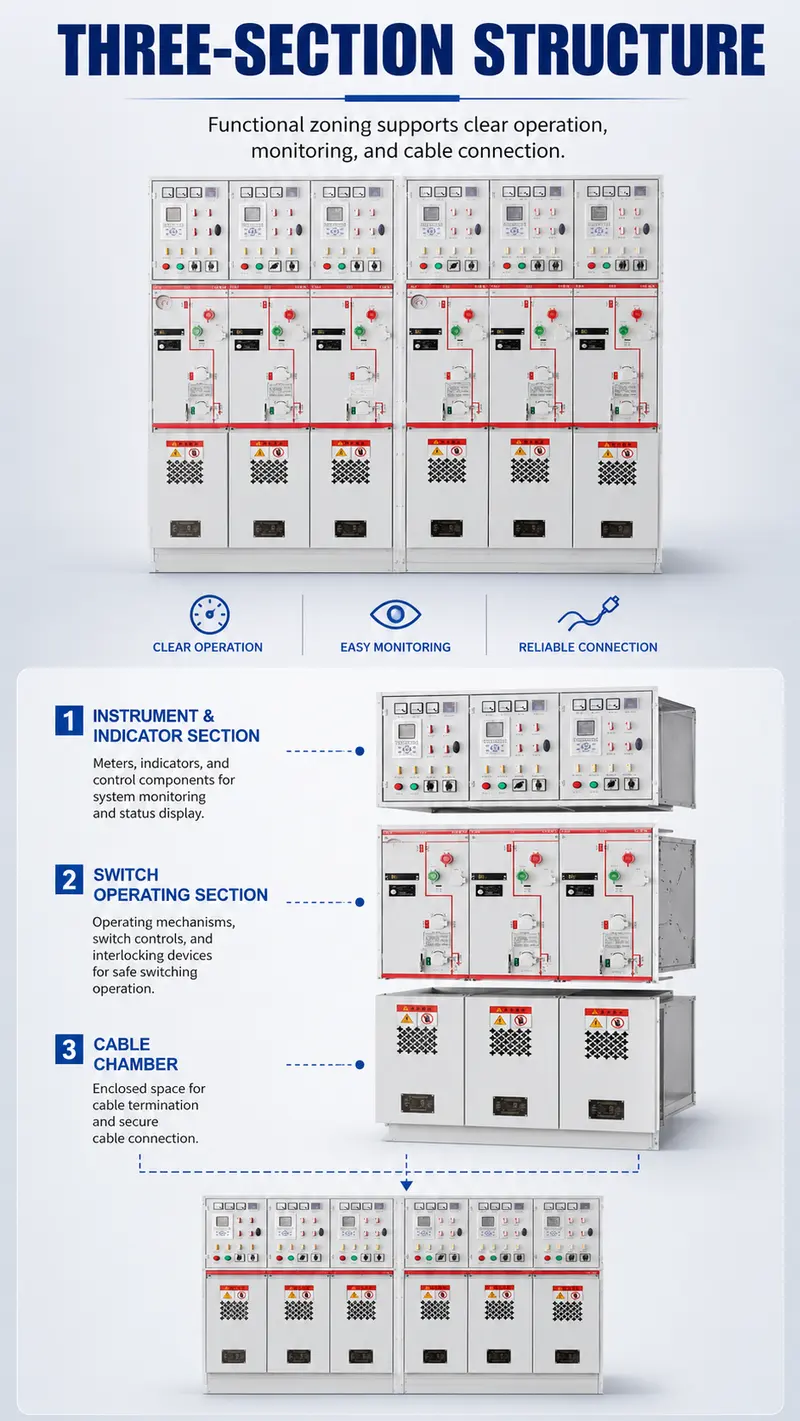

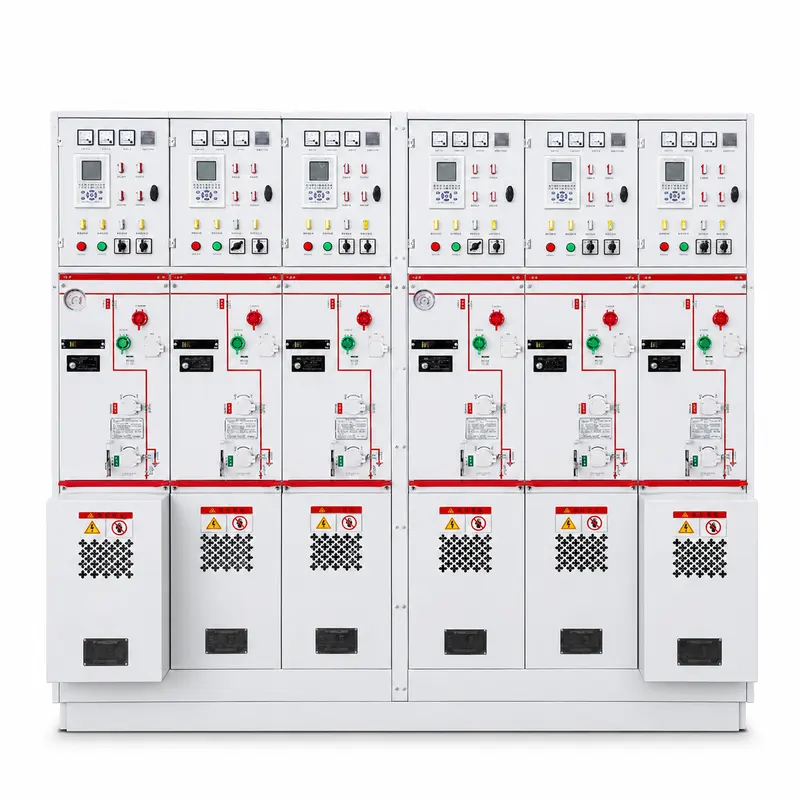

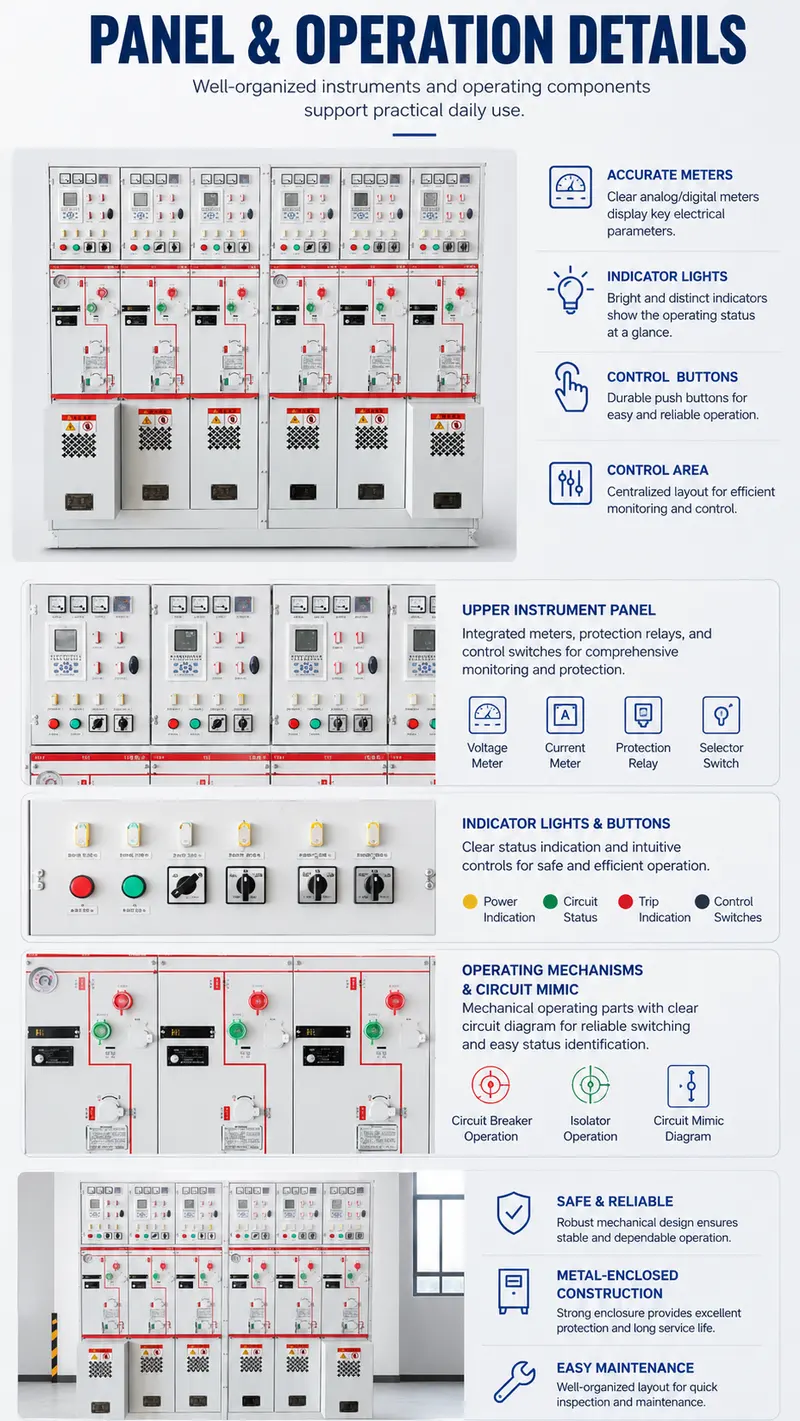

Each metal-enclosed panel integrates a measurement and control section at the top, an SF6-insulated switching/busbar section in the middle, and a cable/protection compartment at the bottom, with clear mimic diagrams and status indicators on the front. The sealed SF6 chamber keeps insulation stable regardless of ambient humidity, while the coated-steel enclosure resists corrosion for a long, safe service life.
Typical applications

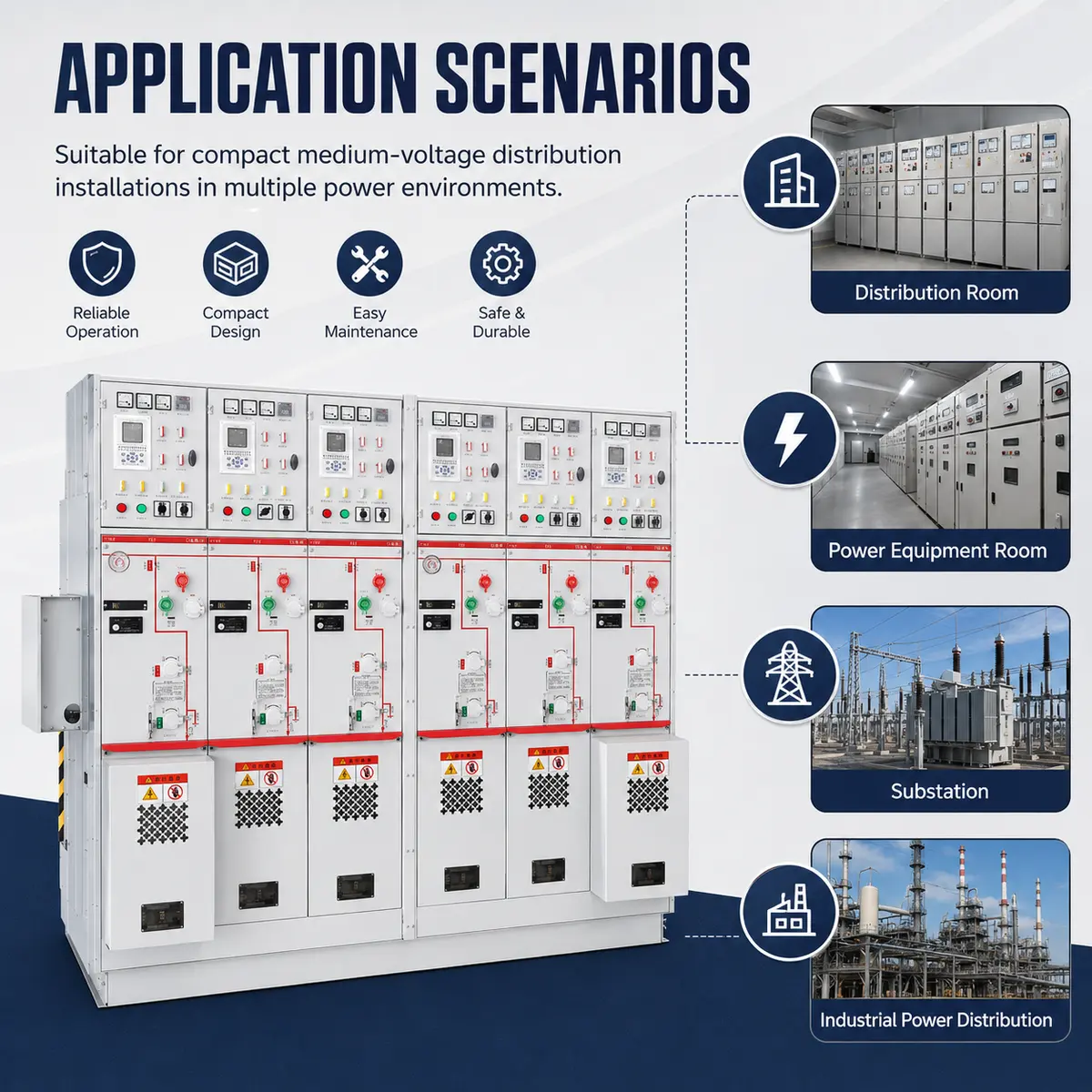

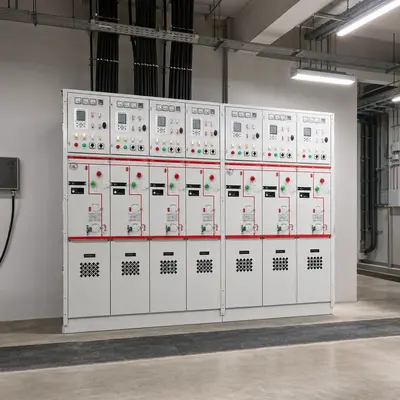

Medium-voltage distribution for utilities, substations, industrial plants, commercial buildings, renewable-energy plants and infrastructure projects requiring compact, reliable ring-main switching.

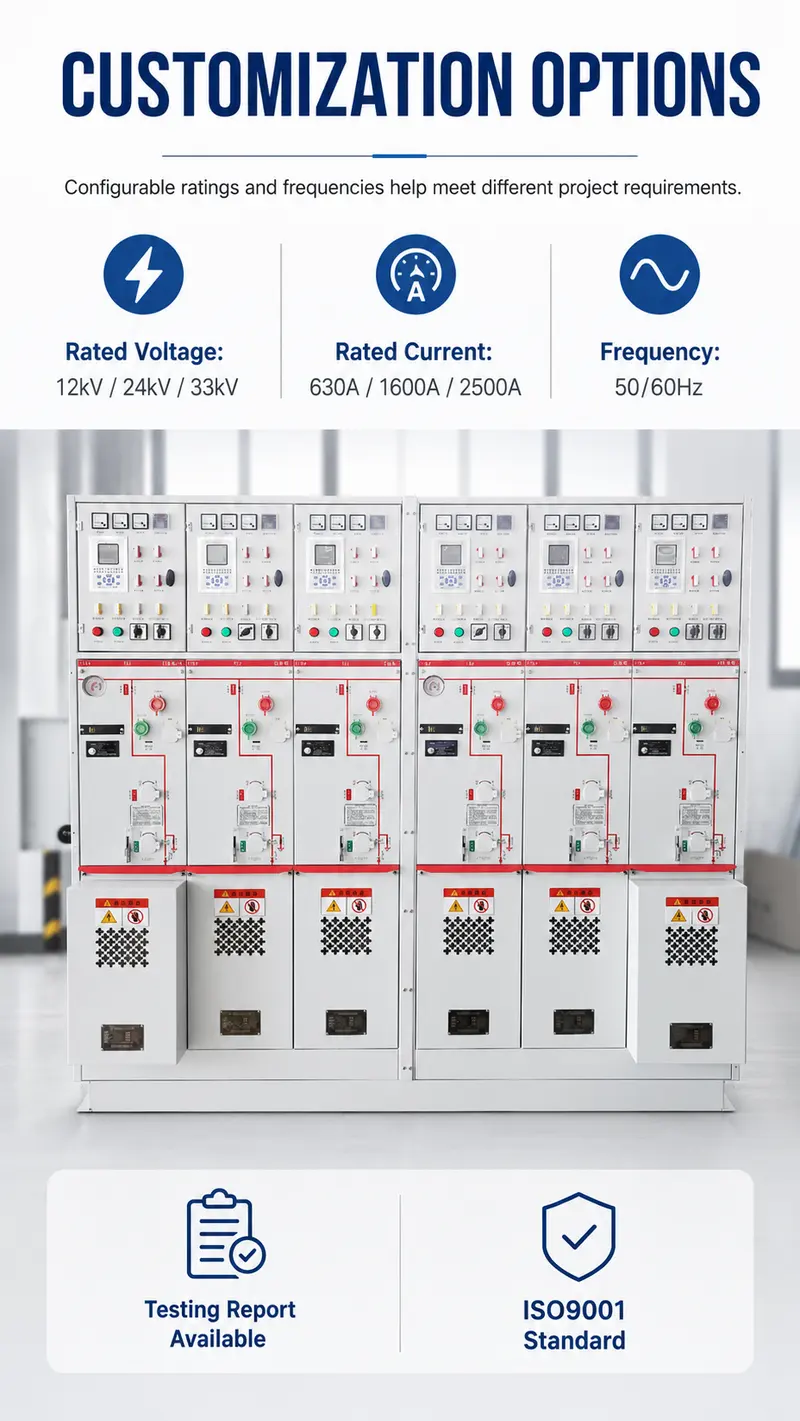

Customisation options
Voltage, rated current, panel configuration, protection level, color and busbar arrangement are customizable to project single-line requirements.
Ordering information
- Selling Unit: Single item
- Packing: Wooden Case
- Standards: ISO9001, with test report
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
Standards and quality
Manufactured under an ISO 9001, ISO 14001 and ISO 45001 certified management system. Designs follow the IEC 60076 / IEC 62271 series as applicable, with ANSI/IEEE, GB and GOST variants available. Every unit passes routine testing before dispatch; type tests and customer or third-party witnessed factory acceptance tests can be arranged.
Frequently asked questions
What voltage ratio is available?
The standard unit is 12 kV / 24 kV / 33 kV input. Voltage ratio, tapping range and vector group can be adjusted to your network; 50 Hz and 60 Hz designs are available.
Which standards and certifications apply?
The product is designed to ISO9001, Test Report. MARS operates an ISO 9001 / 14001 / 45001 certified factory and holds CE (ECM), UDEM, EAC and CQC approvals; every unit is routine-tested before dispatch and type or witnessed tests can be arranged.
Can this product be customised?
Voltage, rated current, panel configuration, protection level, color and busbar arrangement are customizable to project single-line requirements.
What is the lead time and how is it shipped?
Packed in wooden case. Typical lead time is 25–45 days after drawing approval for distribution equipment and 60–90 days for power transformers and containerised systems. Shipment is by sea from Shanghai on EXW, FOB, CIF or DAP terms with a full document pack.
Enquire about this product
Tell us the rating, voltage ratio, frequency, quantity and destination. A MARS engineer replies with a technical proposal and quotation within one working day.
