Technical specifications
| Parameter | Value |
|---|---|

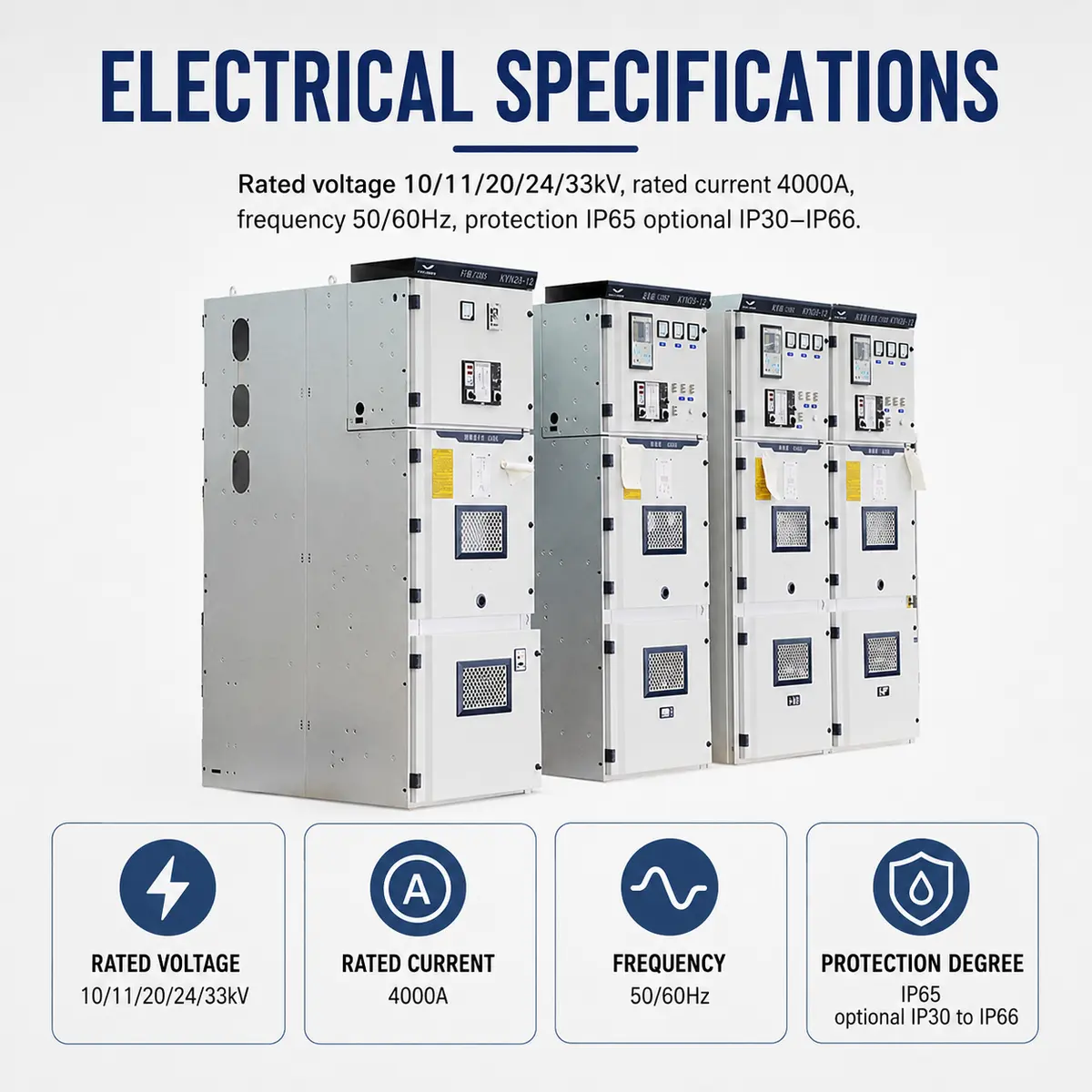

| Product Type | Indoor AC Metal-Clad Intermediate Switchgear (KYN28) |
| Rated Voltage | 10 / 11 / 20 / 24 / 33 kV |
| Rated Current | 4000 A |
| Frequency | 50 / 60 Hz |
| Protection Level | IP65 (IP30 / IP32 / IP40 / IP66 optional) |
| Material | Stainless Steel |
| Application | Indoor, Industrial, Power Distribution, High Voltage |
| Feature | Energy Saving |
| Color | Customized |
| Certification | ISO9001, Test Report |
| Warranty | 2 Years |
| Packing | Wooden Case |
| Package Size | 120 × 85 × 110 cm |
| Gross Weight | 60 kg |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.

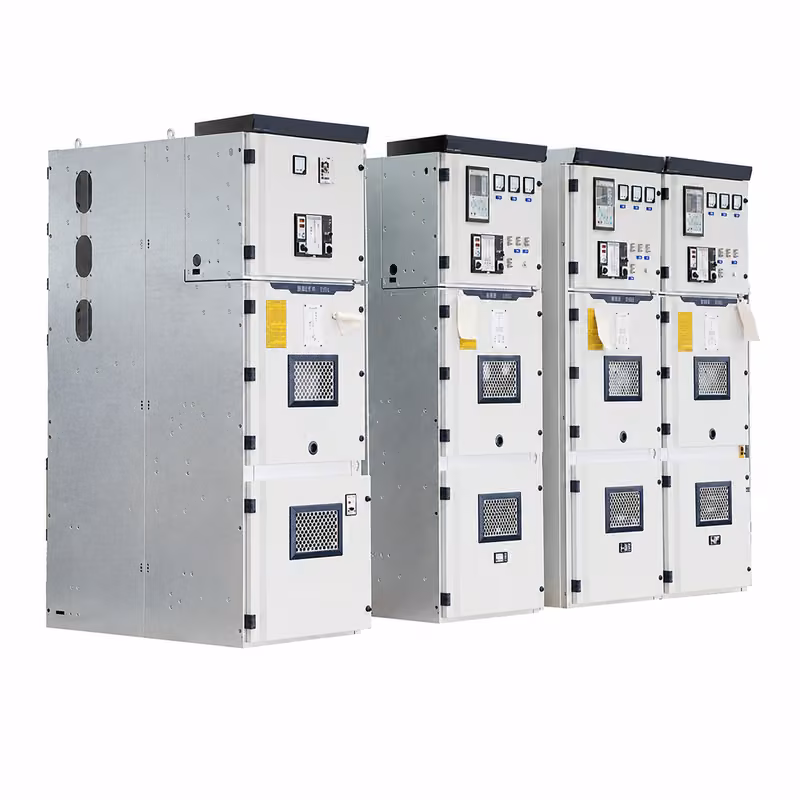

Features and construction

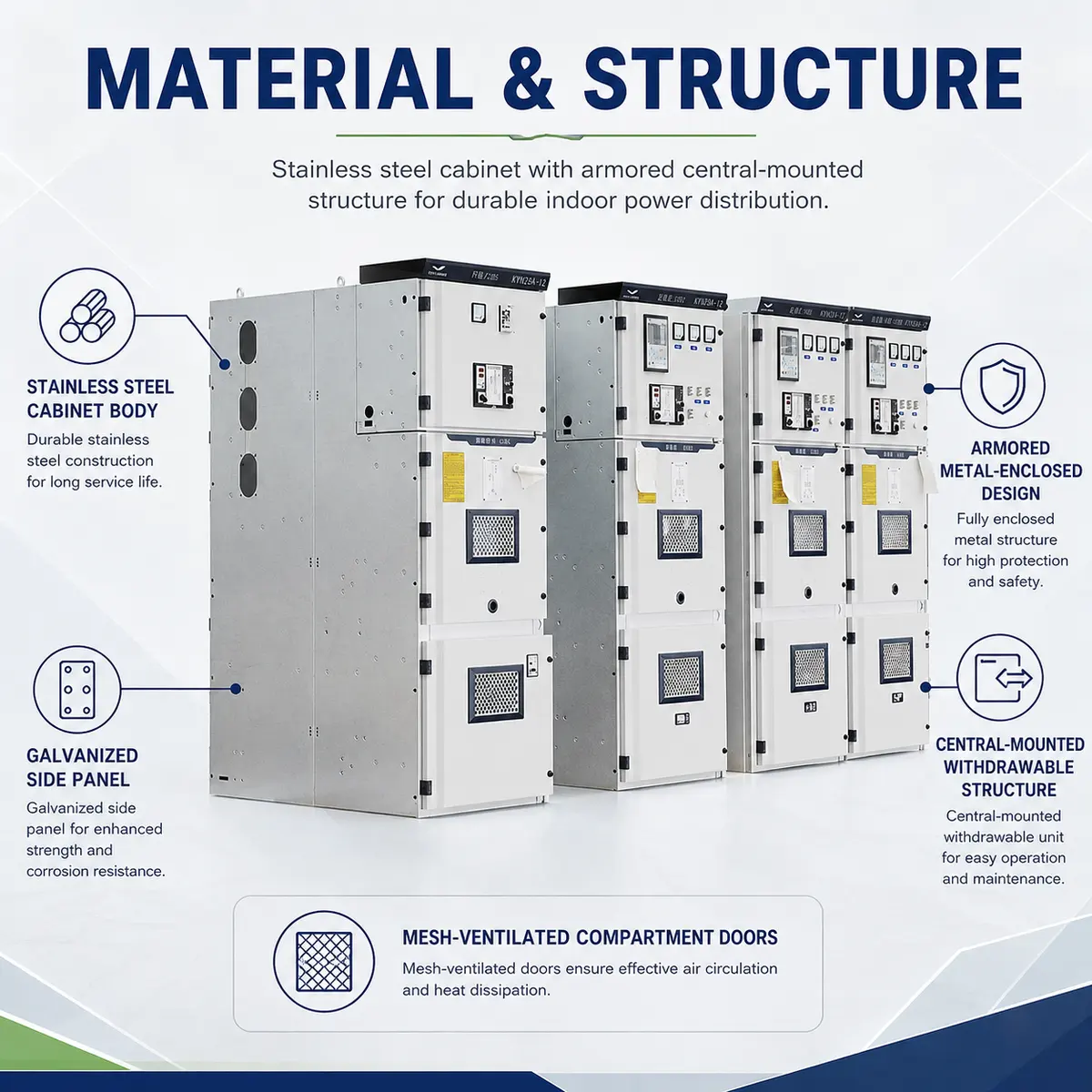

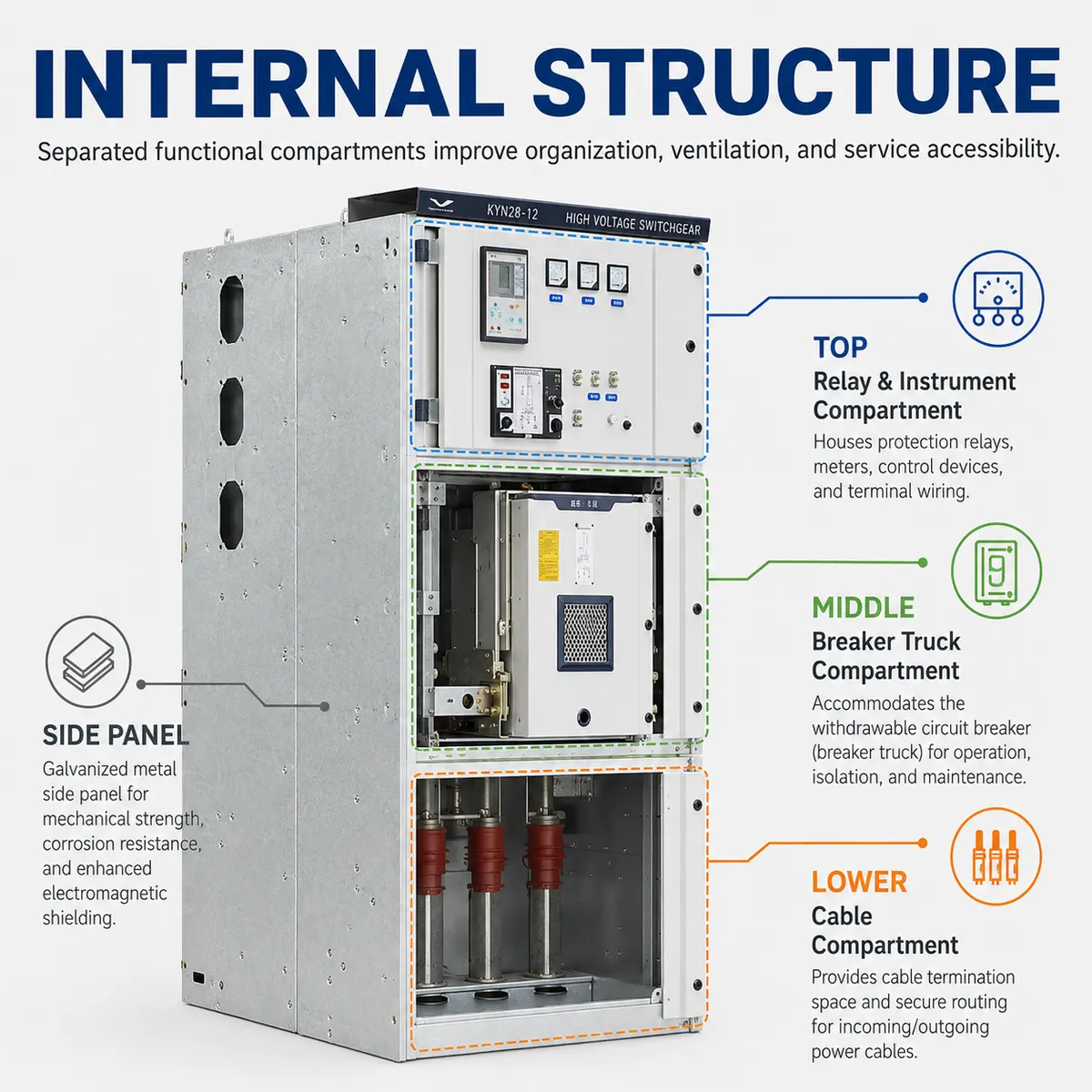

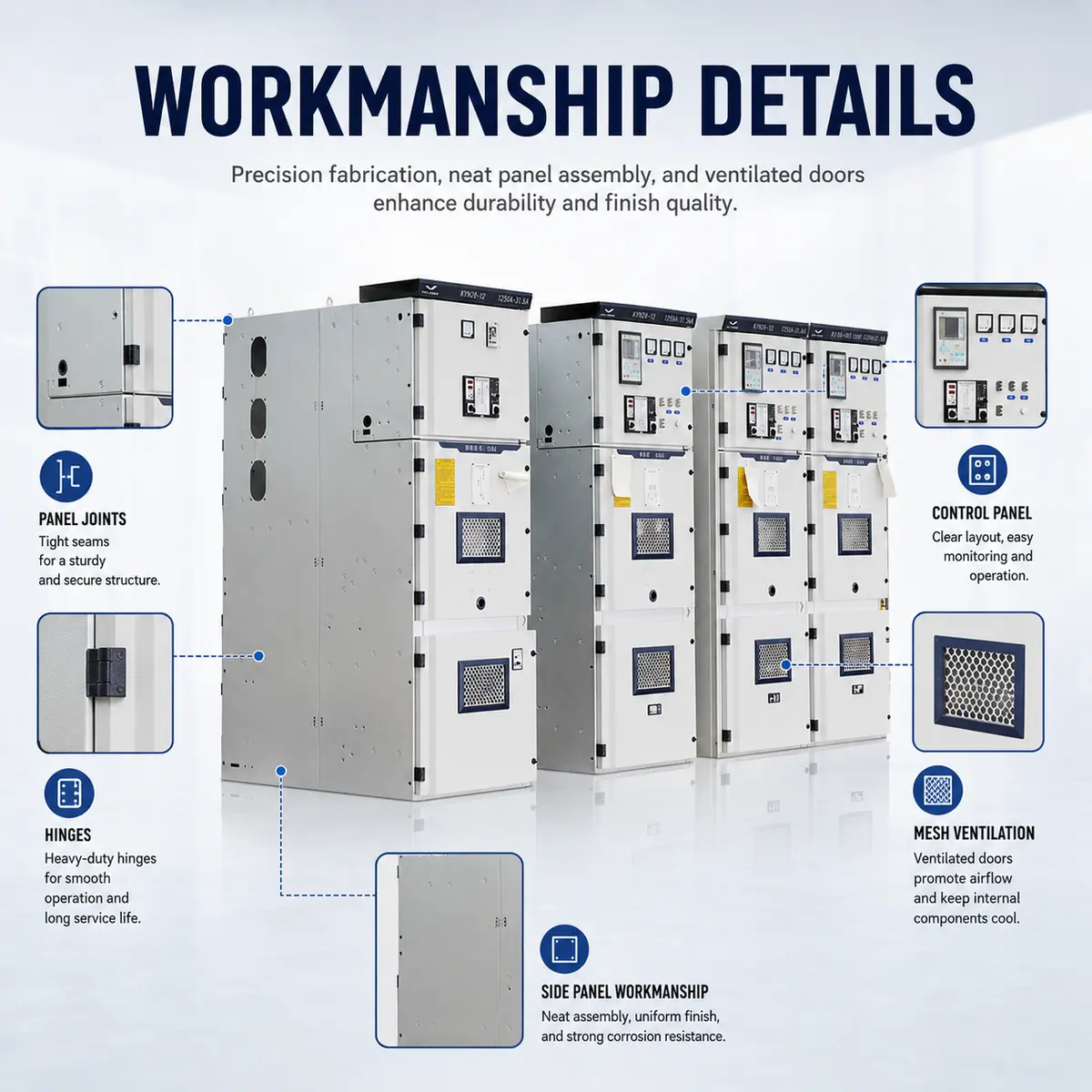

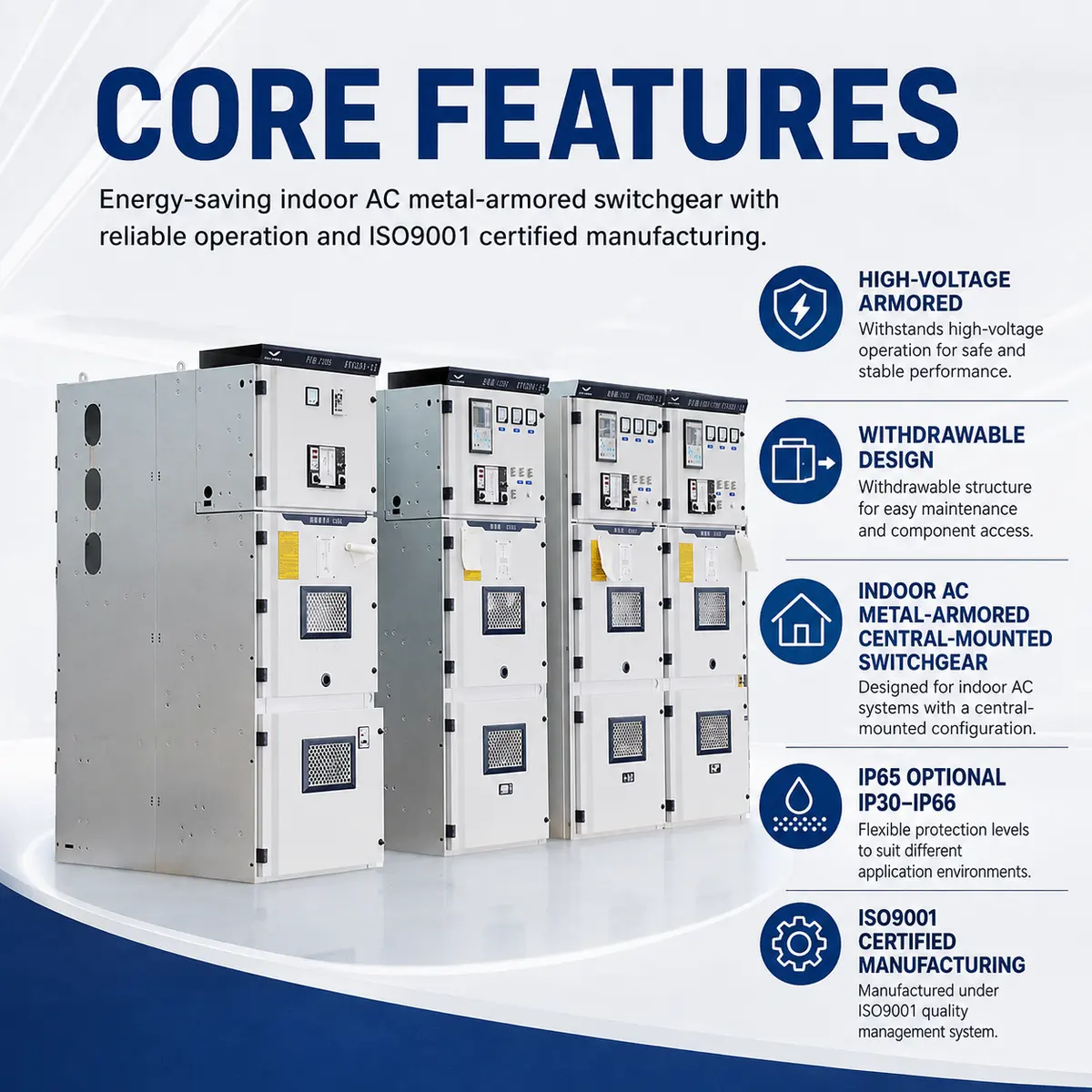

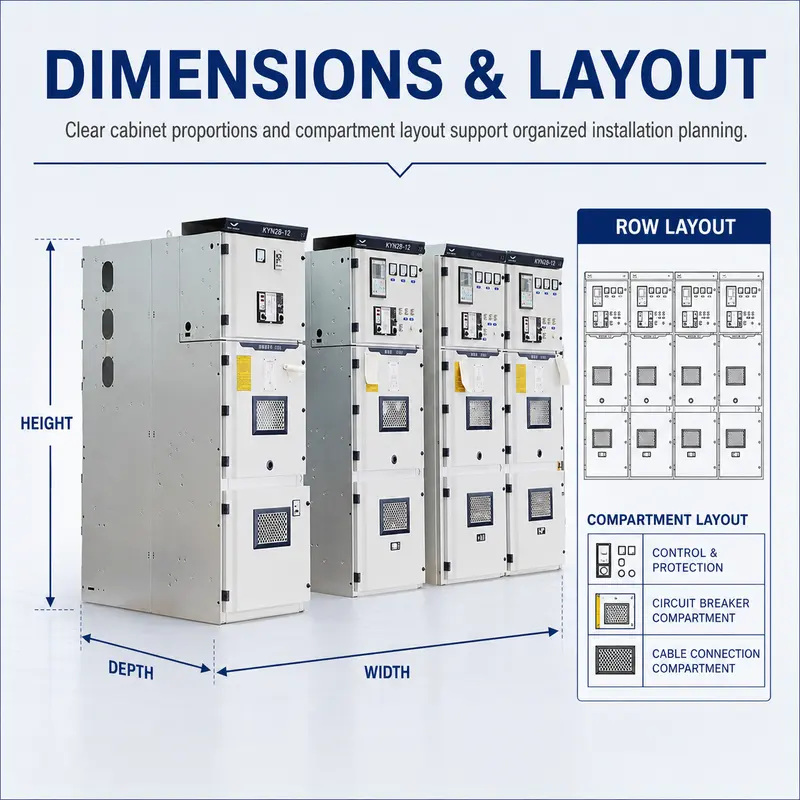

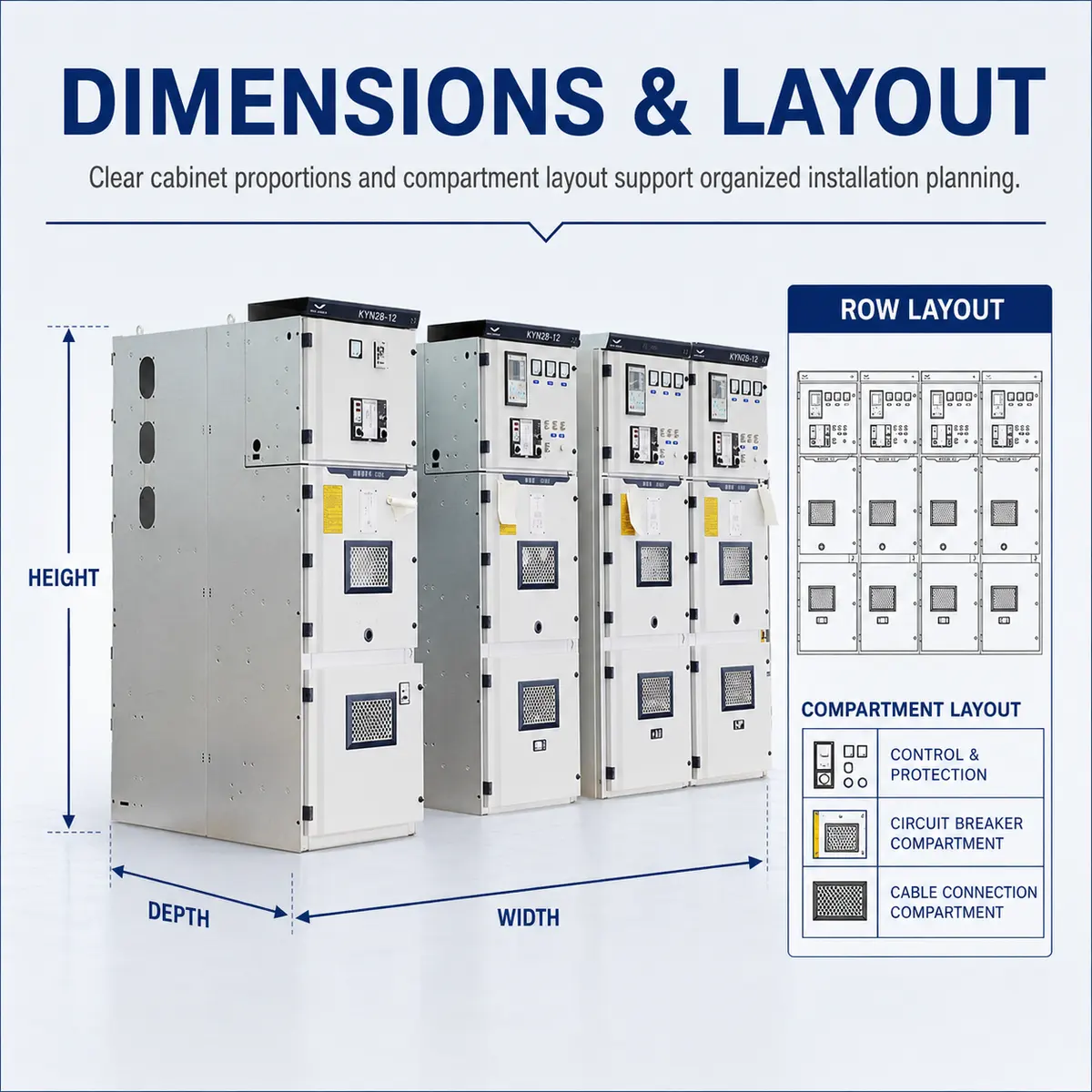

- Vertical metal-clad cubicles with segregated compartments
- Top relay/instrument compartment with meters and indicator lights
- Middle circuit-breaker truck compartment with ventilated mesh window
- Lower cable compartment with ventilated mesh door
- Withdrawable circuit-breaker truck for safe isolation and maintenance

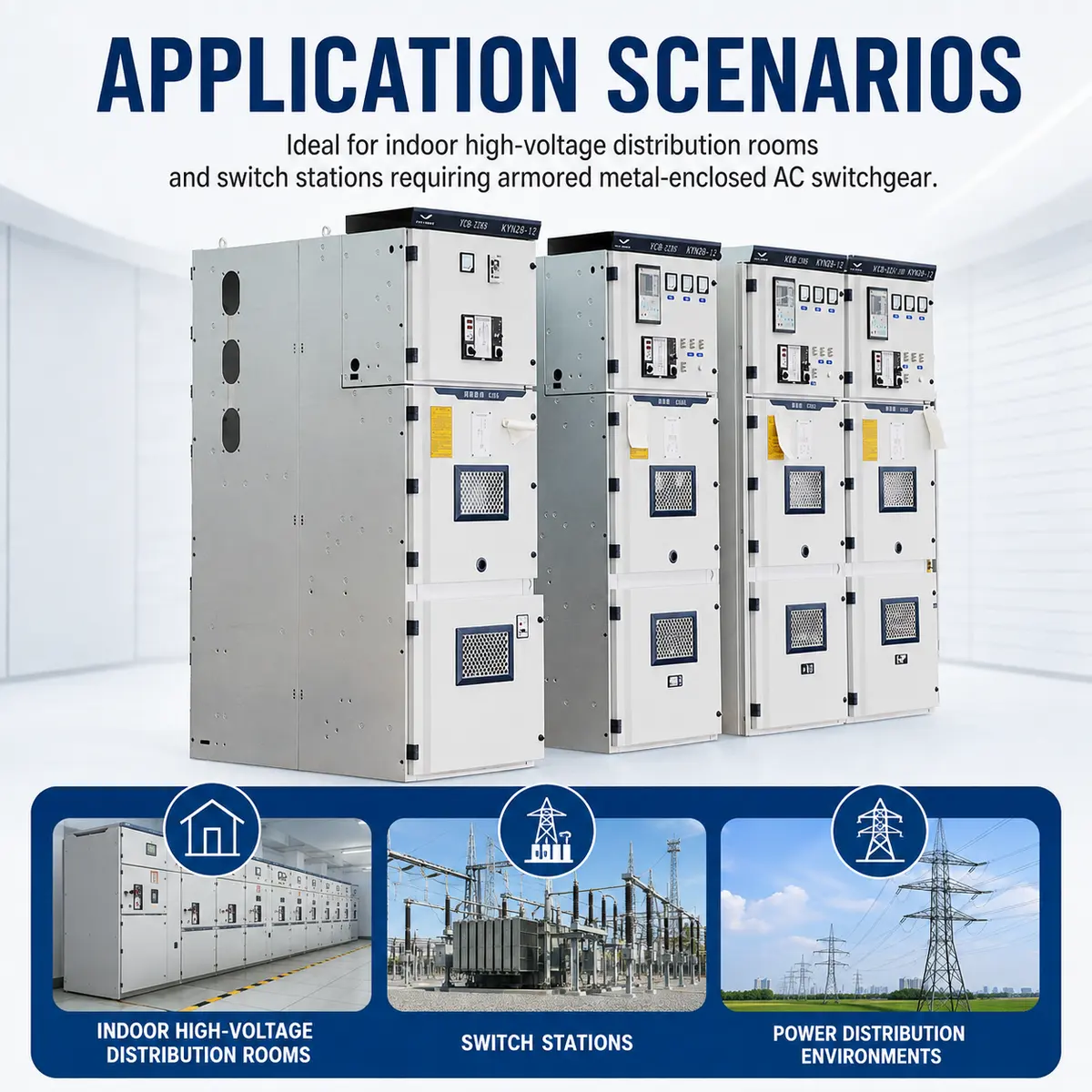

Typical applications

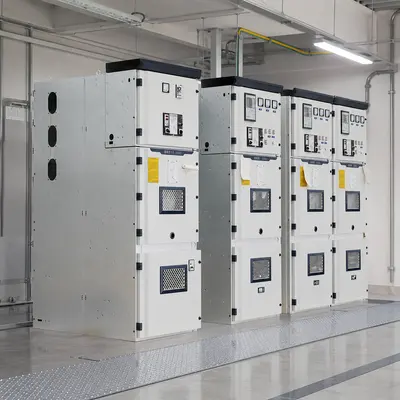

Ideal for indoor high-voltage distribution rooms, substations, industrial power supply, and utility main switchboard installations from 10kV to 33kV.

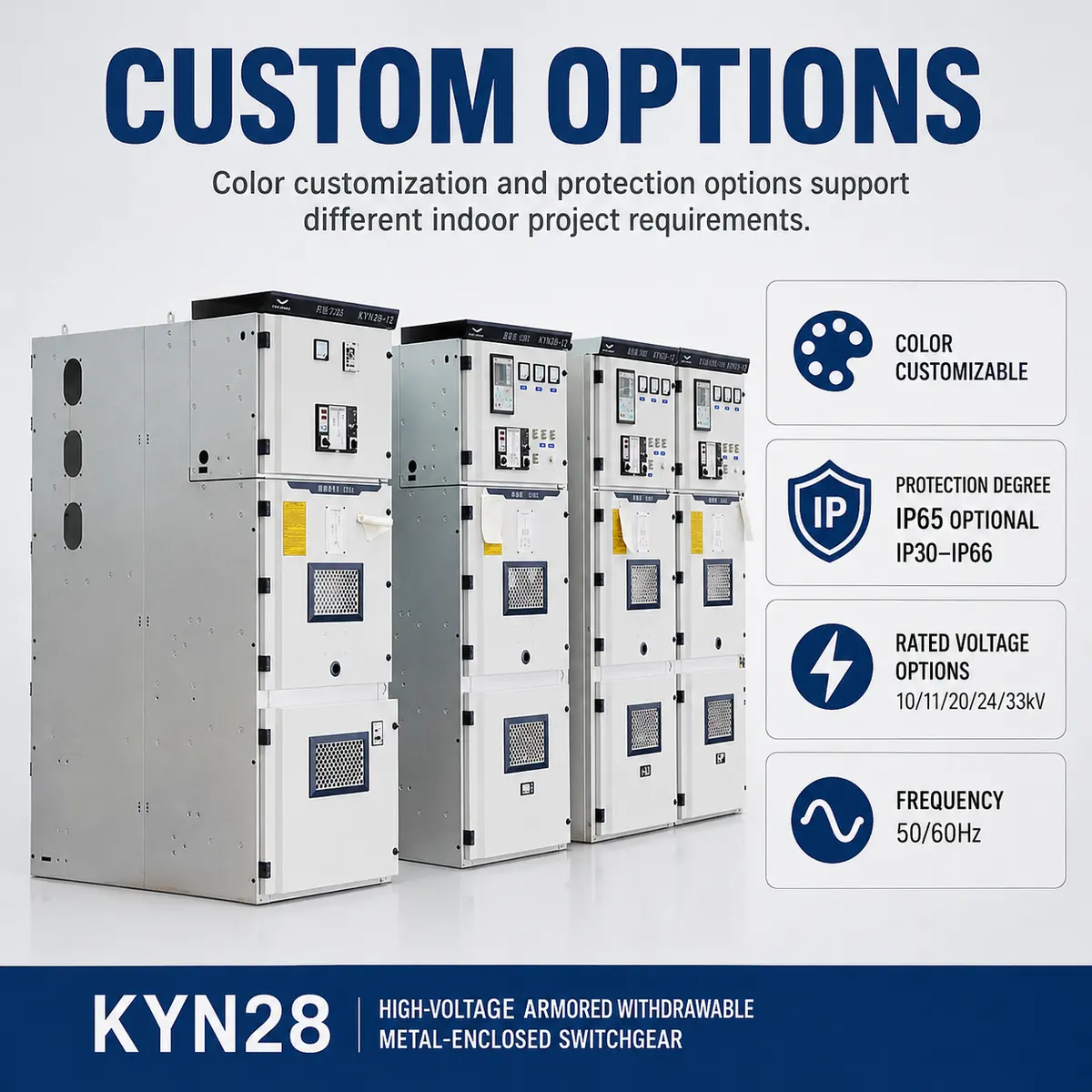

Customisation options
Protection level (IP30–IP66), cabinet color, rated voltage/current arrangement, and internal scheme can be tailored to project requirements.
Ordering information
Please confirm rated voltage, rated current, protection level, and circuit scheme when ordering.
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
